Display Modules - LED Dot Matrix and Cluster
Display Modules - LED Dot Matrix and Cluster units are Devices that use a light emitting diodes arranged in a matrix layout to provide visual graphics. Typically arranged in grid pattern with either the positive or negative terminal of the light emitting diode tied together as a common circuit node. Available in a variety of sizes and colors, these units can accept a wide range of interfaces from I2C, 8-bit parallel, serial and ASCII inputs.
Product List
Total Components: 175
| Product | Pricing | Datasheet | Millicandela Rating | Internal Connection | Size / Dimension | Color | Configuration | Voltage - Forward (Vf) (Typ) | Interface | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|

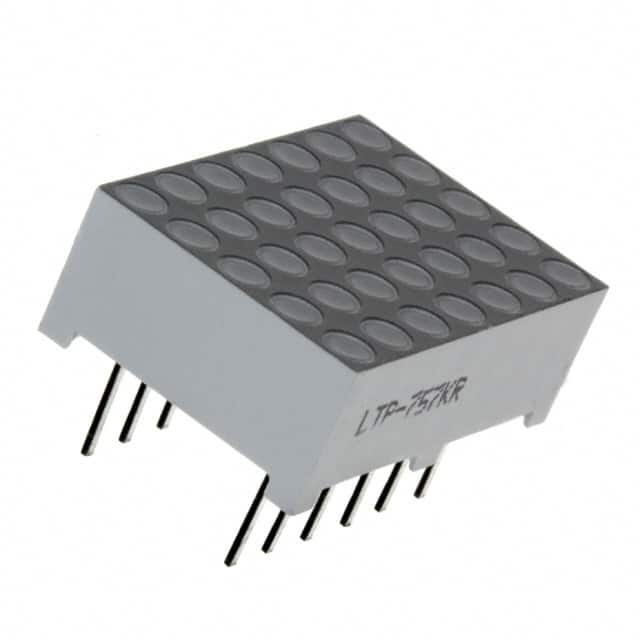

 LTP-757KR LITEON | 1 $4.5300 | Datasheet | 3.4mcd | Common Anode Row, Common Cathode Column | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | Red | 5 x 7 | 2V | - | 6,720 Cart + RFQ |
 LTP-747KR LITEON | 1 $4.5300 | Datasheet | 3.4mcd | Common Cathode Row, Common Anode Column | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | Red | 5 x 7 | 2V | - | 9,692 Cart + RFQ |
 LTP-2158AHR LITEON | 1 $6.4400 | Datasheet | 4.8mcd | Common Anode Row, Common Cathode Column | 1.50" L x 2.39" W x 0.35" H (38.10mm x 60.80mm x 8.90mm) | Red | 5 x 8 | 2V | - | 2,654 Cart + RFQ |
LTP-757G LITEON | 1 $3.7100 | Datasheet | 2mcd | Common Anode Row, Common Cathode Column | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | Green | 5 x 7 | 2.1V | - | 4,483 Cart + RFQ |
 LTP-1057AG LITEON | 1 $1.8560 | Datasheet | 4mcd | Common Cathode Row, Common Anode Column | 0.89" L x 1.54" W x 0.32" H (22.60mm x 39.10mm x 8.00mm) | Green | 5 x 7 | 2.1V | - | 9,469 Cart + RFQ |
LTP-747G LITEON | 1 $1.9950 | Datasheet | 2mcd | Common Cathode Row, Common Anode Column | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | Green | 5 x 7 | 2.1V | - | 3,339 Cart + RFQ |
LTP-757KY LITEON | 1 $2.0283 | Datasheet | 3.4mcd | Common Anode Row, Common Cathode Column | 0.50" L x 0.70" W x 0.25" H (12.66mm x 17.74mm x 6.30mm) | Amber-Yellow | 5 x 7 | 2.05V | - | 5,288 Cart + RFQ |
LTP-1057AHR LITEON | 1 $2.2813 | Datasheet | 4mcd | Common Cathode Row, Common Anode Column | 0.89" L x 1.54" W x 0.32" H (22.60mm x 39.10mm x 8.00mm) | Red | 5 x 7 | 2V | - | 6,426 Cart + RFQ |
LTP-1557AC LITEON | 1 $2.3393 | Datasheet | 12mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.25" W x 0.32" H (22.60mm x 31.80mm x 8.00mm) | Red | 5 x 7 | 1.8V | - | 6,263 Cart + RFQ |
LTP-1457AKR LITEON | 1 $2.6100 | Datasheet | 3.8mcd | Common Cathode Row, Common Anode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Red | 5 x 7 | 2.1V | - | 1,937 Cart + RFQ |
LTP-2057AKR LITEON | 1 $2.7650 | Datasheet | 3.5mcd | Common Cathode Row, Common Anode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Red | 5 x 7 | 2V | - | 3,354 Cart + RFQ |
LTP-1257AA-01 LITEON | 1 $4.3010 | Datasheet | 4.8mcd Green, 4.8mcd Orange-Red | Common Cathode Row, Common Anode Column | 0.90" L x 1.25" W x 0.32" H (22.90mm x 31.80mm x 8.00mm) | Green, Orange-Red | 5 x 7 | 2.1V Green, 2V Orange-Red | - | 8,939 Cart + RFQ |
LTP-2088AC LITEON | 1 $8.2588 | Datasheet | 12mcd | Common Cathode Row, Common Anode Column | 2.37" L x 2.37" W x 0.36" H (60.20mm x 60.20mm x 9.10mm) | Red | 8 x 8 | 1.8V | - | 9,426 Cart + RFQ |
LTP-4157AC LITEON | 1 $17.7188 | Datasheet | 20mcd | Common Anode Row, Common Cathode Column | 2.99" L x 4.20" W x 0.51" H (76.00mm x 106.55mm x 13.00mm) | Red | 5 x 7 | 3.6V | - | 3,828 Cart + RFQ |
LTP-305G LITEON | Datasheet | 1.6mcd | Common Cathode Row, Common Anode Column | 0.39" L x 0.73" W x 0.14" H (9.80mm x 18.50mm x 3.50mm) | Green | 5 x 7 | 2.1V | - | 8,190 Cart + RFQ | |
LTP-757HR LITEON | Datasheet | 2mcd | Common Anode Row, Common Cathode Column | 0.50" L x 0.70" W x 0.25" H (12.70mm x 17.70mm x 6.30mm) | Red | 5 x 7 | 2.1V | - | 9,864 Cart + RFQ | |
LTP-1557AG LITEON | Datasheet | 4.8mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.25" W x 0.32" H (22.60mm x 31.80mm x 8.00mm) | Green | 5 x 7 | 2.1V | - | 5,752 Cart + RFQ | |
LTP-1557AHR LITEON | Datasheet | 3mcd | Common Anode Row, Common Cathode Column | 0.89" L x 1.25" W x 0.32" H (22.60mm x 31.80mm x 8.00mm) | Red | 5 x 7 | 2.1V | - | 7,169 Cart + RFQ | |
LTP-2157AG LITEON | Datasheet | 4.8mcd | Common Anode Row, Common Cathode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Green | 5 x 7 | 2.1V | - | 8,587 Cart + RFQ | |
LTP-2157AHR LITEON | Datasheet | 4.8mcd | Common Anode Row, Common Cathode Column | 1.50" L x 2.09" W x 0.34" H (38.10mm x 53.10mm x 8.60mm) | Red | 5 x 7 | 2V | - | 2,428 Cart + RFQ |
