Display Modules - LED Character and Numeric
Display Modules - LED Character and Numeric are devices that can display characters and numbers by individually illuminating segments of LEDs. Commonly referred to as “7 segment displays” they are most often used to display numbers either individually or with multiple displays joined together, units with more segments (14 or 16) can also display alphabetic characters as well.
Product List
Total Components: 725
| Product | Pricing | Datasheet | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HDSM-281C Avago Technologies (Broadcom) | 1 $3.1700 | Datasheet | - | 1 | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW | 12-SMD, No Lead, 11 Pads | 4,599 Cart + RFQ |
HDSM-281H Avago Technologies (Broadcom) | 1 $3.5600 | Datasheet | - | 1 | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 6mcd | 572nm | 65mW | 12-SMD, No Lead, 11 Pads | 6,300 Cart + RFQ |
HDSM-283B Avago Technologies (Broadcom) | 1 $5.2800 | Datasheet | - | 1 | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Blue | 3.3V | 20mA | 6mcd | 462nm | 100mW | 12-SMD, No Lead, 11 Pads | 4,217 Cart + RFQ |

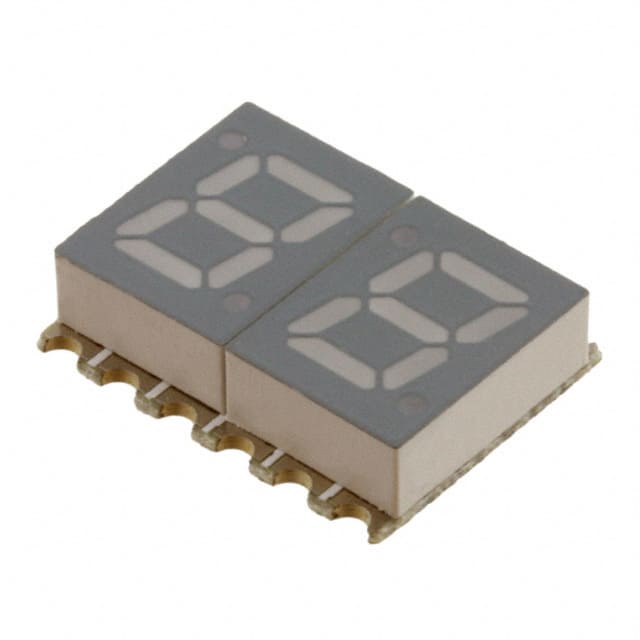

 HDSM-291C Avago Technologies (Broadcom) | 1 $5.7200 | Datasheet | - | 2 | 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW | 10-SMD, No Lead | 8,685 Cart + RFQ |
HDSM-293C Avago Technologies (Broadcom) | 1 $5.7200 | Datasheet | - | 2 | 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW | 10-SMD, No Lead | 2,776 Cart + RFQ |

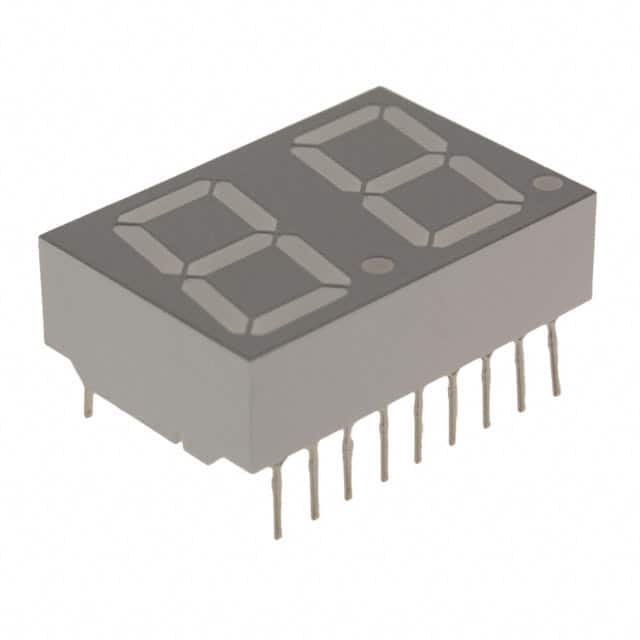

 HDSP-521A Avago Technologies (Broadcom) | 1 $2.7700 | Datasheet | - | 2 | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.85V | 20mA | 6.5mcd | 660nm | 30mW | 18-DIP (0.600", 15.24mm) | 4,825 Cart + RFQ |

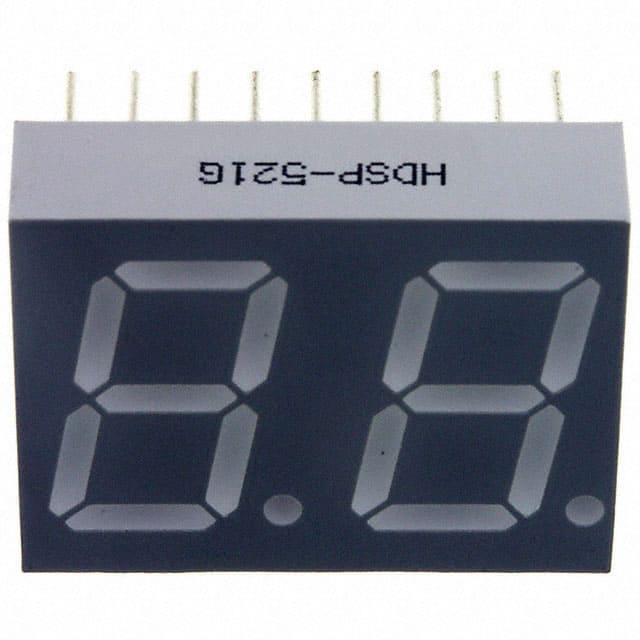

 HDSP-521G Avago Technologies (Broadcom) | 1 $2.7700 | Datasheet | - | 2 | 0.732" H x 0.984" W x 0.315" D (18.60mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 3.5mcd | 568nm | 105mW | 18-DIP (0.600", 15.24mm) | 5,798 Cart + RFQ |

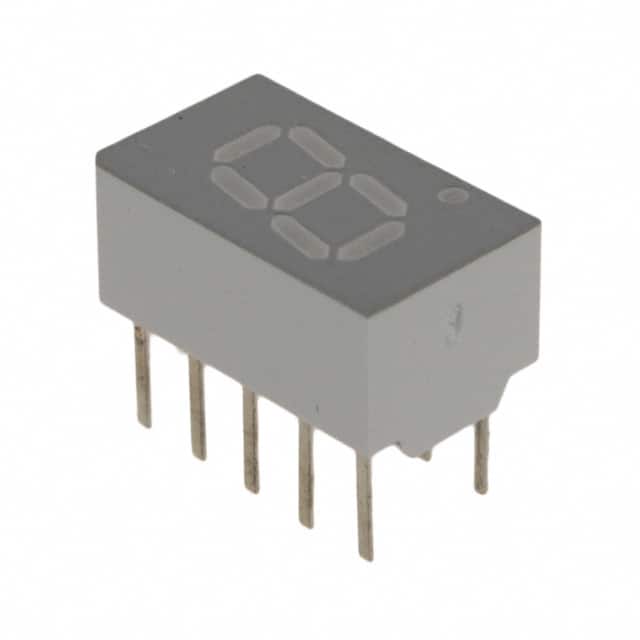

 HDSP-7403 Avago Technologies (Broadcom) | 1 $3.3200 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW | 10-DIP (0.200", 5.08mm) | 6,374 Cart + RFQ |

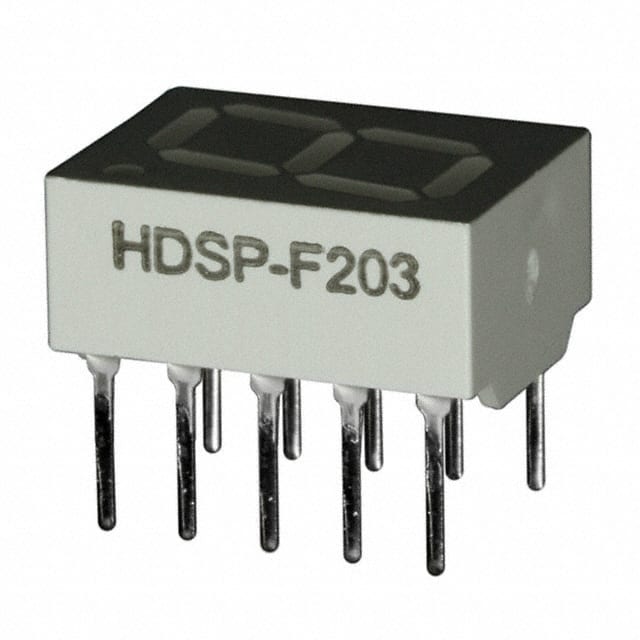

 HDSP-F203 Avago Technologies (Broadcom) | 1 $3.3600 | Datasheet | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 1.2mcd | 635nm | 105mW | 10-DIP (0.300", 7.62mm) | 8,476 Cart + RFQ |

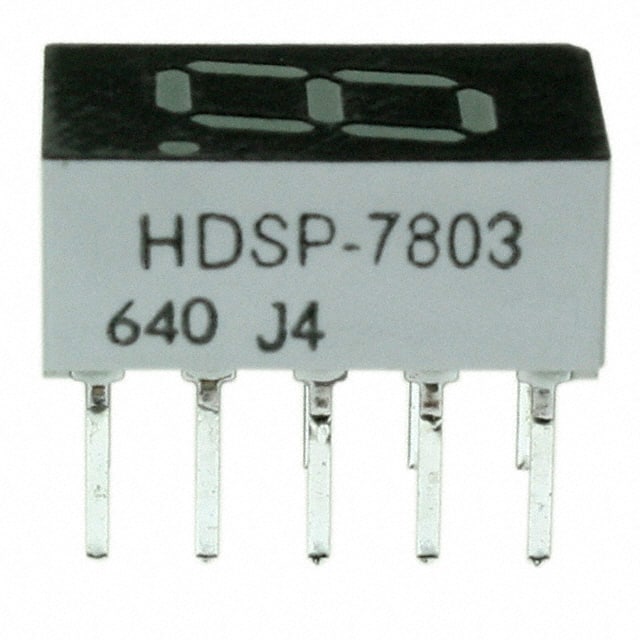

 HDSP-7803 Avago Technologies (Broadcom) | 1 $3.6200 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 6.8mcd | 566nm | 105mW | 10-DIP (0.200", 5.08mm) | 4,421 Cart + RFQ |

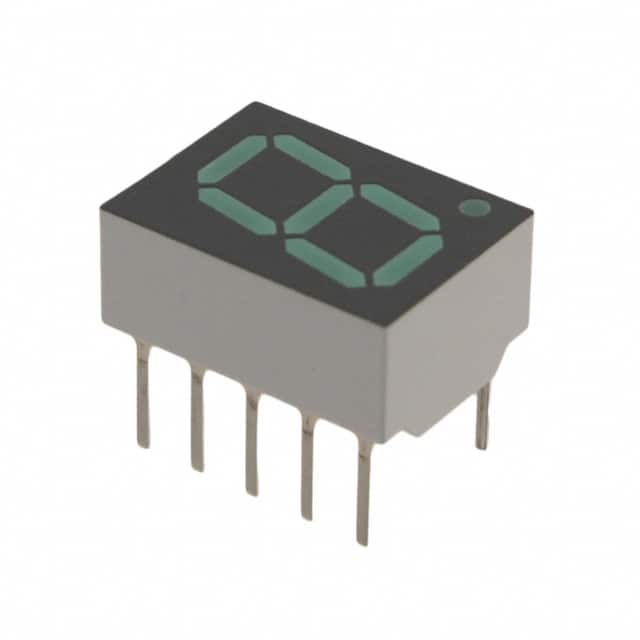

 HDSP-F503 Avago Technologies (Broadcom) | 1 $3.5900 | Datasheet | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 3.5mcd | 566nm | 105mW | 10-DIP (0.300", 7.62mm) | 9,133 Cart + RFQ |

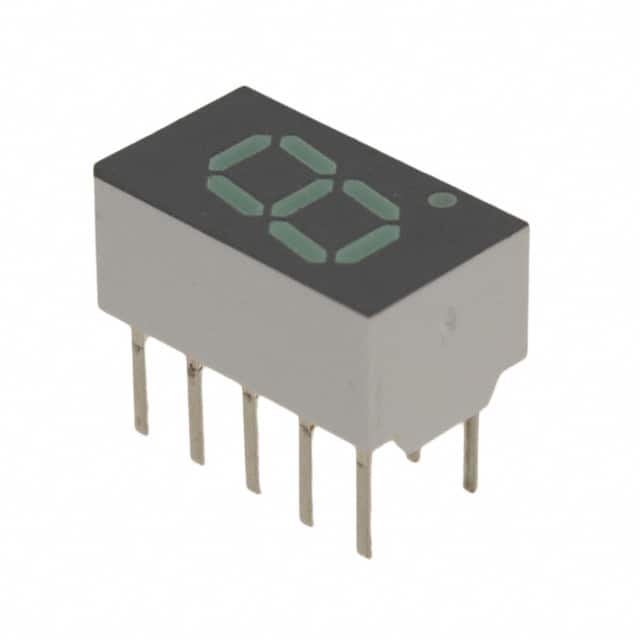

 HDSP-7801 Avago Technologies (Broadcom) | 1 $3.8700 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 6.8mcd | 566nm | 105mW | 10-DIP (0.200", 5.08mm) | 3,627 Cart + RFQ |
 HDSP-7501 Avago Technologies (Broadcom) | 1 $3.8700 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW | 10-DIP (0.200", 5.08mm) | 7,735 Cart + RFQ |

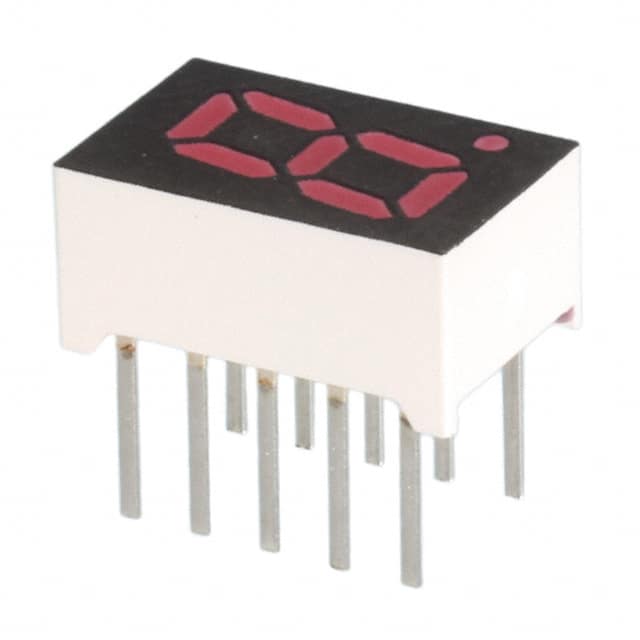

 HDSP-U211 Avago Technologies (Broadcom) | 1 $3.8900 | Datasheet | - | 1 | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW | 10-DIP (0.209", 5.30mm) | 8,797 Cart + RFQ |

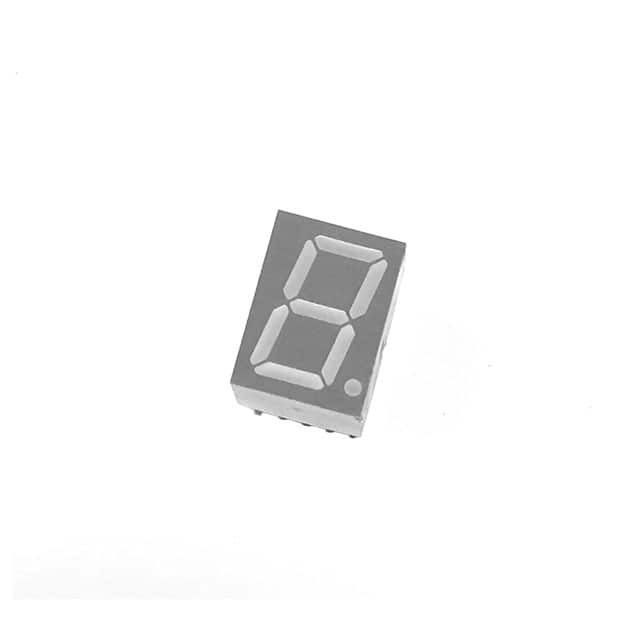

 HDSP-5601 Avago Technologies (Broadcom) | 1 $3.8700 | Datasheet | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW | 10-DIP (0.600", 15.24mm) | 1,778 Cart + RFQ |

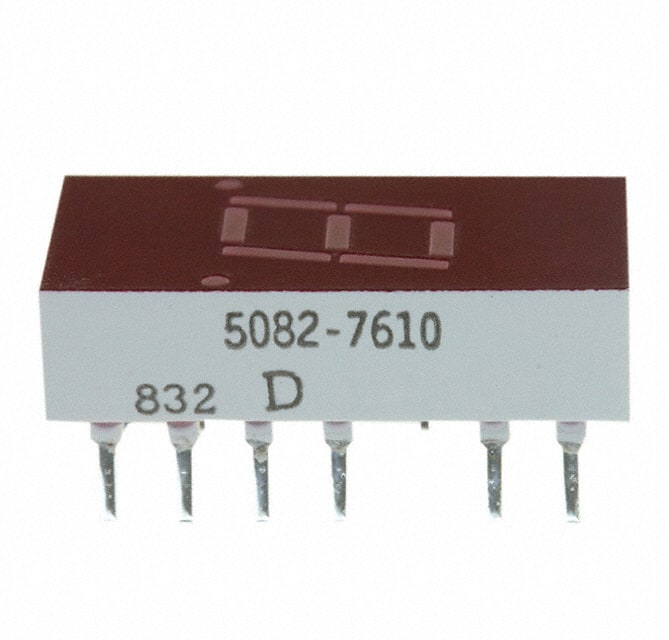

 5082-7610 Avago Technologies (Broadcom) | 1 $4.2900 | Datasheet | - | 1 | 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 0.8mcd | 635nm | 105mW | 14-DIP (0.300", 7.62mm), 11 Leads | 8,502 Cart + RFQ |

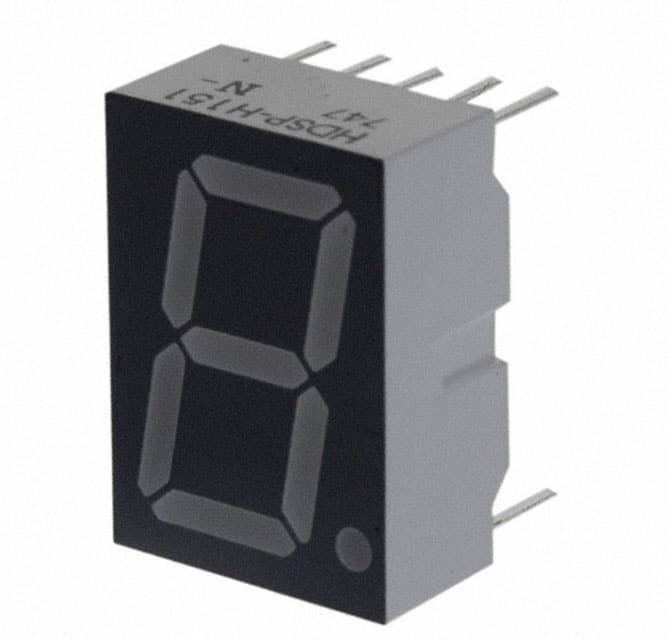

 HDSP-H151 Avago Technologies (Broadcom) | 1 $7.5600 100 $6.0480 500 $5.0400 | Datasheet | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.8V | 20mA | 16mcd | 645nm | 96mW | 10-DIP (0.600", 15.24mm) | 100 Cart + RFQ |

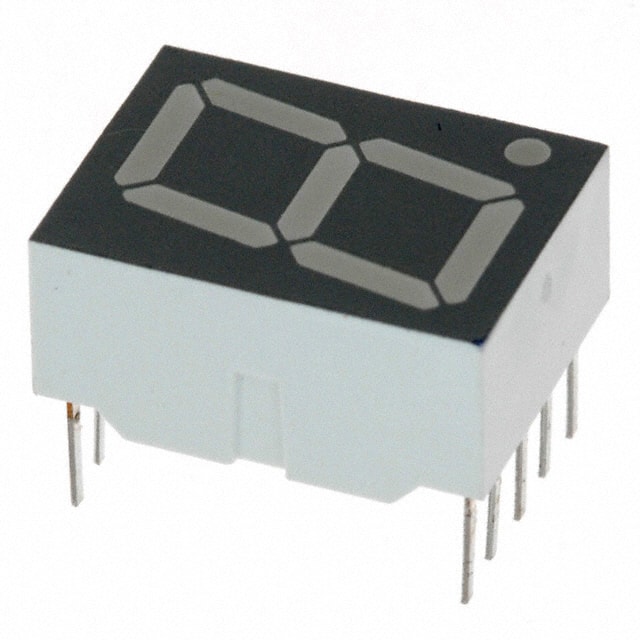

 HDSP-H103 Avago Technologies (Broadcom) | 1 $4.8700 | Datasheet | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW | 10-DIP (0.600", 15.24mm) | 1,366 Cart + RFQ |

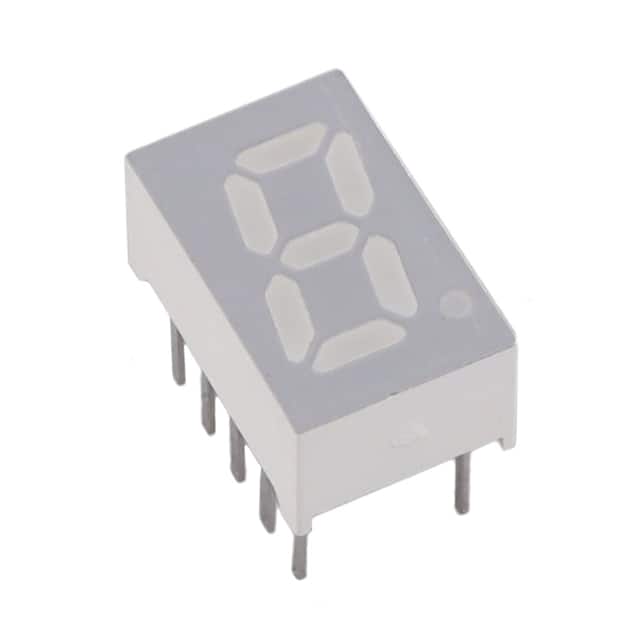

 HDSP-U101 Avago Technologies (Broadcom) | 1 $4.9700 | Datasheet | - | 1 | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.6mcd | 645nm | 37mW | 10-DIP (0.209", 5.30mm) | 5,308 Cart + RFQ |

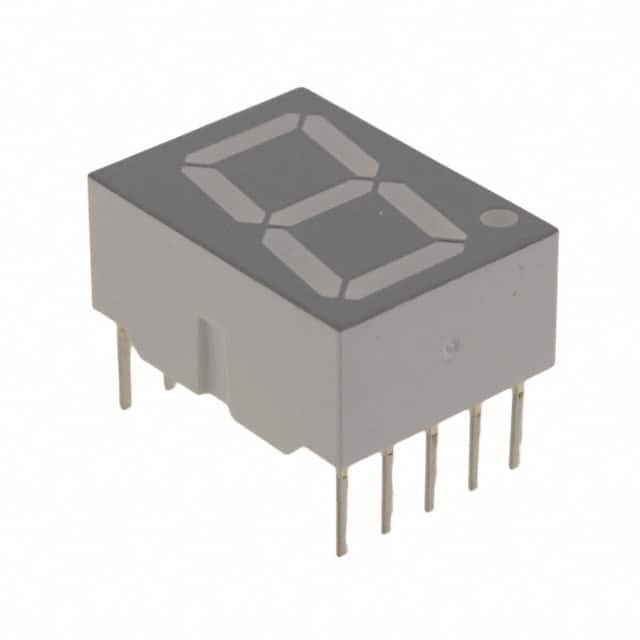

 HDSP-H101 Avago Technologies (Broadcom) | 1 $4.9600 | Datasheet | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW | 10-DIP (0.600", 15.24mm) | 3,442 Cart + RFQ |
