Display Modules - LED Character and Numeric
Display Modules - LED Character and Numeric are devices that can display characters and numbers by individually illuminating segments of LEDs. Commonly referred to as “7 segment displays” they are most often used to display numbers either individually or with multiple displays joined together, units with more segments (14 or 16) can also display alphabetic characters as well.
Product List
Total Components: 265
| Product | Pricing | Datasheet | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XZFMDK07A SunLED | 1 $3.1900 | Datasheet | - | 1 | 0.472" H x 0.287" W x 0.148" D (12.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 1.85V | 10mA | 27mcd | 650nm | 75mW | 10-SMD, No Lead | 8,713 Cart + RFQ |
 XZFMDK07C SunLED | 1 $3.4300 | Datasheet | - | 1 | 0.472" H x 0.287" W x 0.148" D (12.00mm x 7.30mm x 3.75mm) | 0.30" (7.60mm) | 7-Segment | Common Cathode | Red | 1.85V | 10mA | 7mcd | 645nm | 75mW | 10-SMD, No Lead | 6,033 Cart + RFQ |
 XZFCBD14A SunLED | 1 $3.3800 | Datasheet | - | 1 | 0.748" H x 0.488" W x 0.148" D (19.00mm x 12.40mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Blue | 3V | 10mA | 15mcd | 468nm | 120mW | 10-SMD, No Lead | 8,230 Cart + RFQ |
 XDCBD14A SunLED | 1 $3.3900 | Datasheet | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Blue | 3V | 10mA | 24mcd | 468nm | 120mW | 10-DIP (0.600", 15.24mm) | 9,320 Cart + RFQ |
 XZFMDK05A SunLED | 1 $3.1900 | Datasheet | - | 1 | 0.394" H x 0.272" W x 0.118" D (10.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Red | 1.85V | 10mA | 30mcd | 650nm | 75mW | 10-SMD, No Lead | 8,126 Cart + RFQ |

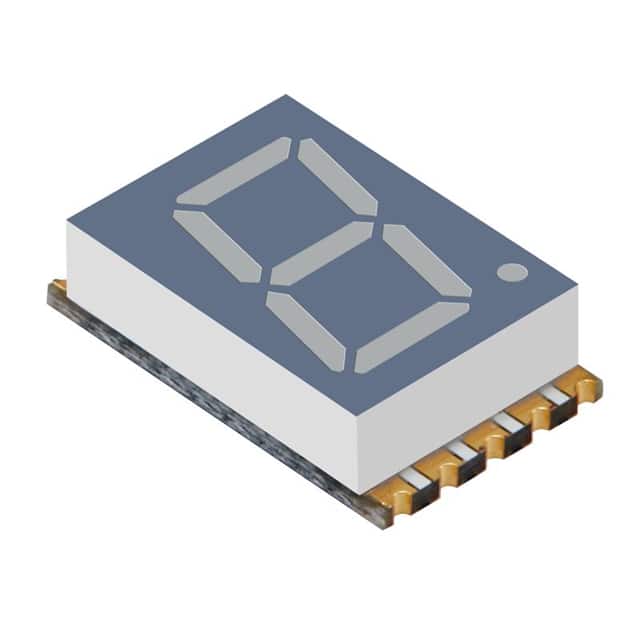

 XZFMDK10A SunLED | 1 $3.3000 | Datasheet | - | 1 | 0.591" H x 0.358" W x 0.148" D (15.00mm x 9.10mm x 3.75mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.85V | 10mA | 27mcd | 650nm | 75mW | 10-SMD, No Lead | 3,041 Cart + RFQ |
XDMYK14A SunLED | 1 $0.6507 | Datasheet | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Yellow | 1.95V | 10mA | 48mcd | 590nm | 75mW | 10-DIP (0.600", 15.24mm) | 1,429 Cart + RFQ |
XDUR13A SunLED | 1 $0.6507 | Datasheet | - | 1 | 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) | 0.52" (13.21mm) | 7-Segment | Common Anode | Red | 1.9V | 10mA | 2mcd | 627nm | 75mW | 10-DIP (0.600", 15.24mm) | 2,613 Cart + RFQ |
XDUR13C SunLED | 1 $0.6507 | Datasheet | - | 1 | 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) | 0.52" (13.21mm) | 7-Segment | Common Cathode | Red | 1.9V | 10mA | 2mcd | 627nm | 75mW | 10-DIP (0.600", 15.24mm) | 7,781 Cart + RFQ |
XDVG14A SunLED | 1 $0.6507 | Datasheet | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 12mcd | 574nm | 75mW | 10-DIP (0.600", 15.24mm) | 3,067 Cart + RFQ |
XDVG14C SunLED | 1 $0.6507 | Datasheet | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2V | 10mA | 11mcd | 574nm | 75mW | 10-DIP (0.600", 15.24mm) | 8,990 Cart + RFQ |
XDUR06C SunLED | 1 $0.7137 | Datasheet | - | 1 | 0.512" H x 0.295" W x 0.256" D (13.00mm x 7.50mm x 6.50mm) | 0.32" (8.00mm) | 7-Segment | Common Cathode | Red | 1.9V | 10mA | 2mcd | 627nm | 75mW | 10-DIP (0.200", 5.08mm) | 2,908 Cart + RFQ |
XDUY06A SunLED | 1 $0.7137 | Datasheet | - | 1 | 0.512" H x 0.295" W x 0.256" D (13.00mm x 7.50mm x 6.50mm) | 0.32" (8.00mm) | 7-Segment | Common Anode | Yellow | 1.95V | 10mA | 2mcd | 590nm | 75mW | 10-DIP (0.200", 5.08mm) | 3,393 Cart + RFQ |
XDUY06C SunLED | 1 $0.7137 | Datasheet | - | 1 | 0.512" H x 0.295" W x 0.256" D (13.00mm x 7.50mm x 6.50mm) | 0.32" (8.00mm) | 7-Segment | Common Cathode | Yellow | 1.95V | 10mA | 2mcd | 590nm | 75mW | 10-DIP (0.200", 5.08mm) | 7,240 Cart + RFQ |
XDUG06A SunLED | 1 $0.7549 | Datasheet | - | 1 | 0.512" H x 0.295" W x 0.256" D (13.00mm x 7.50mm x 6.50mm) | 0.32" (8.00mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 2mcd | 565nm | 62.5mW | 10-DIP (0.200", 5.08mm) | 1,918 Cart + RFQ |
XDUG08A SunLED | 1 $0.7632 | Datasheet | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 2mcd | 565nm | 62.5mW | 10-DIP (0.300", 7.62mm) | 8,220 Cart + RFQ |
XDUG08C SunLED | 1 $0.7632 | Datasheet | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Green | 2V | 10mA | 2mcd | 565nm | 62.5mW | 10-DIP (0.300", 7.62mm) | 4,380 Cart + RFQ |
XDUR08C SunLED | 1 $0.7632 | Datasheet | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Red | 1.9V | 10mA | 1mcd | 627nm | 75mW | 10-DIP (0.300", 7.62mm) | 5,242 Cart + RFQ |
XDUY08A SunLED | 1 $0.7632 | Datasheet | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Yellow | 1.95V | 10mA | 1mcd | 590nm | 75mW | 10-DIP (0.300", 7.62mm) | 3,068 Cart + RFQ |
XDUY08C SunLED | 1 $0.7632 | Datasheet | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Yellow | 1.95V | 10mA | 1mcd | 590nm | 75mW | 10-DIP (0.300", 7.62mm) | 7,616 Cart + RFQ |
