Display Modules - LED Character and Numeric
Display Modules - LED Character and Numeric are devices that can display characters and numbers by individually illuminating segments of LEDs. Commonly referred to as “7 segment displays” they are most often used to display numbers either individually or with multiple displays joined together, units with more segments (14 or 16) can also display alphabetic characters as well.
Product List
Total Components: 343
| Product | Pricing | Datasheet | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LDD-SMHTA304RISITR Lumex, Inc. | 1 $3.6300 | Datasheet | - | 2 | 0.394" H x 0.583" W x 0.157" D (10.00mm x 14.80mm x 4.00mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 4.5mcd | 640nm | 60mW | 20-SMD, No Lead | 8,319 Cart + RFQ |

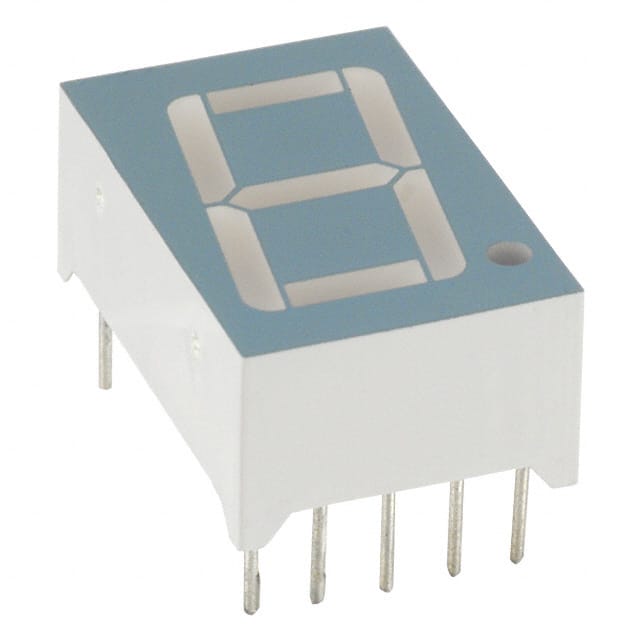

 LDS-A516RI Lumex, Inc. | 1 $2.3200 | Datasheet | - | 1 | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.8V | 10mA | 12mcd | 660nm | 100mW | 10-DIP (0.600", 15.24mm) | 3,799 Cart + RFQ |

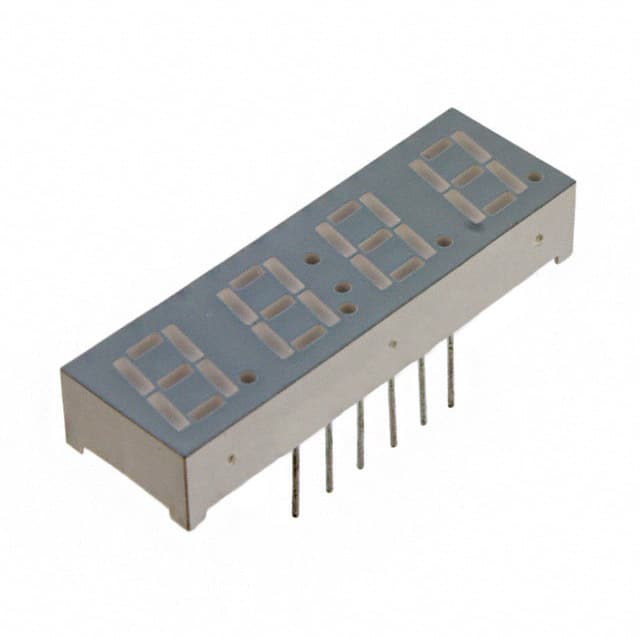

 LDQ-M516RI Lumex, Inc. | 1 $9.0800 | Datasheet | - | 4 | 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.8V | 10mA | 13.3mcd | 660nm | 100mW | 12-DIP (0.600", 15.24mm) | 8,101 Cart + RFQ |

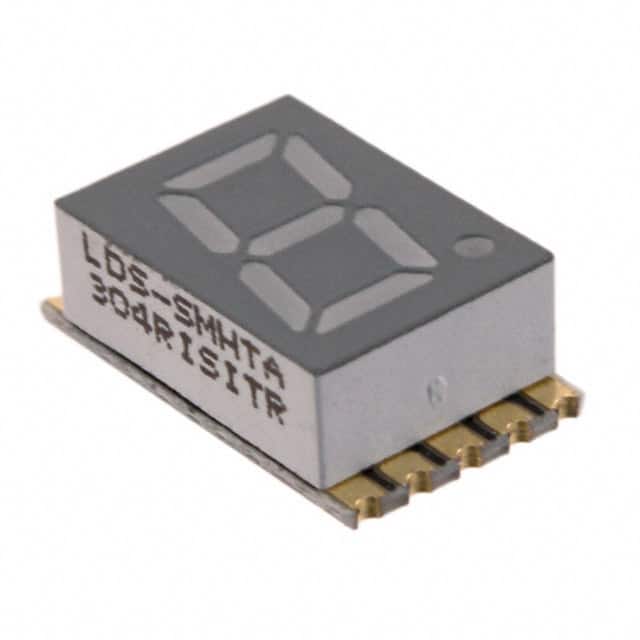

 LDS-SMHTA304RISITR Lumex, Inc. | 1 $2.3500 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.154" D (10.00mm x 7.30mm x 3.90mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 4.5mcd | 640nm | 60mW | 10-SMD, No Lead | 2,826 Cart + RFQ |
LDS-A514RI Lumex, Inc. | 1 $1.8000 | Datasheet | - | 1 | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 3.9mcd | 635nm | 105mW | 10-DIP (0.600", 15.24mm) | 5,280 Cart + RFQ |

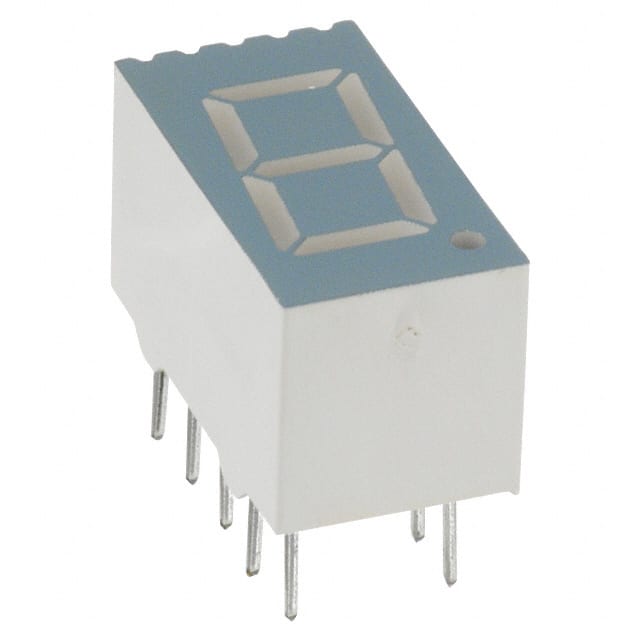

 LDS-C322RI Lumex, Inc. | 1 $1.9400 | Datasheet | - | 1 | 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) | 0.36" (9.14mm) | 7-Segment | Common Cathode | Green | 2.2V | 10mA | 2.5mcd | 565nm | 105mW | 10-DIP (0.200", 5.08mm) | 8,940 Cart + RFQ |

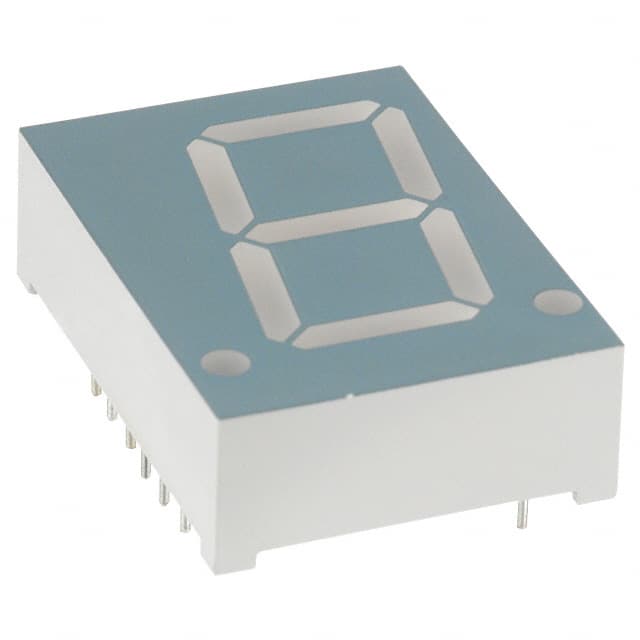

 LDS-C814RI Lumex, Inc. | 1 $2.2400 | Datasheet | - | 1 | 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 5.6mcd | 635nm | 105mW | 16-DIP (0.600", 15.24mm), 13 Leads | 3,554 Cart + RFQ |
LDS-C516RI Lumex, Inc. | 1 $2.3500 | Datasheet | - | 1 | 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.8V | 20mA | 13.3mcd | 660nm | 100mW | 10-DIP (0.600", 15.24mm) | 3,396 Cart + RFQ |

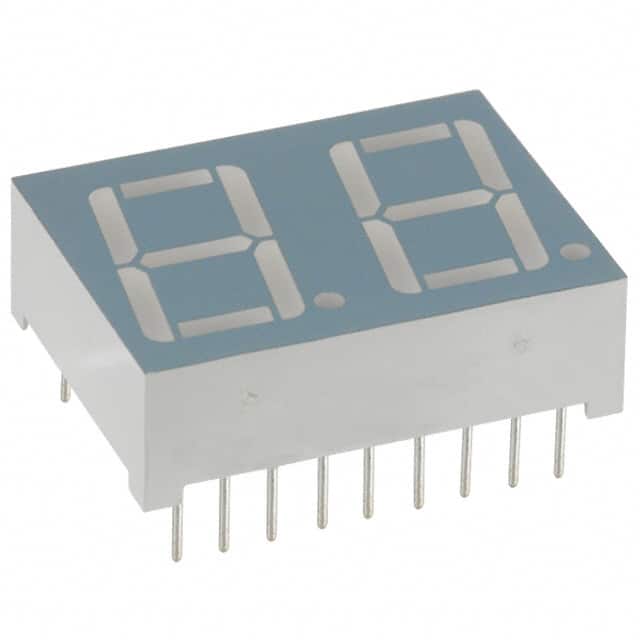

 LDD-C514RI Lumex, Inc. | 1 $2.5600 | Datasheet | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 3.9mcd | 635nm | 105mW | 18-DIP (0.600", 15.24mm) | 9,122 Cart + RFQ |
LDS-A3923RI-SY Lumex, Inc. | 1 $0.7152 | Datasheet | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.39" (9.90mm) | 7-Segment | Common Anode | Yellow | 2V | 10mA | 13mcd | 590nm | 105mW | 10-DIP (0.300", 7.62mm) | 7,025 Cart + RFQ |
LDS-A5642RI Lumex, Inc. | 1 $0.7152 | Datasheet | - | 1 | 0.673" H x 0.496" W x 0.315" D (17.10mm x 12.60mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.2V | 10mA | 3.9mcd | 565nm | 105mW | 10-DIP (0.600", 15.24mm) | 3,404 Cart + RFQ |
LDS-A504RI Lumex, Inc. | 1 $0.7974 | Datasheet | - | 1 | 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) | 0.50" (12.70mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 5mcd | 635nm | 105mW | 10-DIP (0.600", 15.24mm) | 1,073 Cart + RFQ |
LDS-A3926RI Lumex, Inc. | 1 $0.7974 | Datasheet | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.39" (9.90mm) | 7-Segment | Common Anode | Red | 1.8V | 10mA | 6mcd | 660nm | 105mW | 10-DIP (0.300", 7.62mm) | 5,702 Cart + RFQ |
LDS-C352RI Lumex, Inc. | 1 $0.8002 | Datasheet | - | 1 | 0.500" H x 0.299" W x 0.240" D (12.70mm x 7.60mm x 6.10mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.2V | 10mA | 2.5mcd | 565nm | 105mW | 10-DIP (0.200", 5.08mm) | 6,290 Cart + RFQ |
LDS-C404RI Lumex, Inc. | 1 $0.8030 | Datasheet | - | 1 | 0.736" H x 0.386" W x 0.197" D (18.70mm x 9.80mm x 5.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 2.1V | 10mA | 5mcd | 635nm | 105mW | 14-DIP (0.300", 7.62mm), 10 Leads | 1,863 Cart + RFQ |
LDS-A3914RI Lumex, Inc. | 1 $0.8044 | Datasheet | - | 1 | 0.512" H x 0.394" W x 0.276" D (13.00mm x 10.00mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 5.6mcd | 635nm | 105mW | 10-DIP (0.300", 7.62mm) | 4,275 Cart + RFQ |
LDS-A3506RD Lumex, Inc. | 1 $0.8214 | Datasheet | - | 1 | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.32" (8.00mm) | 7-Segment | Common Anode | Red | 1.8V | 10mA | 7mcd | 660nm | 105mW | 10-DIP (0.209", 5.30mm) | 5,787 Cart + RFQ |
LDS-A812RI Lumex, Inc. | 1 $0.8441 | Datasheet | - | 1 | 1.091" H x 0.787" W x 0.331" D (27.70mm x 20.00mm x 8.40mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 2.5mcd | 565nm | 105mW | 16-DIP (0.600", 15.24mm), 13 Leads | 9,164 Cart + RFQ |
LDD-HTF304NI Lumex, Inc. | 1 $0.8922 | Datasheet | - | 2 | 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 2mcd | 635nm | 105mW | 10-DIP (0.400", 10.16mm), 9 Leads | 7,150 Cart + RFQ |
LDD-HTC514RI Lumex, Inc. | 1 $0.8922 | Datasheet | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 3.9mcd | 635nm | 105mW | 18-DIP (0.600", 15.24mm) | 1,301 Cart + RFQ |
