Display Modules - LED Character and Numeric
Display Modules - LED Character and Numeric are devices that can display characters and numbers by individually illuminating segments of LEDs. Commonly referred to as “7 segment displays” they are most often used to display numbers either individually or with multiple displays joined together, units with more segments (14 or 16) can also display alphabetic characters as well.
Product List
Total Components: 856
| Product | Pricing | Datasheet | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LSHD-A101 LITEON | 1 $1.2800 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 9mcd | 650nm | 70mW | 10-DIP (0.200", 5.08mm) | 3,046 Cart + RFQ |
 LTS-4802BJR-H1 LITEON | 1 $1.3300 | Datasheet | - | 1 | 0.508" H x 0.382" W x 0.240" D (12.90mm x 9.70mm x 6.10mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 0.65mcd | 639nm | 70mW | 10-DIP (0.300", 7.62mm) | 9,513 Cart + RFQ |
 LSHD-7501 LITEON | 1 $1.3400 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 12mcd | 632nm | 70mW | 10-DIP (0.200", 5.08mm) | 1,428 Cart + RFQ |
 LSHD-7801 LITEON | 1 $1.5800 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 1.6mcd | 565nm | 75mW | 10-DIP (0.200", 5.08mm) | 8,708 Cart + RFQ |
 LSHD-5503 LITEON | 1 $1.7300 | Datasheet | - | 1 | 0.673" H x 0.488" W x 0.315" D (17.10mm x 12.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 17mcd | 632nm | 70mW | 10-DIP (0.600", 15.24mm) | 9,244 Cart + RFQ |

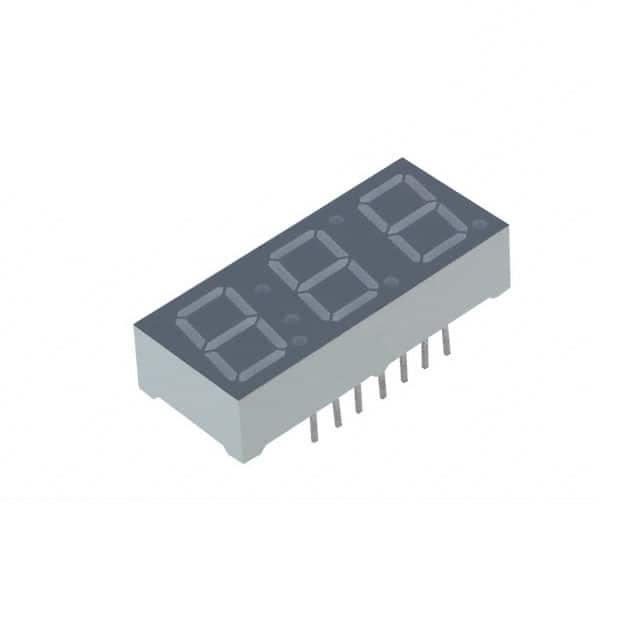

 LTC-4724JR LITEON | 1 $3.2000 | Datasheet | - | 3 | 0.504" H x 1.182" W x 0.276" D (12.80mm x 30.02mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 0.65mcd | 631nm | 70mW | 15-DIP (0.400", 10.16mm), 12 Leads | 4,184 Cart + RFQ |

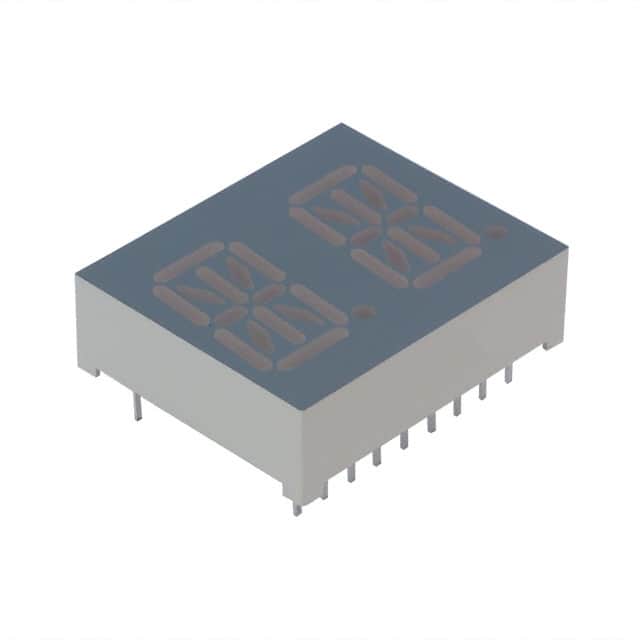

 LTP-3784E LITEON | 1 $3.7500 | Datasheet | - | 2 | 0.833" H x 0.989" W x 0.307" D (21.15mm x 25.12mm x 7.80mm) | 0.54" (13.72mm) | 14-Segment, Alphanumeric | Common Cathode | Orange-Red | 2V | 20mA | 2.3mcd | 630nm | 75mW | 18-DIP | 4,679 Cart + RFQ |

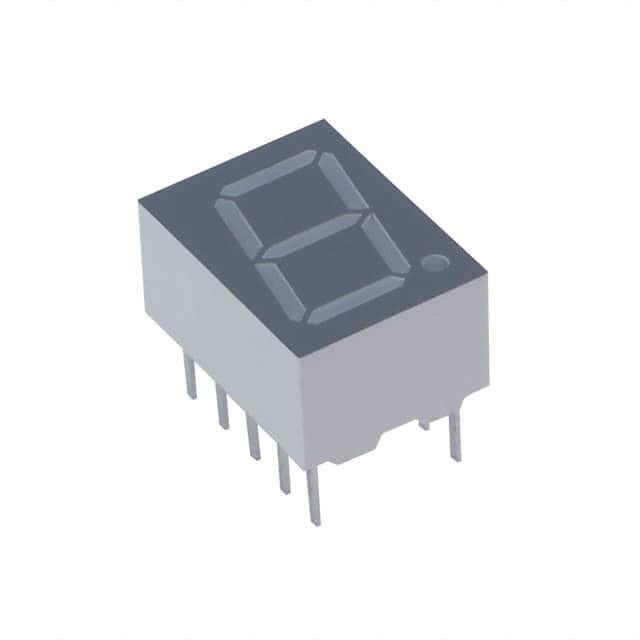

 LTS-4301JR LITEON | 1 $1.4300 | Datasheet | - | 1 | 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 0.52mcd | 639nm | 70mW | 10-DIP (0.300", 7.62mm) | 5,154 Cart + RFQ |
LSHD-7803 LITEON | 1 $1.5800 | Datasheet | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 1.6mcd | 565nm | 75mW | 10-DIP (0.200", 5.08mm) | 6,168 Cart + RFQ |

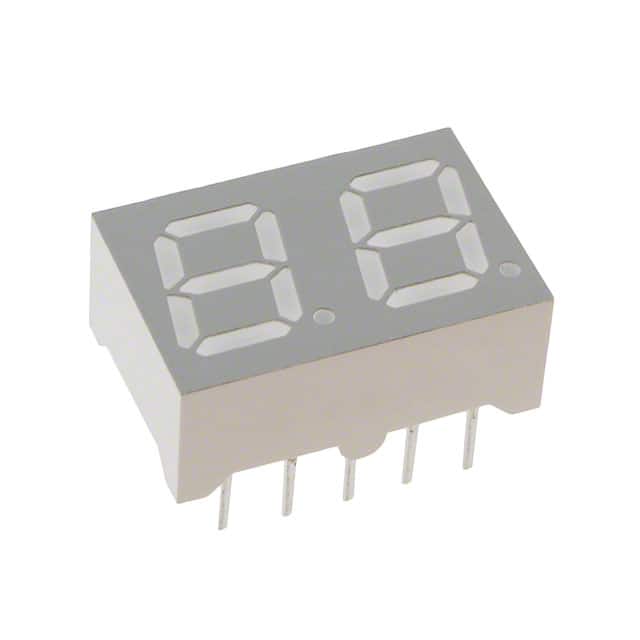

 LTD-2601G LITEON | 1 $1.7200 | Datasheet | - | 2 | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2mcd | 565nm | 75mW | 10-DIP (0.300", 7.62mm) | 7,532 Cart + RFQ |

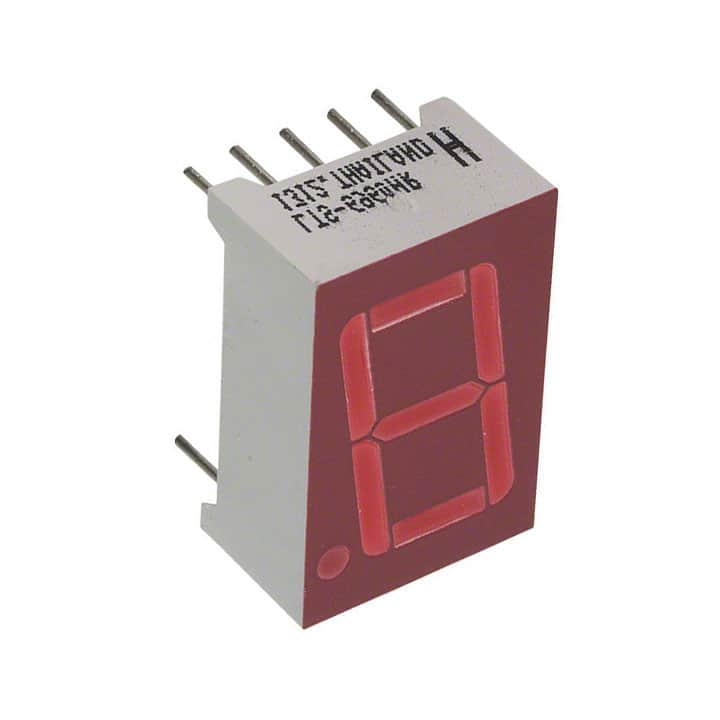

 LTS-6960HR LITEON | 1 $1.7300 | Datasheet | - | 1 | 0.750" H x 0.496" W x 0.315" D (19.05mm x 12.60mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 2.4mcd | 635nm | 75mW | 10-DIP (0.600", 15.24mm) | 9,537 Cart + RFQ |

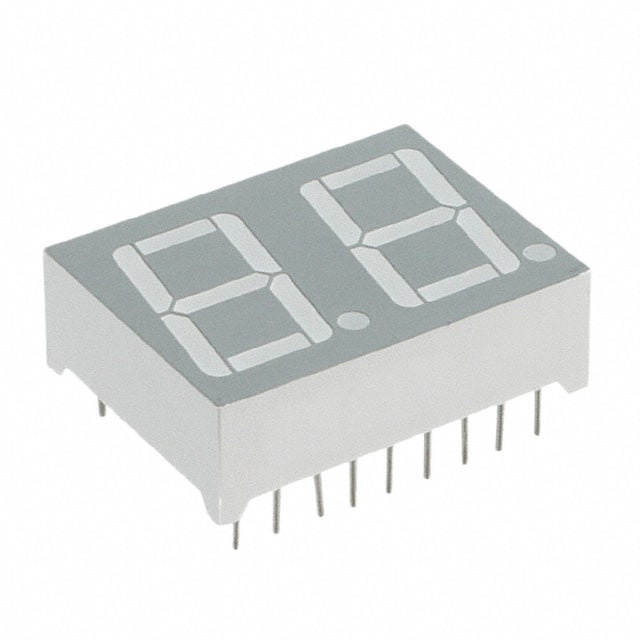

 LTD-6410G LITEON | 1 $1.8900 | Datasheet | - | 2 | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.4mcd | 565nm | 75mW | 18-DIP (0.600", 15.24mm) | 3,556 Cart + RFQ |

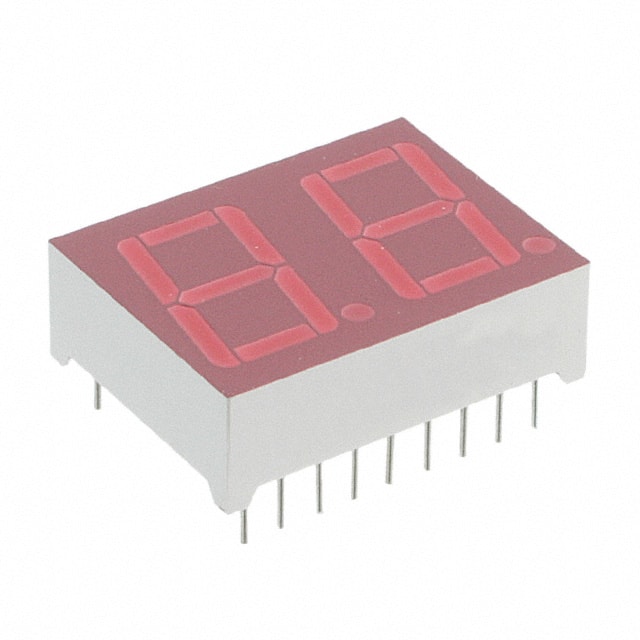

 LTD-6910HR LITEON | 1 $1.9300 | Datasheet | - | 2 | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 2.4mcd | 635nm | 75mW | 18-DIP (0.600", 15.24mm) | 6,376 Cart + RFQ |

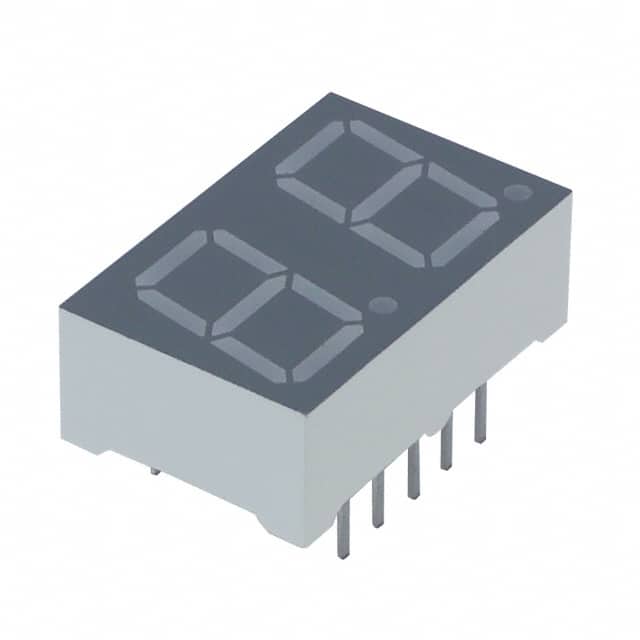

 LTD-4608JR LITEON | 1 $2.0700 | Datasheet | - | 2 | 0.504" H x 0.782" W x 0.276" D (12.80mm x 19.86mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 0.85mcd | 639nm | 70mW | 10-DIP (0.400", 10.16mm) | 1,060 Cart + RFQ |
LTD-2701JD LITEON | 1 $2.0700 | Datasheet | - | 2 | 0.394" H x 0.591" W x 0.240" D (10.00mm x 15.02mm x 6.10mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 0.6mcd | 650nm | 70mW | 10-DIP (0.300", 7.62mm) | 4,479 Cart + RFQ |
LTP-587G LITEON | 1 $2.9200 | Datasheet | - | 1 | 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm) | 0.50" (12.70mm) | 16-Segment, Alphanumeric | Common Anode | Green | 2.1V | 20mA | 2.2mcd | 565nm | 75mW | 18-DIP (0.500", 12.70mm) | 4,948 Cart + RFQ |
LTC-2623G LITEON | 1 $3.6600 | Datasheet | - | 4 | 0.394" H x 1.191" W x 0.240" D (10.00mm x 30.26mm x 6.10mm) | 0.28" (7.00mm) | 7-Segment Clock | Common Anode | Green | 2.1V | 20mA | 2mcd | 565nm | 75mW | 16-DIP (0.300", 7.62mm), 15 Leads | 6,913 Cart + RFQ |
LTS-4801G LITEON | 1 $0.4550 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | 3,053 Cart + RFQ |
LTS-4301E LITEON | 1 $0.4550 | Datasheet | - | 1 | 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Orange-Red | 2V | 20mA | 2.2mcd | 630nm | 75mW | 10-DIP (0.300", 7.62mm) | 1,354 Cart + RFQ |
LTS-4301G LITEON | 1 $0.4550 | Datasheet | - | 1 | 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 2.2mcd | 565nm | 75mW | 10-DIP (0.300", 7.62mm) | 5,613 Cart + RFQ |
