Display Modules - LED Character and Numeric
Display Modules - LED Character and Numeric are devices that can display characters and numbers by individually illuminating segments of LEDs. Commonly referred to as “7 segment displays” they are most often used to display numbers either individually or with multiple displays joined together, units with more segments (14 or 16) can also display alphabetic characters as well.
Product List
Total Components: 582
| Product | Pricing | Datasheet | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) | Package / Case | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ACSC03-41EWA-F01 Kingbright | 1 $3.2800 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 4.21mcd | 627nm | 75mW | 10-SMD, No Lead | 1,769 Cart + RFQ |
 ACSA03-41EWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 4.21mcd | 627nm | 75mW | 10-SMD, No Lead | 1,231 Cart + RFQ |
 ACSA03-41SGWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.2V | 20mA | 3.5mcd | 565nm | 62.5mW | 10-SMD, No Lead | 7,471 Cart + RFQ |
 ACSA02-41SGWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Green | 2.2V | 20mA | 3.9mcd | 565nm | 62.5mW | 10-SMD, No Lead | 9,257 Cart + RFQ |
 ACSC02-41SURKWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Cathode | Red | 1.95V | 20mA | 30mcd | 650nm | 75mW | 10-SMD, No Lead | 4,874 Cart + RFQ |
 ACSA02-41SURKWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 30mcd | 650nm | 75mW | 10-SMD, No Lead | 4,600 Cart + RFQ |
 ACSA02-41CGKWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 12mcd | 574nm | 75mW | 10-SMD, No Lead | 7,377 Cart + RFQ |
ACSC02-41CGKWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 12mcd | 574nm | 75mW | 10-SMD, No Lead | 4,086 Cart + RFQ |
 ACSA56-41CGKWA-F01 Kingbright | 1 $3.0800 | Datasheet | - | 1 | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 25mcd | 574nm | 75mW | 10-SMD, No Lead | 3,864 Cart + RFQ |

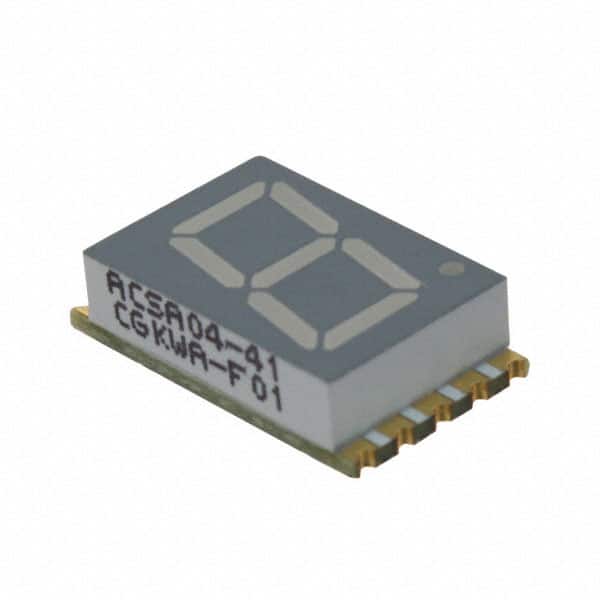

 ACSA04-41CGKWA-F01 Kingbright | 1 $3.2100 | Datasheet | - | 1 | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 11mcd | 574nm | 75mW | 10-SMD, No Lead | 2,364 Cart + RFQ |

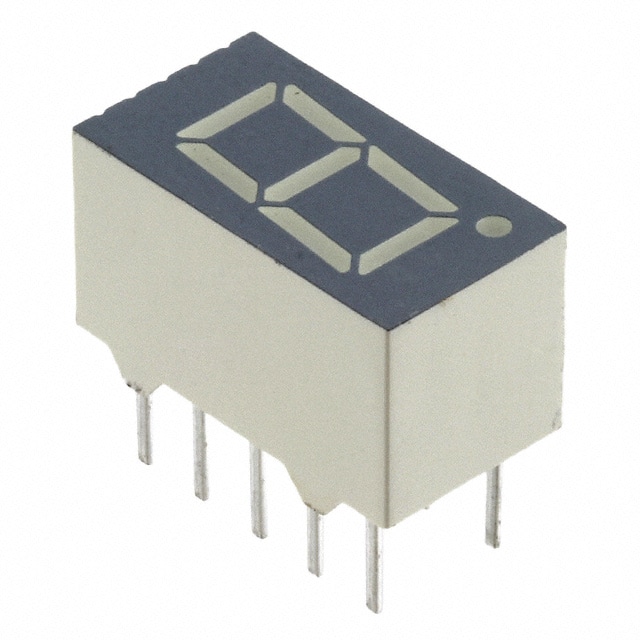

 SA36-11EWA Kingbright | 1 $2.0900 | Datasheet | - | 1 | 0.551" H x 0.295" W x 0.335" D (14.00mm x 7.50mm x 8.50mm) | 0.36" (9.14mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 2.1mcd | 627nm | 75mW | 10-DIP (0.200", 5.08mm) | 6,057 Cart + RFQ |

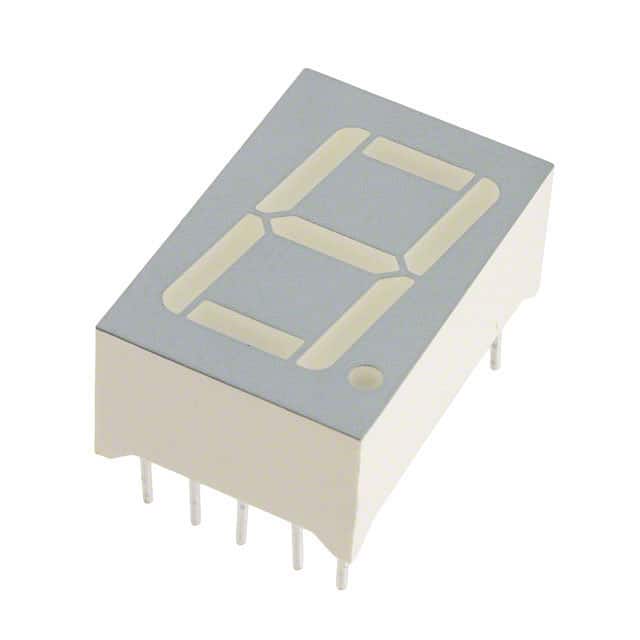

 SC56-21GWA Kingbright | 1 $2.1800 | Datasheet | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.2V | 20mA | 11mcd | 565nm | 62.5mW | 10-DIP (0.600", 15.24mm) | 4,594 Cart + RFQ |

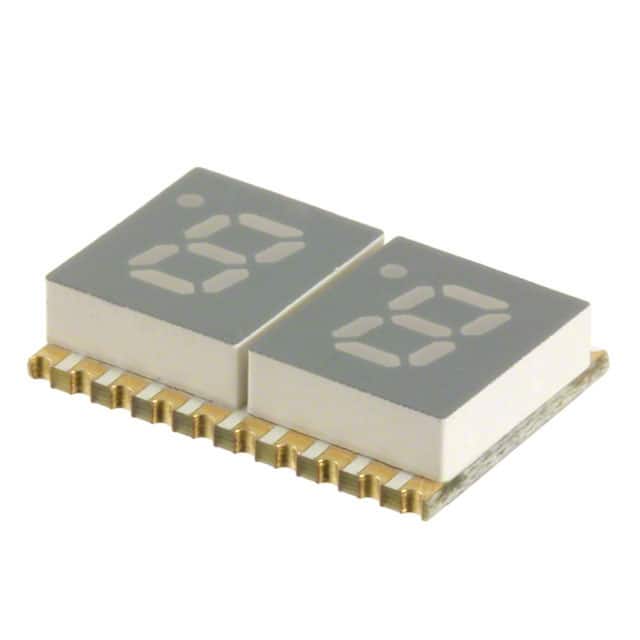

 ACDA02-41SURKWA-F01 Kingbright | 1 $5.4000 | Datasheet | - | 2 | 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 30mcd | 650nm | 75mW | 20-SMD, No Lead | 4,516 Cart + RFQ |

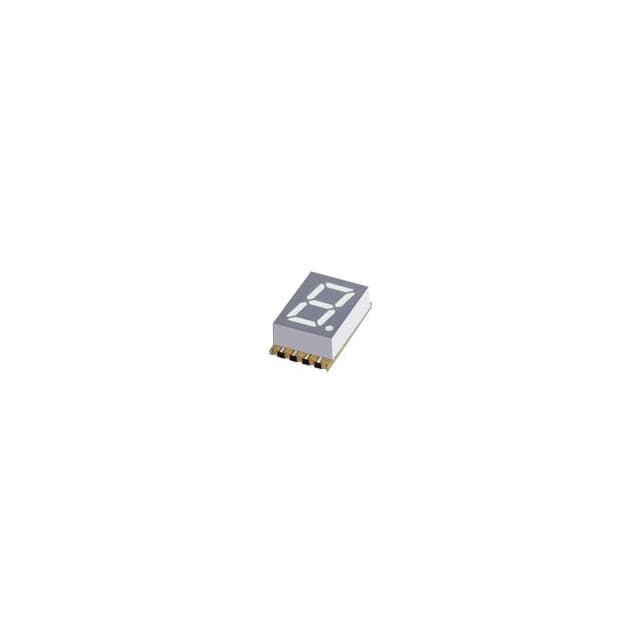

 ACSA03-41SYKWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Yellow | 2V | 20mA | 36mcd | 590nm | 75mW | 10-SMD, No Lead | 3,011 Cart + RFQ |

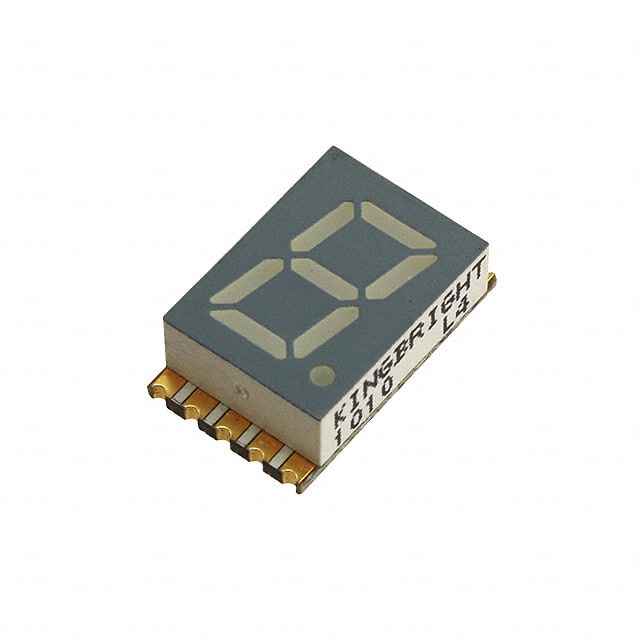

 ACSC03-41SGWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Green | 2.2V | 20mA | 3.5mcd | 565nm | 62.5mW | 10-SMD, No Lead | 2,978 Cart + RFQ |

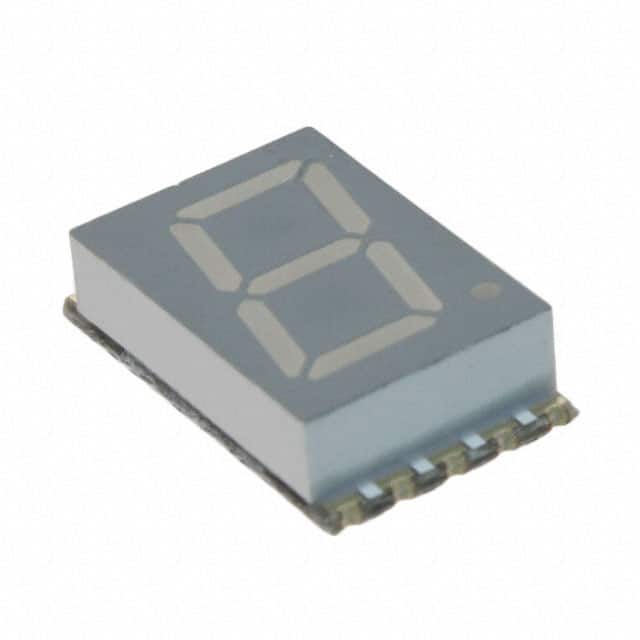

 ACSA03-41SEKWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Orange | 2.1V | 20mA | 46mcd | 610nm | 75mW | 10-SMD, No Lead | 4,859 Cart + RFQ |
 ACSC02-41SGWA-F01 Kingbright | 1 $3.4300 | Datasheet | - | 1 | 0.315" H x 0.272" W x 0.118" D (8.00mm x 6.90mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Cathode | Green | 2.2V | 20mA | 3.9mcd | 565nm | 62.5mW | 10-SMD, No Lead | 5,360 Cart + RFQ |

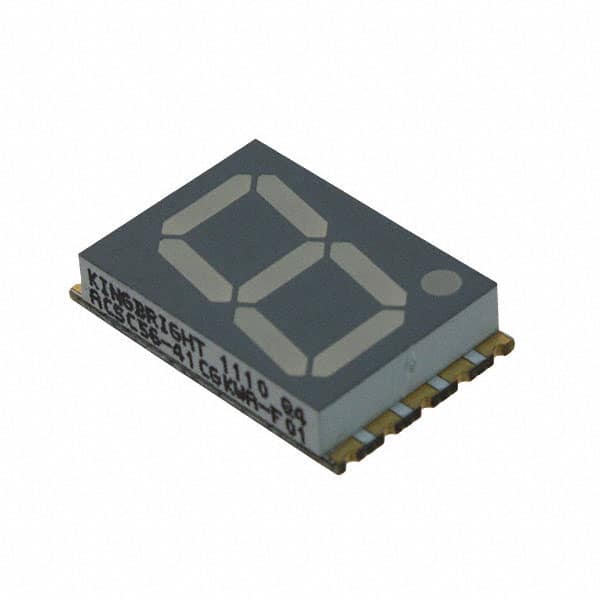

 ACSC56-41CGKWA-F01 Kingbright | 1 $3.0800 | Datasheet | - | 1 | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 25mcd | 574nm | 75mW | 10-SMD, No Lead | 6,090 Cart + RFQ |
 ACSA56-41SURKWA-F01 Kingbright | 1 $3.0800 | Datasheet | - | 1 | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 44mcd | 650nm | 75mW | 10-SMD, No Lead | 9,838 Cart + RFQ |
ACSA04-41SURKWA-F01 Kingbright | 1 $3.4900 | Datasheet | - | 1 | 0.512" H x 0.358" W x 0.148" D (13.00mm x 9.10mm x 3.75mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 27mcd | 650nm | 75mW | 10-SMD, No Lead | 2,922 Cart + RFQ |
