Display Modules - LCD, OLED Character and Numeric
Products within this family are used for visual communication of text oriented information. Based on a variety of display technologies including liquid crystal, e-ink, and organic LEDs, they are distinguished from other display technologies by being conceptually divided into an array of addressable regions, each of which is capable of representing a single symbol, character, or digit. Though ill-suited for displaying images, video, or similar graphical information, their relative simplicity offers advantages in cost, design complexity, durability, etc. in circumstances where such capability is not required. Note that devices which use conventional LEDs to form luminous character segments are specifically excluded and grouped separately.
Product List
Total Components: 66
Product | Pricing | Datasheet | Number of Characters | Display Format | Character Format | Display Type | Display Mode | Character Size | Outline L x W x H | Viewing Area | Backlight | Voltage - Supply | Dot Size | Interface | Controller Type | Operating Temperature | Text Color | Background Color | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

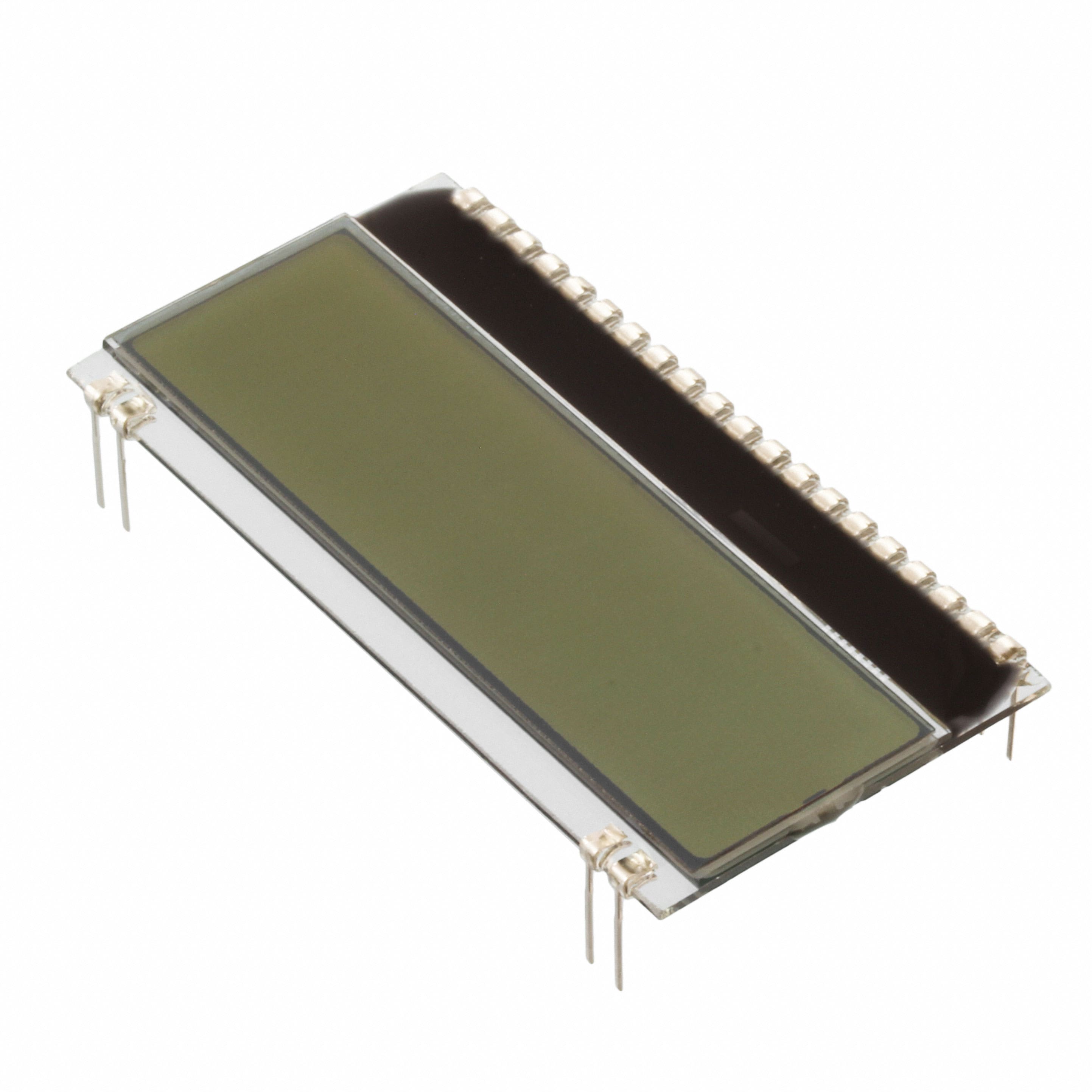

EA DOGM162W-A Display Visions | 1 $17.0900 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Black | White | 3,257 Cart + RFQ |

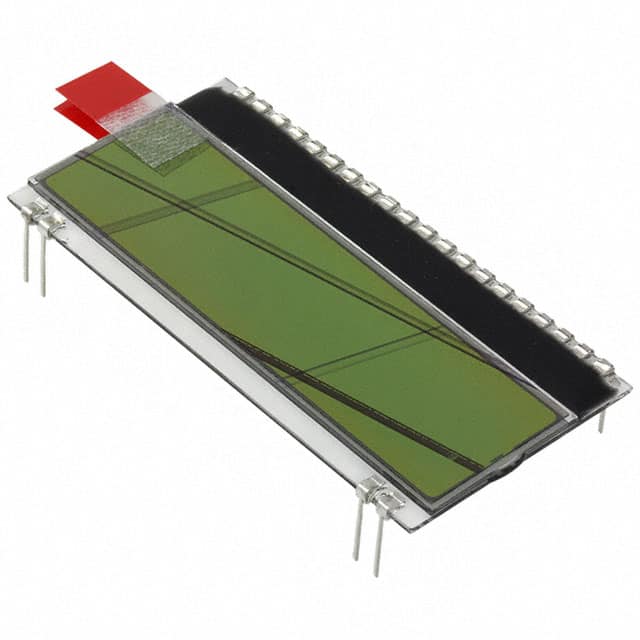

EA DOGM162E-A Display Visions | 1 $17.0900 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green | 8,195 Cart + RFQ |
EA DOGM204W-A Display Visions | 1 $23.6600 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.83mm H x 2.46mm W | 66.00mm x 38.10mm x 2.00mm | 59.00mm L x 26.00mm W | Without Backlight | 3.3V | 0.48mm W x 0.59mm H | I²C, Parallel, SPI | - | -20°C ~ 70°C | Black | White | 3,400 Cart + RFQ |

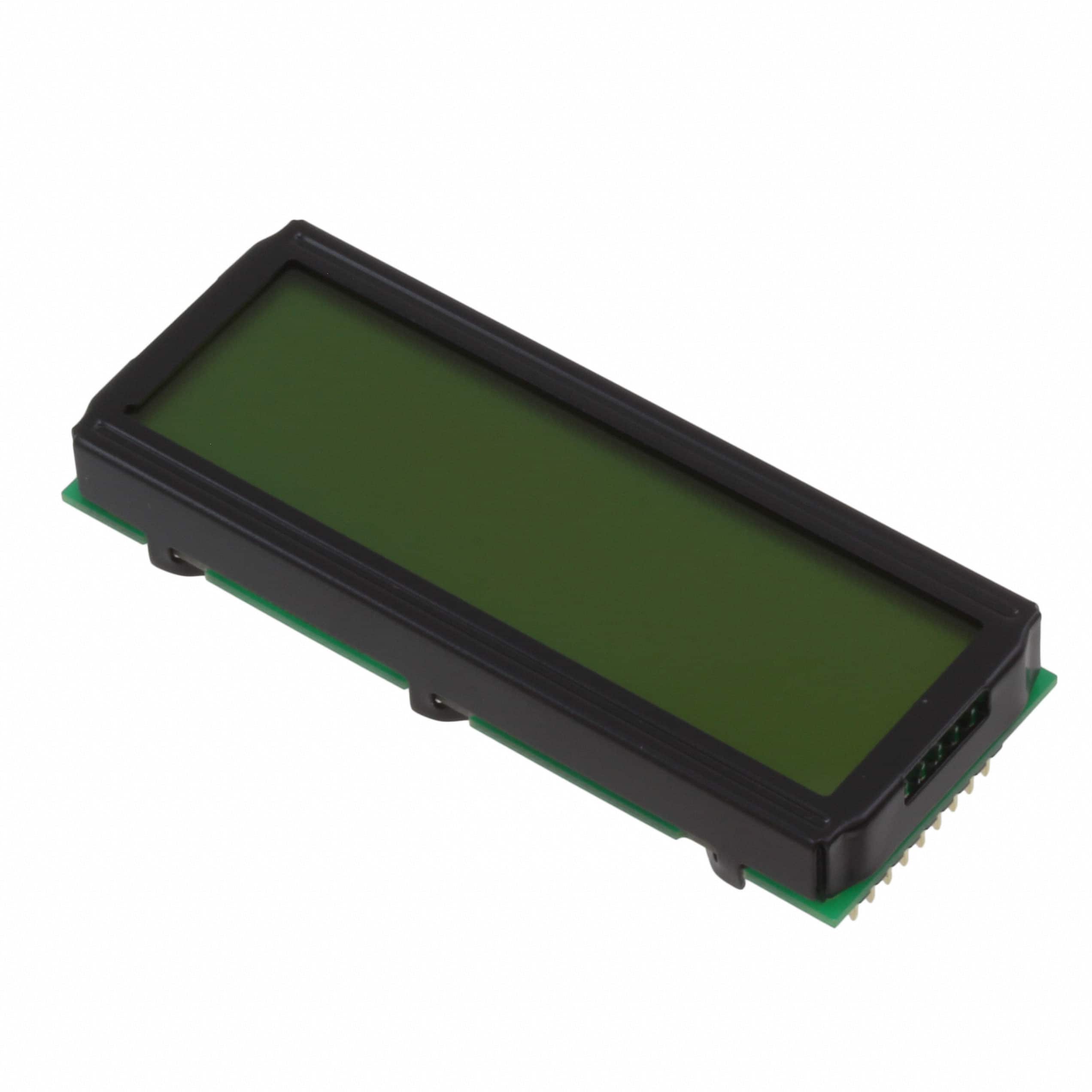

EA DIP203G-4NLED Display Visions | 1 $31.2300 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 3.75mm H x 2.34mm W | 66.00mm x 26.80mm x 10.80mm | 61.00mm L x 19.00mm W | LED - Yellow/Green | 2.7V ~ 3.45V | 0.44mm W x 0.46mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green | 7,962 Cart + RFQ |

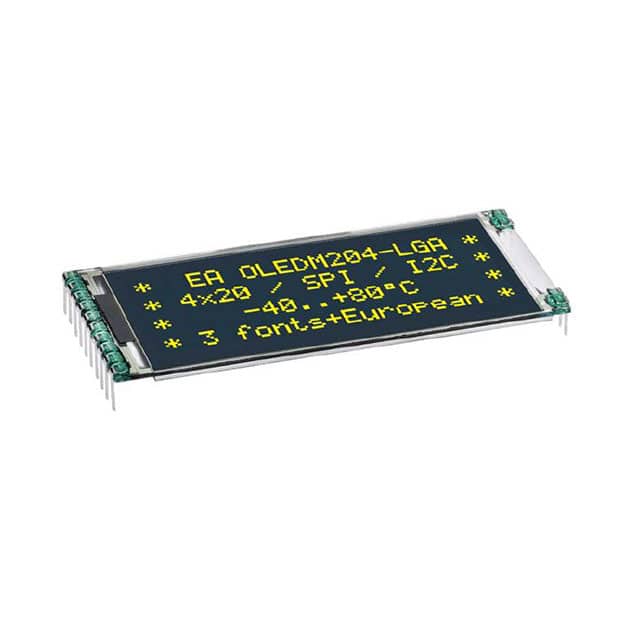

EA OLEDM204-GGA Display Visions | 1 $35.8300 | Datasheet | 80 | 20 x 4 | 5 x 32 Dots | OLED | - | - | 60.96mm x 26.00mm x 2.40mm | 50.00mm L x 20.00mm W | - | 2.4V ~ 3.6V, 4.4V ~ 5.5V | 0.37mm W x 0.51mm H | I²C, SPI | - | -40°C ~ 80°C | Yellow | Black | 1,740 Cart + RFQ |

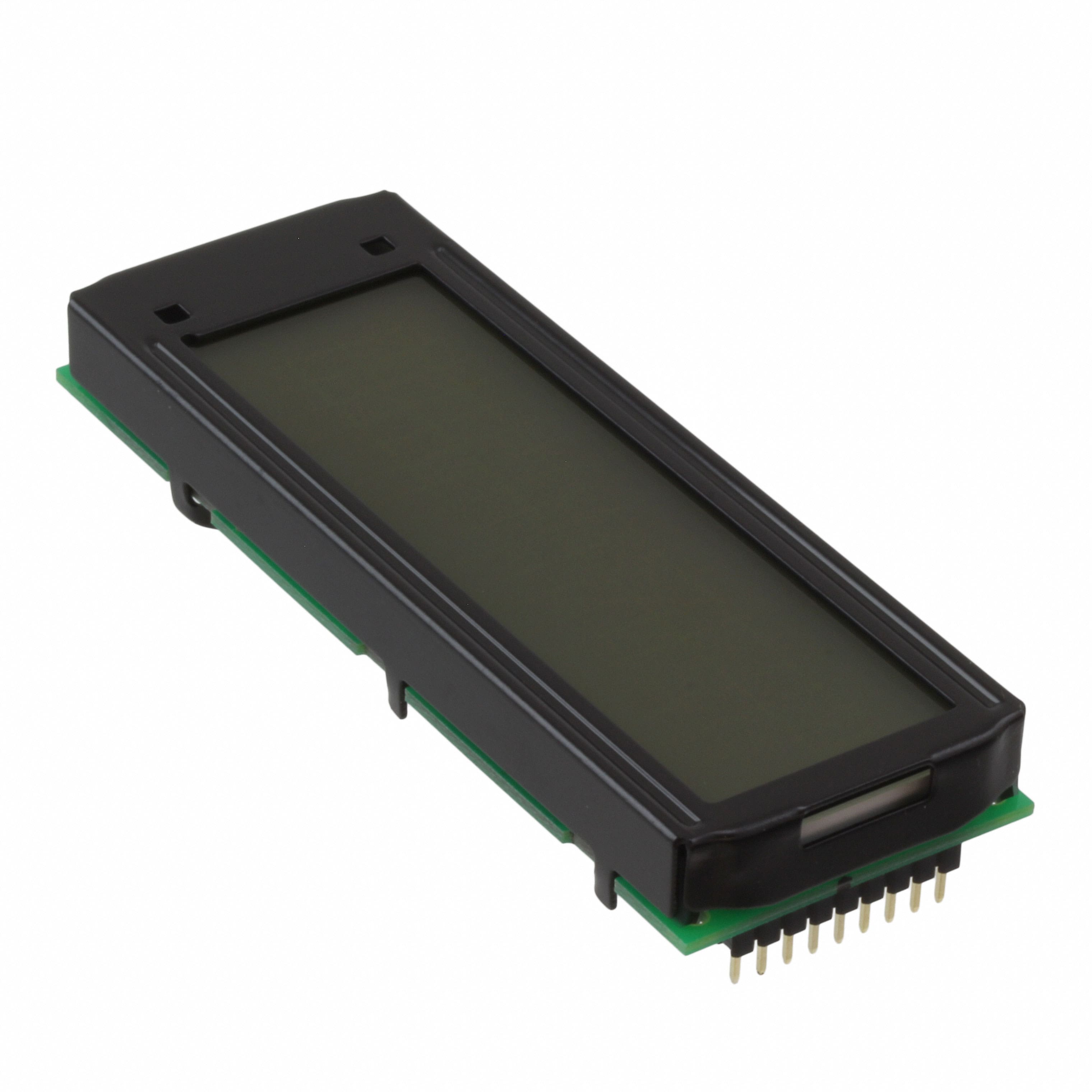

EA DIP203J-4NLW Display Visions | 1 $43.2400 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 3.75mm H x 2.34mm W | 75.00mm x 26.80mm x 10.80mm | 61.00mm L x 19.00mm W | LED - White | 2.7V ~ 3.45V | 0.44mm W x 0.46mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Black | White | 4,361 Cart + RFQ |

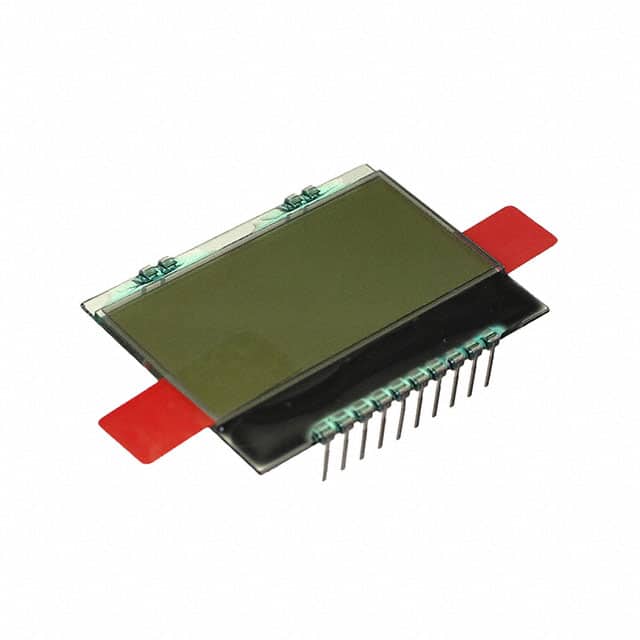

EA DOGS164W-A Display Visions | 1 $8.6800 | Datasheet | 64 | 16 x 4 | 5 x 32 Dots | FSTN - Film Super-Twisted Nematic | Transflective | - | 40.00mm x 33.00mm x 2.60mm | 38.00mm L x 19.00mm W | Without Backlight | 3.3V | 0.32mm W x 0.45mm H | I²C, SPI | - | -20°C ~ 70°C | Black | White | 6,439 Cart + RFQ |
EA DOGM204N-A Display Visions | 1 $13.5700 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Reflective | 4.83mm H x 2.46mm W | 66.00mm x 38.10mm x 2.00mm | 59.00mm L x 26.00mm W | Without Backlight | 3.3V | 0.48mm W x 0.59mm H | I²C, Parallel, SPI | - | -20°C ~ 70°C | Black | White | 8,954 Cart + RFQ |
EA DOGS104N-A Display Visions | 1 $15.1400 | Datasheet | 40 | 10 x 4 | - | STN - Super-Twisted Nematic | Reflective | - | 36.00mm x 27.50mm x 4.60mm | 33.00mm L x 12.10mm W | LED | 3.3V | 0.49mm W x 0.31mm H | I²C, SPI | - | -20°C ~ 70°C | - | White | 9,027 Cart + RFQ |
EA DOGM081W-A Display Visions | 1 $17.7500 | Datasheet | 8 | 8 x 1 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 11.97mm H x 4.97mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Black | White | 8,626 Cart + RFQ |
EA DOGM163S-A Display Visions | 1 $19.1600 | Datasheet | 48 | 16 x 3 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 3.65mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.43mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White | Black | 2,443 Cart + RFQ |
EA DOGM163L-A Display Visions | 1 $19.1600 | Datasheet | 48 | 16 x 3 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 3.65mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.43mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green | 6,222 Cart + RFQ |
EA DOGM163W-A Display Visions | 1 $19.1600 | Datasheet | 48 | 16 x 3 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 3.65mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.43mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Black | White | 4,782 Cart + RFQ |
EA DOGM162L-A Display Visions | 1 $20.1700 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Gray | Green | 4,244 Cart + RFQ |
EA DOGS104W-A Display Visions | 1 $22.8400 | Datasheet | 40 | 10 x 4 | - | STN - Super-Twisted Nematic | Transflective | - | 36.00mm x 27.50mm x 4.60mm | 33.00mm L x 12.10mm W | LED | 3.3V | 0.49mm W x 0.31mm H | I²C, SPI | - | -20°C ~ 70°C | - | White | 7,087 Cart + RFQ |
EA DIP203B-4NLW Display Visions | 1 $42.8900 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 3.75mm H x 2.34mm W | 75.00mm x 26.80mm x 10.80mm | 61.00mm L x 19.00mm W | LED - White | 2.7V ~ 3.45V | 0.44mm W x 0.46mm H | SPI | - | -20°C ~ 70°C | White | Blue | 6,891 Cart + RFQ |
EA DOGM162B-A Display Visions | 1 $20.1700 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.57mm H x 2.47mm W | 55.00mm x 27.94mm x 2.00mm | 51.00mm L x 14.50mm W | Without Backlight | 3.3V | 0.47mm W x 0.67mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | White | Blue | 8,347 Cart + RFQ |
EA DIP203J-6NLW Display Visions | 1 $59.4200 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 6.45mm H x 2.37mm W | 75.00mm x 45.80mm x 10.80mm | 61.00mm L x 38.00mm W | LED - White | 3.3V | 0.45mm W x 0.78mm H | Parallel, 8-Bit, SPI | - | -20°C ~ 70°C | Black | White | 8,527 Cart + RFQ |
EA DOGS164N-A Display Visions | 1 $18.4200 | Datasheet | 64 | 16 x 4 | 5 x 32 Dots | FSTN - Film Super-Twisted Nematic | Reflective | - | 40.00mm x 33.00mm x 2.60mm | 38.00mm L x 19.00mm W | - | 3.3V | 0.32mm W x 0.45mm H | I²C, SPI | - | -20°C ~ 70°C | Black | White | 8,652 Cart + RFQ |
EA DOGS164B-A Display Visions | 1 $18.4200 | Datasheet | 64 | 16 x 4 | 5 x 32 Dots | STN - Super-Twisted Nematic | Transmissive | - | 40.00mm x 33.00mm x 2.60mm | 38.00mm L x 19.00mm W | LED - White | 3.3V | 0.32mm W x 0.45mm H | I²C, SPI | - | -20°C ~ 70°C | - | Blue | 6,544 Cart + RFQ |
