Display Modules - LCD, OLED Character and Numeric
Products within this family are used for visual communication of text oriented information. Based on a variety of display technologies including liquid crystal, e-ink, and organic LEDs, they are distinguished from other display technologies by being conceptually divided into an array of addressable regions, each of which is capable of representing a single symbol, character, or digit. Though ill-suited for displaying images, video, or similar graphical information, their relative simplicity offers advantages in cost, design complexity, durability, etc. in circumstances where such capability is not required. Note that devices which use conventional LEDs to form luminous character segments are specifically excluded and grouped separately.
Product List
Total Components: 264
Product | Pricing | Datasheet | Number of Characters | Display Format | Character Format | Display Type | Display Mode | Character Size | Outline L x W x H | Viewing Area | Backlight | Voltage - Supply | Dot Size | Interface | Controller Type | Operating Temperature | Text Color | Background Color | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NHD-0108BZ-RN-YBW-33V Newhaven Display, Intl. | 1 $8.7600 | Datasheet | 8 | 8 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 7.10mm H x 3.40mm W | 53.00mm x 24.20mm x 11.00mm | 35.00mm L x 12.60mm W | Without Backlight | 3.3V | 0.60mm W x 0.80mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green | 8,993 Cart + RFQ |
NHD-0208BZ-RN-YBW-33V Newhaven Display, Intl. | 1 $9.3700 | Datasheet | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.56mm H x 2.96mm W | 58.00mm x 32.00mm x 13.00mm | 38.00mm L x 16.00mm W | Without Backlight | 3.3V | 0.56mm W x 0.66mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green | 8,943 Cart + RFQ |
NHD-0208AZ-FL-GBW Newhaven Display, Intl. | 1 $10.7600 | Datasheet | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 40.00mm x 35.40mm x 13.50mm | 30.40mm L x 13.90mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green | 1,847 Cart + RFQ |
NHD-0208AZ-FSW-GBW-33V3 Newhaven Display, Intl. | 1 $11.0400 | Datasheet | 16 | 8 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 40.00mm x 35.40mm x 13.50mm | 30.40mm L x 13.90mm W | LED - White | 3.3V | 0.55mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Gray | 3,031 Cart + RFQ |
NHD-02161Z-FSY-YBW-C Newhaven Display, Intl. | 1 $11.2800 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.23mm H x 1.85mm W | 53.00mm x 20.00mm x 8.50mm | 36.00mm L x 10.00mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.33mm W x 0.36mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green | 8,615 Cart + RFQ |
NHD-C0216AZ-FN-GBW Newhaven Display, Intl. | 1 $11.4300 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.68mm H x 2.21mm W | 49.70mm x 25.30mm x 2.10mm | 45.70mm L x 14.30mm W | Without Backlight | 4.7V ~ 5.5V | 0.41mm W x 0.55mm H | Parallel | NT-7605 | -20°C ~ 70°C | Blue | Gray | 5,981 Cart + RFQ |
NHD-0216BZ-FL-YBW Newhaven Display, Intl. | 1 $11.5800 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 84.00mm x 44.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - Yellow/Green | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green | 3,060 Cart + RFQ |
NHD-0216K1Z-FL-YBW Newhaven Display, Intl. | 1 $12.1300 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 13.20mm | 66.00mm L x 16.00mm W | LED - Yellow/Green | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | Green | 5,358 Cart + RFQ |
NHD-C0216AZ-FSW-GBW Newhaven Display, Intl. | 1 $12.5600 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.68mm H x 2.21mm W | 54.70mm x 25.30mm x 2.00mm | 45.70mm L x 14.30mm W | LED - White | 4.7V ~ 5.5V | 0.41mm W x 0.55mm H | Parallel | NT-7605 | -20°C ~ 70°C | Blue | Gray | 2,986 Cart + RFQ |
NHD-0216XZ-FSW-GBW Newhaven Display, Intl. | 1 $12.5600 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.35mm H x 2.95mm W | 80.00mm x 36.00mm x 12.50mm | 64.50mm L x 13.80mm W | LED - White | 4.7V ~ 5.5V | 0.50mm W x 0.55mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | White | 9,096 Cart + RFQ |
NHD-0220FZ-FSW-GBW-P-33V3 Newhaven Display, Intl. | 1 $12.6600 | Datasheet | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 3.23mm H x 1.85mm W | 65.00mm x 20.00mm x 8.00mm | 48.00mm L x 10.00mm W | LED - White | 3V ~ 3.6V | 0.33mm W x 0.36mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Blue | White | 8,520 Cart + RFQ |

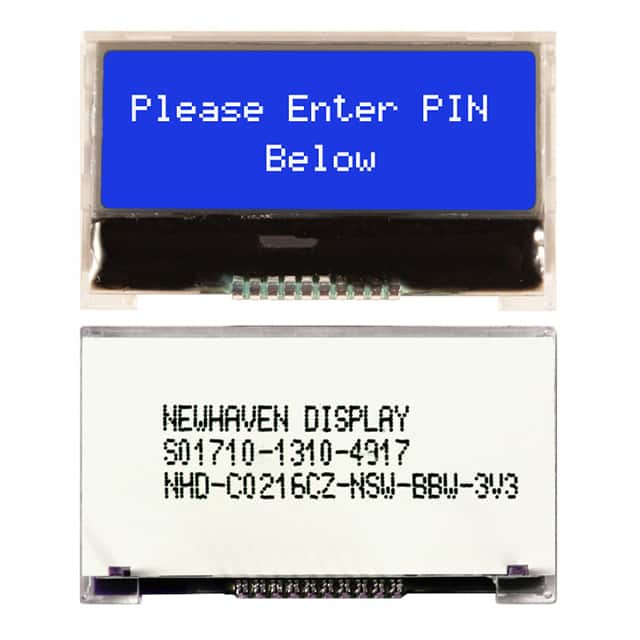

NHD-C0216CZ-NSW-BBW-3V3 Newhaven Display, Intl. | 1 $12.6900 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 4.13mm H x 1.82mm W | 41.40mm x 24.30mm x 4.00mm | 37.60mm L x 12.80mm W | LED - White | 2.7V ~ 4.5V | 0.34mm W x 0.49mm H | Serial | ST-7032 | -20°C ~ 70°C | White | Blue | 5,315 Cart + RFQ |

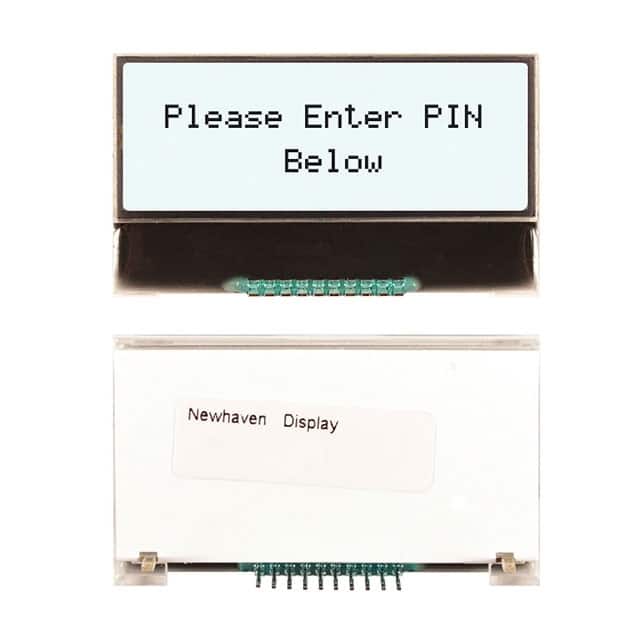

NHD-C0216CZ-FSW-FBW-3V3 Newhaven Display, Intl. | 1 $12.7500 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.13mm H x 1.82mm W | 41.40mm x 24.30mm x 4.00mm | 37.60mm L x 12.80mm W | LED - White | 2.7V ~ 4.5V | 0.34mm W x 0.49mm H | Serial | ST-7032 | -20°C ~ 70°C | Black | White | 9,016 Cart + RFQ |

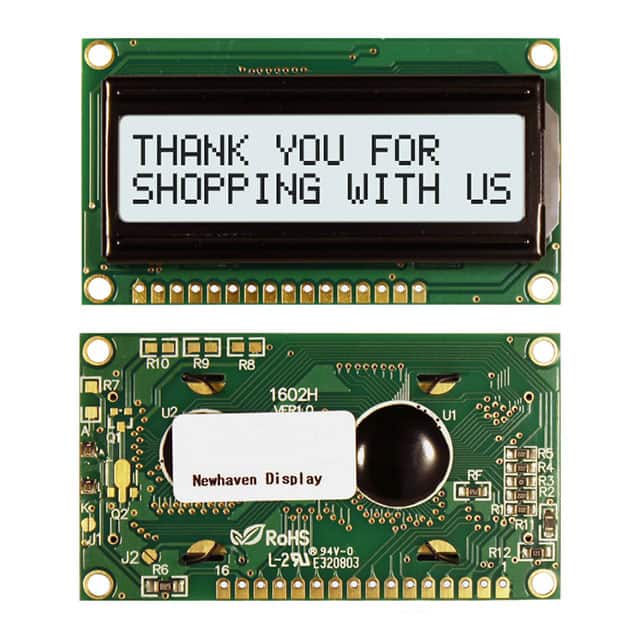

NHD-0216HZ-FSW-FBW-33V3C Newhaven Display, Intl. | 1 $13.0000 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.99mm H x 2.55mm W | 65.50mm x 36.70mm x 15.00mm | 54.00mm L x 14.40mm W | LED - White | 3.3V | 0.47mm W x 0.58mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Black | White | 1,135 Cart + RFQ |

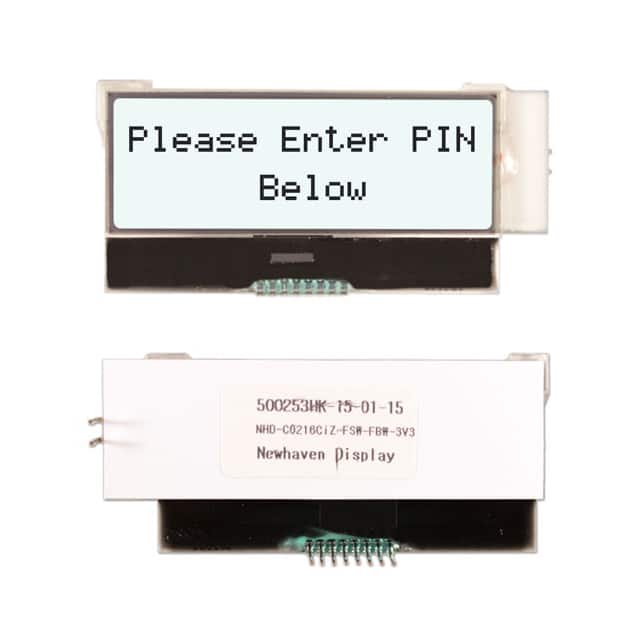

NHD-C0216CIZ-FSW-FBW-3V3 Newhaven Display, Intl. | 1 $13.2300 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 4.68mm H x 2.21mm W | 56.00mm x 25.30mm x 5.50mm | 45.70mm L x 14.30mm W | LED - White | 2.7V ~ 3.3V | 0.41mm W x 0.55mm H | I²C | AiP31032 | -20°C ~ 70°C | Black | White | 4,627 Cart + RFQ |

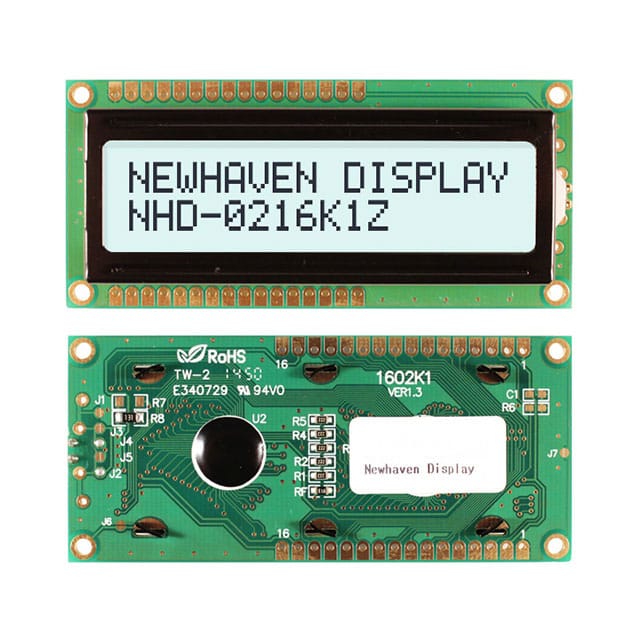

NHD-0216K1Z-FSW-FBW-L Newhaven Display, Intl. | 1 $13.3800 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - White | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | Black | White | 9,730 Cart + RFQ |

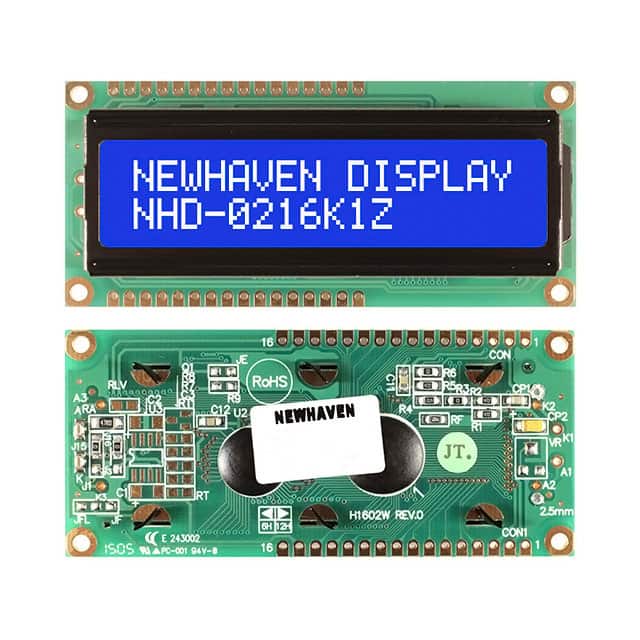

NHD-0216K1Z-NSW-BBW-L Newhaven Display, Intl. | 1 $13.5800 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transmissive | 5.55mm H x 2.95mm W | 80.00mm x 36.00mm x 13.50mm | 66.00mm L x 16.00mm W | LED - White | 4.5V ~ 5.5V | 0.55mm W x 0.65mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White | Blue | 6,771 Cart + RFQ |

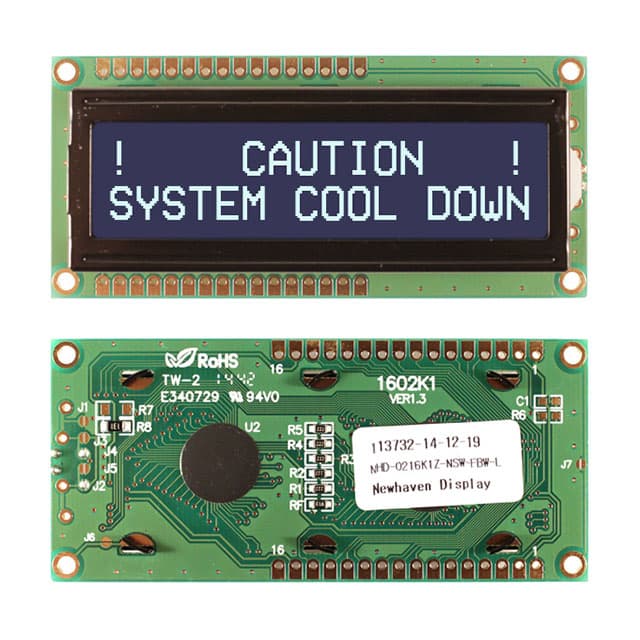

NHD-0216K1Z-NSW-FBW-L Newhaven Display, Intl. | 1 $13.6200 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transmissive | 5.23mm H x 3.00mm W | 80.00mm x 36.00mm x 13.50mm | 64.50mm L x 16.40mm W | LED - White | 4.7V ~ 5.5V | 0.56mm W x 0.61mm H | Parallel | SPLC780D OR ST7066U | -20°C ~ 70°C | White | Black | 3,666 Cart + RFQ |
NHD-C0220BIZ-FS(RGB)-FBW-3VM Newhaven Display, Intl. | 1 $14.4600 | Datasheet | 40 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.55mm H x 2.45mm W | 75.70mm x 27.10mm x 6.80mm | 61.00mm L x 15.10mm W | LED - Red/Green/Blue | 2.7V ~ 3.5V | 0.45mm W x 0.65mm H | I²C | ST7036 | -20°C ~ 70°C | Black | Red/Green/Blue | 6,018 Cart + RFQ |

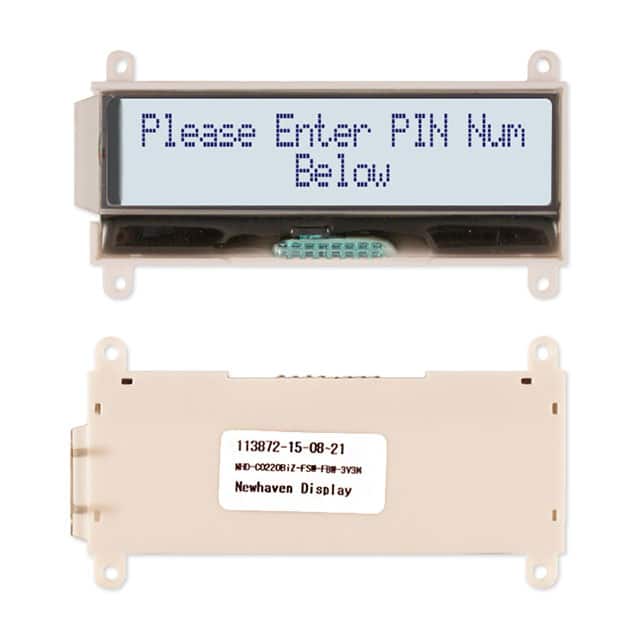

NHD-C0220BIZ-FSW-FBW-3V3M Newhaven Display, Intl. | 1 $12.7300 | Datasheet | 40 | 20 x 2 | 5 x 8 Dots | FSTN - Film Super-Twisted Nematic | Transflective | 5.55mm H x 2.45mm W | 75.70mm x 27.10mm x 6.80mm | 61.00mm L x 15.10mm W | LED - White | 2.7V ~ 3.5V | 0.45mm W x 0.65mm H | I²C | ST7036 | -20°C ~ 70°C | Black | White | 9,092 Cart + RFQ |
