Display Modules - LCD, OLED Character and Numeric
Products within this family are used for visual communication of text oriented information. Based on a variety of display technologies including liquid crystal, e-ink, and organic LEDs, they are distinguished from other display technologies by being conceptually divided into an array of addressable regions, each of which is capable of representing a single symbol, character, or digit. Though ill-suited for displaying images, video, or similar graphical information, their relative simplicity offers advantages in cost, design complexity, durability, etc. in circumstances where such capability is not required. Note that devices which use conventional LEDs to form luminous character segments are specifically excluded and grouped separately.
Product List
Total Components: 141
Product | Pricing | Datasheet | Number of Characters | Display Format | Character Format | Display Type | Display Mode | Character Size | Outline L x W x H | Viewing Area | Backlight | Voltage - Supply | Dot Size | Interface | Controller Type | Operating Temperature | Text Color | Background Color | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LCD-S301C31TR Lumex, Inc. | 1 $2.6000 | Datasheet | 3 | 3 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 7.87mm H x 5.08mm W | 30.70mm x 16.20mm x 2.80mm | 27.90mm L x 10.00mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | Gray | 2,214 Cart + RFQ |
LCM-S01602DTR/M Lumex, Inc. | 1 $10.6800 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | TN - Twisted Nematic | Reflective | 5.56mm H x 2.46mm W | 66.00mm x 26.00mm x 6.50mm | 52.00mm L x 19.00mm W | Without Backlight | 5V | 0.46mm W x 0.66mm H | Parallel | - | 0°C ~ 50°C | - | Green | 7,735 Cart + RFQ |
LCM-S01601DSR Lumex, Inc. | 1 $12.1300 | Datasheet | 16 | 16 x 1 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 6.56mm H x 3.07mm W | 80.00mm x 36.00mm x 8.80mm | 66.00mm L x 16.00mm W | Without Backlight | 5V | 0.55mm W x 0.75mm H | Parallel | - | 0°C ~ 50°C | - | Green | 7,612 Cart + RFQ |

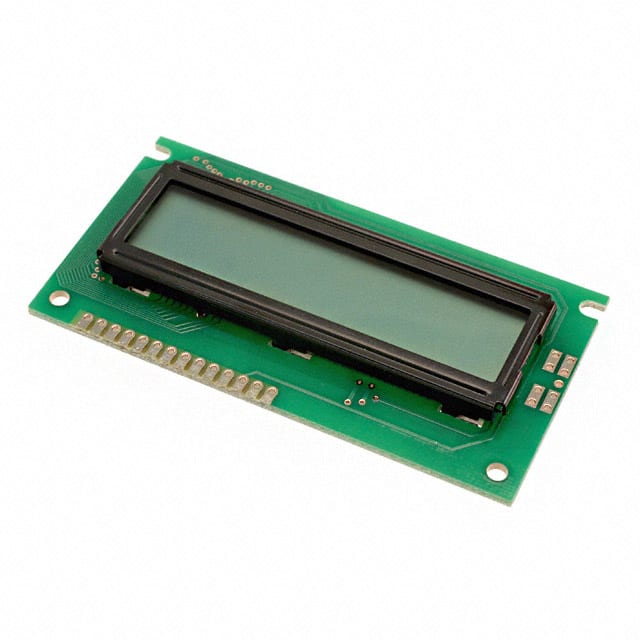

LCM-S01602DSR/B Lumex, Inc. | 1 $15.7000 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.56mm H x 2.96mm W | 84.00mm x 44.00mm x 8.80mm | 66.00mm L x 16.00mm W | Without Backlight | 5V | 0.56mm W x 0.66mm H | Parallel | - | 0°C ~ 50°C | - | Green | 8,404 Cart + RFQ |

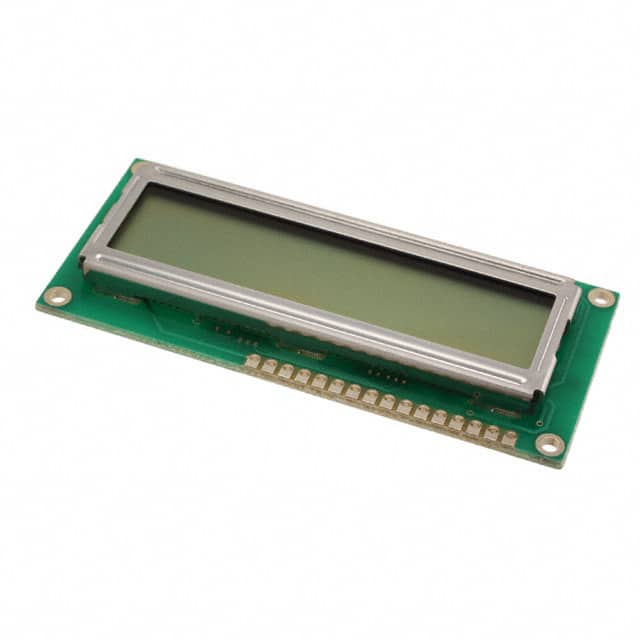

LCM-S01602DSR/A Lumex, Inc. | 1 $13.1700 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 8.80mm | 66.00mm L x 16.00mm W | Without Backlight | 5V | 0.56mm W x 0.66mm H | Parallel | - | 0°C ~ 50°C | - | Green | 4,746 Cart + RFQ |

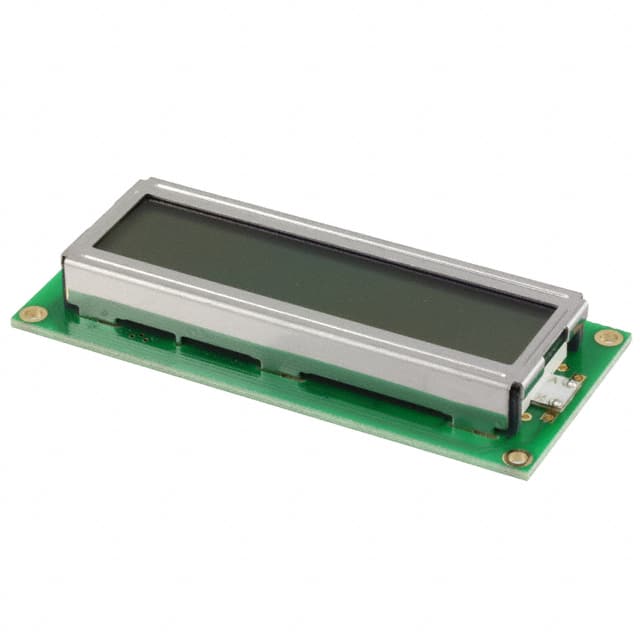

LCM-S01602DSF/A Lumex, Inc. | 1 $16.3500 | Datasheet | 32 | 16 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.56mm H x 2.96mm W | 80.00mm x 36.00mm x 12.70mm | 66.00mm L x 16.00mm W | LED - Yellow/Green | 5V | 0.56mm W x 0.66mm H | Parallel | - | 0°C ~ 50°C | - | Green | 6,521 Cart + RFQ |

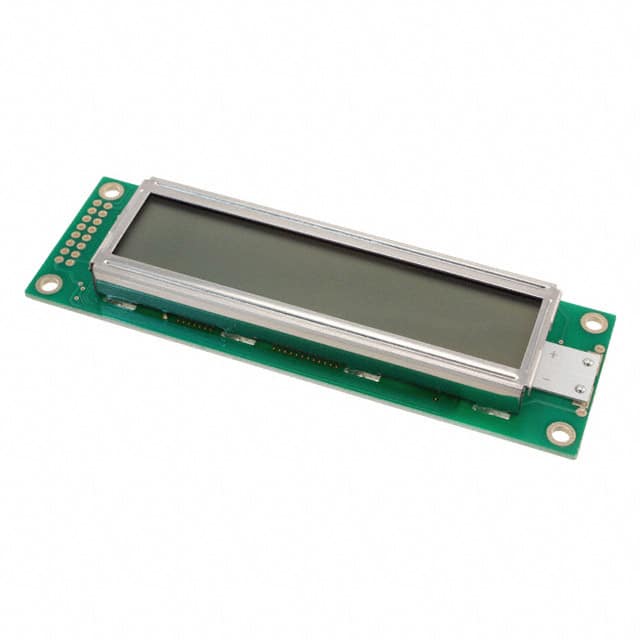

LCM-S02002DSF Lumex, Inc. | 1 $25.2800 | Datasheet | 40 | 20 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 116.00mm x 37.00mm x 12.70mm | 85.00mm L x 18.60mm W | LED - Yellow/Green | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | Green | 1,466 Cart + RFQ |

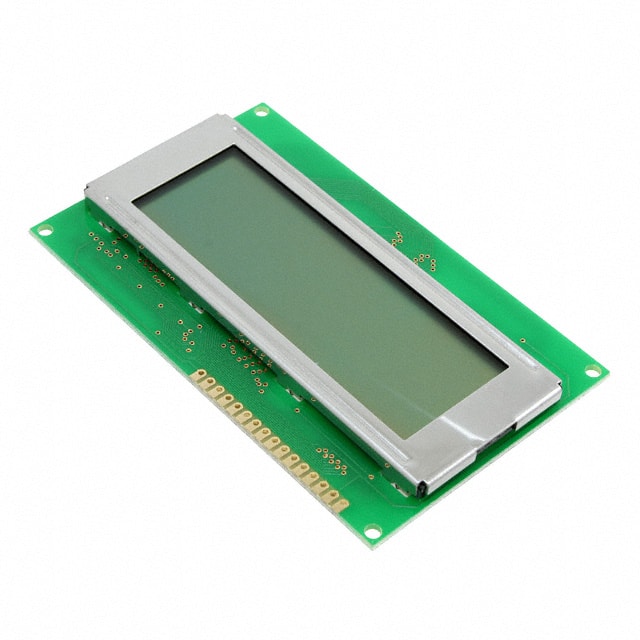

LCM-S02004DSR Lumex, Inc. | 1 $26.1100 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Reflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 8.80mm | 77.00mm L x 26.30mm W | Without Backlight | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | Green | 7,442 Cart + RFQ |

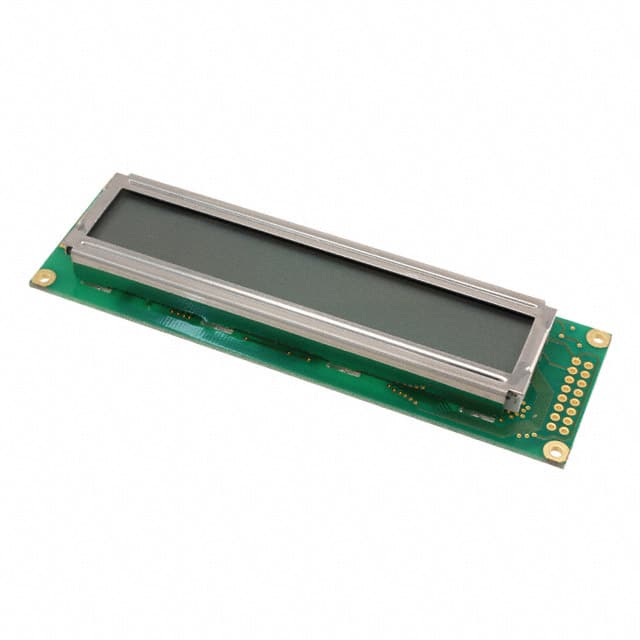

LCM-S02402DSF Lumex, Inc. | 1 $26.3100 | Datasheet | 48 | 24 x 2 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 5.55mm H x 3.20mm W | 118.00mm x 36.00mm x 12.70mm | 93.50mm L x 16.00mm W | LED - Yellow/Green | 5V | 0.60mm W x 0.65mm H | Parallel | - | 0°C ~ 50°C | - | Green | 1,381 Cart + RFQ |

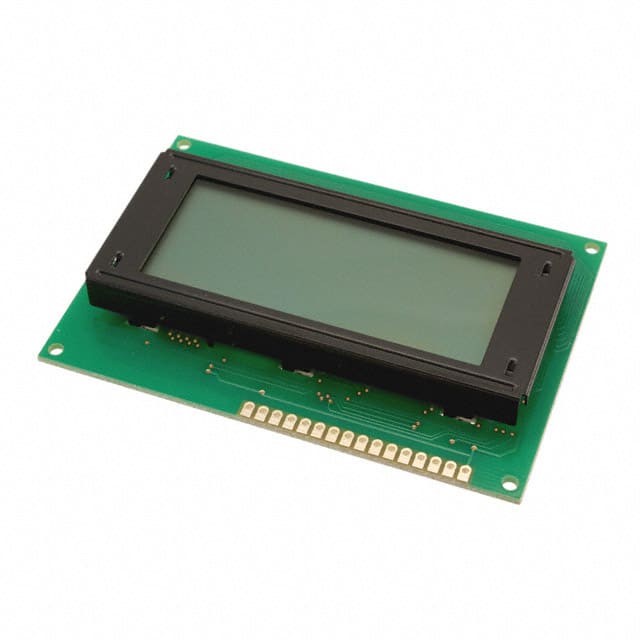

LCM-S01604DSF Lumex, Inc. | 1 $34.3700 | Datasheet | 64 | 16 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 3.55mm W | 87.00mm x 60.00mm x 12.70mm | 62.00mm L x 25.60mm W | LED - Yellow/Green | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | Green | 8,461 Cart + RFQ |
LCM-S02004DSF Lumex, Inc. | 1 $38.3500 | Datasheet | 80 | 20 x 4 | 5 x 8 Dots | STN - Super-Twisted Nematic | Transflective | 4.75mm H x 2.95mm W | 98.00mm x 60.00mm x 12.70mm | 77.00mm L x 26.30mm W | LED - Yellow/Green | 5V | 0.55mm W x 0.55mm H | Parallel | - | 0°C ~ 50°C | - | Green | 5,386 Cart + RFQ |
LCD-S2X1C50TR Lumex, Inc. | 1 $2.5500 | Datasheet | 2.5 | 2.5 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 12.17mm H x 7.00mm W | 30.00mm x 26.17mm x 2.80mm | 26.00mm L x 17.17mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | Gray | 9,160 Cart + RFQ |

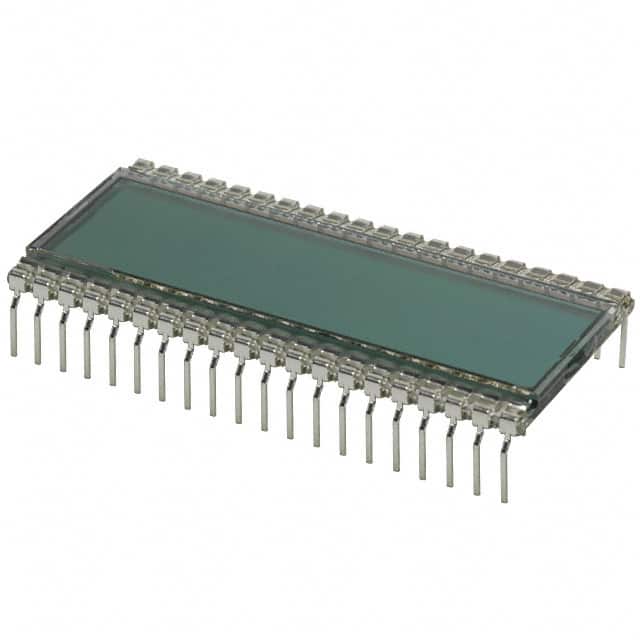

LCD-S401C39TR Lumex, Inc. | 1 $4.2800 | Datasheet | 4 | 4 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 9.92mm H x 6.35mm W | 50.80mm x 22.73mm x 2.20mm | 43.18mm L x 12.70mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | Gray | 8,793 Cart + RFQ |

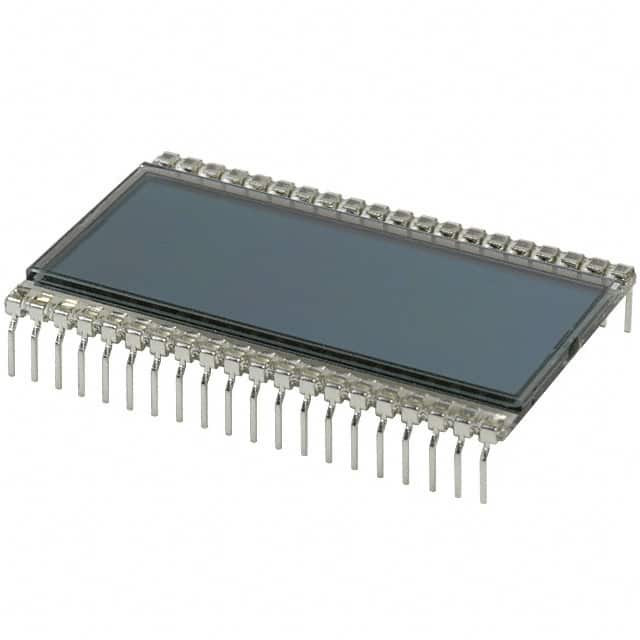

LCD-S401C52TR Lumex, Inc. | 1 $5.0600 | Datasheet | 4 | 4 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 13.20mm H x 7.62mm W | 50.80mm x 30.48mm x 2.80mm | 45.72mm L x 17.78mm W | Without Backlight | 3V ~ 5V | - | - | - | 0°C ~ 50°C | - | Gray | 7,856 Cart + RFQ |
LCD-S601C71TR Lumex, Inc. | 1 $7.4700 | Datasheet | 6 | 6 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 17.99mm H x 10.16mm W | 93.85mm x 38.10mm x 2.80mm | 86.36mm L x 24.13mm W | Without Backlight | 3V ~ 5V | - | - | - | 0°C ~ 50°C | - | Gray | 8,348 Cart + RFQ |
LDD-A5644RI Lumex, Inc. | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,653 Cart + RFQ | |
LCD-S101D14TR Lumex, Inc. | Datasheet | 1 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 34.54mm H x 19.00mm W | 33.00mm x 50.00mm x 2.80mm | 27.90mm L x 38.90mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | - | 7,511 Cart + RFQ | |
LCD-S101D22TR Lumex, Inc. | Datasheet | 1 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 56.13mm H x 36.70mm W | 76.20mm x 55.88mm x 2.80mm | 50.80mm L x 65.02mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | - | 4,596 Cart + RFQ | |
LCD-S101D30TR Lumex, Inc. | Datasheet | 1 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 76.00mm H x 43.18mm W | 76.20mm x 102.40mm x 2.80mm | 71.20mm L x 89.00mm W | Without Backlight | 3V ~ 5V | - | - | - | 0°C ~ 50°C | - | - | 8,447 Cart + RFQ | |
LCD-S101D40TR Lumex, Inc. | Datasheet | 1 | 1 x 1 | 7-Segment | TN - Twisted Nematic | Reflective | 101.60mm H x 71.12mm W | 81.28mm x 122.56mm x 2.80mm | 76.20mm L x 109.22mm W | Without Backlight | 5V | - | - | - | 0°C ~ 50°C | - | - | 9,448 Cart + RFQ |
