Stepper Motors

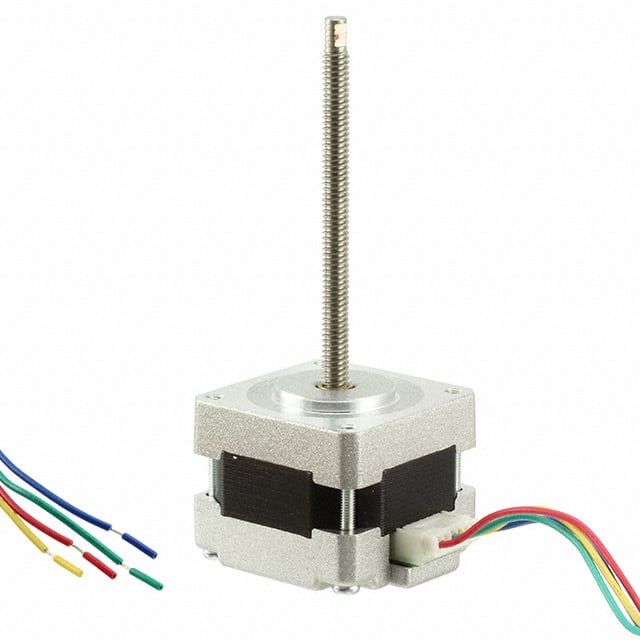

Stepper motors are DC voltage motion actuators that move in discrete steps. Multiple sets of coils organized in groups called "phases" determine the motors armature position. Energizing each phase in sequence causes armature rotation one step at a time. With computer or microcontroller managed stepping, precise positioning and/or speed control is achieved. Steppers are selected by torque, steps per revolution, step angle, NEMA frame size, coil resistance, polarity and shaft features.
Product List
Total Components: 8
| Product | Pricing | Datasheet | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

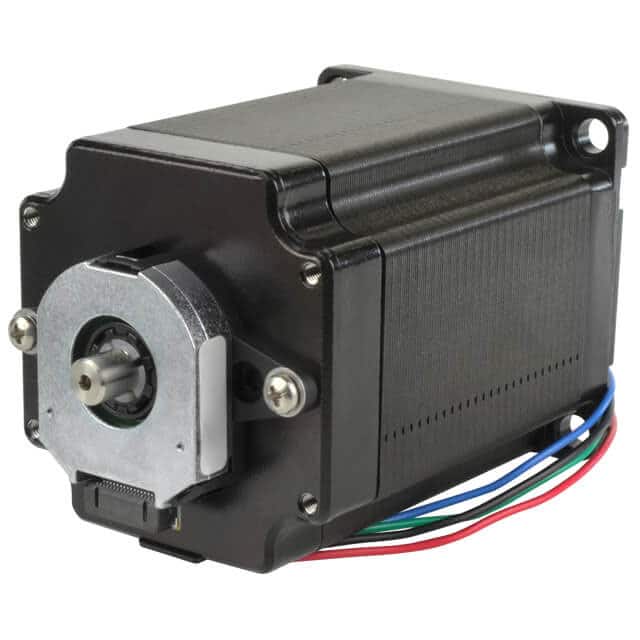

 NEMA23-31-01SD-AMT112S CUI Devices | 1 $135.6000 | Datasheet | - | Bipolar | 24 ~ 80VDC | 1.4 A | 200 | 1.8° | ±0.2% | 270 / 1906.62 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.819" (46.20mm) | Connector | -20°C ~ 50°C | 4.5 Ohms | Integrated Encoder, Flatted Shaft | 7,719 Cart + RFQ |

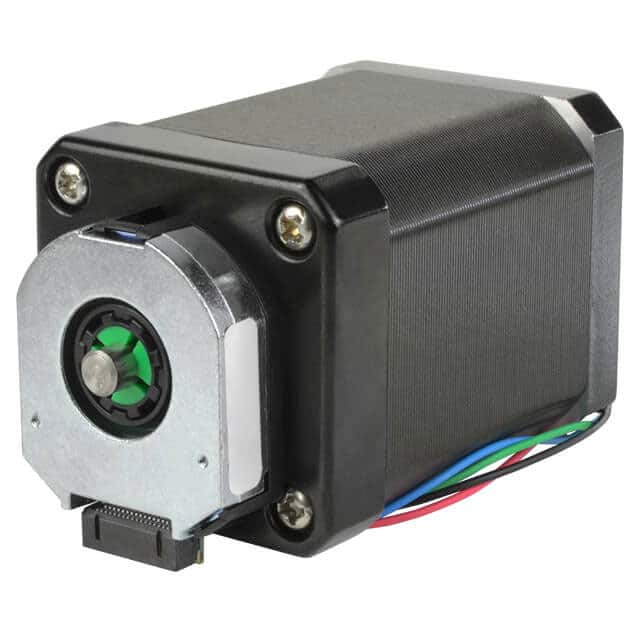

 NEMA17-13-04PD-AMT112S CUI Devices | 1 $105.5800 | Datasheet | - | Bipolar | 24 ~ 48VDC | 1.3 A | 200 | 1.8° | ±0.2% | 42 / 296.59 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 2.5 Ohms | Integrated Encoder, Flatted Shaft | 8,474 Cart + RFQ |
NEMA17-19-07PD-AMT112S CUI Devices | 1 $118.0800 | Datasheet | - | Bipolar | 24 ~ 48VDC | 1.1 A | 200 | 1.8° | ±0.2% | 83 / 586.11 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 5.2 Ohms | Integrated Encoder, Flatted Shaft | 6,241 Cart + RFQ |
NEMA17-23-01D-AMT112S CUI Devices | 1 $124.3300 | Datasheet | - | Bipolar | 24 ~ 48VDC | 2 A | 200 | 1.8° | ±0.2% | 110 / 776.77 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 2 Ohms | Integrated Encoder, Flatted Shaft | 4,787 Cart + RFQ |
NEMA17-16-06PD-AMT112S CUI Devices | 1 $111.8300 | Datasheet | - | Bipolar | 24 ~ 48VDC | 1.4 A | 200 | 1.8° | ±0.2% | 63 / 444.88 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 2.7 Ohms | Integrated Encoder, Flatted Shaft | 5,579 Cart + RFQ |

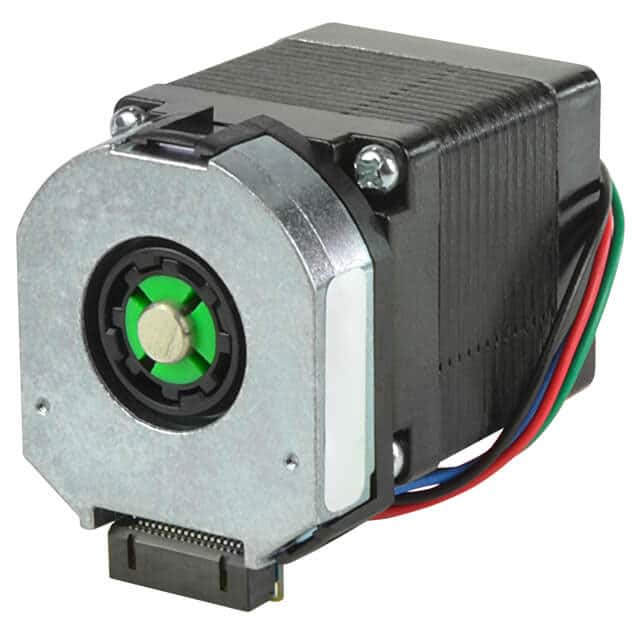

 NEMA11-18-02D-AMT112S CUI Devices | 1 $117.3500 | Datasheet | - | Bipolar | 24 ~ 48VDC | 1.3 A | 200 | 1.8° | ±0.2% | 13.7 / 96.74 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.791" (20.10mm) | 0.909" (23.10mm) | Connector | -20°C ~ 50°C | 1.3 Ohms | Integrated Encoder | 4,490 Cart + RFQ |
NEMA17-19-07SD-AMT112S CUI Devices | 1 $118.0800 | Datasheet | - | Bipolar | 24 ~ 48VDC | 2.1 A | 200 | 1.8° | ±0.2% | 83 / 586.11 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Connector | -20°C ~ 50°C | 1.3 Ohms | Integrated Encoder, Flatted Shaft | 4,712 Cart + RFQ |
NEMA23-22-02PD-AMT112S CUI Devices | 1 $129.3500 | Datasheet | - | Bipolar | 24 ~ 80VDC | 4.2 A | 200 | 1.8° | ±0.2% | 170 / 1200.46 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.819" (46.20mm) | Connector | -20°C ~ 50°C | 0.5 Ohms | Integrated Encoder, Flatted Shaft | 9,092 Cart + RFQ |
