Stepper Motors
Stepper motors are DC voltage motion actuators that move in discrete steps. Multiple sets of coils organized in groups called "phases" determine the motors armature position. Energizing each phase in sequence causes armature rotation one step at a time. With computer or microcontroller managed stepping, precise positioning and/or speed control is achieved. Steppers are selected by torque, steps per revolution, step angle, NEMA frame size, coil resistance, polarity and shaft features.
Product List
Total Components: 24
| Product | Pricing | Datasheet | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

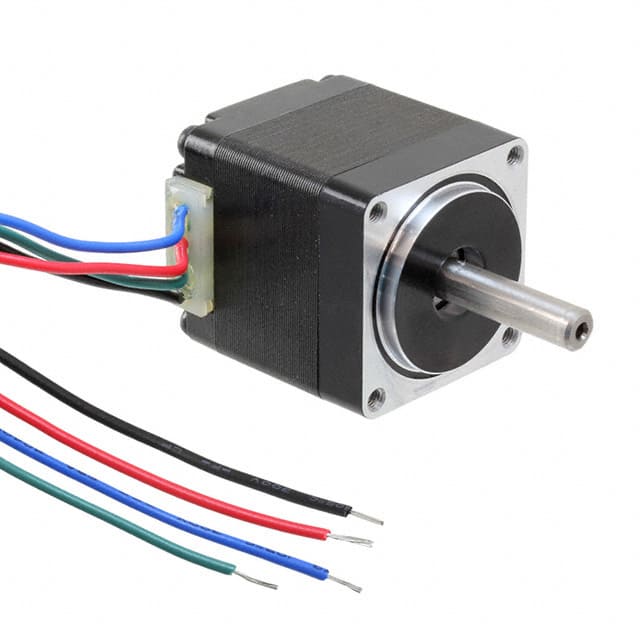

 QSH2818-32-07-006 TRINAMIC Motion Control GmbH | 1 $48.7700 | Datasheet | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.905" (22.98mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Flatted Shaft | 4,831 Cart + RFQ |

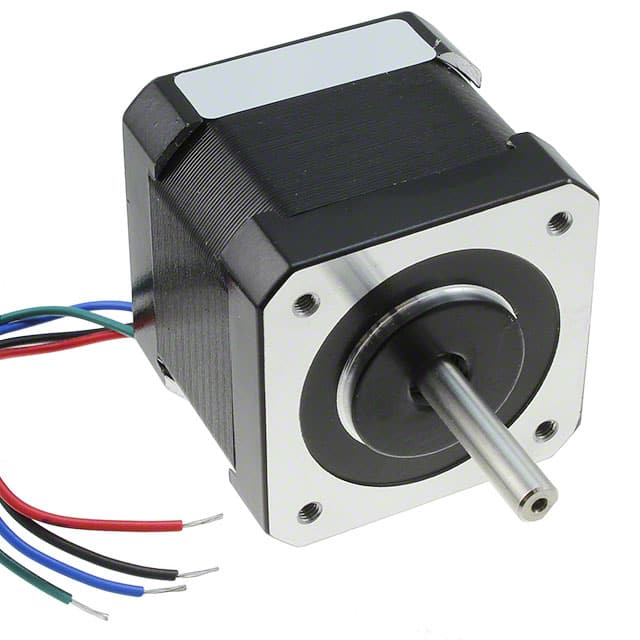

 QSH4218-41-10-035 TRINAMIC Motion Control GmbH | 1 $50.0900 | Datasheet | Hybrid | Bipolar | 4.5VDC | 1 A | 200 | 1.8° | ±5% | 49.56 / 350 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms | Flatted Shaft | 7,074 Cart + RFQ |

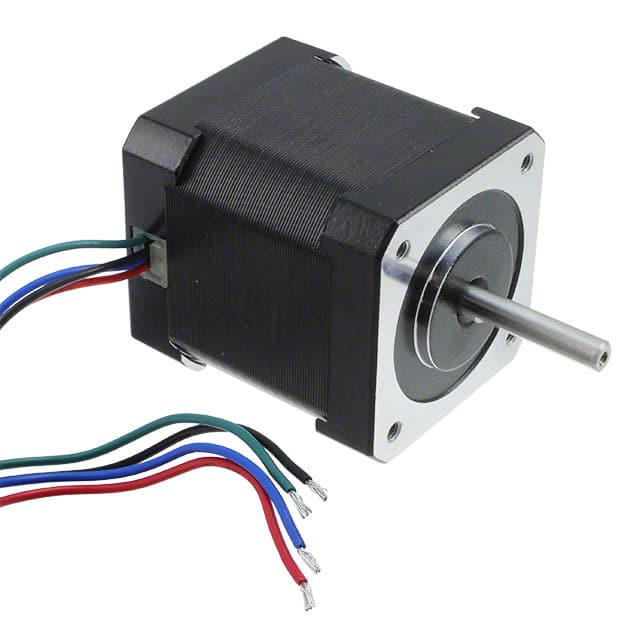

 QSH4218-51-10-049 TRINAMIC Motion Control GmbH | 1 $57.9900 | Datasheet | Hybrid | Bipolar | 5VDC | 1 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | Flatted Shaft | 1,880 Cart + RFQ |

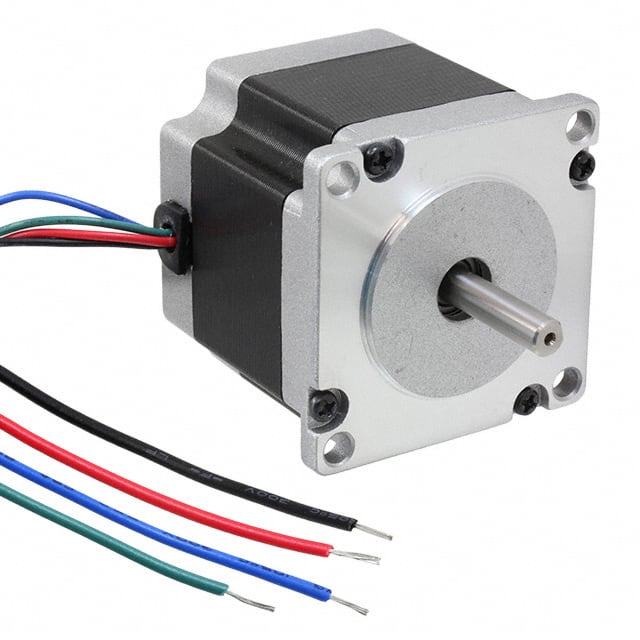

 QSH5718-51-28-101 TRINAMIC Motion Control GmbH | 1 $69.4200 | Datasheet | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.05 / 1010 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.83 Ohms | Flatted Shaft | 1,251 Cart + RFQ |

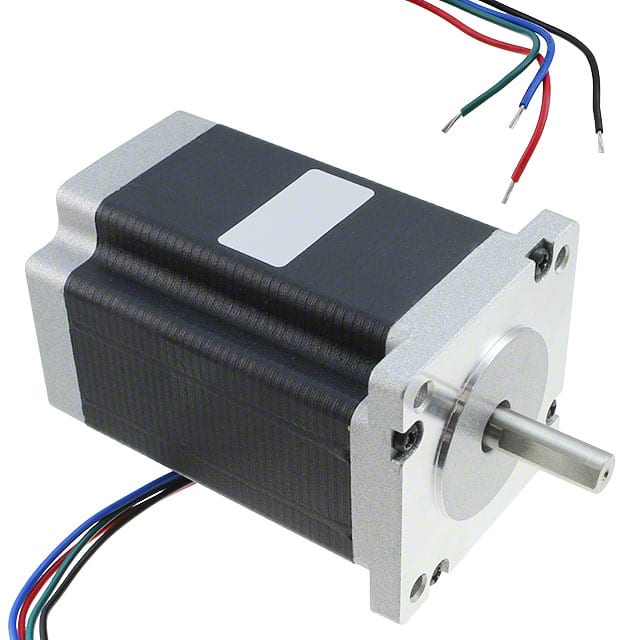

 QSH6018-86-28-310 TRINAMIC Motion Control GmbH | 1 $144.5100 | Datasheet | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms | Flatted Shaft | 6,846 Cart + RFQ |

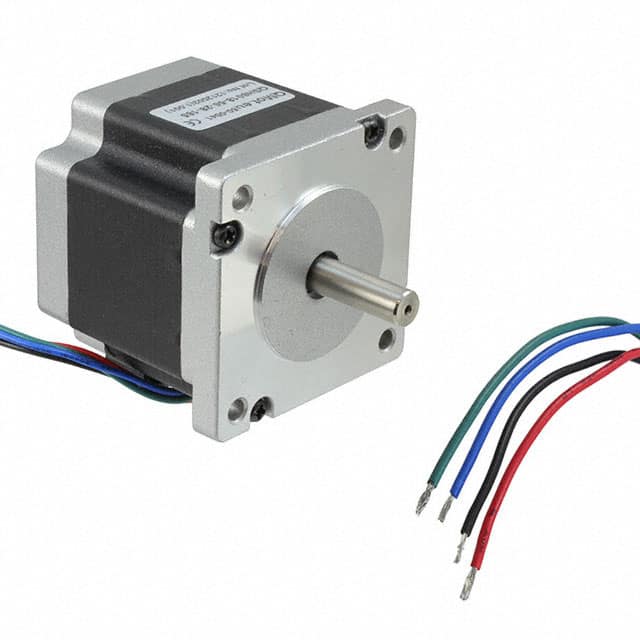

 QSH6018-56-28-165 TRINAMIC Motion Control GmbH | 1 $94.1300 | Datasheet | Hybrid | Bipolar | 2.52VDC | 2.8 A | 200 | 1.8° | ±5% | 233.66 / 1650 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms | Flatted Shaft | 1,071 Cart + RFQ |

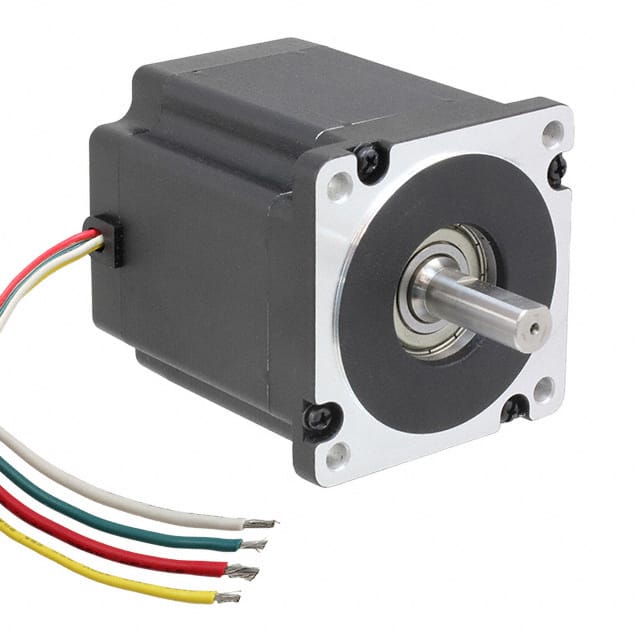

 QSH8618-96-55-700 TRINAMIC Motion Control GmbH | 1 $250.2800 | Datasheet | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | 34 | 0.500" (12.70mm) | 1.310" (33.27mm) | 2.740" (69.60mm) | Wire Leads | -20°C ~ 50°C | 0.45 Ohms | Flatted Shaft | 1,816 Cart + RFQ |

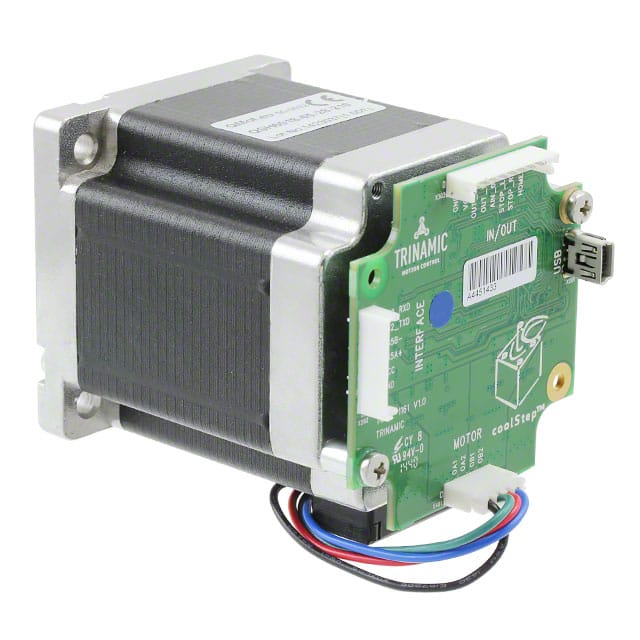

 PD60-3-1161 TRINAMIC Motion Control GmbH | 1 $277.0000 | Datasheet | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft | 4,870 Cart + RFQ |

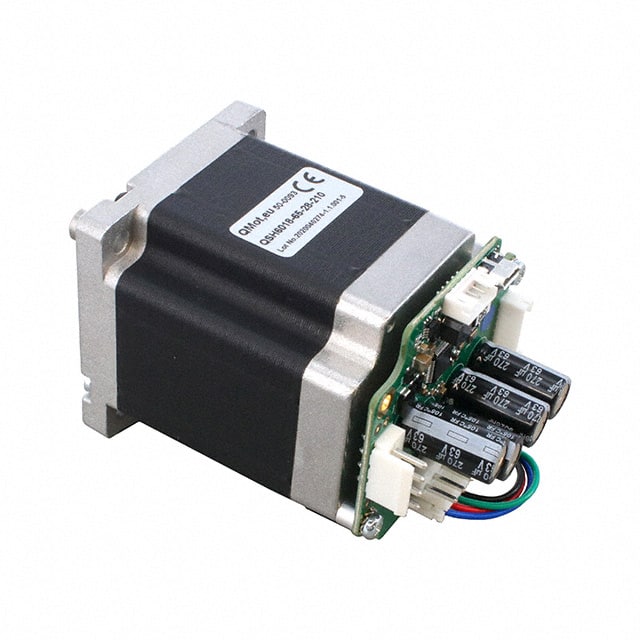

 PD60-3-1260-TMCL TRINAMIC Motion Control GmbH | 1 $313.1000 | Datasheet | Hybrid | Bipolar | 4.6VDC | 2.8 A | 200 | 1.8° | - | 297.38 / 2100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft | 8,901 Cart + RFQ |

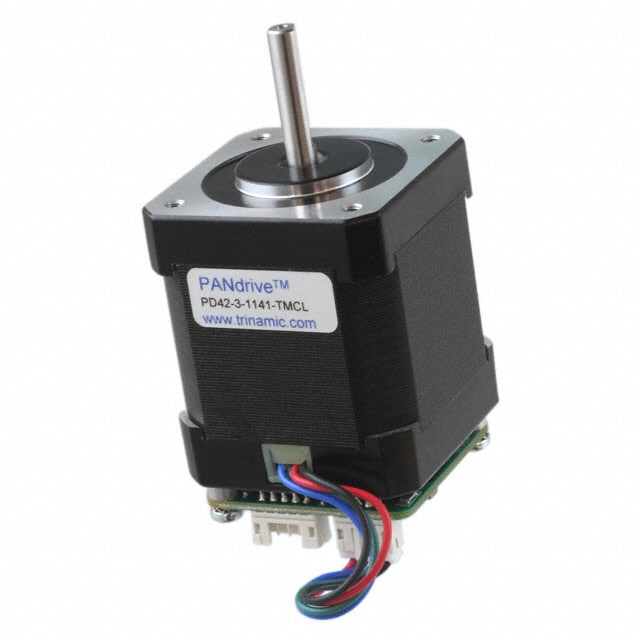

 PD42-3-1141 TRINAMIC Motion Control GmbH | 1 $198.2400 | Datasheet | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft | 1,895 Cart + RFQ |

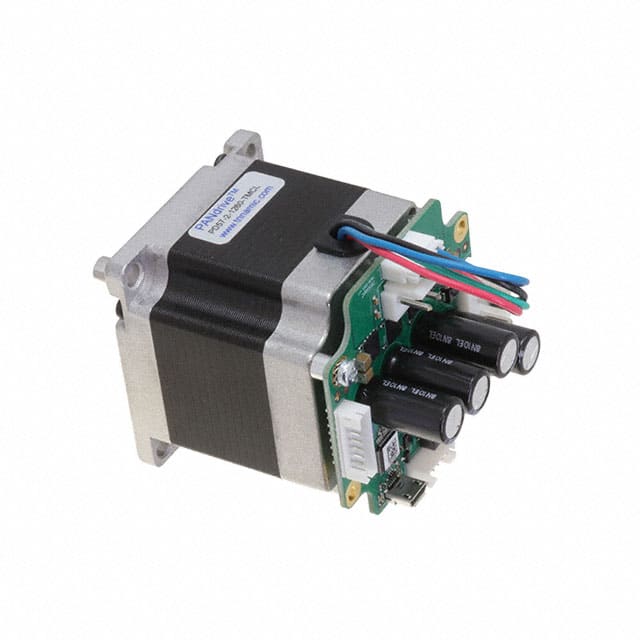

 PD57-2-1260-TMCL TRINAMIC Motion Control GmbH | 1 $279.3800 | Datasheet | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | - | 143.03 / 1010 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -20°C ~ 50°C | - | Integrated Controller, Flatted Shaft | 8,774 Cart + RFQ |

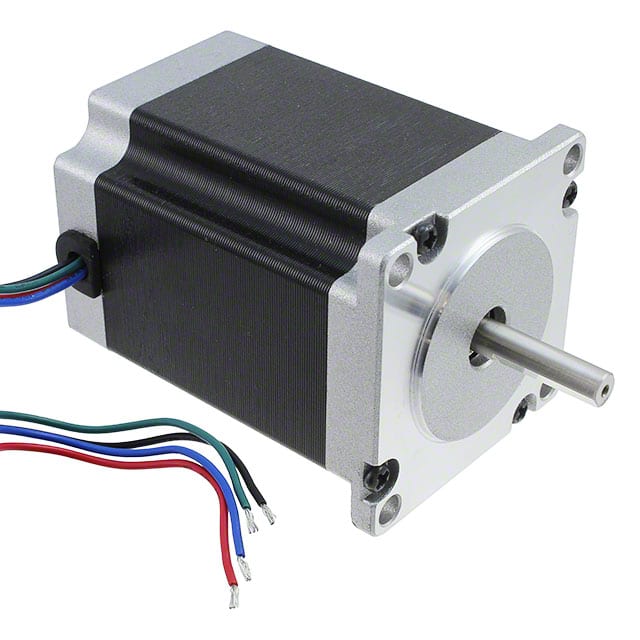

 QSH5718-76-28-189 TRINAMIC Motion Control GmbH | 1 $80.8900 | Datasheet | Hybrid | Bipolar | 3.2VDC | 2.8 A | 200 | 1.8° | ±5% | 267.64 / 1890 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.13 Ohms | Flatted Shaft | 8,709 Cart + RFQ |

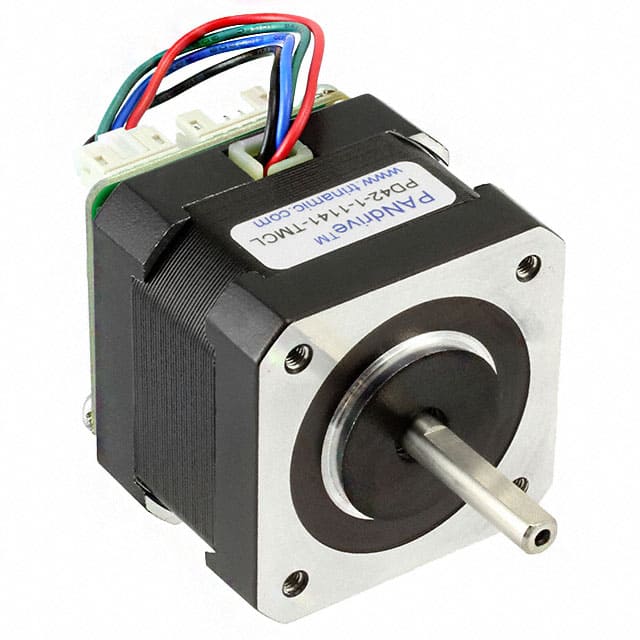

 PD42-1-1141 TRINAMIC Motion Control GmbH | 1 $179.2800 | Datasheet | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 38.2 / 270 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft | 4,209 Cart + RFQ |

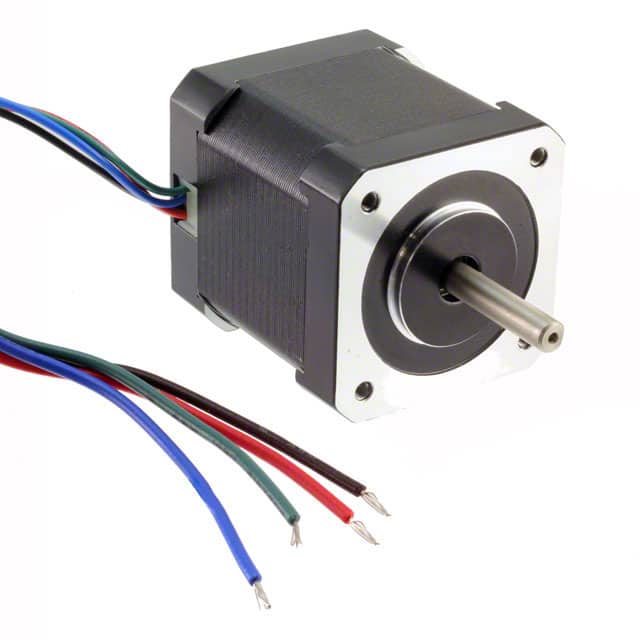

 QSH4218-47-28-040 TRINAMIC Motion Control GmbH | 1 $69.2600 | Datasheet | Hybrid | Bipolar | 1.4VDC | 2.81 A | 200 | 1.8° | ±5% | 56.3 / 400 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms | Flatted Shaft | 5,685 Cart + RFQ |

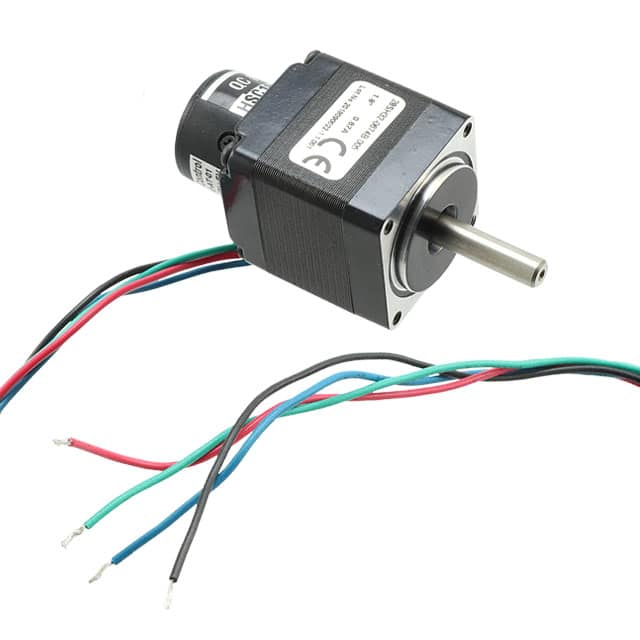

 QSH2818-32-07-006-8K TRINAMIC Motion Control GmbH | 1 $168.5900 | Datasheet | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Flatted Shaft | 7,371 Cart + RFQ |

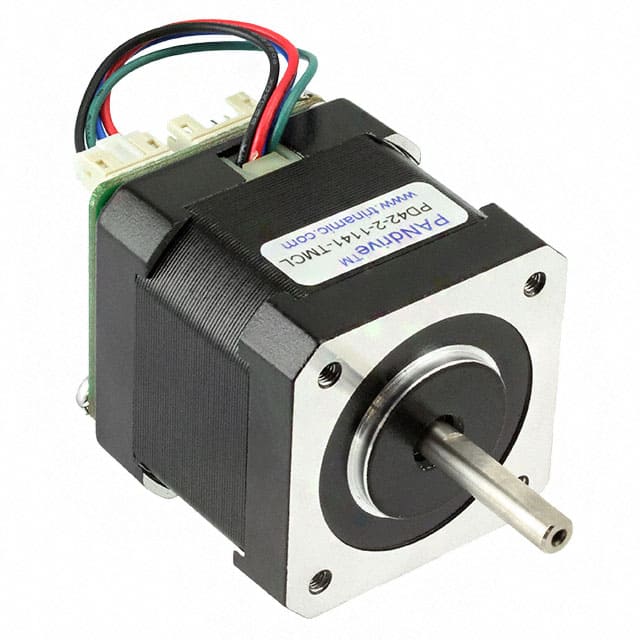

 PD42-2-1141 TRINAMIC Motion Control GmbH | 1 $183.8400 | Datasheet | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 49.56 / 350 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | - | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft | 3,975 Cart + RFQ |

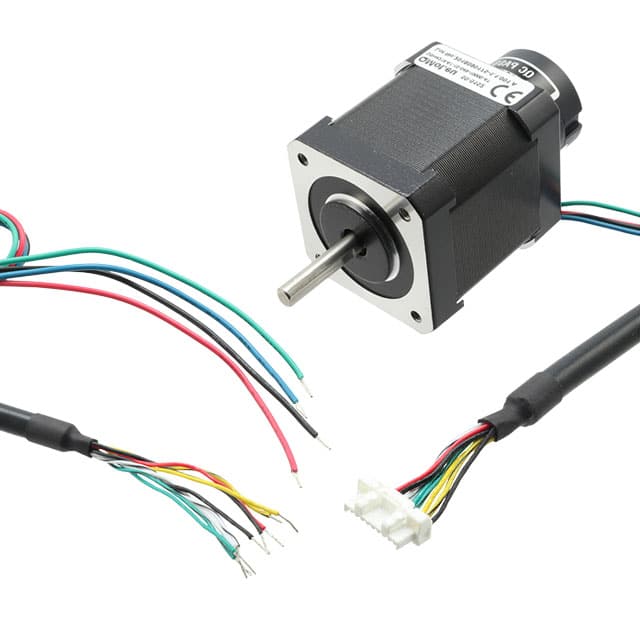

 QSH4218-51-10-049-10K TRINAMIC Motion Control GmbH | 1 $184.5300 | Datasheet | Hybrid | Bipolar | 5VDC | 1 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | Flatted Shaft | 5,762 Cart + RFQ |

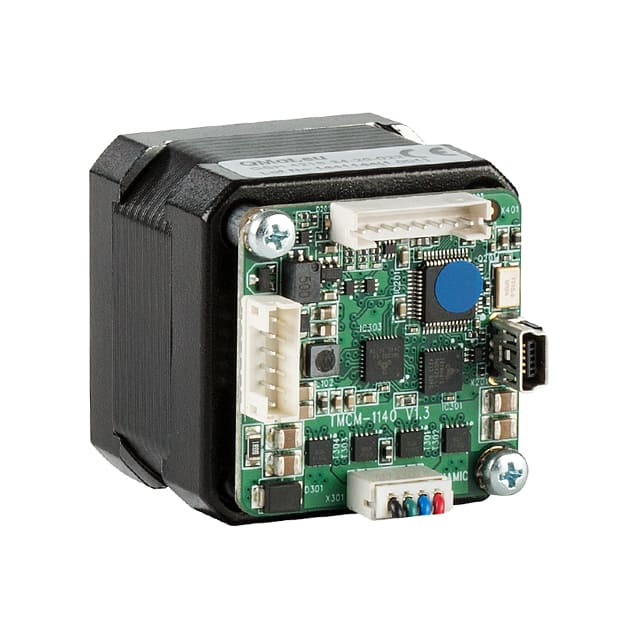

 PD42-1-1240-TMCL TRINAMIC Motion Control GmbH | 1 $231.7200 | Datasheet | Hybrid | Bipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 31.15 / 220 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 1 Ohms | Integrated Controller, Flatted Shaft | 6,887 Cart + RFQ |

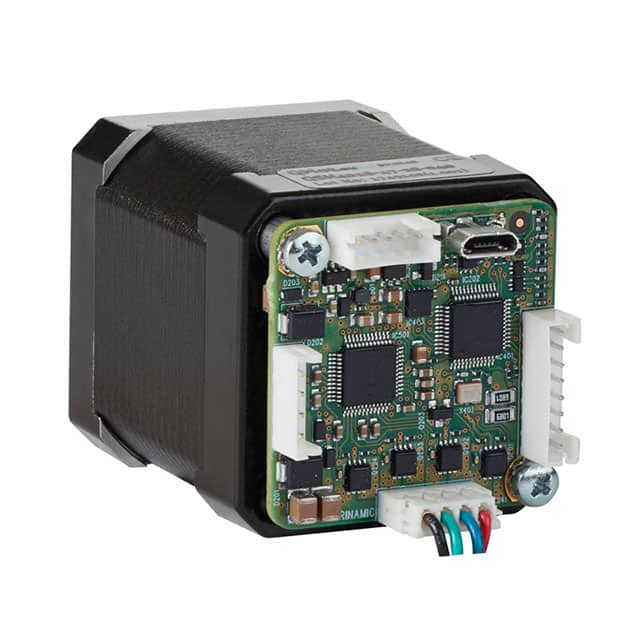

 PD42-3-1241-CANOPEN TRINAMIC Motion Control GmbH | 1 $261.1000 | Datasheet | Hybrid | Bipolar | 24VDC | 3 A | 200 | 1.8° | ±5% | 56.66 / 400 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads with Connector | -20°C ~ 50°C | 0.5 Ohms | Integrated Controller, Flatted Shaft | 7,148 Cart + RFQ |

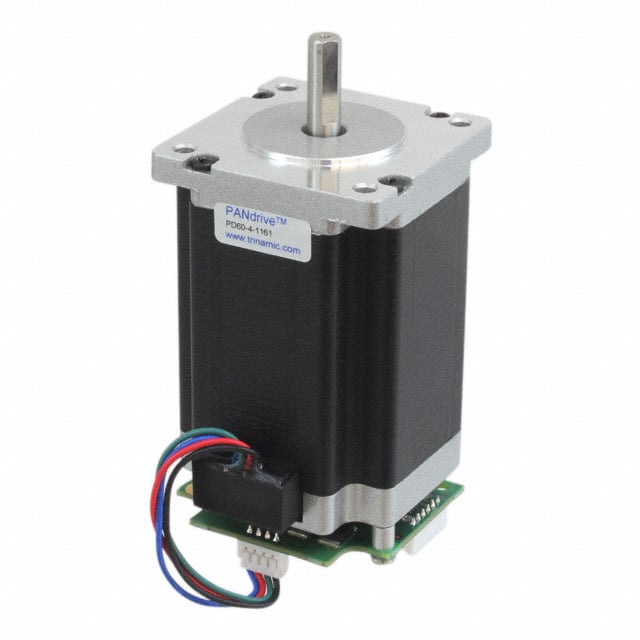

 PD60-4-1161 TRINAMIC Motion Control GmbH | 1 $331.6300 | Datasheet | Hybrid | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | - | - | Integrated Controller, Flatted Shaft | 5,079 Cart + RFQ |
