Stepper Motors
Stepper motors are DC voltage motion actuators that move in discrete steps. Multiple sets of coils organized in groups called "phases" determine the motors armature position. Energizing each phase in sequence causes armature rotation one step at a time. With computer or microcontroller managed stepping, precise positioning and/or speed control is achieved. Steppers are selected by torque, steps per revolution, step angle, NEMA frame size, coil resistance, polarity and shaft features.
Product List
Total Components: 4
Product | Pricing | Datasheet | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

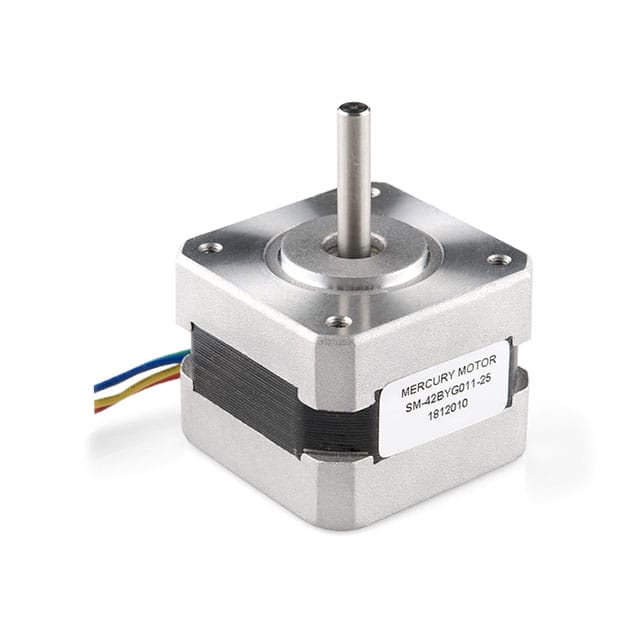

ROB-09238 SparkFun | 1 $18.7900 | Datasheet | Hybrid | Bipolar | 12VDC | 330 mA | 200 | 1.8° | - | 32.57 / 230 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | - | 32.6 Ohms | Round Shaft | 3,136 Cart + RFQ |

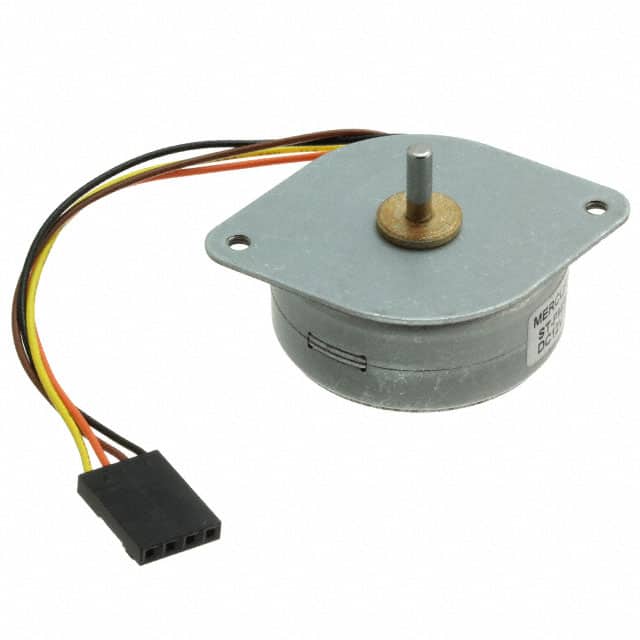

ROB-10551 SparkFun | 1 $9.3500 | Datasheet | Permanent Magnet | Bipolar | 12VDC | 400 mA | 48 | 7.5° | - | - | Round - 1.378" Dia (35.00mm) | - | 0.118" (3.00mm) | 0.492" (12.50mm) | 1.650" (42.00mm) | Wire Leads with Connector | - | 4 Ohms | Round Shaft | 1,184 Cart + RFQ |

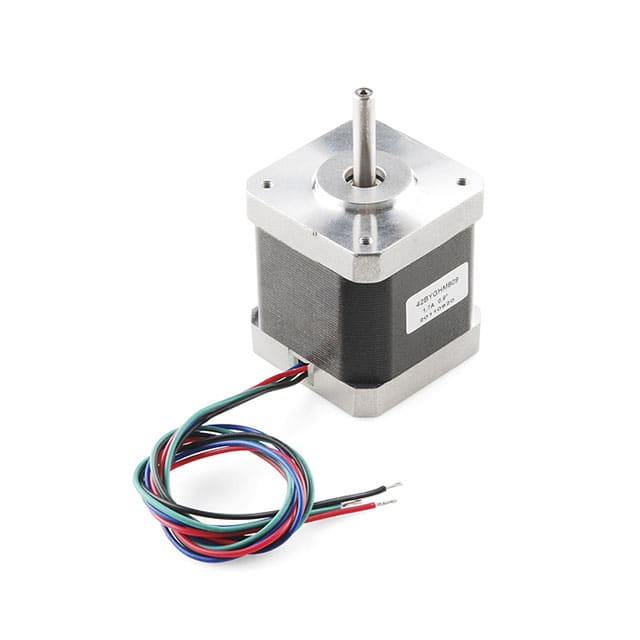

ROB-10846 SparkFun | 1 $19.5000 | Datasheet | Hybrid | Bipolar | 3VDC | 1.7 A | 400 | 0.9° | - | 67.97 / 480 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | - | 1.8 Ohms | Round Shaft | 9,755 Cart + RFQ |
ROB-13656 SparkFun | 1 $41.8800 | Datasheet | Hybrid | Bipolar | 3.2VDC | 2 A | 200 | 1.8° | ±5% | 125 / 882.7 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.827" (21.00mm) | 1.856" (47.14mm) | Wire Leads | - | 1.6 Ohms | Round Shaft | 7,269 Cart + RFQ |
