Stepper Motors
Stepper motors are DC voltage motion actuators that move in discrete steps. Multiple sets of coils organized in groups called "phases" determine the motors armature position. Energizing each phase in sequence causes armature rotation one step at a time. With computer or microcontroller managed stepping, precise positioning and/or speed control is achieved. Steppers are selected by torque, steps per revolution, step angle, NEMA frame size, coil resistance, polarity and shaft features.
Product List
Total Components: 9
| Product | Pricing | Datasheet | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

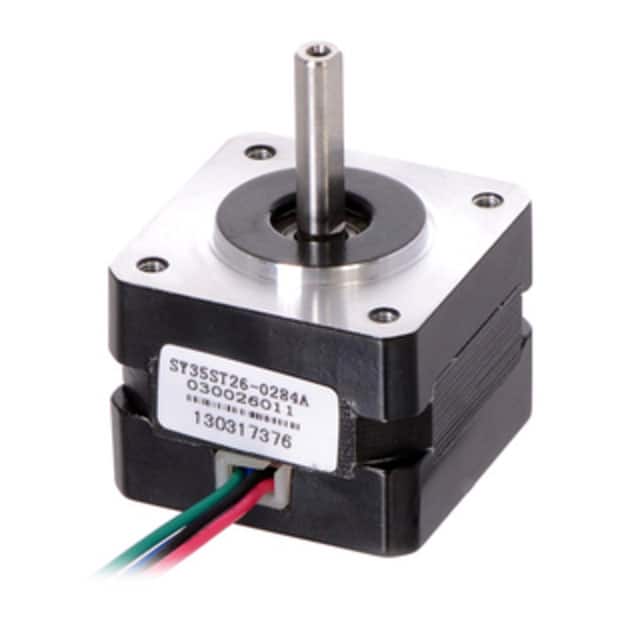

 1207 Pololu Corporation | 1 $19.4900 | Datasheet | Hybrid | Bipolar | 4.56VDC | 280 mA | 200 | 1.8° | - | 9 / 63.55 | Square - 1.386" x 1.386" (35.20mm x 35.20mm) | 14 | 0.197" (5.00mm) | 0.827" (21.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 26 Ohms | Flatted Shaft | 5,097 Cart + RFQ |
 2267 Pololu Corporation | 1 $22.7500 | Datasheet | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms | Flatted Shaft | 7,795 Cart + RFQ |

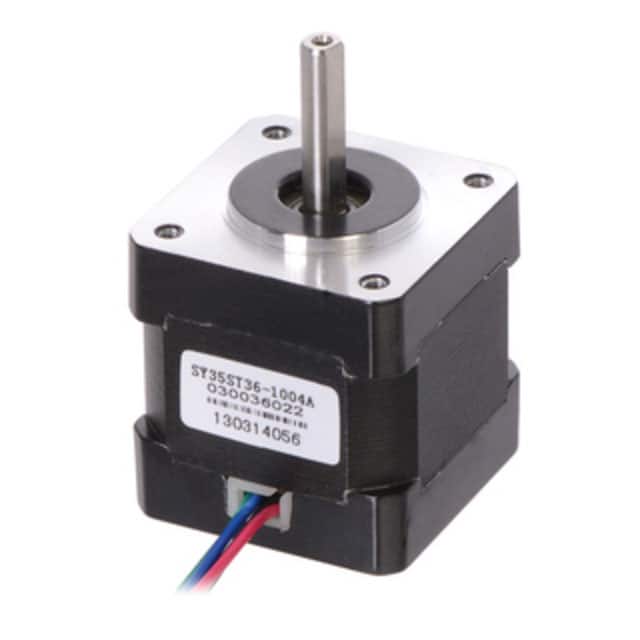

 1209 Pololu Corporation | 1 $22.7500 | Datasheet | Hybrid | Bipolar | 2.7VDC | 1 A | 200 | 1.8° | - | 20 / 141.23 | Square - 1.386" x 1.386" (35.20mm x 35.20mm) | 14 | 0.197" (5.00mm) | 0.827" (21.00mm) | 1.023" (26.00mm) | Wire Leads | -20°C ~ 50°C | 2.7 Ohms | Flatted Shaft | 4,685 Cart + RFQ |

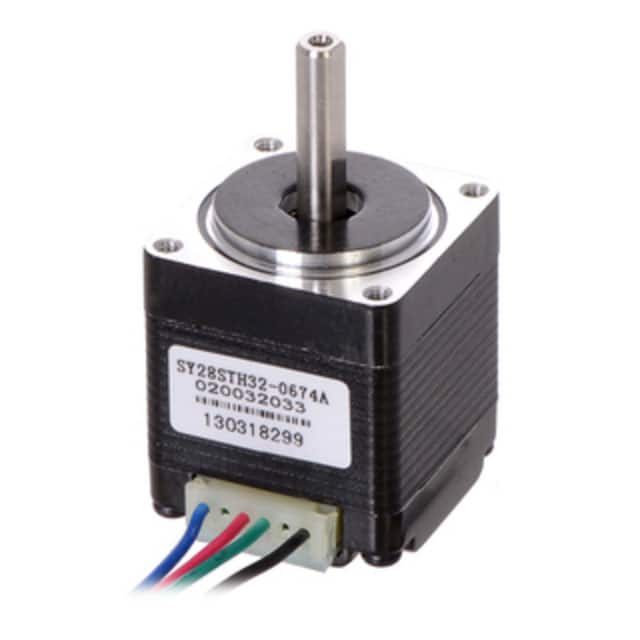

 1205 Pololu Corporation | 1 $25.7500 | Datasheet | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | - | 8.33 / 58.84 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Flatted Shaft | 8,042 Cart + RFQ |

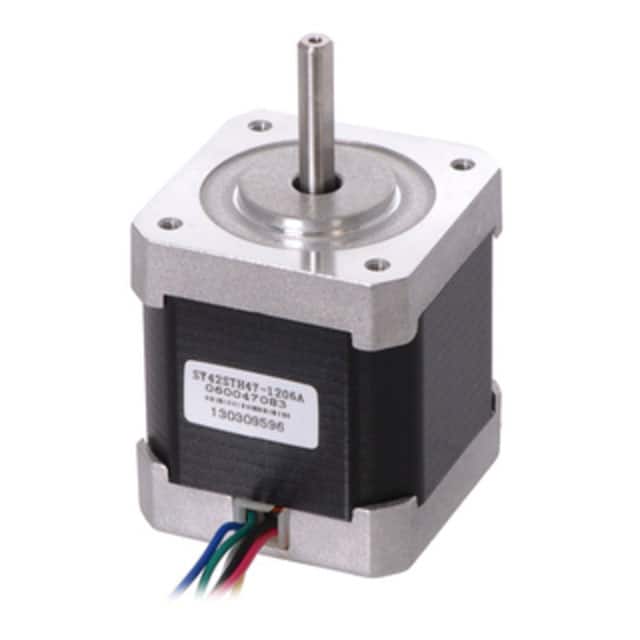

 1200 Pololu Corporation | 1 $27.7500 | Datasheet | Hybrid | Unipolar | 4VDC | 1.2 A | 200 | 1.8° | - | 43.9 / 310 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | - | Flatted Shaft | 7,156 Cart + RFQ |

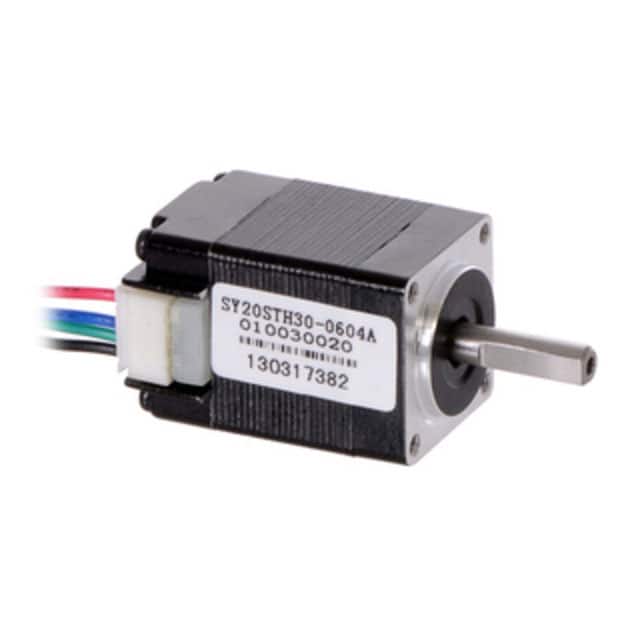

 1204 Pololu Corporation | 1 $29.7500 | Datasheet | Hybrid | Bipolar | 3.9VDC | 600 mA | 200 | 1.8° | - | 2.5 / 17.65 | Square - 0.795" x 0.795" (20.20mm x 20.20mm) | 8 | 0.157" (4.00mm) | 0.591" (15.00mm) | 0.630" (16.00mm) | Wire Leads | -20°C ~ 50°C | 6.5 Ohms | Double Flatted Shaft | 1,655 Cart + RFQ |
 1206 Pololu Corporation | 1 $31.9500 | Datasheet | Hybrid | Bipolar | 4.56VDC | 670 mA | 200 | 1.8° | - | 13 / 91.8 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 6.8 Ohms | Flatted Shaft | 3,806 Cart + RFQ |

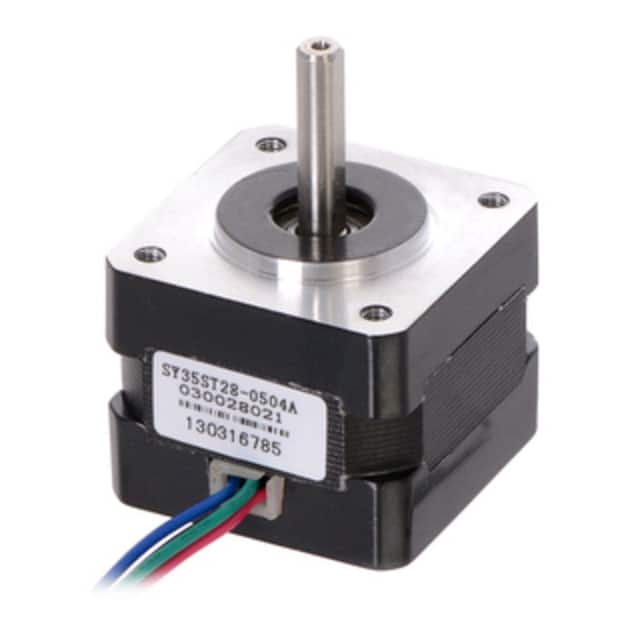

 1208 Pololu Corporation | 1 $19.4900 | Datasheet | Hybrid | Bipolar | 10VDC | 500 mA | 200 | 1.8° | - | 14 / 98.86 | Square - 1.386" x 1.386" (35.20mm x 35.20mm) | 14 | 0.197" (5.00mm) | 0.827" (21.00mm) | 1.023" (26.00mm) | Wire Leads | -20°C ~ 50°C | 20 Ohms | Flatted Shaft | 4,064 Cart + RFQ |

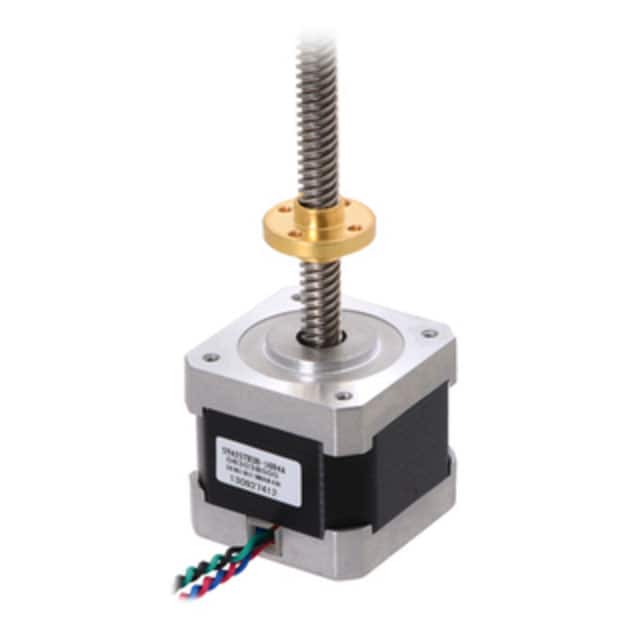

 2268 Pololu Corporation | 1 $67.7500 | Datasheet | Hybrid | Bipolar | 2.8VDC | 1.7 A | 200 | 1.8° | - | 51 / 360 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.315" (8.00mm) | 11.102" (282.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.65 Ohms | Flatted Shaft | 7,903 Cart + RFQ |
