Stepper Motors
Stepper motors are DC voltage motion actuators that move in discrete steps. Multiple sets of coils organized in groups called "phases" determine the motors armature position. Energizing each phase in sequence causes armature rotation one step at a time. With computer or microcontroller managed stepping, precise positioning and/or speed control is achieved. Steppers are selected by torque, steps per revolution, step angle, NEMA frame size, coil resistance, polarity and shaft features.
Product List
Total Components: 18
| Product | Pricing | Datasheet | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PG15S-D20-HHB9 MinebeaMitsumi | 1 $36.7200 | Datasheet | Permanent Magnet Gear Motor | Bipolar | 15VDC | 100 mA | 2048 | 0.176° | - | 21.2 / 150 | Round - 0.591" Dia (15.00mm) | - | 0.118" (3.00mm) | 0.354" (9.00mm) | 0.787" (20.00mm) | Wire Leads | - | 10 Ohms | Round Shaft | 4,848 Cart + RFQ |
 PG20L-D20-HHC0 MinebeaMitsumi | 1 $36.8900 | Datasheet | Permanent Magnet Gear Motor | Bipolar | 10VDC | 350 mA | 1818 | 0.198° | - | - | Round - 0.787" Dia (20.00mm) | - | 0.157" (4.00mm) | 0.394" (10.00mm) | 0.984" (25.00mm) | Wire Leads | - | 10 Ohms | Flatted Shaft | 8,042 Cart + RFQ |
 PG25L-D24-HHC1 MinebeaMitsumi | 1 $36.9600 | Datasheet | Permanent Magnet Gear Motor | Bipolar | 24VDC | 250 mA | 727 | 0.495° | - | 63.7 / 450 | Round - 0.984" Dia (25.00mm) | - | 0.197" (5.00mm) | 0.394" (10.00mm) | 1.378" (35.00mm) | Wire Leads | - | 28 Ohms | Double Flatted Shaft | 6,664 Cart + RFQ |
 PG35S-D48-HHC2 MinebeaMitsumi | 1 $37.3400 | Datasheet | Permanent Magnet Gear Motor | Bipolar | 24VDC | 250 mA | 1698 | 0.212° | - | 99.1 / 700 | Round - 1.378" Dia (35.00mm) | - | 0.197" (5.00mm) | 0.709" (18.00mm) | 1.650" (42.00mm) | Wire Leads | - | 28 Ohms | Double Flatted Shaft | 8,196 Cart + RFQ |
 SMC10-F20-HHD9 MinebeaMitsumi | 1 $39.1000 | Datasheet | Permanent Magnet | Bipolar | 5VDC | - | 20 | 18° | - | - | Round - 0.394" Dia (10.00mm) | - | 0.059" (1.50mm) | 0.197" (5.00mm) | 0.551" (14.00mm) | Through Hole | -10°C ~ 50°C | 21.5 Ohms | Round Shaft | 2,360 Cart + RFQ |
 PM35S-048-HHC6 MinebeaMitsumi | 1 $37.1400 | Datasheet | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 6.94 / 49 | Round - 1.378" Dia (35.00mm) | - | 0.118" (3.00mm) | 0.394" (10.00mm) | 1.650" (42.00mm) | Wire Leads | - | 5.5 Ohms | Round Shaft | 9,408 Cart + RFQ |
 PM35L-048-HHC7 MinebeaMitsumi | 1 $37.2600 | Datasheet | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 6.94 / 49 | Round - 1.378" Dia (35.00mm) | - | 0.118" (3.00mm) | 0.394" (10.00mm) | 1.650" (42.00mm) | Wire Leads | - | 5.5 Ohms | Round Shaft | 2,719 Cart + RFQ |
 17PM-K053-00VS MinebeaMitsumi | 1 $50.3900 | Datasheet | Hybrid | Unipolar | 24VDC | 850 mA | 200 | 1.8° | ±5% | 24.08 / 170 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.984" (25.00mm) | 1.220" (31.00mm) | Wire Leads | -10°C ~ 50°C | 4.2 Ohms | Flatted Shaft | 7,786 Cart + RFQ |
 23KM-K267-00V MinebeaMitsumi | 1 $64.6300 | Datasheet | Hybrid | Unipolar | 24VDC | 900 mA | 200 | 1.8° | ±5% | 67.98 / 480 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 5.8 Ohms | Flatted Shaft | 5,159 Cart + RFQ |
 23KM-K748-00V MinebeaMitsumi | 1 $83.5500 | Datasheet | Hybrid | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 198.28 / 1400 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 2.3 Ohms | Flatted Shaft | 1,439 Cart + RFQ |
 34KM-K122-99W MinebeaMitsumi | 1 $185.7700 | Datasheet | Hybrid, Dual Shaft | Unipolar | 24VDC | 1.9 A | 200 | 1.8° | ±5% | 679.82 / 4800 | Square - 3.347" x 3.347" (85.00mm x 85.00mm) | 34 | 0.551" (14.00mm) | 1.457" (37.00mm) | 2.740" (69.60mm) | Wire Leads | -10°C ~ 50°C | 3.9 Ohms | Double Flatted Shaft | 8,718 Cart + RFQ |

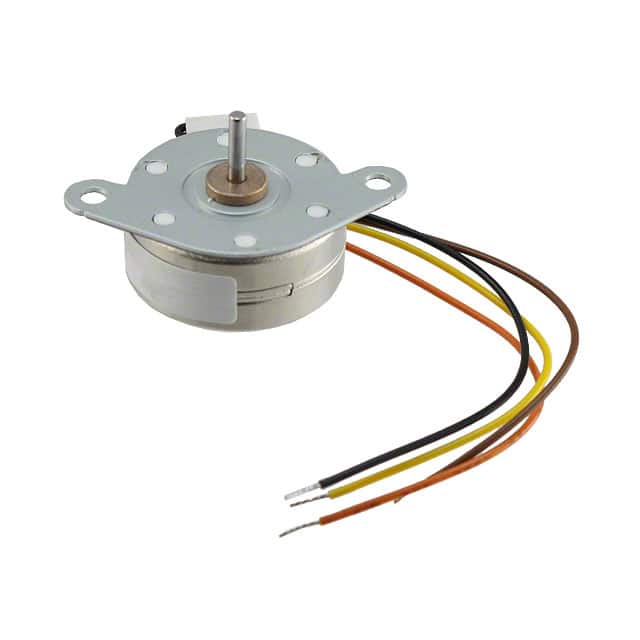

 PM25S-048-HHC4 MinebeaMitsumi | 1 $33.6600 | Datasheet | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 3.5 / 25 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | 0.394" (10.00mm) | 1.260" (32.00mm) | Wire Leads | - | 16 Ohms | Round Shaft | 4,074 Cart + RFQ |

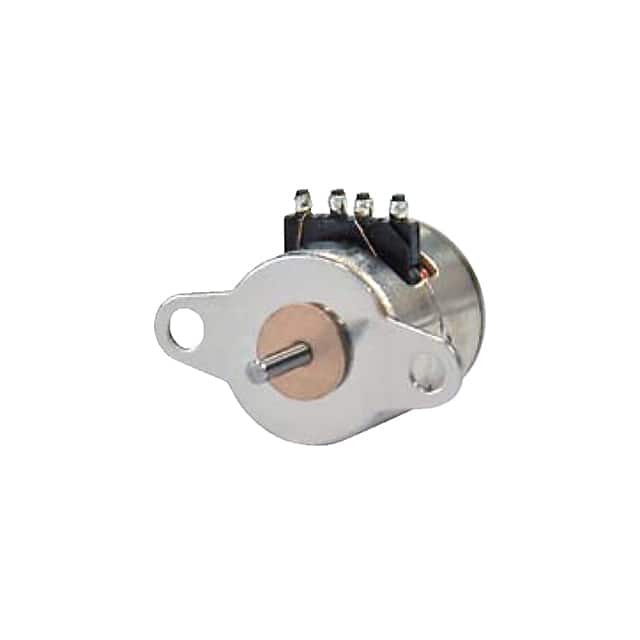

 SM8-F20-HHE0 MinebeaMitsumi | 1 $39.1000 | Datasheet | Permanent Magnet | Bipolar | 5VDC | - | 20 | 18° | - | - | Round - 0.315" Dia (8.00mm) | - | 0.039" (1.00mm) | - | 0.433" (11.00mm) | Through Hole | -10°C ~ 50°C | 21 Ohms | Round Shaft | 9,517 Cart + RFQ |

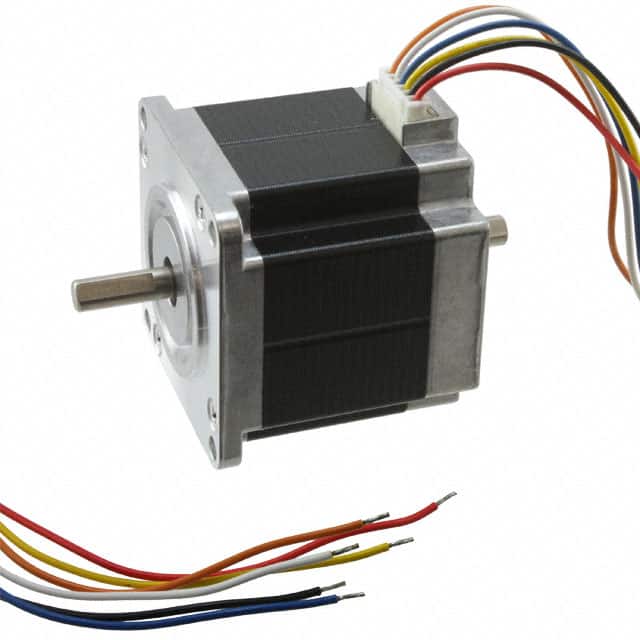

 23KM-K049-99V MinebeaMitsumi | 1 $71.9500 | Datasheet | Hybrid, Dual Shaft | Unipolar | 24VDC | 2 A | 200 | 1.8° | ±5% | 127.47 / 900 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.984" (25.00mm) | 1.856" (47.14mm) | Wire Leads with Connector | -10°C ~ 50°C | 1.7 Ohms | Flatted Shaft | 7,469 Cart + RFQ |

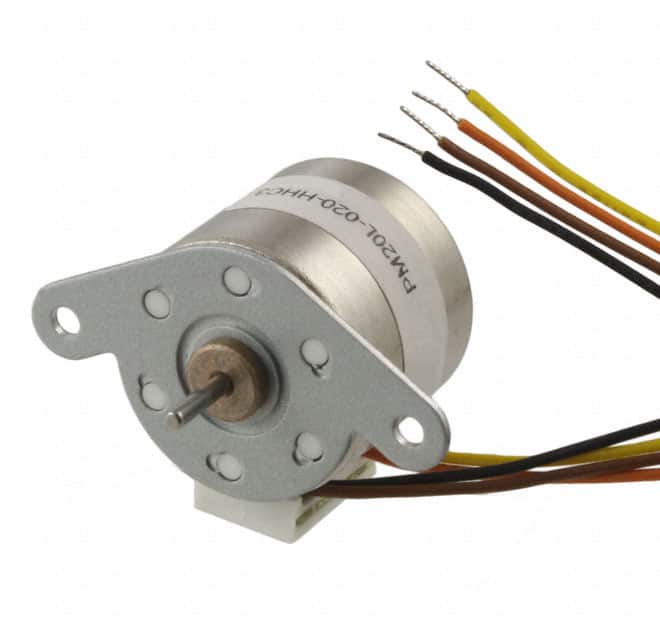

 PM20L-020-HHC3 MinebeaMitsumi | 1 $33.6500 | Datasheet | Permanent Magnet | Bipolar | 24VDC | 400 mA | 20 | 18° | - | 2.1 / 15 | Round - 0.787" Dia (20.00mm) | - | 0.059" (1.50mm) | 0.315" (8.00mm) | 1.100" (28.00mm) | Wire Leads | - | 13 Ohms | Round Shaft | 1,014 Cart + RFQ |

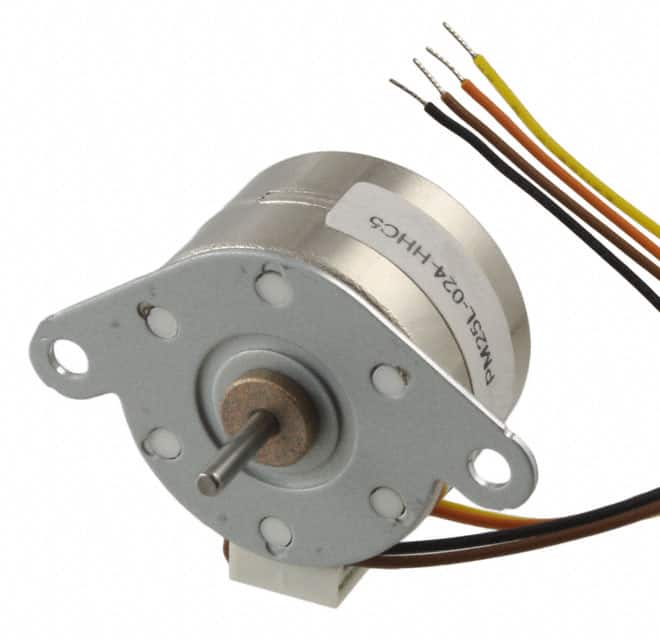

 PM25L-024-HHC5 MinebeaMitsumi | 1 $33.7000 | Datasheet | Permanent Magnet | Bipolar | 24VDC | 600 mA | 24 | 15° | - | 3.7 / 26 | Round - 0.984" Dia (25.00mm) | - | 0.079" (2.00mm) | 0.394" (10.00mm) | 1.260" (32.00mm) | Wire Leads | - | 8 Ohms | Round Shaft | 7,706 Cart + RFQ |

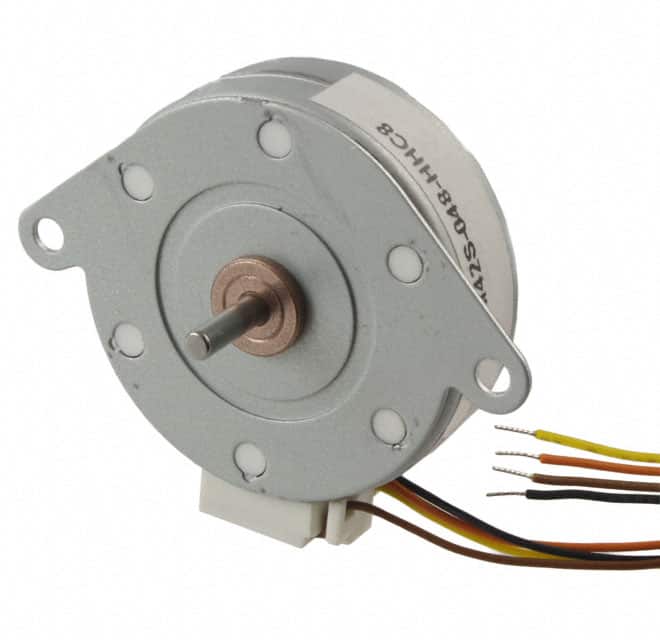

 PM42S-048-HHC8 MinebeaMitsumi | 1 $37.3000 | Datasheet | Permanent Magnet | Bipolar | 24VDC | 600 mA | 48 | 7.5° | - | 9.3 / 66 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.472" (12.00mm) | 1.950" (49.48mm) | Wire Leads | - | 8 Ohms | Round Shaft | 3,570 Cart + RFQ |

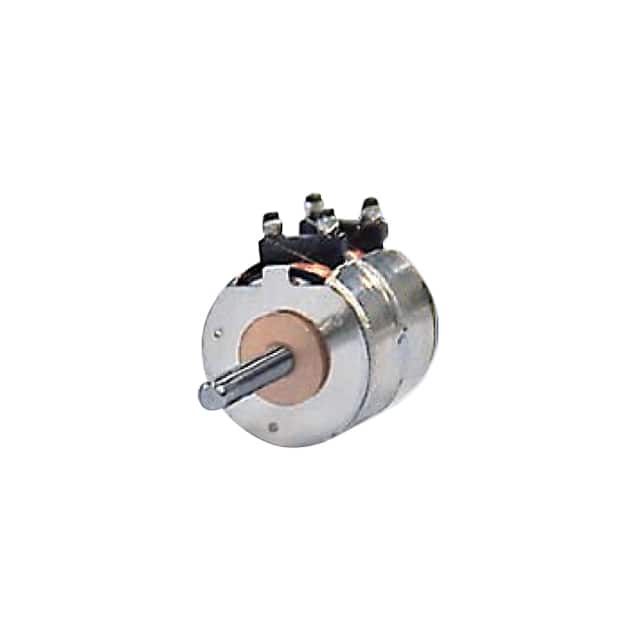

 SMS6-F20-HHE2 MinebeaMitsumi | 1 $39.1000 | Datasheet | Permanent Magnet | Bipolar | 3VDC | - | 20 | 18° | - | - | Round - 0.236" Dia (6.00mm) | - | 0.031" (0.80mm) | - | - | Through Hole | -10°C ~ 50°C | 20 Ohms | Round Shaft | 2,024 Cart + RFQ |
