Stepper Motors
Stepper motors are DC voltage motion actuators that move in discrete steps. Multiple sets of coils organized in groups called "phases" determine the motors armature position. Energizing each phase in sequence causes armature rotation one step at a time. With computer or microcontroller managed stepping, precise positioning and/or speed control is achieved. Steppers are selected by torque, steps per revolution, step angle, NEMA frame size, coil resistance, polarity and shaft features.
Product List
Total Components: 11
| Product | Pricing | Datasheet | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WO-416-05-04 Lin Engineering | 1 $44.9700 | Datasheet | - | Bipolar | 24VDC | 600 mA | 400 | 0.9° | - | 6 / 42.37 | Square - 1.539" L x 1.539" W (39.10mm x 39.10mm) | 17 | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | Round Shaft | 2,370 Cart + RFQ |
 WO-4418L-36 Lin Engineering | 1 $60.2100 | Datasheet | - | Bipolar | 24VDC | 2 A | 200 | 1.8° | - | 100 / 706 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.6 Ohms | Round Shaft | 2,693 Cart + RFQ |
 WO-5718L-01P-RO Lin Engineering | 1 $77.6800 | Datasheet | - | Bipolar | 24VDC | 2.8 A | 200 | 1.8° | - | 294 / 2076 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.250" (6.35mm) | 0.811" (20.60mm) | 1.860" (47.24mm) | Wire Leads | -20°C ~ 50°C | 1.1 Ohms | - | 5,358 Cart + RFQ |
WO-4118M-06P Lin Engineering | 1 $44.6800 | Datasheet | - | Bipolar | 24VDC | 1.4 A | 200 | 1.8° | - | 63 / 444.88 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 2.7 Ohms | - | 1,277 Cart + RFQ |
 WO-211-20-01-RO Lin Engineering | 1 $49.2100 | Datasheet | - | Bipolar | 24VDC | 670 mA | 200 | 1.8° | - | 16.6 / 117.22 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 8.6 Ohms | Round Shaft | 7,923 Cart + RFQ |
WO-211-13-01-RO Lin Engineering | 1 $41.5300 | Datasheet | - | Bipolar | 24VDC | 670 mA | 200 | 1.8° | - | 9.2 / 64.97 | Square - 1.110" x 1.110" (28.20mm x 28.20mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.906" (23.00mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Round Shaft | 2,273 Cart + RFQ |

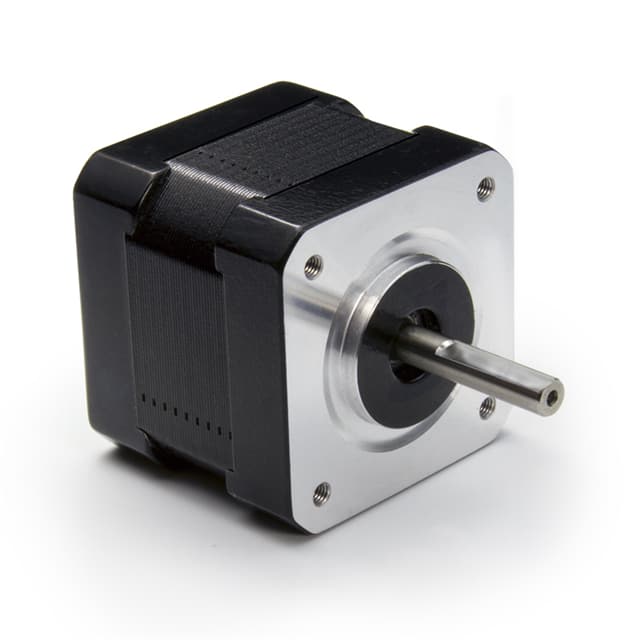

 WO-4209M-01P Lin Engineering | 1 $50.2800 | Datasheet | - | Bipolar | 24VDC | 1.7 A | 400 | 0.9° | - | 51 / 360 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms | Round Shaft | 2,212 Cart + RFQ |
WO-4209L-01P Lin Engineering | 1 $65.5500 | Datasheet | - | Bipolar | 24VDC | 1.7 A | 400 | 0.9° | - | 62 / 438 | Square - 1.669" x 1.669" (42.40mm x 42.40mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 1.9 Ohms | Round Shaft | 3,239 Cart + RFQ |

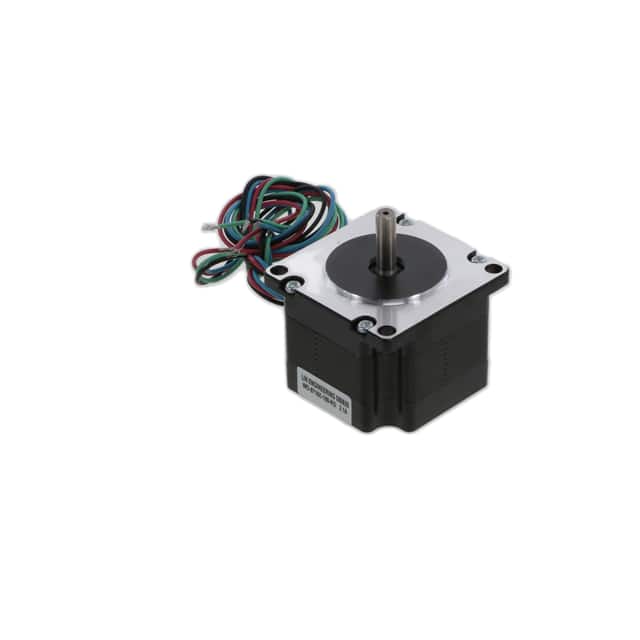

 WO-5718X-15P-RO Lin Engineering | 1 $65.7700 | Datasheet | - | Bipolar | 24VDC | 4.2 A | 200 | 1.8° | - | 100 / 706 | Square - 2.252" x 2.252" (57.20mm x 57.20mm) | 23 | 0.236" (6.00mm) | 0.827" (21.00mm) | 1.850" (47.00mm) | Wire Leads | -20°C ~ 50°C | 0.3 Ohms | Flatted Shaft | 8,563 Cart + RFQ |

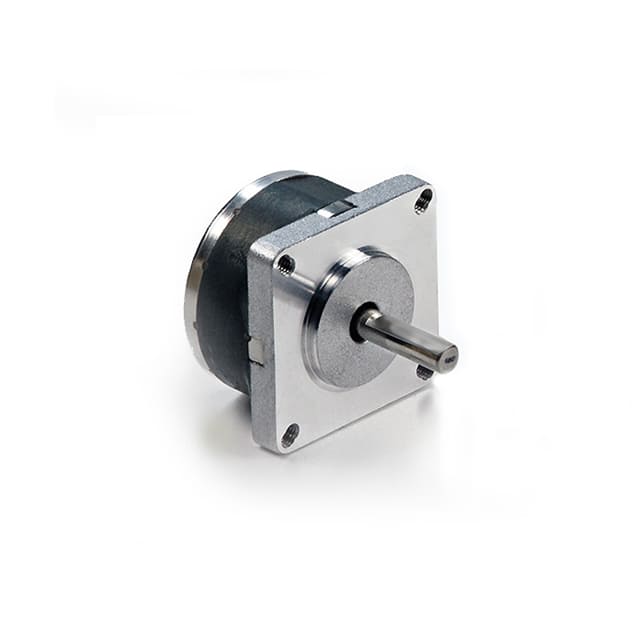

 WO-3709V-03 Lin Engineering | 1 $37.0500 | Datasheet | - | Bipolar | 24VDC | 1.2 A | 400 | 0.9° | - | 16 / 113 | Square - 1.440" L x 1.440" W (36.58mm x 36.58mm) | 14 | 0.197" (5.00mm) | 0.787" (20.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 3 Ohms | Round Shaft | 7,101 Cart + RFQ |

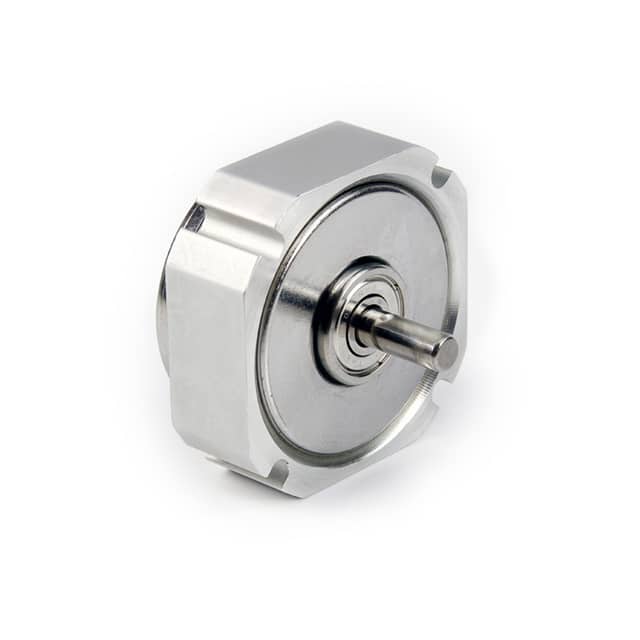

 WO-4109V-51 Lin Engineering | 1 $37.6100 | Datasheet | - | Bipolar | 24VDC | 1.2 A | 400 | 0.9° | - | 15 / 105.9 | Square - 1.654" x 1.654" (42.00mm x 42.00mm) | 17 | 0.197" (5.00mm) | 0.591" (15.00mm) | 1.220" (31.00mm) | Wire Leads | -20°C ~ 50°C | 3 Ohms | Round Shaft | 4,547 Cart + RFQ |
