Motors, Solenoids, Driver Boards/Modules
Motors and solenoids convert electrical energy into rotational and linear force (or motion) respectively, and this product category also includes a variety of electronic devices designed to function with specific motor types to realize more advanced motion control functions such as position, speed, or acceleration control, protection and status monitoring.
Product List
Total Components: 94
| Product | Pricing | Datasheet | Accessory Type | For Use With/Related Products | Usage | Specifications | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency | Type | Motor Type | Control / Drive Type | Number of Motors | Voltage - Load | Current - Output | Wattage - Load | Voltage - Supply | Interface | Mounting Type | Operating Temperature | Features | For Use With/Related Products | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated (oz-in / mNm) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Operating Temperature | Technology | Type | Duty Cycle | Voltage - Rated | Stroke Length | Power (Watts) | DC Resistance (DCR) | Bushing Thread | Mounting Type | Termination Style | Size / Dimension | Diameter - Shaft | Shaft Detail | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P16-50-64-12-S Actuonix Motion Devices, Inc. | 1 $85.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.969" (50.00mm) | 20.23lbf (90.0N) | 122.40lbf (500.0N) | 0.71 in/s (18.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 64 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 2,328 Cart + RFQ |
 PQ12-100-12-S Actuonix Motion Devices, Inc. | 1 $85.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 7,609 Cart + RFQ |
 PQ12-100-12-P Actuonix Motion Devices, Inc. | 1 $85.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 0.787" (20.00mm) | 11.24lbf (50.0N) | - | 0.39 in/s (10.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.10mm | - | - | 100 | Potentiometer | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3,061 Cart + RFQ |
 L16-100-35-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 3.937" (100.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | Limit Switches | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,480 Cart + RFQ |
 L16-100-63-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 3.937" (100.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.40mm | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,215 Cart + RFQ |
 L16-30-150-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.181" (30.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 12VDC | Ball Screw | - | - | Limit Switches | 150 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3,636 Cart + RFQ |

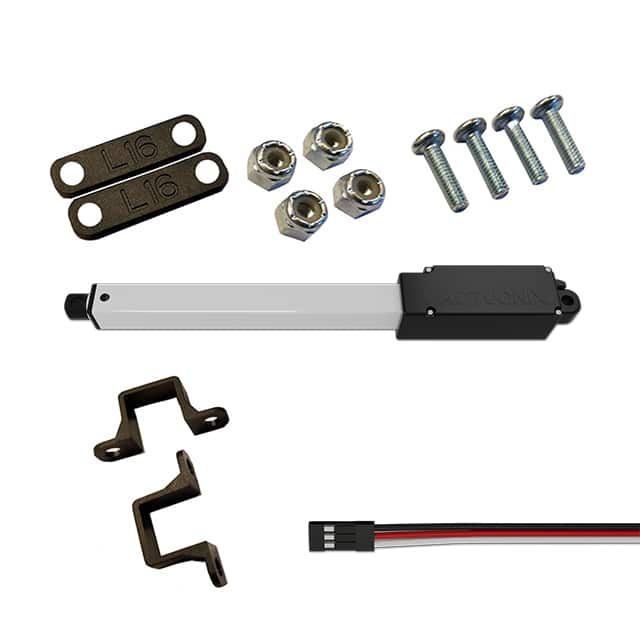

 L16-100-35-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 3.937" (100.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.40mm | - | RC Linear Servo | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,537 Cart + RFQ |

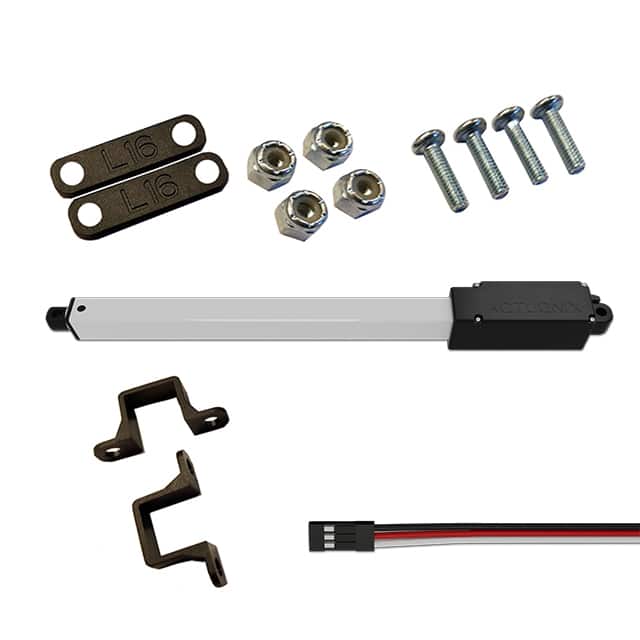

 L16-140-35-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 5.512" (140.00mm) | 11.24lbf (50.0N) | 56.20lbf (250.0N) | 1.26 in/s (32.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 35 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,778 Cart + RFQ |
 L16-140-150-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 5.512" (140.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 150 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3,281 Cart + RFQ |

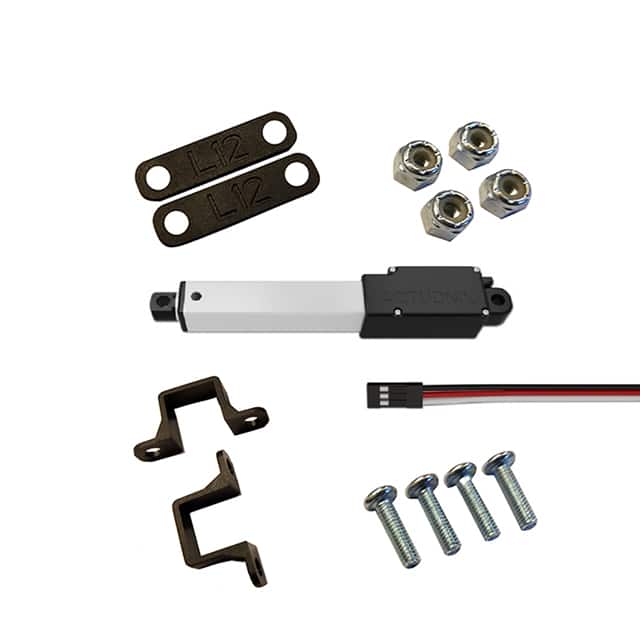

 L12-50-50-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.969" (50.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | RC Linear Servo | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,069 Cart + RFQ |

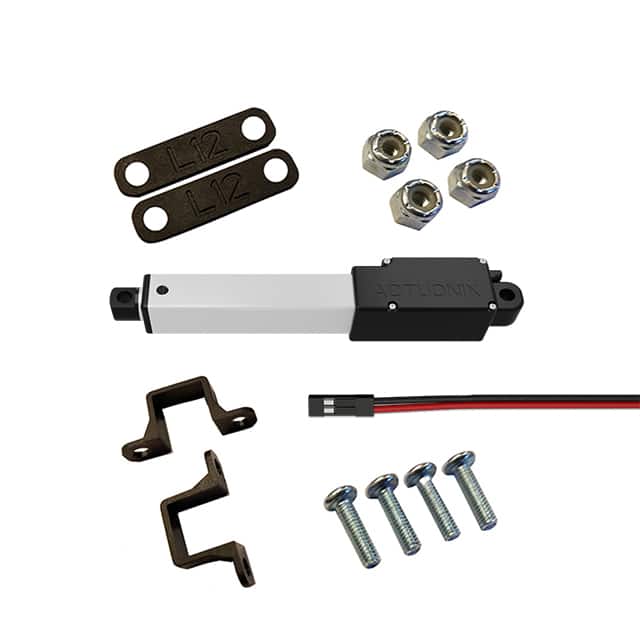

 L12-50-210-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.969" (50.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.30mm | - | Limit Switches | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3,501 Cart + RFQ |
 L16-140-63-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 5.512" (140.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Limit Switches | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,300 Cart + RFQ |
 L16-140-63-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 5.512" (140.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,996 Cart + RFQ |

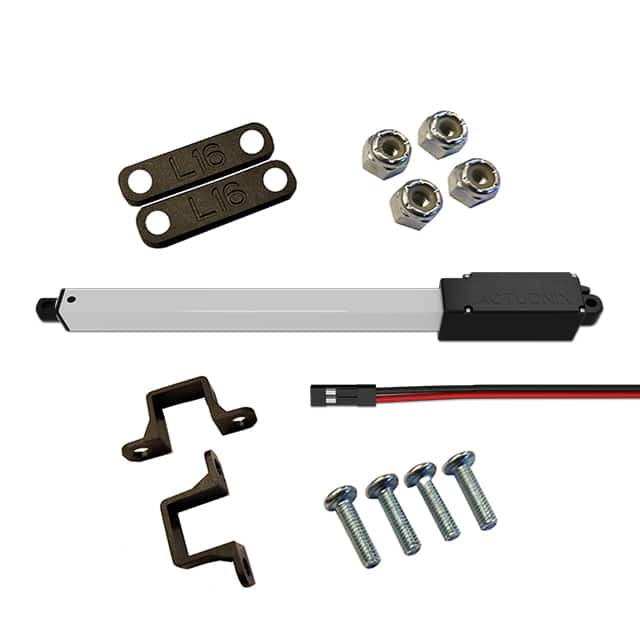

 L16-140-150-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 5.512" (140.00mm) | 44.96lbf (200.0N) | 56.20lbf (250.0N) | 0.32 in/s (8.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Limit Switches | 150 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,082 Cart + RFQ |
 L12-30-100-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.181" (30.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.20mm | - | RC Linear Servo | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 5,420 Cart + RFQ |

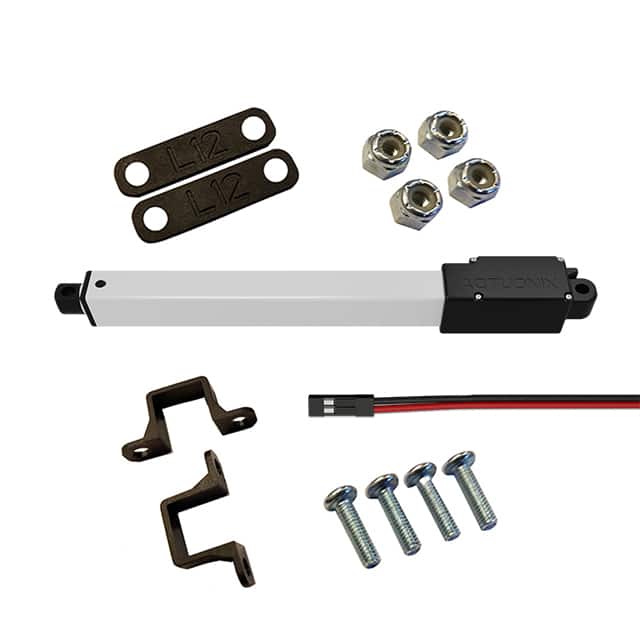

 L12-100-50-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 3.937" (100.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.50mm | - | Limit Switches | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 7,858 Cart + RFQ |
 L12-30-210-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.181" (30.00mm) | 17.99lbf (80.0N) | 44.96lbf (200.0N) | 0.26 in/s (6.6 mm/s) | 20% | 12VDC | Ball Screw | ±0.20mm | - | Limit Switches | 210 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,028 Cart + RFQ |

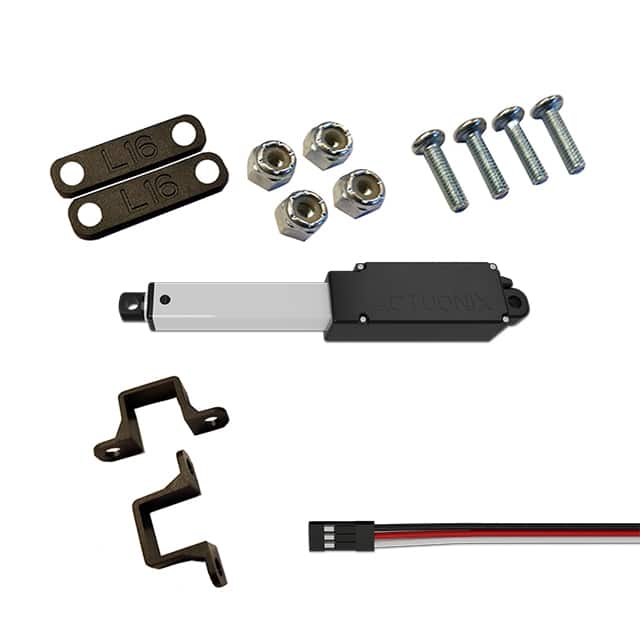

 L16-50-63-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.969" (50.00mm) | 22.48lbf (100.0N) | 56.20lbf (250.0N) | 0.79 in/s (20.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.30mm | - | RC Linear Servo | 63 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4,567 Cart + RFQ |

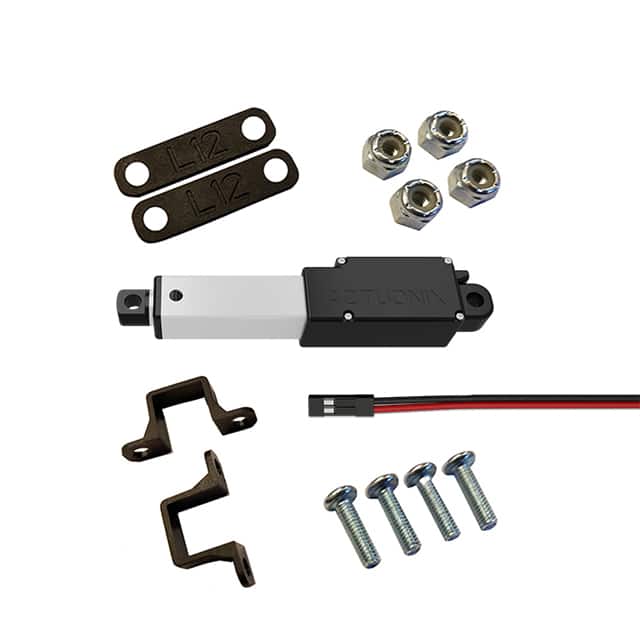

 L12-30-100-12-S Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 1.181" (30.00mm) | 9.44lbf (42.0N) | 44.96lbf (200.0N) | 0.51 in/s (13.0 mm/s) | 20% | 12VDC | Ball Screw | ±0.20mm | - | Limit Switches | 100 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,753 Cart + RFQ |

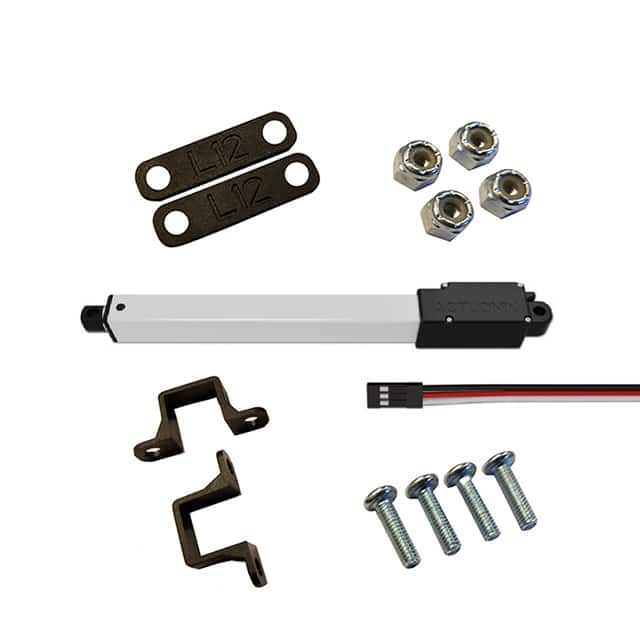

 L12-100-50-6-R Actuonix Motion Devices, Inc. | 1 $90.0000 | Datasheet | - | - | - | - | Linear Actuator | Brushed | 3.937" (100.00mm) | 4.95lbf (22.0N) | 44.96lbf (200.0N) | 0.98 in/s (25.0 mm/s) | 20% | 6VDC | Ball Screw | ±0.50mm | - | RC Linear Servo | 50 | - | Wire Leads with Connector | -10°C ~ 50°C | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 7,063 Cart + RFQ |
