Motors, Solenoids, Driver Boards/Modules
Motors and solenoids convert electrical energy into rotational and linear force (or motion) respectively, and this product category also includes a variety of electronic devices designed to function with specific motor types to realize more advanced motion control functions such as position, speed, or acceleration control, protection and status monitoring.
Product List
Total Components: 37
| Product | Pricing | Datasheet | Accessory Type | For Use With/Related Products | Usage | Specifications | Type | Motor Type | Stroke Length | Load Force (Dynamic) | Load Force (Static) | Speed | Duty Cycle | Voltage - Rated | Construction | Accuracy | Acceleration | Features | Gear Reduction Ratio | Feedback Type | Termination Style | Operating Temperature | Ingress Protection | Approval Agency | Type | Motor Type | Control / Drive Type | Number of Motors | Voltage - Load | Current - Output | Wattage - Load | Voltage - Supply | Interface | Mounting Type | Operating Temperature | Features | For Use With/Related Products | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated (oz-in / mNm) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Operating Temperature | Technology | Type | Duty Cycle | Voltage - Rated | Stroke Length | Power (Watts) | DC Resistance (DCR) | Bushing Thread | Mounting Type | Termination Style | Size / Dimension | Diameter - Shaft | Shaft Detail | Type | Coil Type | Voltage - Rated | Current Rating (Amps) | Steps per Revolution | Step Angle | Accuracy | Torque - Holding (oz-in / mNm) | Size / Dimension | NEMA Frame Size | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Operating Temperature | Coil Resistance | Features | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TMCM-3110-CABLE TRINAMIC Motion Control GmbH | 1 $13.0300 | Datasheet | Cable Assembly | TMCM-3110 Series | Motor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,310 Cart + RFQ |
 TMCM-1141-CABLE TRINAMIC Motion Control GmbH | 1 $5.5900 | Datasheet | Cable Assembly | TMCM-1141 Series | Motor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 8,456 Cart + RFQ |
 TMCM-1260-CABLE TRINAMIC Motion Control GmbH | 1 $8.7800 | Datasheet | Cable Assembly | TMCM-1260 Series | Communications | 200mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 2,931 Cart + RFQ |
 TMCM-1070-CABLE TRINAMIC Motion Control GmbH | 1 $1.8600 | Datasheet | Cable Assembly | TMCM-1070 Series | Motor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 7,333 Cart + RFQ |
 TMCM-1640-CABLE TRINAMIC Motion Control GmbH | 1 $7.7100 | Datasheet | Cable Assembly | TMCM-1640 Series | Motor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 7,761 Cart + RFQ |
 TMCM-6110-CABLE TRINAMIC Motion Control GmbH | 1 $13.0300 | Datasheet | Cable Assembly | TMCM-6110 Series | Motor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,693 Cart + RFQ |
 TMCM-BB4 TRINAMIC Motion Control GmbH | 1 $241.1200 | Datasheet | Base Board | - | Motor | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 8,384 Cart + RFQ |
 TMCM-1076 TRINAMIC Motion Control GmbH | 1 $128.1700 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Module | Stepper | Stepper, Bipolar | 1 | - | 3A | - | 10 ~ 30VDC | Step / Direction | Chassis Mount | -30°C ~ 40°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,010 Cart + RFQ |
 TMCM-1021 TRINAMIC Motion Control GmbH | 1 $130.5000 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Board | Stepper | Stepper, Bipolar | 1 | 9 ~ 28V | 0.7A | - | 9 ~ 28VDC | CAN, RS-232, RS-422 | Chassis Mount | -40°C ~ 60°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 9,039 Cart + RFQ |
 TMCM-1161 TRINAMIC Motion Control GmbH | 1 $150.9000 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Board | Stepper | Stepper, Bipolar | 1 | 10 ~ 30V | 2.8A | - | 24VDC | RS-232, RS-485, USB | Chassis Mount | -35°C ~ 50°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 5,168 Cart + RFQ |
 TMCM-6110 TRINAMIC Motion Control GmbH | 1 $241.4400 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Board | Stepper | Stepper, Bipolar | 6 | 7 ~ 34V | 1.1A | - | 12 ~ 34VDC | CAN, RS-485 | Chassis Mount | -40°C ~ 70°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 8,096 Cart + RFQ |
 TMCM-1311 TRINAMIC Motion Control GmbH | 1 $268.6000 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Board | Stepper | Stepper, Bipolar | 1 | 10 ~ 52.5V | 3A | - | 10 ~ 52.5VDC | CAN, RS-485, USB | Chassis Mount | 0°C ~ 50°C | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,323 Cart + RFQ |

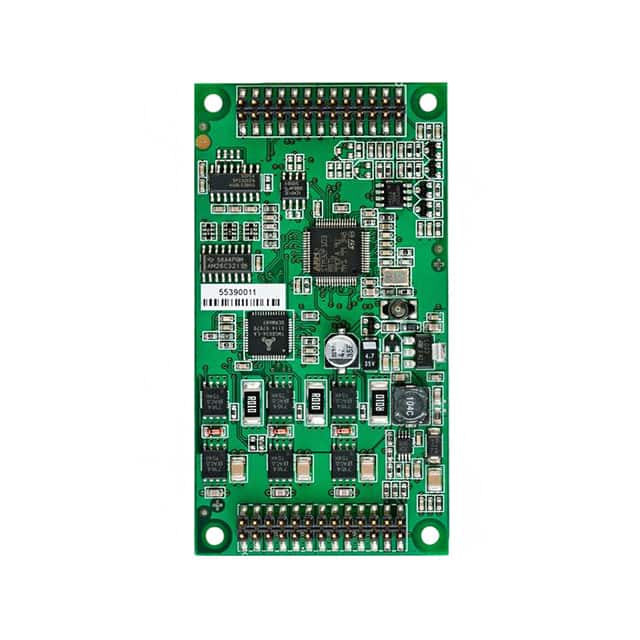

 TMCM-1633-CANOPEN TRINAMIC Motion Control GmbH | 1 $203.3000 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Board | Brushless (BLDC) | Brushless | 1 | 14.5 ~ 50V | 10A | - | 14 ~ 50VDC | CAN, RS-232 | Chassis Mount | -25°C ~ 60°C | - | BB-163X | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1,027 Cart + RFQ |
 QSH2818-32-07-006 TRINAMIC Motion Control GmbH | 1 $48.7700 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 3.8VDC | 670 mA | 200 | 1.8° | ±5% | 8.49 / 60 | Square - 1.100" x 1.100" (28.00mm x 28.00mm) | 11 | 0.197" (5.00mm) | 0.787" (20.00mm) | 0.905" (22.98mm) | Wire Leads | -20°C ~ 50°C | 5.6 Ohms | Flatted Shaft | 4,831 Cart + RFQ |
 QSH4218-41-10-035 TRINAMIC Motion Control GmbH | 1 $50.0900 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 4.5VDC | 1 A | 200 | 1.8° | ±5% | 49.56 / 350 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 4.5 Ohms | Flatted Shaft | 7,074 Cart + RFQ |
 QSH4218-51-10-049 TRINAMIC Motion Control GmbH | 1 $57.9900 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 5VDC | 1 A | 200 | 1.8° | ±5% | 69.39 / 490 | Square - 1.665" x 1.665" (42.30mm x 42.30mm) | 17 | 0.197" (5.00mm) | 0.945" (24.00mm) | 1.220" (30.99mm) | Wire Leads | -20°C ~ 50°C | 5 Ohms | Flatted Shaft | 1,880 Cart + RFQ |
 QSH5718-51-28-101 TRINAMIC Motion Control GmbH | 1 $69.4200 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 2.3VDC | 2.8 A | 200 | 1.8° | ±5% | 143.05 / 1010 | Square - 2.220" x 2.220" (56.40mm x 56.40mm) | 23 | 0.250" (6.35mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.83 Ohms | Flatted Shaft | 1,251 Cart + RFQ |
 QSH6018-86-28-310 TRINAMIC Motion Control GmbH | 1 $144.5100 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 4.17VDC | 2.8 A | 200 | 1.8° | ±5% | 438.99 / 3100 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 1.5 Ohms | Flatted Shaft | 6,846 Cart + RFQ |
 QSH6018-56-28-165 TRINAMIC Motion Control GmbH | 1 $94.1300 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 2.52VDC | 2.8 A | 200 | 1.8° | ±5% | 233.66 / 1650 | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 24 | 0.315" (8.00mm) | 0.945" (24.00mm) | 1.856" (47.14mm) | Wire Leads | -20°C ~ 50°C | 0.9 Ohms | Flatted Shaft | 1,071 Cart + RFQ |
 QSH8618-96-55-700 TRINAMIC Motion Control GmbH | 1 $250.2800 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Hybrid | Bipolar | 2.56VDC | 5.5 A | 200 | 1.8° | ±5% | 991.28 / 7000 | Square - 3.380" x 3.380" (85.85mm x 85.85mm) | 34 | 0.500" (12.70mm) | 1.310" (33.27mm) | 2.740" (69.60mm) | Wire Leads | -20°C ~ 50°C | 0.45 Ohms | Flatted Shaft | 1,816 Cart + RFQ |
