Magnetic Wire
Magnet wire products are characterized by their solid cross sections and very thin insulation, consisting of a varnish-like layer of polyamide, polyurethane or similar polymer material. It is used primarily in the construction of electromagnetic devices such as transformers, inductors, motors, solenoids, and similar devices, where its characteristically thin insulation enables increased winding density and better thermal transfer compared to wire types with thicker insulation systems.
Product List
Total Components: 9
Product | Pricing | Datasheet | Wire Gauge | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Length - Approximate | Ratings | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|

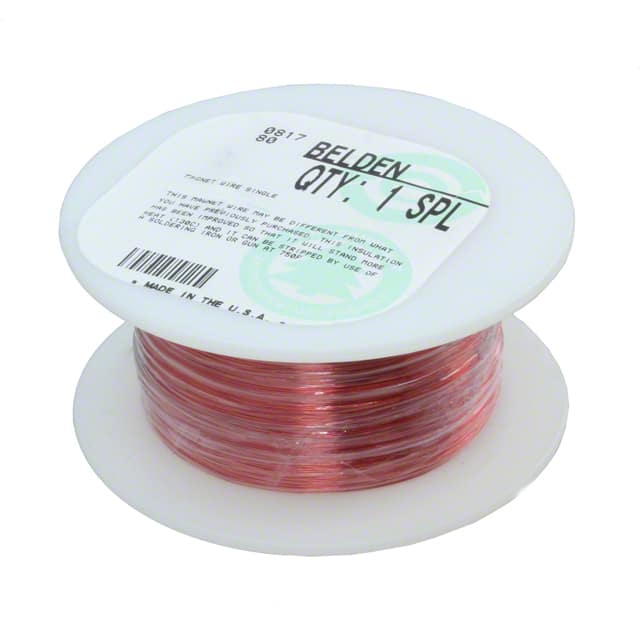

8052 Belden | 1 $84.4600 | Datasheet | 24 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.022" (0.55mm) | 404.0' (123m) | MW 28-C SL | 3,899 Cart + RFQ |
8053 Belden | 1 $86.5400 | Datasheet | 26 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.017" (0.43mm) | 645.0' (197m) | MW 28-C SL | 3,981 Cart + RFQ |
8054 Belden | 1 $89.6500 | Datasheet | 28 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.014" (0.36mm) | 1020.0' (311m) | MW 28-C SL | 7,211 Cart + RFQ |
8055 Belden | 1 $98.2900 | Datasheet | 30 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.011" (0.28mm) | 1615.0' (492m) | MW 28-C SL | 5,113 Cart + RFQ |
8058 Belden | 1 $126.7000 | Datasheet | 36 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.006" (0.16mm) | 6397.6' (1950m) | MW 28-C SL | 7,064 Cart + RFQ |

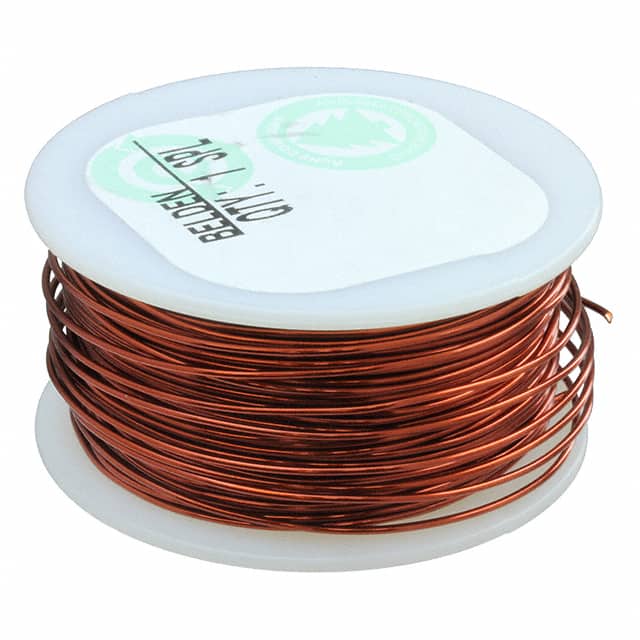

8073 Belden | 1 $138.3500 | Datasheet | 14 AWG | Copper, Annealed Bare | Polyamide | 0.068" (1.73mm) | 80.0' (24m) | MW 35-C HY | 3,150 Cart + RFQ |
8051 Belden | 1 $82.9400 | Datasheet | 22 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.027" (0.69mm) | 254.0' (77m) | MW 28-C SL | 2,558 Cart + RFQ |
8056 Belden | 1 $107.4600 | Datasheet | 32 AWG | Copper, Annealed Bare | Polyurethane (PU) | 0.009" (0.23mm) | 2515.0' (767m) | MW 28-C SL | 2,342 Cart + RFQ |
8078 Belden | 1 $146.4200 | Datasheet | 24 AWG | Copper, Annealed Bare | Polyamide | 0.023" (0.58mm) | 793.0' (242m) | MW 35-C HY | 3,038 Cart + RFQ |
