Ferrite Cores
Ferrite cores are a magnetic device used in the windings of transformers or other wound components. The chemical makeup of these devices help to prevent eddy currents. These are created in different form factors such as: E, toroid, ER, multi-hole, etc. and come in many different sizes. Key parameters are going to be the size, form factor or core type, and inductance factor.
Product List
Total Components: 20
| Product | Pricing | Datasheet | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm<sup>-1</sup> | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PLT22/16/2.5/S-3F36 FERROXCUBE | 1 $1.3600 | Datasheet | PLT | PLT 22 x 16 x 2.5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.858" (21.80mm) | 0.622" (15.80mm) | 9,807 Cart + RFQ |
 E22/6/16/R-3F36 FERROXCUBE | 1 $1.6500 | Datasheet | E | E 22 x 6 x 16 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) | 4,313 Cart + RFQ |
 PLT43/28/4.1-3C95 FERROXCUBE | 1 $3.5500 | Datasheet | PLT | PLT 43 x 28 x 4.1 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) | 6,513 Cart + RFQ |
E43/10/28-3C95 FERROXCUBE | 1 $4.2300 | Datasheet | E | E 43 x 10 x 28 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) | 1,512 Cart + RFQ |
 PQ32/30-3C95 FERROXCUBE | 1 $5.9400 | Datasheet | PQ | PQ 32 x 30 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.193" (30.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) | 4,599 Cart + RFQ |
 TX36/23/10-4C65 FERROXCUBE | 1 $7.9100 | Datasheet | Toroid | TX 36 x 23 x 10 | 4C65 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - | 3,404 Cart + RFQ |
 E65/32/27-3C94 FERROXCUBE | 1 $8.7900 | Datasheet | E | E 65 x 32 x 27 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) | 5,100 Cart + RFQ |
PLT64/50/5-3C95 FERROXCUBE | 1 $9.4400 | Datasheet | PLT | PLT 64 x 50 x 5 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 2.000" (50.80mm) | 5,288 Cart + RFQ |

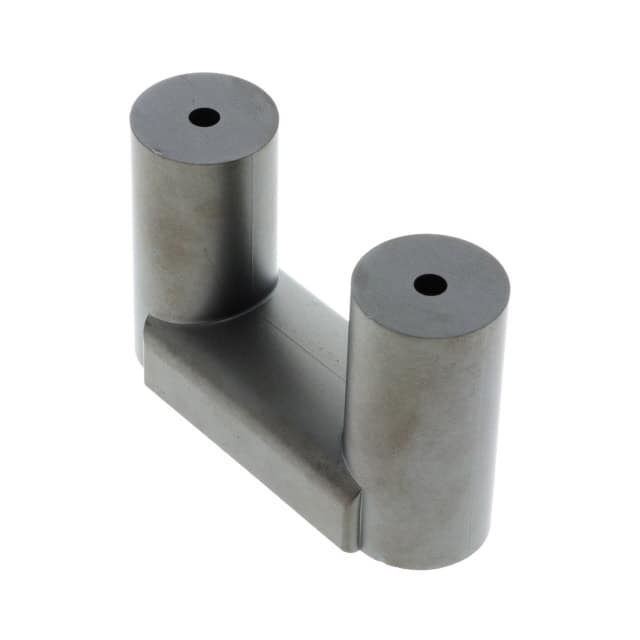

 UR64/40/20-3C90 FERROXCUBE | 1 $9.6600 | Datasheet | UR | UR 64 x 40 x 20 | 3C90 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.594" (40.50mm) | 2.520" (64.00mm) | 0.945" (24.00mm) | 1,139 Cart + RFQ |

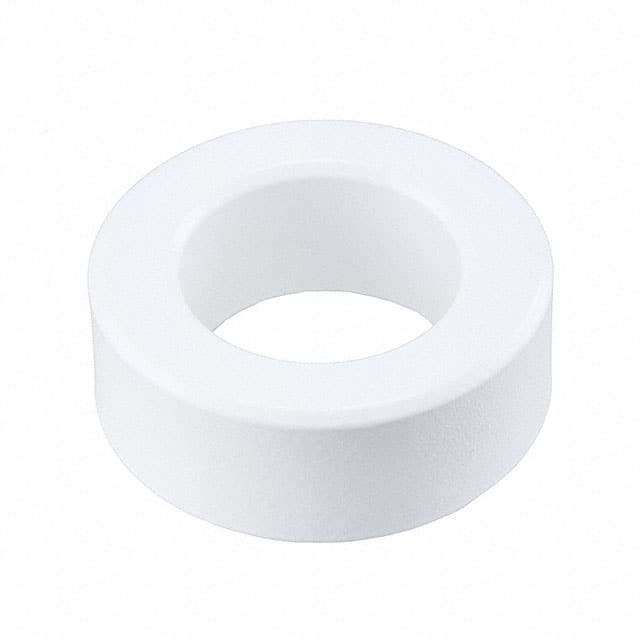

 TX36/23/15-4C65 FERROXCUBE | 1 $10.4500 | Datasheet | Toroid | TX 36 x 23 x 15 | 4C65 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.630" (16.00mm) | - | - | 6,833 Cart + RFQ |
E64/10/50-3C95 FERROXCUBE | 1 $11.3100 | Datasheet | E | E 64 x 10 x 50 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) | 5,971 Cart + RFQ |

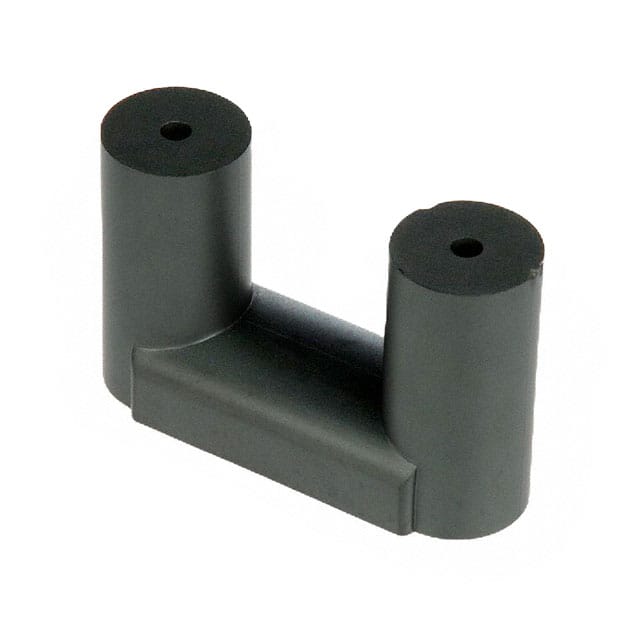

 UR64/40/20-3F3 FERROXCUBE | 1 $12.8600 | Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.575" (40.00mm) | 2.520" (64.00mm) | 0.787" (20.00mm) | 7,250 Cart + RFQ |
PQ50/50-3C95 FERROXCUBE | 1 $20.1900 | Datasheet | PQ | PQ 50 x 50 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.969" (50.00mm) | 2.008" (51.00mm) | 1.260" (32.00mm) | 2,891 Cart + RFQ |

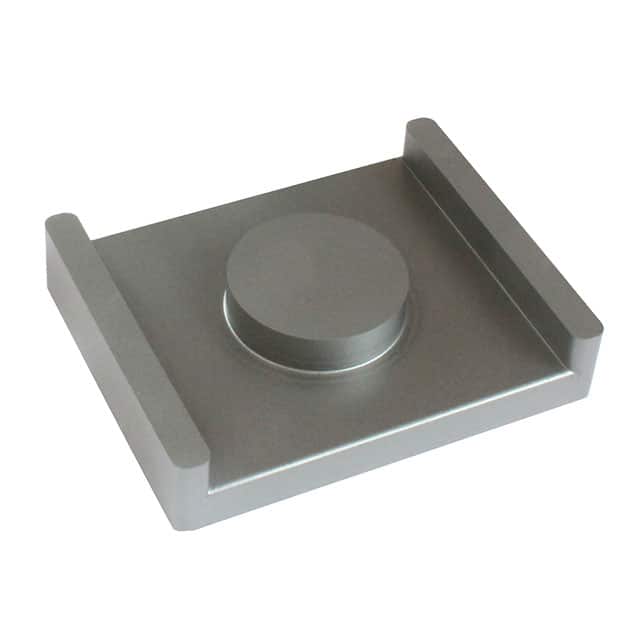

 ER64/13/51-3C92 FERROXCUBE | 1 $20.6500 | Datasheet | ER | ER 64 x 13 x 51 | 3C92 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.500" (12.70mm) | 2.520" (64.00mm) | 2.000" (50.80mm) | 9,651 Cart + RFQ |

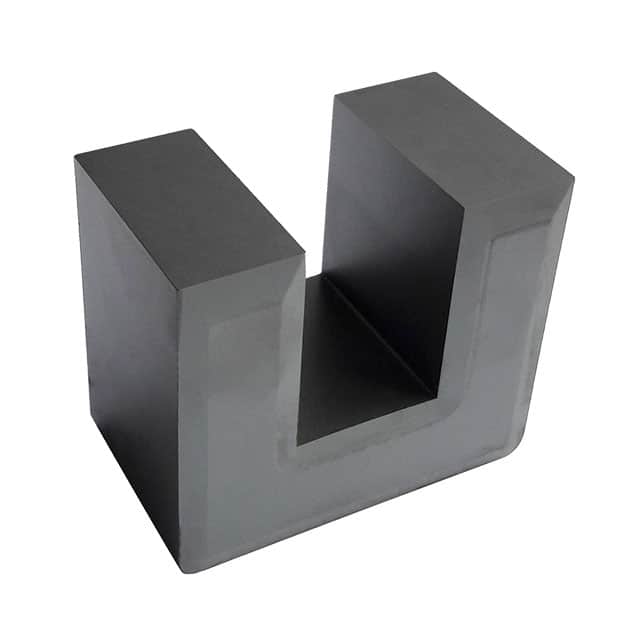

 U126/91/20-3C94 FERROXCUBE | 1 $59.9600 | Datasheet | U | U 126 x 91 x 20 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 3.583" (91.00mm) | 4.961" (126.00mm) | 0.787" (20.00mm) | 5,009 Cart + RFQ |

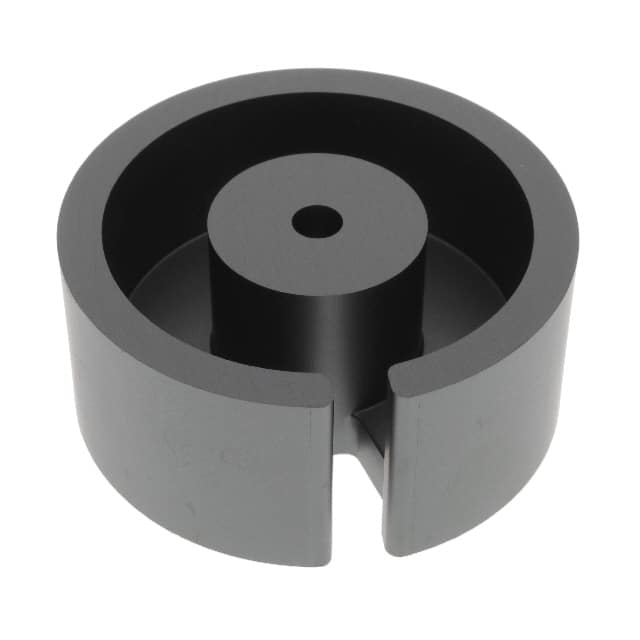

 P66/56-3C91 FERROXCUBE | 1 $78.0500 | Datasheet | P (Pot Core) | P 66 x 56 | 3C91 | 2.610" (66.29mm) | - | - | - | - | - | - | - | - | - | - | Uncoated | 2.256" (57.30mm) | - | - | 8,948 Cart + RFQ |
E19/8/5-3C94 FERROXCUBE | 1 $0.5000 | Datasheet | E | E 19 x 8 x 5 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.319" (8.10mm) | 0.752" (19.10mm) | 0.185" (4.70mm) | 4,422 Cart + RFQ |
E20/10/6-3C94 FERROXCUBE | 1 $0.6100 | Datasheet | E | E 20 x 10 x 6 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 0.787" (20.00mm) | 0.232" (5.90mm) | 5,578 Cart + RFQ |
 TX14/9/5-3E65 FERROXCUBE | 1 $0.6700 | Datasheet | Toroid | TX 14 x 9 x 5 | - | 0.561" (14.25mm) | - | ±30% | Ungapped | - | 10000 | 2.84 | 35 | 12.3 | - | 430 | Epoxy | 0.207" (5.25mm) | - | - | 6,952 Cart + RFQ |

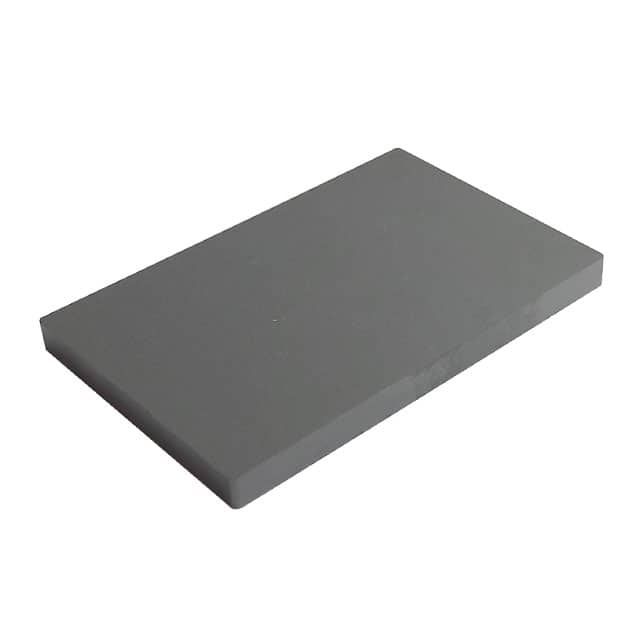

 PLT14/5/1.5/S-3C95 FERROXCUBE | 1 $0.8100 | Datasheet | PLT | PLT 14 x 5 x 1.5 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) | 1,674 Cart + RFQ |
