Ferrite Cores
Ferrite cores are a magnetic device used in the windings of transformers or other wound components. The chemical makeup of these devices help to prevent eddy currents. These are created in different form factors such as: E, toroid, ER, multi-hole, etc. and come in many different sizes. Key parameters are going to be the size, form factor or core type, and inductance factor.
Product List
Total Components: 48
| Product | Pricing | Datasheet | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm<sup>-1</sup> | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

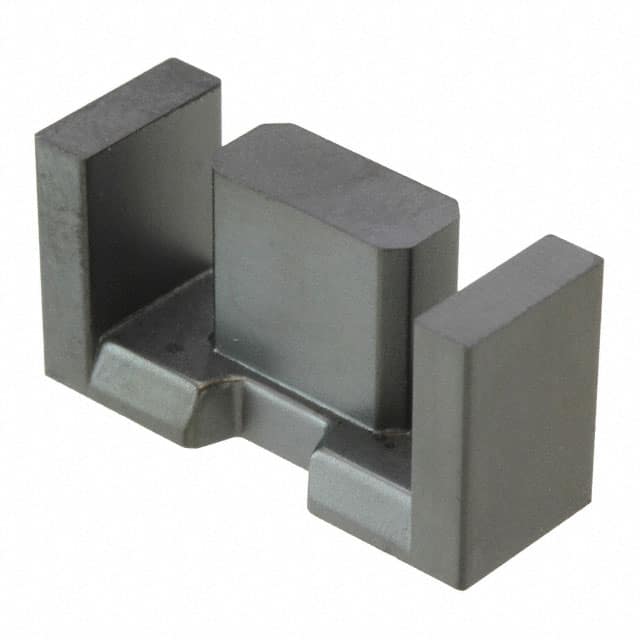

 B66421G0000X187 EPCOS (TDK) | 1 $1.4500 | Datasheet | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) | 5,519 Cart + RFQ |

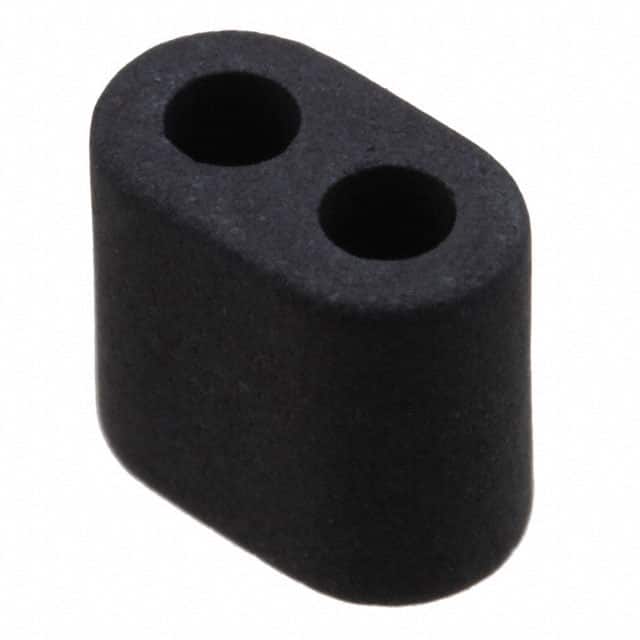

 B62152A0007X001 EPCOS (TDK) | 1 $1.5300 | Datasheet | Multi-Hole (2) | - | K1 | - | 140 nH | ±30% | Ungapped | - | 80 | 0.75 | 7.6 | 10.2 | - | 78 | Uncoated | 0.244" (6.20mm) | 0.285" (7.25mm) | 0.165" (4.20mm) | 6,174 Cart + RFQ |

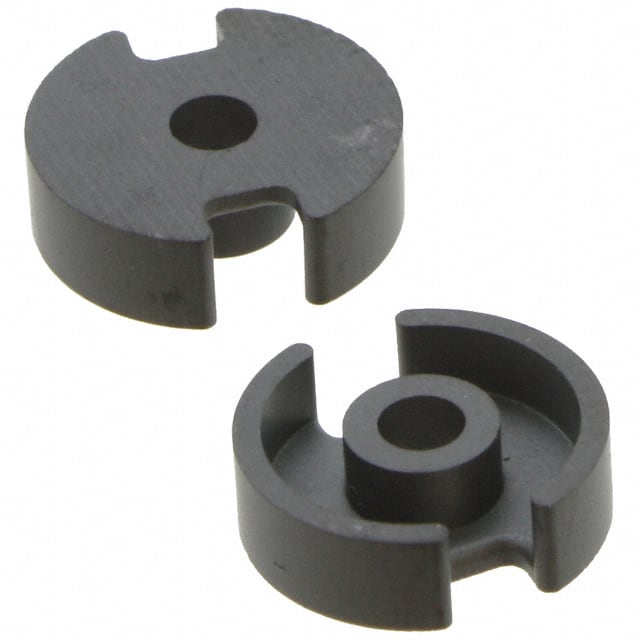

 B65517D0250J048 EPCOS (TDK) | 1 $2.2800 | Datasheet | P (Pot Core) | P 9 x 5 | N48 | 0.366" (9.30mm) | 250 nH | ±5% | Gapped | 249 | - | 1.25 | 12.5 | 10 | - | 125 | Uncoated | 0.106" (2.70mm) | - | - | 1,287 Cart + RFQ |

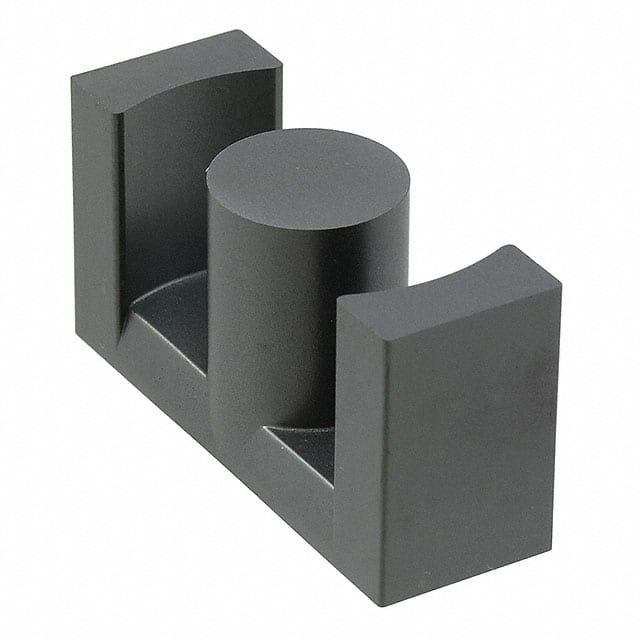

 B66365G0000X187 EPCOS (TDK) | 1 $3.5300 | Datasheet | ETD | ETD 44 x 22 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) | 6,052 Cart + RFQ |

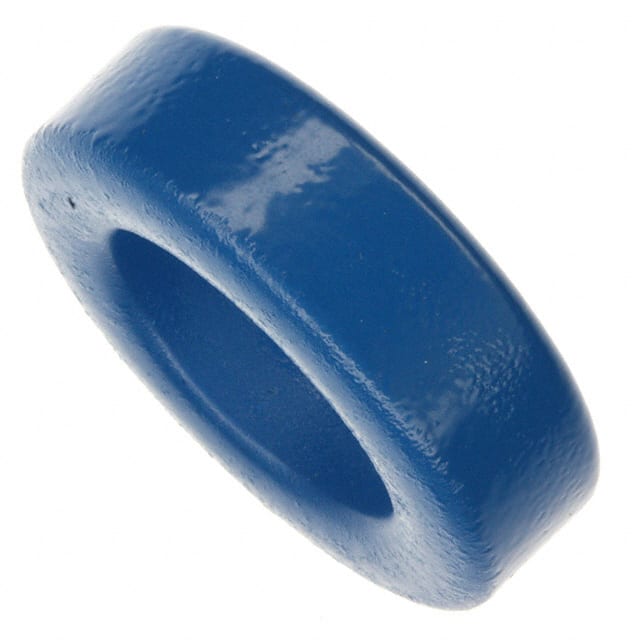

 B64290L0058X830 EPCOS (TDK) | 1 $3.7700 | Datasheet | Toroid | - | N30 | 1.397" (35.50mm) | 4.36 µH | ±25% | Ungapped | - | 4300 | 1.24 | 82.06 | 66.08 | - | 5423 | Epoxy | 0.437" (11.10mm) | - | - | 4,410 Cart + RFQ |

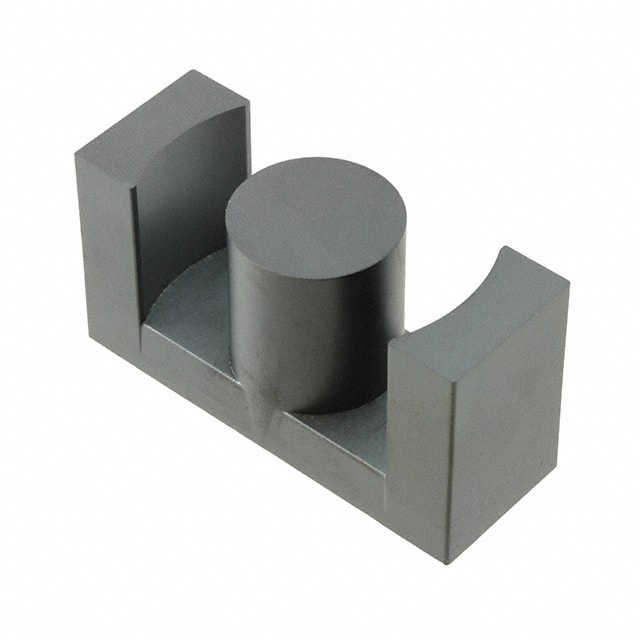

 B66397G0000X187 EPCOS (TDK) | 1 $11.6400 | Datasheet | ETD | ETD 59 x 31 x 22 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 1.228" (31.20mm) | 2.354" (59.80mm) | 0.870" (22.10mm) | 7,128 Cart + RFQ |

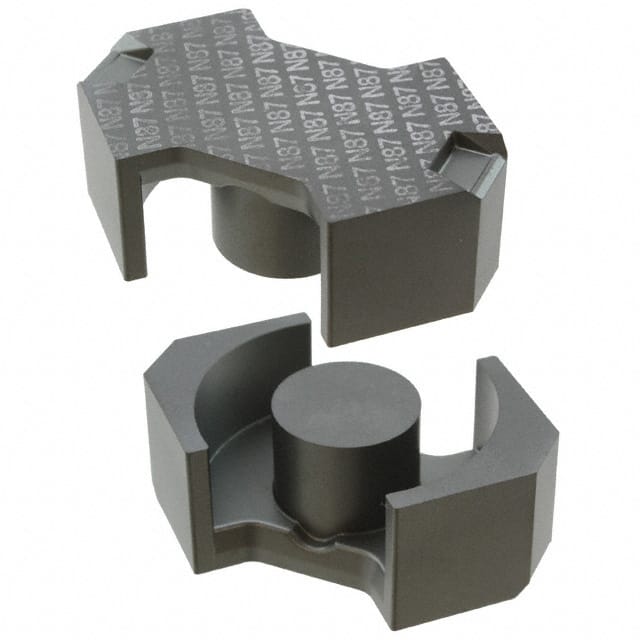

 B65887E0000R087 EPCOS (TDK) | 1 $11.9700 | Datasheet | RM | RM 14 | N87 | - | 6 µH | -20%, +30% | Ungapped | 1670 | 2200 | 0.35 | 70 | 200 | 170 | 14000 | Uncoated | 0.594" (15.10mm) | 1.661" (42.20mm) | 0.748" (19.00mm) | 7,727 Cart + RFQ |

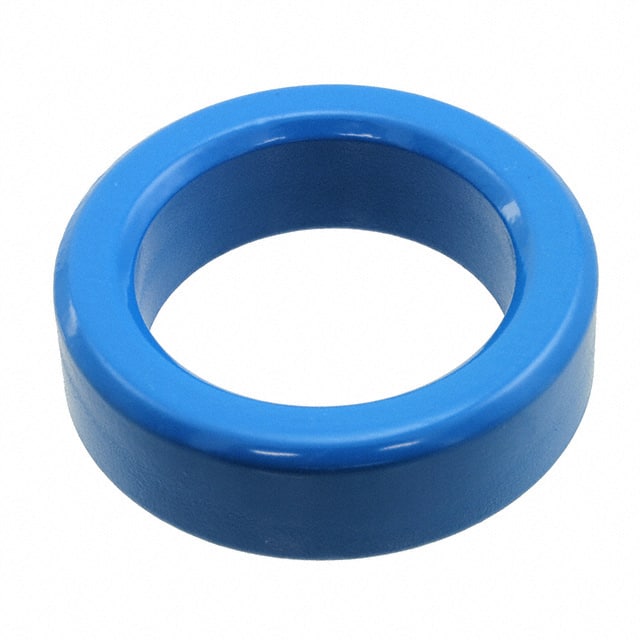

 B64290L0040X065 EPCOS (TDK) | 1 $14.5500 | Datasheet | Toroid | - | T65 | 2.366" (60.10mm) | 6.25 µH | ±30% | Ungapped | - | 5000 | 1 | 152.4 | 152.4 | - | 23230 | Epoxy | 0.740" (18.80mm) | - | - | 1,606 Cart + RFQ |

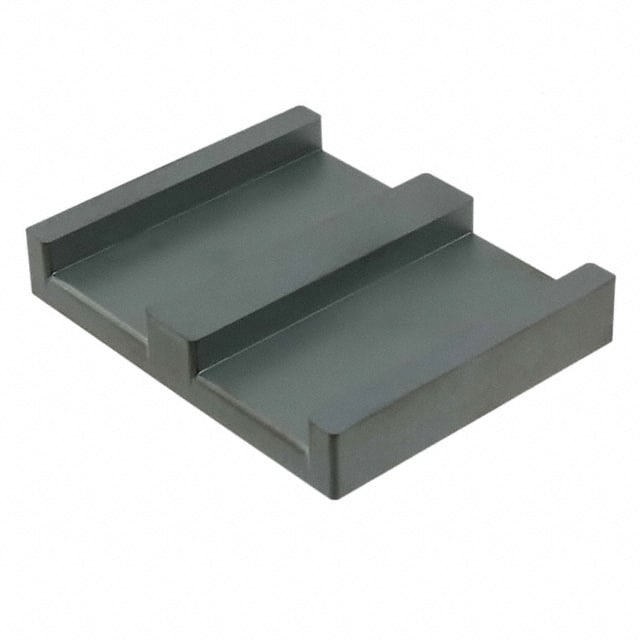

 B66295G0000X187 EPCOS (TDK) | 1 $15.4300 | Datasheet | ELP | ELP 64 x 10 x50 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.402" (10.20mm) | 2.520" (64.00mm) | 2.000" (50.80mm) | 6,817 Cart + RFQ |

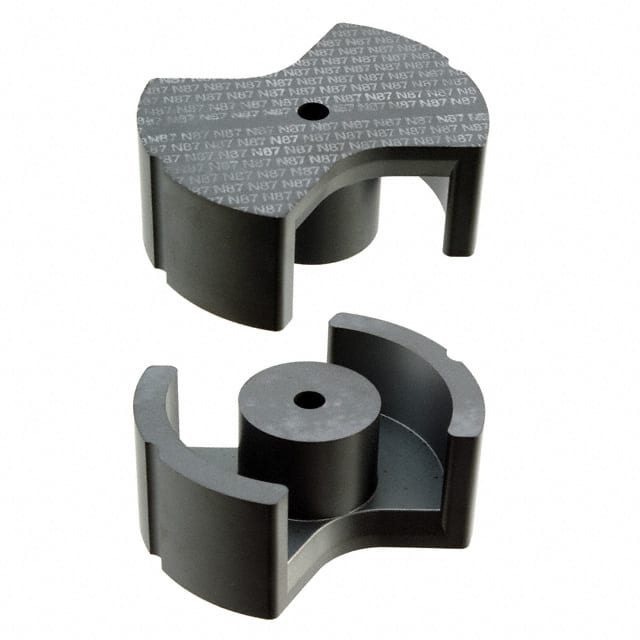

 B65684A0000R087 EPCOS (TDK) | 1 $35.0300 | Datasheet | PM | PM 62 x 49 | N87 | 2.441" (62.00mm) | 9.2 µH | -20%, +30% | Ungapped | 1400 | 2200 | 0.191 | 109 | 570 | 470 | 62000 | Uncoated | 0.965" (24.50mm) | - | - | 2,580 Cart + RFQ |

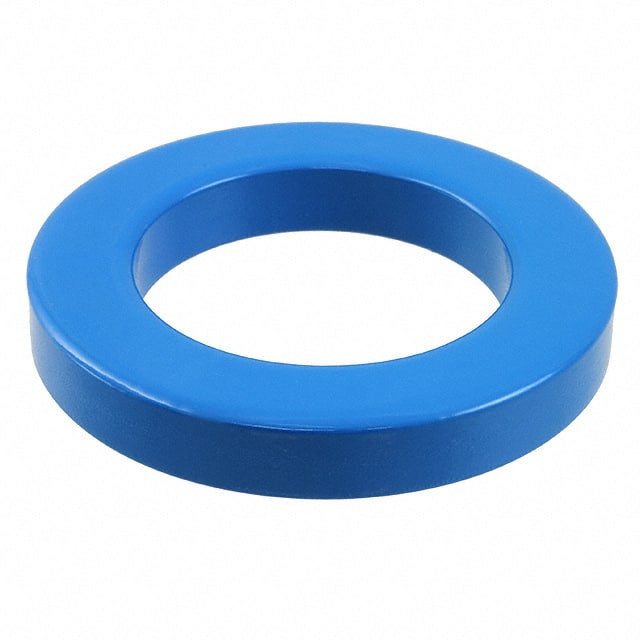

 B64290L0084X830 EPCOS (TDK) | 1 $57.6800 | Datasheet | Toroid | - | N30 | 4.126" (104.80mm) | 5.5 µH | ±25% | Ungapped | - | 4200 | 0.96 | 255.3 | 267.2 | - | 68220 | Epoxy | 0.650" (16.50mm) | - | - | 9,950 Cart + RFQ |

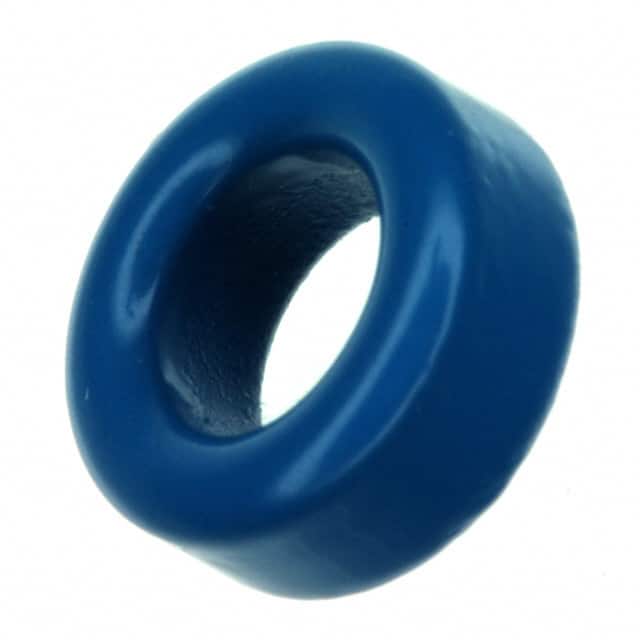

 B64290L0038X087 EPCOS (TDK) | 1 $0.3300 | Datasheet | Toroid | - | N87 | 0.425" (10.80mm) | 900 nH | ±25% | Ungapped | - | 2200 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187" (4.75mm) | - | - | 6,176 Cart + RFQ |

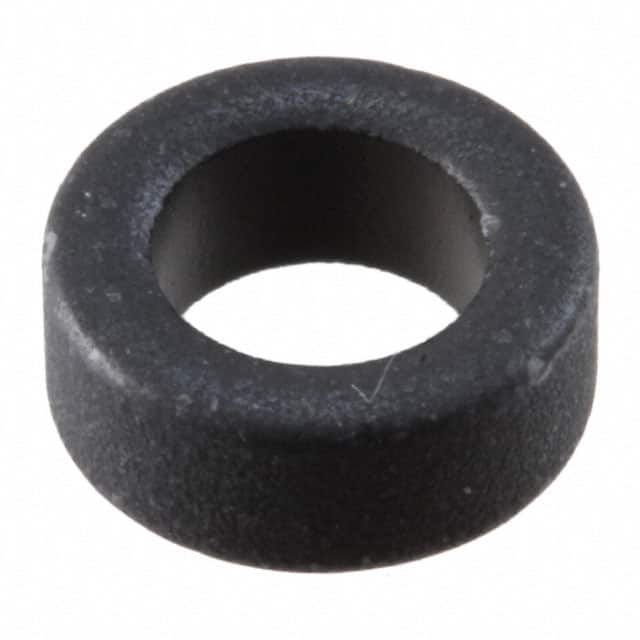

 B64290P0036X830 EPCOS (TDK) | 1 $0.3300 | Datasheet | Toroid | - | N30 | 0.158" (4.02mm) | 700 nH | ±25% | Ungapped | - | 4300 | 7.7 | 9.63 | 1.25 | - | 12 | Parylene | 0.064" (1.62mm) | - | - | 7,843 Cart + RFQ |

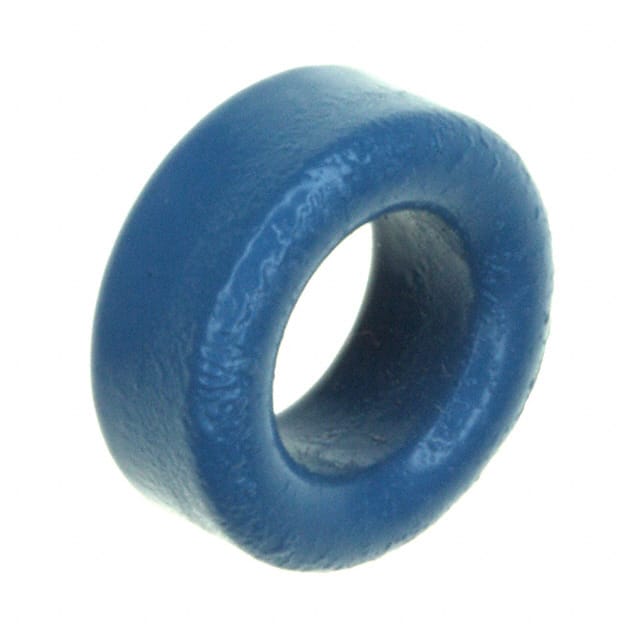

 B64290L0038X830 EPCOS (TDK) | 1 $0.3700 | Datasheet | Toroid | - | N30 | 0.425" (10.80mm) | 1.76 µH | ±25% | Ungapped | - | 4300 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187" (4.75mm) | - | - | 1,899 Cart + RFQ |
B64290P0036X038 EPCOS (TDK) | 1 $0.4100 | Datasheet | Toroid | - | T38 | 0.158" (4.02mm) | 1.63 µH | ±30% | Ungapped | - | 10000 | 7.7 | 9.63 | 1.25 | - | 12 | Parylene | 0.064" (1.62mm) | - | - | 3,439 Cart + RFQ |

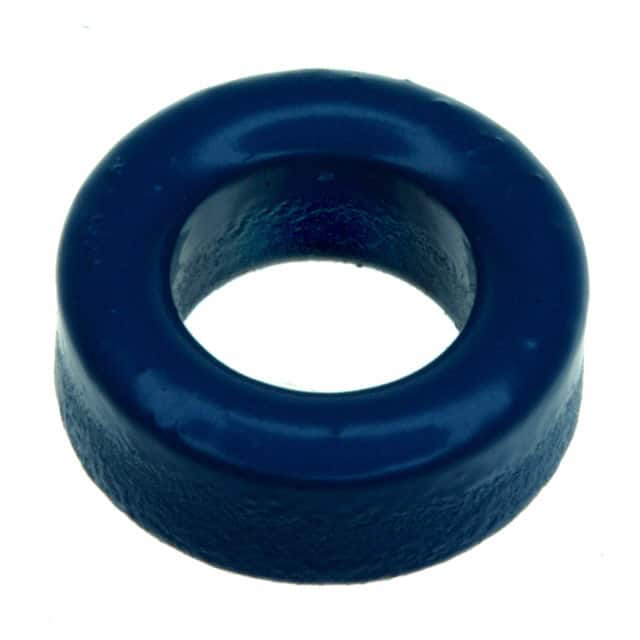

 B64290L0038X038 EPCOS (TDK) | 1 $0.4600 | Datasheet | Toroid | - | T38 | 0.425" (10.80mm) | 4.09 µH | ±30% | Ungapped | - | 10000 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187" (4.75mm) | - | - | 1,499 Cart + RFQ |

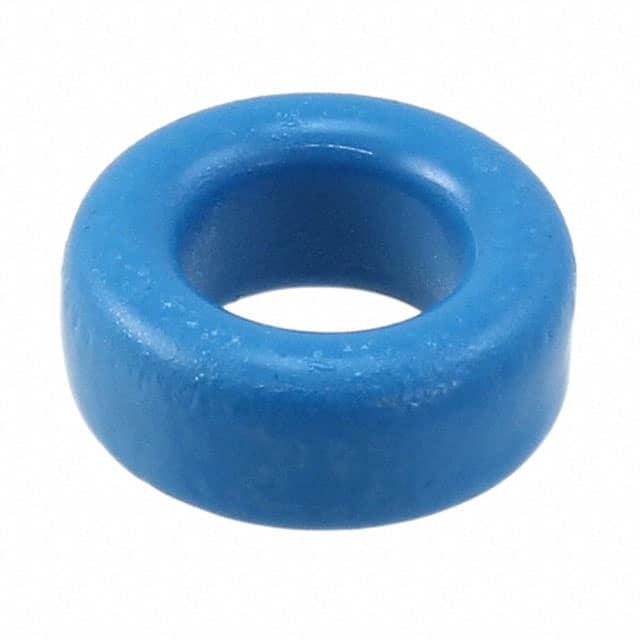

 B64290L0044X087 EPCOS (TDK) | 1 $0.4800 | Datasheet | Toroid | - | N87 | 0.535" (13.60mm) | 1.12 µH | ±25% | Ungapped | - | 2200 | 2.46 | 30.09 | 12.23 | - | 368 | Epoxy | 0.234" (5.95mm) | - | - | 5,177 Cart + RFQ |

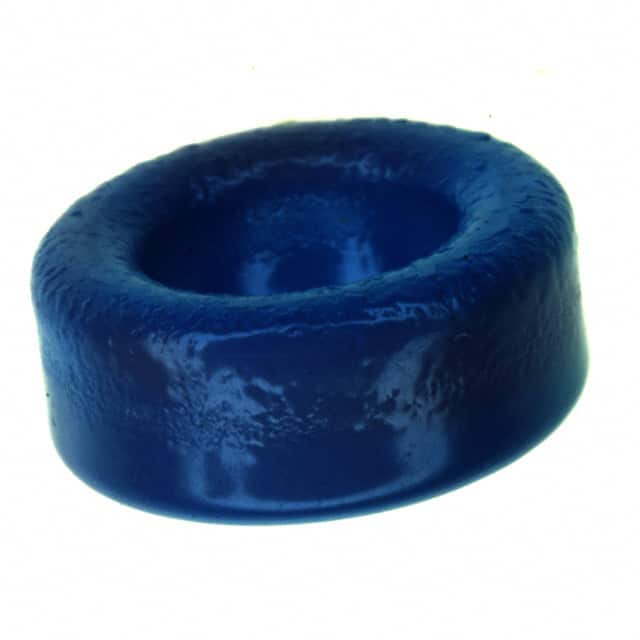

 B64290L0044X830 EPCOS (TDK) | 1 $0.5200 | Datasheet | Toroid | - | N30 | 0.535" (13.60mm) | 2.2 µH | ±25% | Ungapped | - | 4300 | 2.46 | 30.09 | 12.23 | - | 368 | Epoxy | 0.234" (5.95mm) | - | - | 4,940 Cart + RFQ |
B64290P0037X087 EPCOS (TDK) | 1 $0.5500 | Datasheet | Toroid | - | N87 | 0.249" (6.32mm) | 560 nH | ±25% | Ungapped | - | 2200 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099" (2.52mm) | - | - | 5,426 Cart + RFQ |
B64290L0038X049 EPCOS (TDK) | 1 $0.5600 | Datasheet | Toroid | - | N49 | 0.425" (10.80mm) | 610 nH | ±25% | Ungapped | - | 1500 | 3.07 | 24.07 | 7.83 | - | 188 | Epoxy | 0.187" (4.75mm) | - | - | 9,195 Cart + RFQ |
