Ferrite Cores
Ferrite cores are a magnetic device used in the windings of transformers or other wound components. The chemical makeup of these devices help to prevent eddy currents. These are created in different form factors such as: E, toroid, ER, multi-hole, etc. and come in many different sizes. Key parameters are going to be the size, form factor or core type, and inductance factor.
Product List
Total Components: 100
| Product | Pricing | Datasheet | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm<sup>-1</sup> | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 T60006L2009W914 VACUUMSCHMELZE GmbH & Co. KG. | 1 $0.9900 | Datasheet | Toroid | - | - | 0.441" (11.20mm) | 25.5 µH | - | Ungapped | - | - | - | 25.6 | 5.94 | - | - | Uncoated | 0.228" (5.80mm) | - | - | 5,173 Cart + RFQ |

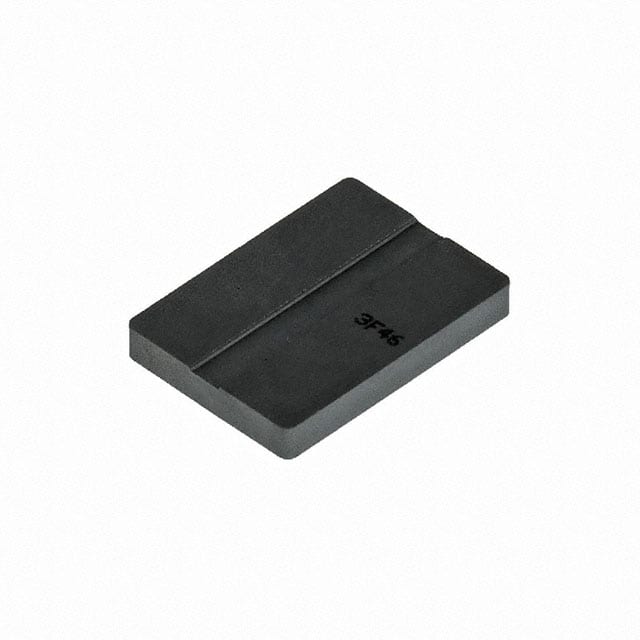

 PLT22/16/2.5/S-3F36 FERROXCUBE | 1 $1.3600 | Datasheet | PLT | PLT 22 x 16 x 2.5 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.114" (2.90mm) | 0.858" (21.80mm) | 0.622" (15.80mm) | 9,807 Cart + RFQ |
 B66421G0000X187 EPCOS (TDK) | 1 $1.4500 | Datasheet | EFD | EFD 25 x 13 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.492" (12.50mm) | 0.984" (25.00mm) | 0.358" (9.10mm) | 5,519 Cart + RFQ |
 B62152A0007X001 EPCOS (TDK) | 1 $1.5300 | Datasheet | Multi-Hole (2) | - | K1 | - | 140 nH | ±30% | Ungapped | - | 80 | 0.75 | 7.6 | 10.2 | - | 78 | Uncoated | 0.244" (6.20mm) | 0.285" (7.25mm) | 0.165" (4.20mm) | 6,174 Cart + RFQ |

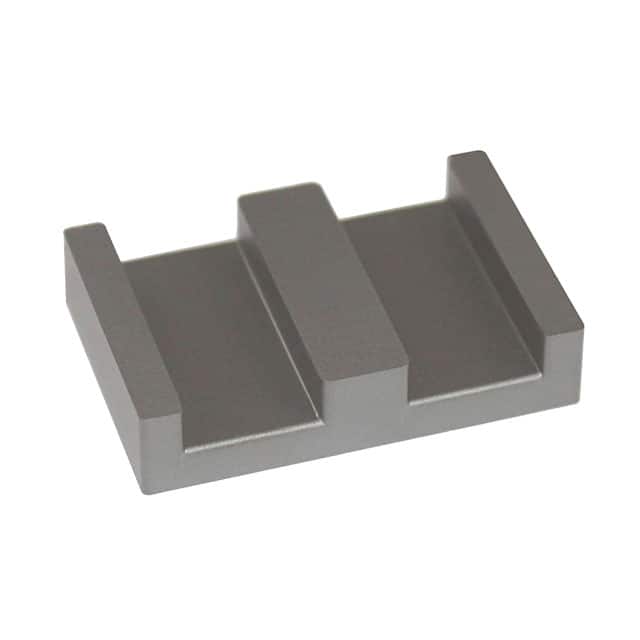

 E22/6/16/R-3F36 FERROXCUBE | 1 $1.6500 | Datasheet | E | E 22 x 6 x 16 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.224" (5.70mm) | 0.858" (21.80mm) | 0.622" (15.80mm) | 4,313 Cart + RFQ |
 T60004L2016W620 VACUUMSCHMELZE GmbH & Co. KG. | 1 $1.9300 | Datasheet | Toroid | - | - | 0.701" (17.90mm) | 15 µH | - | Ungapped | - | - | - | 44.8 | 8 | - | - | Epoxy | 0.315" (8.00mm) | - | - | 2,045 Cart + RFQ |
T60006L2017W515 VACUUMSCHMELZE GmbH & Co. KG. | 1 $1.9800 | Datasheet | Toroid | - | - | 0.756" (19.20mm) | 30 µH | - | Ungapped | - | - | - | 47.3 | 11.8 | - | - | Uncoated | 0.319" (8.10mm) | - | - | 5,284 Cart + RFQ |
 B65517D0250J048 EPCOS (TDK) | 1 $2.2800 | Datasheet | P (Pot Core) | P 9 x 5 | N48 | 0.366" (9.30mm) | 250 nH | ±5% | Gapped | 249 | - | 1.25 | 12.5 | 10 | - | 125 | Uncoated | 0.106" (2.70mm) | - | - | 1,287 Cart + RFQ |
T60006L2016W403 VACUUMSCHMELZE GmbH & Co. KG. | 1 $2.3100 | Datasheet | Toroid | - | - | 0.705" (17.90mm) | 43 µH | - | Ungapped | - | - | - | 40.8 | 14.4 | - | - | Uncoated | 0.319" (8.10mm) | - | - | 7,582 Cart + RFQ |
 B66365G0000X187 EPCOS (TDK) | 1 $3.5300 | Datasheet | ETD | ETD 44 x 22 x 15 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.886" (22.50mm) | 1.724" (43.80mm) | 0.598" (15.20mm) | 6,052 Cart + RFQ |

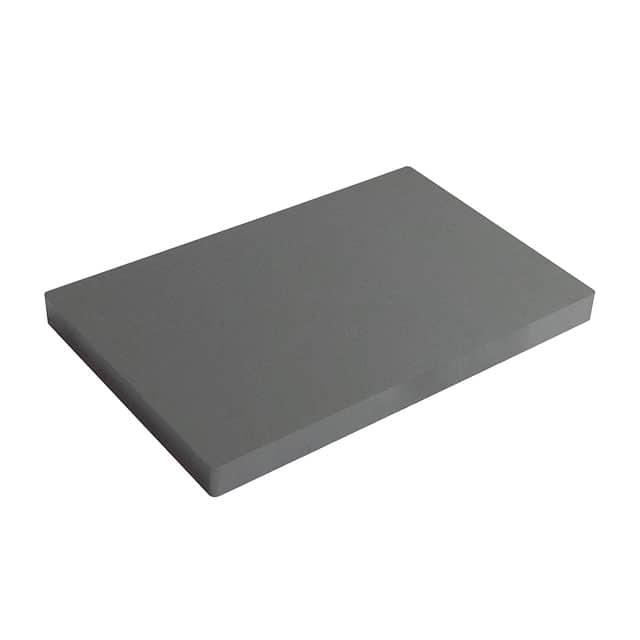

 PLT43/28/4.1-3C95 FERROXCUBE | 1 $3.5500 | Datasheet | PLT | PLT 43 x 28 x 4.1 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.161" (4.10mm) | 1.700" (43.20mm) | 1.098" (27.90mm) | 6,513 Cart + RFQ |
 B64290L0058X830 EPCOS (TDK) | 1 $3.7700 | Datasheet | Toroid | - | N30 | 1.397" (35.50mm) | 4.36 µH | ±25% | Ungapped | - | 4300 | 1.24 | 82.06 | 66.08 | - | 5423 | Epoxy | 0.437" (11.10mm) | - | - | 4,410 Cart + RFQ |
E43/10/28-3C95 FERROXCUBE | 1 $4.2300 | Datasheet | E | E 43 x 10 x 28 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.374" (9.50mm) | 1.700" (43.20mm) | 1.098" (27.90mm) | 1,512 Cart + RFQ |
T60006L2025W523 VACUUMSCHMELZE GmbH & Co. KG. | 1 $4.3400 | Datasheet | Toroid | - | - | 1.087" (27.60mm) | 28.4 µH | - | Ungapped | - | - | - | 70.7 | 20 | - | - | Uncoated | 0.504" (12.80mm) | - | - | 2,331 Cart + RFQ |
T60006L2025W380 VACUUMSCHMELZE GmbH & Co. KG. | 1 $4.5100 | Datasheet | Toroid | - | - | 1.098" (27.90mm) | 67 µH | - | Ungapped | - | - | - | 64.4 | 36 | - | - | Uncoated | 0.492" (12.50mm) | - | - | 6,118 Cart + RFQ |

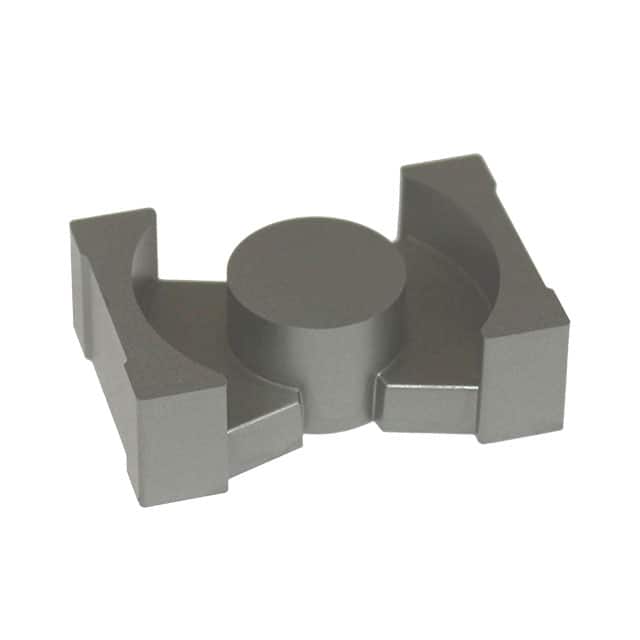

 PQ32/30-3C95 FERROXCUBE | 1 $5.9400 | Datasheet | PQ | PQ 32 x 30 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.193" (30.30mm) | 1.299" (33.00mm) | 0.866" (22.00mm) | 4,599 Cart + RFQ |
T60006L2030W423 VACUUMSCHMELZE GmbH & Co. KG. | 1 $6.3800 | Datasheet | Toroid | - | - | 1.299" (33.00mm) | 66 µH | ±30% | Ungapped | - | - | - | 78.5 | 40 | - | - | Uncoated | 0.492" (12.50mm) | - | - | 3,640 Cart + RFQ |

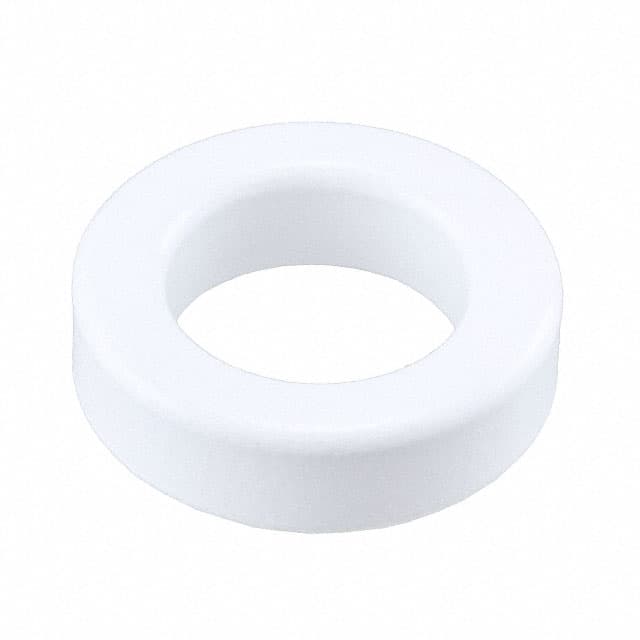

 TX36/23/10-4C65 FERROXCUBE | 1 $7.9100 | Datasheet | Toroid | TX 36 x 23 x 10 | 4C65 | 1.463" (37.15mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.430" (10.92mm) | - | - | 3,404 Cart + RFQ |

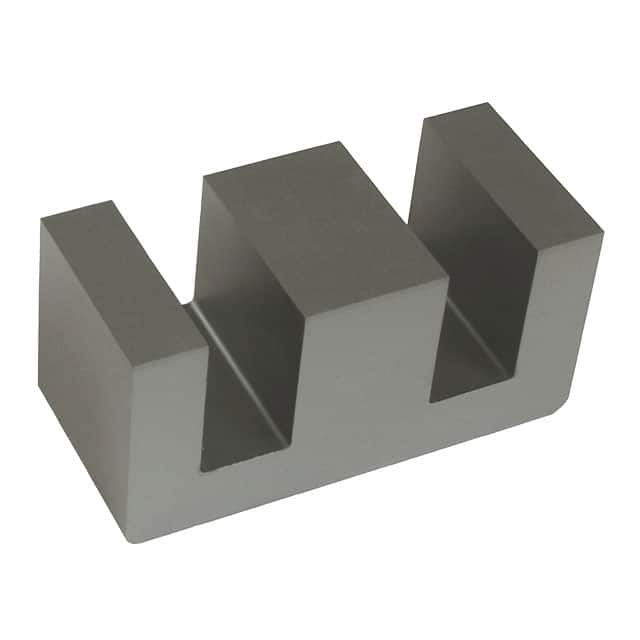

 E65/32/27-3C94 FERROXCUBE | 1 $8.7900 | Datasheet | E | E 65 x 32 x 27 | 3C94 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.291" (32.80mm) | 2.559" (65.00mm) | 1.079" (27.40mm) | 5,100 Cart + RFQ |
PLT64/50/5-3C95 FERROXCUBE | 1 $9.4400 | Datasheet | PLT | PLT 64 x 50 x 5 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.200" (5.08mm) | 2.520" (64.00mm) | 2.000" (50.80mm) | 5,288 Cart + RFQ |
