Bobbins (Coil Formers), Mounts, Hardware
Products in this family are used in the construction of custom magnetic components such as transformers, or for the assembly of such into an end application. In addition to bobbins that provide a surface onto which the desired number of windings for a device can be wound, mounting and assembly hardware such as retaining clips/clamps, insulating washers, adjustment screws, and others are also included. Specifically excluded from this product family are the magnetic core components and wire typically used for the construction of magnetic components; these items are catalogued separately.
Product List
Total Components: 69
Product | Pricing | Datasheet | Accessory Type | For Use With/Related Products | Supplier Device Package | Stock & Quantity |
---|---|---|---|---|---|---|
B66414W1008D001 EPCOS (TDK) | 1 $1.5300 | Datasheet | Bobbin (Coil Former), Horizontal | EFD | EFD 15 x 8 x 5 | 2,892 Cart + RFQ |
B65545B0009X000 EPCOS (TDK) | 1 $6.5800 | Datasheet | Yoke | P | P 14 x 8 | 7,055 Cart + RFQ |
B65806B2203X000 EPCOS (TDK) | 1 $0.2600 | Datasheet | Clamp | RM | RM 5 | 7,600 Cart + RFQ |
B65806J2204X000 EPCOS (TDK) | 1 $0.2800 | Datasheet | Clamp | RM | RM 5 | 6,835 Cart + RFQ |
B66414B2000X000 EPCOS (TDK) | 1 $0.2800 | Datasheet | Yoke | EFD | EFD 15 x 8 x 5 | 1,374 Cart + RFQ |
B65808B2203X000 EPCOS (TDK) | 1 $0.2900 | Datasheet | Clamp | RM | RM 6 | 3,369 Cart + RFQ |
B65804P2204X000 EPCOS (TDK) | 1 $0.3000 | Datasheet | Clamp | - | - | 2,721 Cart + RFQ |
B65808J2204X000 EPCOS (TDK) | 1 $0.3200 | Datasheet | Clamp | RM | RM 6 | 2,501 Cart + RFQ |
B65812A2203X000 EPCOS (TDK) | 1 $0.3400 | Datasheet | Clamp | RM | RM 8 | 2,976 Cart + RFQ |
B65814B2203X000 EPCOS (TDK) | 1 $0.3800 | Datasheet | Clamp | RM | RM 10 | 7,283 Cart + RFQ |
B66284F2204X000 EPCOS (TDK) | 1 $0.4100 | Datasheet | Clamp | ELP, I | - | 1,592 Cart + RFQ |
B65652B0000T001 EPCOS (TDK) | 1 $0.4100 | Datasheet | Bobbin (Coil Former) | P | P 18 x 11 | 8,495 Cart + RFQ |
B66288F2204X000 EPCOS (TDK) | 1 $0.4400 | Datasheet | Clamp | ELP, I | - | 9,700 Cart + RFQ |
B65532B0000T001 EPCOS (TDK) | 1 $0.4700 | Datasheet | Bobbin (Coil Former) | P | P 11 x 7 | 4,017 Cart + RFQ |
B66286A2000X000 EPCOS (TDK) | 1 $0.4800 | Datasheet | - | - | - | 7,984 Cart + RFQ |

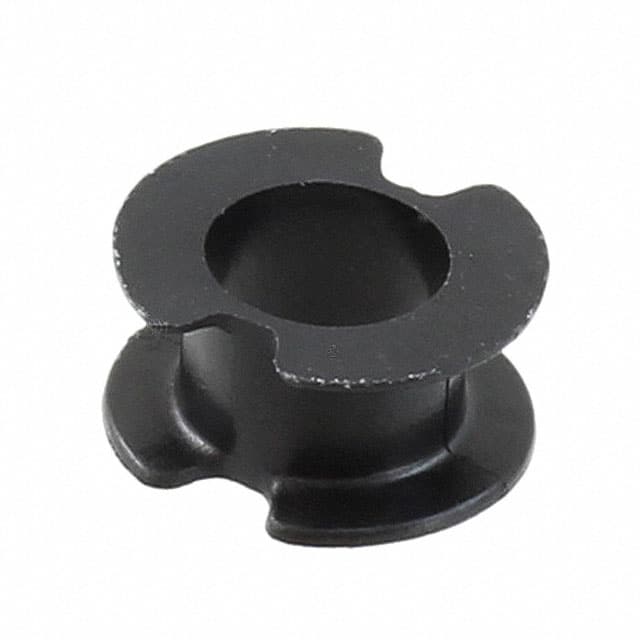

B65522B0000T001 EPCOS (TDK) | 1 $0.5100 | Datasheet | Bobbin (Coil Former) | P | P 9 x 5 | 6,370 Cart + RFQ |

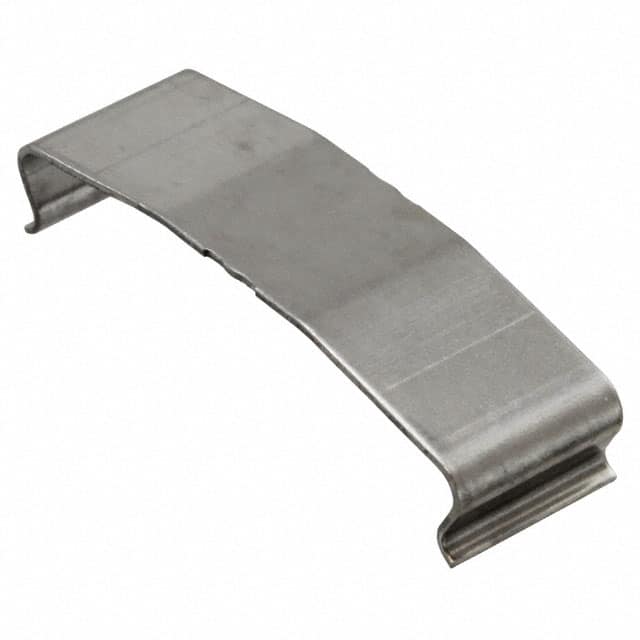

B66422B2000X000 EPCOS (TDK) | 1 $0.5300 | Datasheet | Yoke | EFD | EFD 25 x 13 x 9 | 8,664 Cart + RFQ |
B65808C2005X000 EPCOS (TDK) | 1 $0.5600 | Datasheet | Insulating Washer | RM | RM 6 | 5,212 Cart + RFQ |

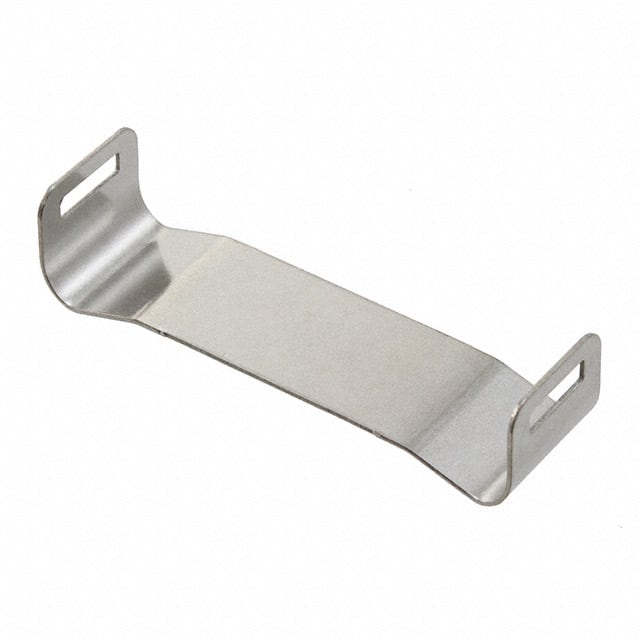

B66362A2000X000 EPCOS (TDK) | 1 $0.5600 | Datasheet | Yoke | ETD | ETD 34 x 17 x 11 | 8,068 Cart + RFQ |

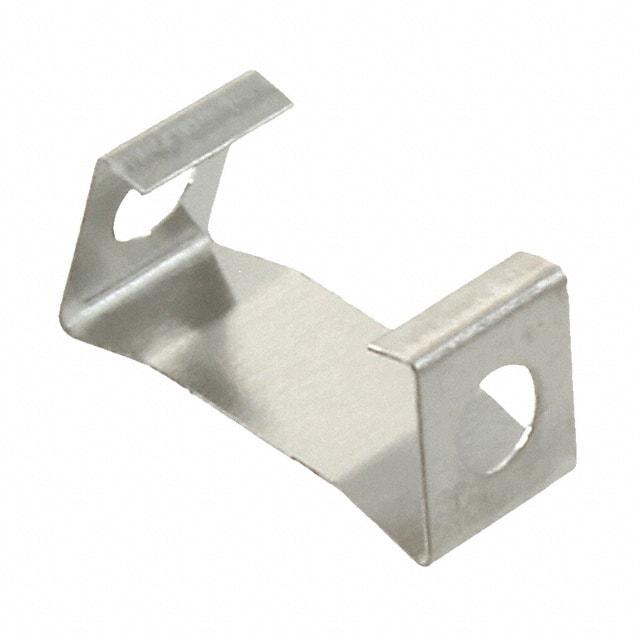

B65526A2000X000 EPCOS (TDK) | 1 $0.6200 | Datasheet | Yoke | ER | ER 11 x 5 | 7,481 Cart + RFQ |
