Optoisolators - Triac, SCR Output
Triac and SCR output optoisolators allow bi-directional or unidirectional control of an AC (alternating current) source while providing isolation between the control and load circuits. An LED is optically coupled to a photodiode in a single device package. The photodiode controls the gate of the Triac or SCR and may include zero cross circuity. These optoisolators are selected by on-state current, forward voltage, turn on time, and mounting type.
Product List
Total Components: 20
| Product | Pricing | Datasheet | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Approval Agency | Output Type | Zero Crossing Circuit | Number of Channels | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VO2223A-X007T Phoenix Passive Components / Vishay | 1 $2.3800 | Datasheet | 5300Vrms | 600 V | 210V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Surface Mount | 8-SMD (7 Leads), Gull Wing | 8-SMD | cUR, UR | Triac, Power | No | 1 | 1,491 Cart + RFQ |
 IL410-X007T Phoenix Passive Components / Vishay | 1 $1.6644 | Datasheet | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | 6-SMD | CSA, UR | Triac | Yes | 1 | 8,154 Cart + RFQ |
IL4108-X007T Phoenix Passive Components / Vishay | 1 $1.7946 | Datasheet | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | - | CSA, UR | Triac | Yes | 1 | 3,057 Cart + RFQ |
VO2223A Phoenix Passive Components / Vishay | 1 $2.3100 | Datasheet | 5300Vrms | 600 V | 210V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP | cUR, UR | Triac, Power | No | 1 | 3,256 Cart + RFQ |

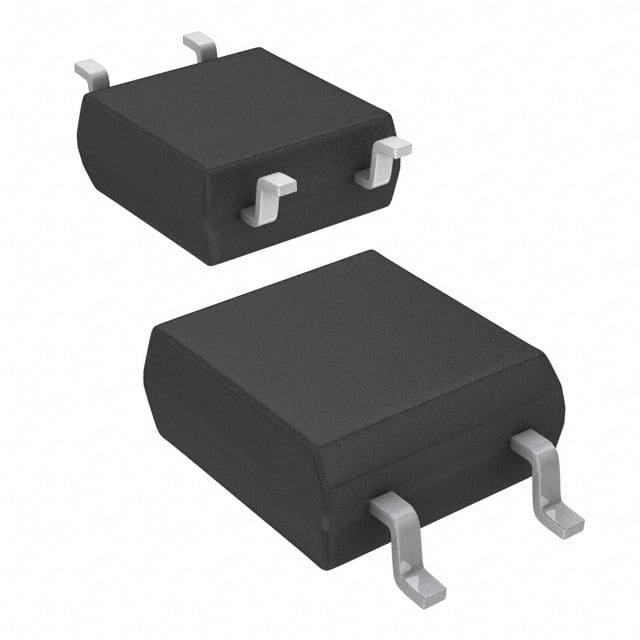

 VOM160RT Phoenix Passive Components / Vishay | 1 $1.1800 | Datasheet | 3750Vrms | 600 V | 500V/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD, Gull Wing | 4-SOP (2.54mm) | CQC, cUR, UR | Triac | No | 1 | 6,564 Cart + RFQ |
 VO4158H Phoenix Passive Components / Vishay | 1 $3.1200 | Datasheet | 5300Vrms | 800 V | 5kV/µs | 2mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | cUR, FIMKO, UR | Triac | Yes | 1 | 2,159 Cart + RFQ |
IL410 Phoenix Passive Components / Vishay | 1 $3.5900 | Datasheet | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | CSA, UR | Triac | Yes | 1 | 2,136 Cart + RFQ |
BRT13H Phoenix Passive Components / Vishay | 1 $0.4349 100 $0.3479 500 $0.2899 | Datasheet | 5300Vrms | 800 V | 10kV/µs | 2mA | 300 mA | 500µA | - | 1.1V | 20 mA | -40°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | CQC, UL | Triac | No | 1 | 500 Cart + RFQ |
IL4118-X007 Phoenix Passive Components / Vishay | 1 $5.0000 | Datasheet | 5300Vrms | 800 V | 10kV/µs | 1.3mA | 300 mA | 200µA | 35µs | 1.3V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | - | BSI, CSA, cUR, FIMKO, UR | Triac | Yes | 1 | 9,357 Cart + RFQ |
K3020P Phoenix Passive Components / Vishay | 1 $0.9700 | Datasheet | 5300Vrms | 400 V | 10V/µs (Typ) | 30mA | 100 mA | 200µA (Typ) | - | 1.3V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | BSI, CQC, CSA, cUR, UR, VDE | Triac | No | 1 | 1,695 Cart + RFQ |
K3021PG Phoenix Passive Components / Vishay | 1 $1.0000 | Datasheet | 5300Vrms | 400 V | 10V/µs (Typ) | 15mA | 100 mA | 200µA (Typ) | - | 1.3V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.400", 10.16mm) | 6-DIP | BSI, CQC, CSA, cUR, UR, VDE | Triac | No | 1 | 5,997 Cart + RFQ |
K3022PG Phoenix Passive Components / Vishay | 1 $1.0400 | Datasheet | 5300Vrms | 400 V | 10V/µs (Typ) | 10mA | 100 mA | 200µA (Typ) | - | 1.3V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.400", 10.16mm) | 6-DIP | BSI, CQC, cUR, FIMKO, UR, VDE | Triac | No | 1 | 5,899 Cart + RFQ |
K3012P Phoenix Passive Components / Vishay | 1 $1.0400 | Datasheet | 5300Vrms | 250 V | 10kV/µs (Typ) | 5mA | 100 mA | 100µA (Typ) | - | 1.25V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | BSI, CQC, UR, VDE | Triac | No | 1 | 1,507 Cart + RFQ |
 VOT8123AB-V Phoenix Passive Components / Vishay | 1 $1.1600 | Datasheet | 5000Vrms | 800 V | 1kV/µs | 10mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD, Gull Wing | 6-SMD | CQC, cUL, UL, VDE | Triac | No | 1 | 8,357 Cart + RFQ |
 VOT8125AG-V Phoenix Passive Components / Vishay | 1 $1.2500 | Datasheet | 5000Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Through Hole | 6-DIP (0.400", 10.16mm), 5 Leads | 6-DIP | CQC, cUL, UL, VDE | Triac | No | 1 | 3,217 Cart + RFQ |
VOT8026AB-V Phoenix Passive Components / Vishay | 1 $1.2500 | Datasheet | 5300Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD, Gull Wing | 6-SMD | CQC, cUL, UL, VDE | Triac | Yes | 1 | 8,314 Cart + RFQ |
 VOT8125AB-V Phoenix Passive Components / Vishay | 1 $1.2100 | Datasheet | 5000Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -40°C ~ 110°C | Surface Mount | 6-SMD (5 Leads), Gull Wing | 6-SMD | CQC, cUL, UL, VDE | Triac | No | 1 | 7,173 Cart + RFQ |
VO2223B Phoenix Passive Components / Vishay | 1 $2.3100 | Datasheet | 4470Vrms | 600 V | 600V/µs (Typ) | 10mA | 1 A | 25mA | - | 1.4V (Max) | 50 mA | -40°C ~ 85°C | Through Hole | 8-DIP (0.300", 7.62mm), 7 Leads | 8-DIP | cUR, UR | Triac, Power | No | 1 | 1,732 Cart + RFQ |
K3023P Phoenix Passive Components / Vishay | 1 $2.3100 | Datasheet | 5300Vrms | 400 V | 10V/µs (Typ) | 5mA | 100 mA | 200µA (Typ) | - | 1.3V | 80 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | BSI, CQC, CSA, cUR, UR, VDE | Triac | No | 1 | 4,138 Cart + RFQ |
 IL410-X017 Phoenix Passive Components / Vishay | 1 $3.7200 | Datasheet | 5300Vrms | 600 V | 10kV/µs | 2mA | 300 mA | 500µA | 35µs | 1.16V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | - | CSA, UR, VDE | Triac | Yes | 1 | 5,497 Cart + RFQ |
