Optoisolators - Triac, SCR Output
Triac and SCR output optoisolators allow bi-directional or unidirectional control of an AC (alternating current) source while providing isolation between the control and load circuits. An LED is optically coupled to a photodiode in a single device package. The photodiode controls the gate of the Triac or SCR and may include zero cross circuity. These optoisolators are selected by on-state current, forward voltage, turn on time, and mounting type.
Product List
Total Components: 43
| Product | Pricing | Datasheet | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Approval Agency | Output Type | Zero Crossing Circuit | Number of Channels | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FODM3052R2-NF098 onsemi | 1 $1.6600 | Datasheet | 3750Vrms | 600 V | 1kV/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD, Gull Wing | 4-SMD | cUR, UR | Triac | No | 1 | 5,859 Cart + RFQ |
FODM3053R2-NF098 onsemi | 1 $1.8800 | Datasheet | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD, Gull Wing | 4-SMD | cUR, UR | Triac | No | 1 | 7,325 Cart + RFQ |
FODM3063R2 onsemi | 1 $2.1700 | Datasheet | 3750Vrms | 600 V | 600V/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD, Gull Wing | 4-SMD | cUL, UL | Triac | Yes | 1 | 3,764 Cart + RFQ |
 MOC3052SM onsemi | 1 $0.2550 100 $0.2040 500 $0.1700 | Datasheet | 4170Vrms | 600 V | 1kV/µs | 10mA | - | 220µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD, Gull Wing | 6-SMD | UR | Triac | No | 1 | 200 Cart + RFQ |

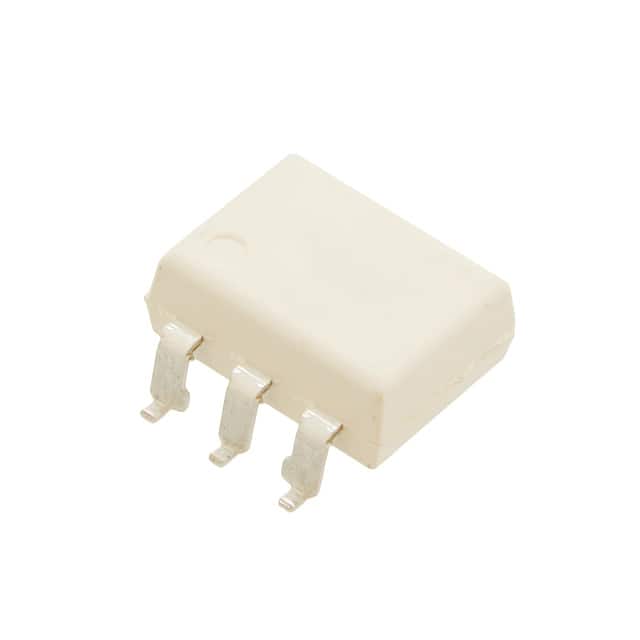

 FOD420SD onsemi | 1 $4.7800 | Datasheet | 5000Vrms | 600 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.28V | 30 mA | -55°C ~ 100°C | Surface Mount | 6-SMD, Gull Wing | 6-SMD | cUL, FIMKO, UL | Triac | No | 1 | 1,945 Cart + RFQ |

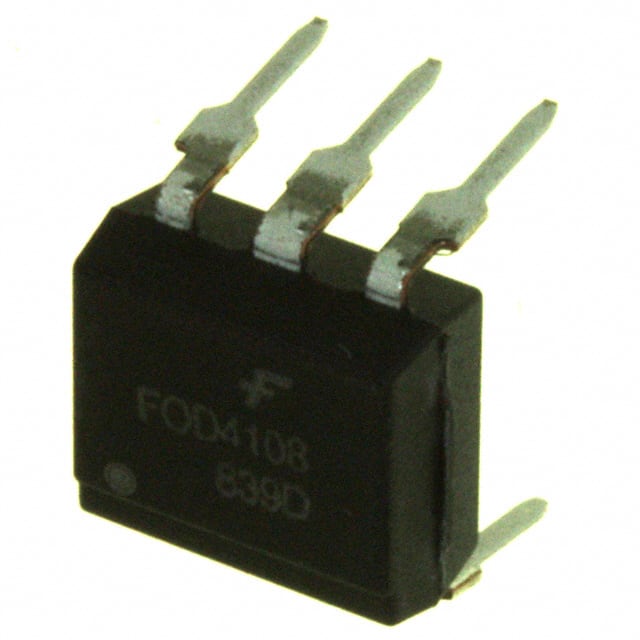

 FOD4108 onsemi | 1 $4.1300 | Datasheet | 5000Vrms | 800 V | 10kV/µs | 2mA | - | 500µA | 60µs | 1.25V | 30 mA | -55°C ~ 100°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | CSA, UL | Triac | Yes | 1 | 9,447 Cart + RFQ |
MOC3042SR2M onsemi | 1 $0.4500 100 $0.3600 500 $0.3000 | Datasheet | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD, Gull Wing | 6-SMD | UL | Triac | Yes | 1 | 2,000 Cart + RFQ |
MOC3063SR2VM onsemi | 1 $1.3900 | Datasheet | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD, Gull Wing | 6-SMD | IEC/EN/DIN, UL | Triac | Yes | 1 | 3,512 Cart + RFQ |
FODM3053R2V-NF098 onsemi | 1 $1.7100 | Datasheet | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD, Gull Wing | 4-SMD | cUR, UR, VDE | Triac | No | 1 | 7,321 Cart + RFQ |
MOC3020M onsemi | 1 $0.7200 | Datasheet | 4170Vrms | 400 V | - | 30mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | No | 1 | 2,629 Cart + RFQ |
MOC3021M onsemi | 1 $0.4060 | Datasheet | 4170Vrms | 400 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | No | 1 | 100,000 Cart + RFQ |
MOC3023M onsemi | 1 $0.1875 100 $0.1500 500 $0.1250 | Datasheet | 4170Vrms | 400 V | - | 5mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | No | 1 | 21,000 Cart + RFQ |
MOC3022M onsemi | 1 $1.8460 | Datasheet | 4170Vrms | 400 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | No | 1 | 100,000 Cart + RFQ |
MOC3011M onsemi | 1 $0.2700 100 $0.2160 500 $0.1800 | Datasheet | 4170Vrms | 250 V | - | 10mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | No | 1 | 500 Cart + RFQ |
MOC3010M onsemi | 1 $0.9500 | Datasheet | 4170Vrms | 250 V | - | 15mA | - | 100µA (Typ) | - | 1.15V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | No | 1 | 8,484 Cart + RFQ |
MOC3083M onsemi | 1 $1.0800 | Datasheet | 4170Vrms | 800 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | Yes | 1 | 3,351 Cart + RFQ |
MOC3061M onsemi | 1 $2.4000 | Datasheet | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | Yes | 1 | 100,000 Cart + RFQ |
MOC3063M onsemi | 1 $1.1500 | Datasheet | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | Yes | 1 | 3,472 Cart + RFQ |
MOC3042M onsemi | 1 $0.3606 100 $0.2885 500 $0.2404 | Datasheet | 4170Vrms | 400 V | 1kV/µs | 10mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | Yes | 1 | 20,000 Cart + RFQ |
MOC3041M onsemi | 1 $0.4110 100 $0.3288 500 $0.2740 | Datasheet | 4170Vrms | 400 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP (0.300", 7.62mm) | 6-DIP | UL | Triac | Yes | 1 | 3,000 Cart + RFQ |
