Voltage Regulators - Linear
Linear voltage regulators are used to provide a stable output voltage that is nominally invariant with respect to changes in load current, input voltage, or environmental factors. Their operating principle requires that the input voltage be maintained above the desired output voltage by some minimum amount, and function on the basis of converting whatever excess voltage is present at the input to heat. While this renders them less efficient than switch-mode voltage regulators for most applications, they are often better suited for applications with high sensitivity to noise.
Product List
Total Components: 69,541
| Product | Pricing | Datasheet | Output Configuration | Output Type | Number of Regulators | Voltage - Input (Max) | Voltage - Output (Min/Fixed) | Voltage - Output (Max) | Voltage Dropout (Max) | Current - Output | Current - Quiescent (Iq) | Current - Supply (Max) | PSRR | Control Features | Protection Features | Operating Temperature | Mounting Type | Package / Case | Supplier Device Package | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

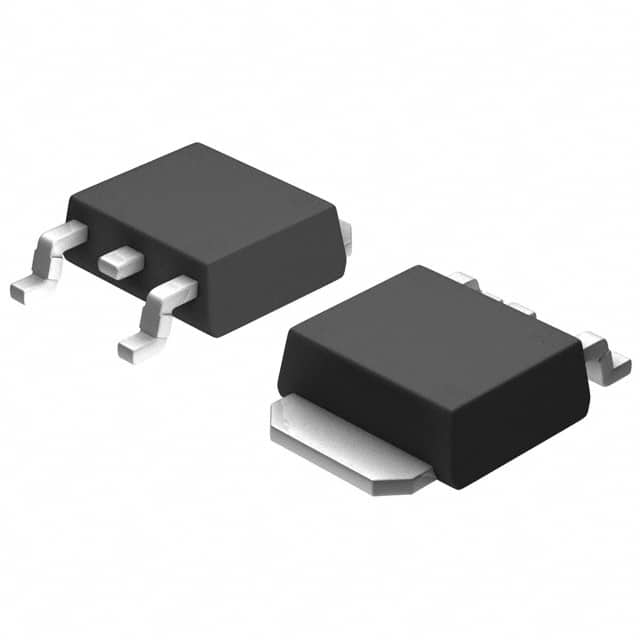

 BA033CC0FP-E2 ROHM Semiconductor | 1 $1.4100 | Datasheet | Positive | Fixed | 1 | 25V | 3.3V | - | - | 1A | 2.5 mA | 5 mA | 55dB (120Hz) | - | Over Current, Over Temperature, Over Voltage | -40°C ~ 125°C | Surface Mount | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252 | 9,221 Cart + RFQ |
 TCR2EF33,LM(CT TAEC Product (Toshiba Electronic Devices and Storage Corporation) | 1 $0.3400 | Datasheet | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 150mA | 200mA | 60 µA | - | 73dB (1kHz) | Enable | Over Current | -40°C ~ 85°C | Surface Mount | SC-74A, SOT-753 | SMV | 2,863 Cart + RFQ |
 AP2120N-3.3TRG1 Diodes Incorporated | 1 $0.0630 100 $0.0504 500 $0.0420 | Datasheet | Positive | Fixed | 1 | 6V | 3.3V | - | 0.5V @ 150mA | 150mA | 50 µA | - | 65dB (1kHz) | - | Over Current | -40°C ~ 85°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 3,000 Cart + RFQ |
 AP2127K-1.8TRG1 Diodes Incorporated | 1 $0.3900 | Datasheet | Positive | Fixed | 1 | 6V | 1.8V | - | 0.7V @ 300mA | 300mA | 90 µA | - | 68dB ~ 54dB (100Hz ~ 10kHz) | - | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | SC-74A, SOT-753 | SOT-23-5 | 8,678 Cart + RFQ |
 AZ1117CH-3.3TRG1 Diodes Incorporated | 1 $0.4800 | Datasheet | Positive | Fixed | 1 | 15V | 3.3V | - | 1.3V @ 800mA | 1A | 6 mA | - | 70dB (120Hz) | - | Thermal Shutdown | -20°C ~ 125°C (TJ) | Surface Mount | TO-261-4, TO-261AA | SOT-223-3 | 4,428 Cart + RFQ |

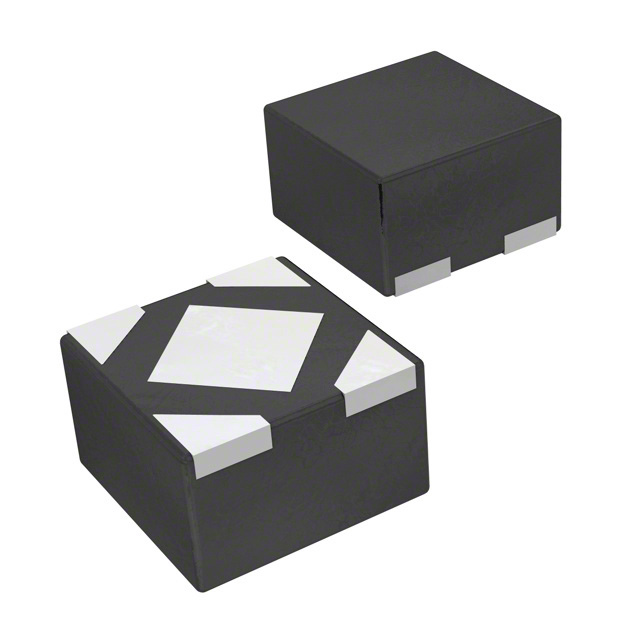

 NCP114AMX330TCG onsemi | 1 $0.4800 | Datasheet | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.2V @ 300mA | 300mA | 95 µA | - | 75dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount | 4-UDFN Exposed Pad | 4-UDFN (1.0x1.0) | 4,109 Cart + RFQ |
AP7366-W5-7 Diodes Incorporated | 1 $0.4050 100 $0.3240 500 $0.2700 | Datasheet | Positive | Adjustable | 1 | 6V | 0.8V | 5V | - | 600mA | 80 µA | - | 75dB ~ 55dB (1kHz ~ 10kHz) | Current Limit, Enable | Over Current, Short Circuit | -40°C ~ 85°C (TA) | Surface Mount | SC-74A, SOT-753 | SOT-25 | 60,000 Cart + RFQ |
 AS78L05RTR-E1 Diodes Incorporated | 1 $0.4100 | Datasheet | Positive | Fixed | 1 | 30V | 5V | - | 1.8V @ 100mA (Typ) | 100mA | 5.5 mA | - | 62dB (120Hz) | - | Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount | TO-243AA | SOT-89-3 | 8,986 Cart + RFQ |
AP2112K-1.8TRG1 Diodes Incorporated | 1 $0.3700 | Datasheet | Positive | Fixed | 1 | 6V | 1.8V | - | 0.7V @ 600mA | 600mA | 80 µA | - | 65sB (100Hz ~ 1KHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | SC-74A, SOT-753 | SOT-25 | 7,142 Cart + RFQ |
AP2138N-3.0TRG1 Diodes Incorporated | 1 $0.3800 | Datasheet | Positive | Fixed | 1 | 6V | 3V | - | 0.7V @ 250mA | 250mA | 1.5 µA | - | - | - | Over Current | -40°C ~ 85°C (TA) | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 7,752 Cart + RFQ |
AZ1117CR-3.3TRG1 Diodes Incorporated | 1 $0.4400 | Datasheet | Positive | Fixed | 1 | 15V | 3.3V | - | - | 1A | 6 mA | - | 70dB (120Hz) | - | Thermal Shutdown | -20°C ~ 125°C (TJ) | Surface Mount | TO-243AA | SOT-89-3 | 7,336 Cart + RFQ |
AP2139AK-3.3TRG1 Diodes Incorporated | 1 $0.4200 | Datasheet | Positive | Fixed | 1 | 6V | 3.3V | - | 0.6V @ 250mA | 250mA | 1.5 µA | - | - | Enable | Over Current | -40°C ~ 85°C | Surface Mount | SC-74A, SOT-753 | SOT-23-5 | 3,425 Cart + RFQ |
 MIC5365-3.3YC5-TR Microchip Technology | 1 $0.3750 100 $0.3000 500 $0.2500 | Datasheet | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.31V @ 150mA | 150mA | 39 µA | - | 80dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount | 5-TSSOP, SC-70-5, SOT-353 | SC-70-5 | 3,000 Cart + RFQ |
AP7370-33Y-13 Diodes Incorporated | 1 $0.4500 | Datasheet | Positive | Fixed | 1 | 18V | 3.3V | - | 0.6V @ 100mA | 300mA | 2.5 µA | 300 µA | - | - | Over Current, Over Temperature, Reverse Current, Short Circuit | -40°C ~ 125°C (TJ) | Surface Mount | TO-243AA | SOT-89-3 | 4,301 Cart + RFQ |

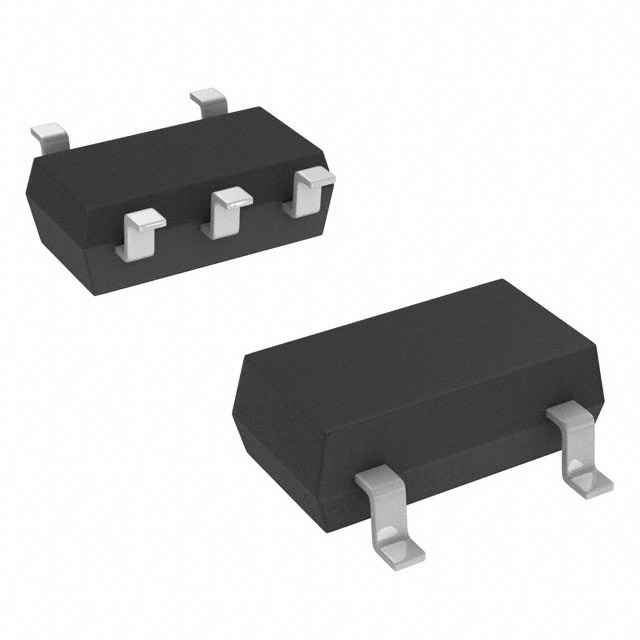

 RT9193-33GB Richtek | 1 $0.1038 100 $0.0830 500 $0.0692 | Datasheet | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.3V @ 300mA | 300mA | 130 µA | - | 70dB ~ 50dB (100Hz ~ 10kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount | SC-74A, SOT-753 | SOT-23-5 | 3,000 Cart + RFQ |
AP2204K-ADJTRG1 Diodes Incorporated | 1 $0.5300 | Datasheet | Positive | Adjustable | 1 | 24V | 1.24V | 22V | 0.5V @ 150mA | 150mA | 50 µA | 2.5 mA | 60dB (100Hz ~ 1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount | SC-74A, SOT-753 | SOT-23-5 | 5,906 Cart + RFQ |
RT9043GB Richtek | 1 $0.5300 | Datasheet | Positive | Adjustable | 1 | 5.5V | 1.2V | 5V | 0.35V @ 400mA | 400mA | 50 µA | - | 67dB ~ 56dB (1kHz ~ 10kHz) | Enable | Over Current | -40°C ~ 85°C | Surface Mount | SC-74A, SOT-753 | SOT-23-5 | 4,046 Cart + RFQ |
 AP2213M-3.3TRG1 Diodes Incorporated | 1 $0.5400 | Datasheet | Positive | Fixed | 1 | 18V | 3.3V | - | 0.7V @ 500mA | 500mA | 180 µA | 28 mA | 75dB (100Hz) | Enable | Over Current, Over Temperature, Reverse Polarity | -40°C ~ 125°C | Surface Mount | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC | 1,513 Cart + RFQ |
ZXTR2105F-7 Diodes Incorporated | 1 $0.1742 100 $0.1393 500 $0.1161 | Datasheet | Positive | Fixed | 1 | 60V | 5V | - | - | 89mA | 800 µA | 6.7 mA | 46dB (100Hz) | - | - | -65°C ~ 150°C | Surface Mount | TO-236-3, SC-59, SOT-23-3 | SOT-23-3 | 10,000 Cart + RFQ |

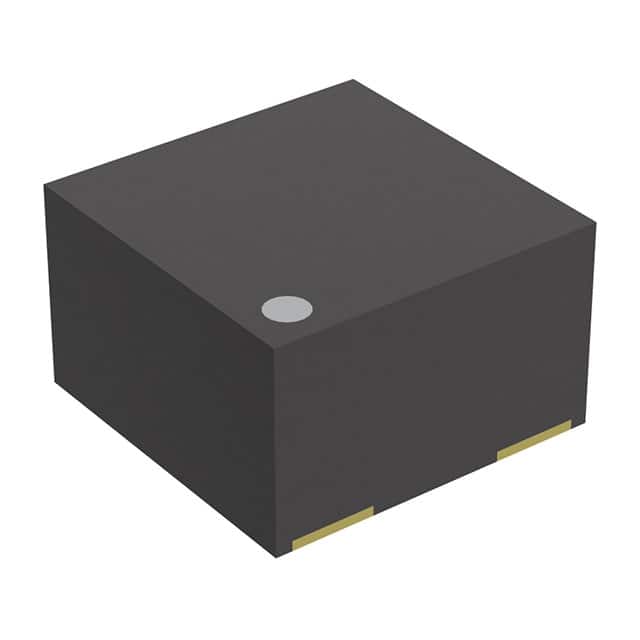

 RP130K501D-TR JRC (Nisshinbo Micro Devices) | 1 $0.5600 | Datasheet | Positive | Fixed | 1 | 6.5V | 5V | - | 0.31V @ 150mA | 150mA | 58 µA | - | 80dB (1kHz) | Enable | Over Current | -40°C ~ 105°C (TA) | Surface Mount | 4-UDFN Exposed Pad | DFN(PLP)1010-4B | 2,603 Cart + RFQ |
