LGH Cables
LGH Cables are circular connector or rectangular connectors designed for use with high voltages from 4.5 kV to 50 kV in lengths from 3.94” (100.00 mm) to 40.03’ (12.20 m) shielded or unshielded in wire gauges of 6 AWG to 26 AWG.
Product List
Total Components: 183
| Product | Pricing | Datasheet | Connector Type | Length | Voltage | Barrel Depth | Wire Gauge | Shielding | Color - Cap | Color - Wire | Material - Cap | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

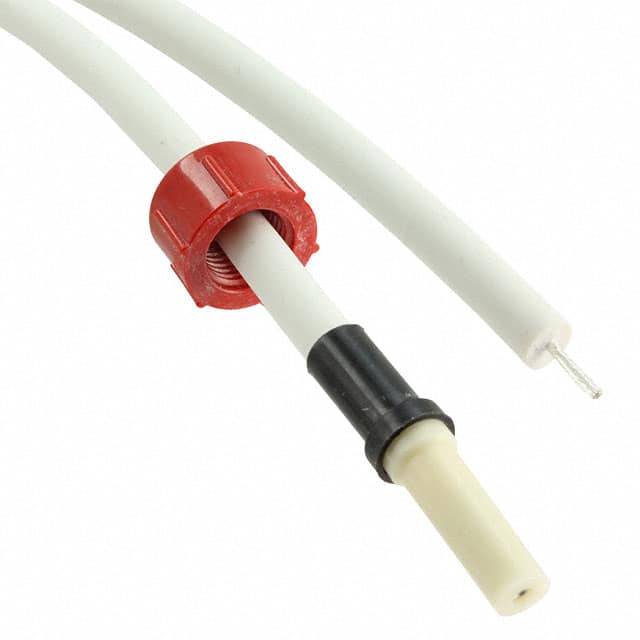

 5-862549-4 Aerospace Defense and Marine / TE Connectivity | 1 $152.2100 | Datasheet | LGH-1 Plug to Cable (Round) | 12.38" (314.452mm) | 20 kV | 0.88" (22.35mm) | 16 AWG | Unshielded | Red | White | Polycarbonate | 7,206 Cart + RFQ |
 862545-5 Aerospace Defense and Marine / TE Connectivity | 1 $170.0900 | Datasheet | LGH-1/2 Plug to Cable (Round) | 15.38" (390.652mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 2,378 Cart + RFQ |

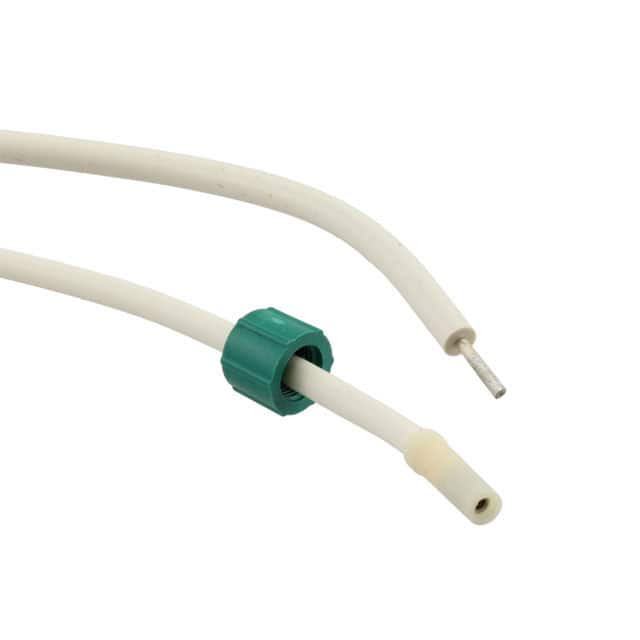

 830611-1 Aerospace Defense and Marine / TE Connectivity | 1 $181.1300 | Datasheet | LGH-1/2 Plug to Cable (Round) | 24.25" (615.950mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 7,342 Cart + RFQ |
 862197-6 Aerospace Defense and Marine / TE Connectivity | 1 $29.6380 | Datasheet | - | - | - | - | - | - | - | - | - | 4,824 Cart + RFQ |
1218134-1 Aerospace Defense and Marine / TE Connectivity | 1 $53.7936 | Datasheet | Micro-Miniature LGH, Plug Right Angle, 1 pos to Cable (Round) | 10.00" (254.000mm) | 7 kV | 0.60" (15.24mm) | 22 AWG | Unshielded | No Cap | White | - | 1,094 Cart + RFQ |
443958-1 Aerospace Defense and Marine / TE Connectivity | 1 $58.9872 | Datasheet | Micro-Miniature LGH, Receptacle, 1 pos to Cable (Round) | 8.00" (203.200mm) | 6 kV | 0.63" (16.00mm) | 24 AWG | Unshielded | Red | Red | Silicone Rubber | 7,999 Cart + RFQ |
443957-1 Aerospace Defense and Marine / TE Connectivity | 1 $62.0470 | Datasheet | Micro-Miniature LGH, Plug, 1 pos to Cable (Round) | 8.00" (203.200mm) | 6 kV | 0.71" (18.03mm) | 24 AWG | Unshielded | No Cap | Red | - | 8,712 Cart + RFQ |
445245-4 Aerospace Defense and Marine / TE Connectivity | 1 $71.7743 | Datasheet | LGH-1/2L Plug to Cable (Round) | 13.00" (330.200mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Red | White | Epoxy, Glass Filled | 9,563 Cart + RFQ |
1-5837655-1 Aerospace Defense and Marine / TE Connectivity | 1 $89.5392 | Datasheet | - | - | - | - | - | - | - | - | - | 3,425 Cart + RFQ |
867824-1 Aerospace Defense and Marine / TE Connectivity | 1 $90.1547 | Datasheet | Micro-Miniature LGH, Receptacle, 1 pos to Cable (Round) | 24.00" (609.600mm) | 7.5 kV | 0.61" (15.49mm) | 22 AWG | Unshielded | No Cap | White | - | 2,163 Cart + RFQ |
5-862545-4 Aerospace Defense and Marine / TE Connectivity | 1 $93.1645 | Datasheet | LGH-1/2 Plug to Cable (Round) | 12.38" (314.452mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 8,220 Cart + RFQ |
1-837655-1 Aerospace Defense and Marine / TE Connectivity | 1 $93.3518 | Datasheet | LGH-1 Plug to Cable (Round) | 12.38" (314.452mm) | 20 kV | 0.88" (22.35mm) | 16 AWG | Unshielded | Red | White | Polycarbonate | 5,475 Cart + RFQ |
5830613-1 Aerospace Defense and Marine / TE Connectivity | 1 $95.7520 | Datasheet | LGH-1/2L Plug to Cable (Round) | 24.25" (615.950mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 1,715 Cart + RFQ |
5-868399-3 Aerospace Defense and Marine / TE Connectivity | 1 $100.1660 | Datasheet | LGH-1/2 Plug to Cable (Round) | 15.38" (390.652mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | Red | Polyester, Glass Filled | 9,151 Cart + RFQ |
1218147-1 Aerospace Defense and Marine / TE Connectivity | 1 $104.7996 | Datasheet | Micro-Miniature LGH, Plug, 1 pos to Cable (Round) | 12.50" (317.500mm) | 6 kV | 0.71" (18.03mm) | 24 AWG | Unshielded | No Cap | Red | - | 8,144 Cart + RFQ |
867823-1 Aerospace Defense and Marine / TE Connectivity | 1 $114.3336 | Datasheet | Micro-Miniature LGH, Plug, 1 pos to Cable (Round) | 15.00" (381.000mm) | 7.5 kV | 0.68" (17.27mm) | 22 AWG | Unshielded | No Cap | White | - | 8,681 Cart + RFQ |
1218148-1 Aerospace Defense and Marine / TE Connectivity | 1 $116.6182 | Datasheet | Micro-Miniature LGH, Receptacle, 1 pos to Cable (Round) | 12.50" (317.500mm) | 6 kV | 0.63" (16.00mm) | 24 AWG | Unshielded | No Cap | Red | - | 5,941 Cart + RFQ |
445162-4 Aerospace Defense and Marine / TE Connectivity | 1 $118.2233 | Datasheet | LGH-1/4 Plug to Cable (Round) | 24.38" (619.252mm) | 5 kV | 0.25" (6.35mm) | 22 AWG | Unshielded | Black | White | Polyester | 9,470 Cart + RFQ |
1-5830611-0 Aerospace Defense and Marine / TE Connectivity | 1 $119.2250 | Datasheet | LGH-1/2 Plug to Cable (Round) | 36.25" (920.750mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 7,774 Cart + RFQ |
862547-6 Aerospace Defense and Marine / TE Connectivity | 1 $123.6890 | Datasheet | LGH-1/2L Plug to Cable (Round) | 18.38" (466.852mm) | 23 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 8,822 Cart + RFQ |
