LGH Cables
LGH Cables are circular connector or rectangular connectors designed for use with high voltages from 4.5 kV to 50 kV in lengths from 3.94” (100.00 mm) to 40.03’ (12.20 m) shielded or unshielded in wire gauges of 6 AWG to 26 AWG.
Product List
Total Components: 364
| Product | Pricing | Datasheet | Connector Type | Length | Voltage | Barrel Depth | Wire Gauge | Shielding | Color - Cap | Color - Wire | Material - Cap | Stock & Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

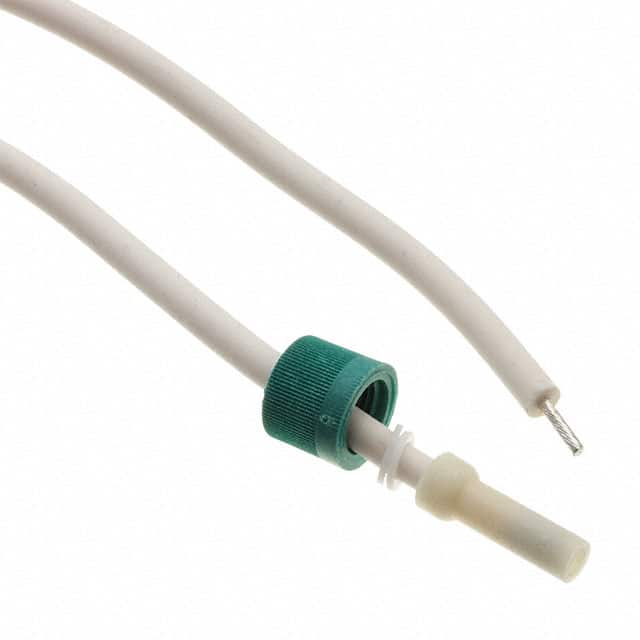

 1-830611-0 TE Connectivity AMP Connectors | 1 $140.4700 | Datasheet | LGH-1/2 Plug to Cable (Round) | 36.25" (920.750mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 3,199 Cart + RFQ |

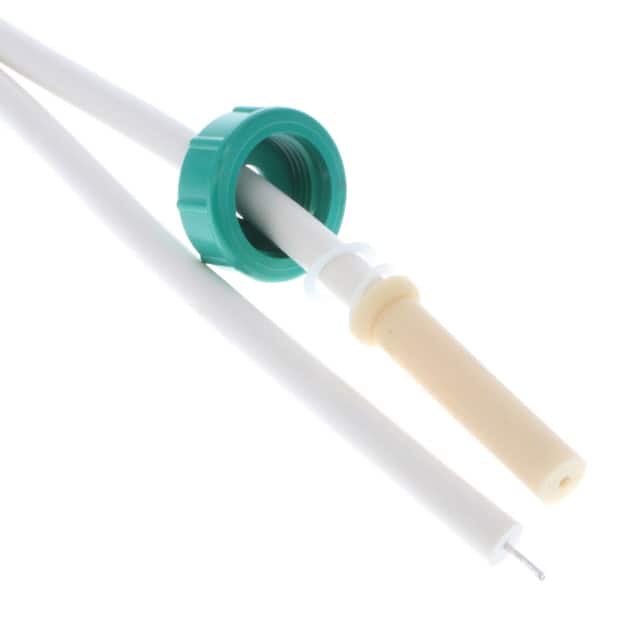

 846290-6 TE Connectivity AMP Connectors | 1 $583.0300 | Datasheet | LGH-4 Plug to Cable (Round) | 36.38" (924.052mm) | 50 kV | 2.00" (50.80mm) | 16 AWG | Unshielded | Green | White | Epoxy | 1,295 Cart + RFQ |
 862545-2 TE Connectivity AMP Connectors | 1 $74.8524 | Datasheet | LGH-1/2 Plug to Cable (Round) | 8.38" (212.852mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 2,682 Cart + RFQ |
868399-3 TE Connectivity AMP Connectors | 1 $80.3791 | Datasheet | LGH-1/2 Plug to Cable (Round) | 15.38" (390.652mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | Red | Polyester, Glass Filled | 1,718 Cart + RFQ |
867956-1 TE Connectivity AMP Connectors | 1 $82.6124 | Datasheet | LGH-1/2L Plug to Cable (Round) | 6.38" (162.052mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Green | White | Polyester | 8,548 Cart + RFQ |
1-5830611-1 TE Connectivity AMP Connectors | 1 $83.9076 | Datasheet | LGH-1/2 Plug to Cable (Round) | 8.25" (209.550mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 9,585 Cart + RFQ |
862547-4 TE Connectivity AMP Connectors | 1 $87.8307 | Datasheet | LGH-1/2L Plug to Cable (Round) | 12.38" (314.452mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 3,282 Cart + RFQ |
840706-1 TE Connectivity AMP Connectors | 1 $89.3925 | Datasheet | LGH-1/2L Plug to Cable (Round) | 12.25" (311.150mm) | 15 kV | 0.55" (13.97mm) | 16 AWG | Unshielded | Green | White | Epoxy | 4,654 Cart + RFQ |
830611-8 TE Connectivity AMP Connectors | 1 $91.2484 | Datasheet | LGH-1/2 Plug to Cable (Round) | 4.38" (111.252mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 8,542 Cart + RFQ |
5837655-9 TE Connectivity AMP Connectors | 1 $102.6908 | Datasheet | LGH-1 Plug to Cable (Round) | 20.38" (517.652mm) | 20 kV | 0.88" (22.35mm) | 16 AWG | Unshielded | Red | White | Polycarbonate | 3,609 Cart + RFQ |
867938-1 TE Connectivity AMP Connectors | 1 $102.9418 | Datasheet | LGH-1/2L Plug to Cable (Round) | 8.38" (212.852mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | - | Red | - | 7,594 Cart + RFQ |
863534-5 TE Connectivity AMP Connectors | 1 $105.1749 | Datasheet | LGH-1/2L Plug to Cable (Round) | 15.38" (390.652mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Red | White | Polyester, Glass Filled | 7,936 Cart + RFQ |
867937-1 TE Connectivity AMP Connectors | 1 $105.2708 | Datasheet | LGH-1/2L Plug to Cable (Round) | 6.25" (158.750mm) | 15 kV | 0.89" (22.61mm) | 16 AWG | Unshielded | Red | White | Epoxy, Glass Filled | 5,250 Cart + RFQ |
1-830611-1 TE Connectivity AMP Connectors | 1 $107.9286 | Datasheet | LGH-1/2 Plug to Cable (Round) | 8.25" (209.550mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 1,441 Cart + RFQ |
445162-2 TE Connectivity AMP Connectors | 1 $108.3533 | Datasheet | LGH-1/4 Plug to Cable (Round) | 12.00" (304.800mm) | 5 kV | 0.25" (6.35mm) | 22 AWG | Unshielded | Black | White | Polyester | 8,455 Cart + RFQ |
862545-3 TE Connectivity AMP Connectors | 1 $109.0255 | Datasheet | LGH-1/2 Plug to Cable (Round) | 10.38" (263.652mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 9,954 Cart + RFQ |
4-5837655-7 TE Connectivity AMP Connectors | 1 $109.1408 | Datasheet | LGH-1 Plug to Cable (Round) | 8.38" (212.852mm) | 20 kV | 0.88" (22.35mm) | 16 AWG | Unshielded | Red | White | Polycarbonate | 5,407 Cart + RFQ |
868583-6 TE Connectivity AMP Connectors | 1 $113.5840 | Datasheet | LGH-1L Plug to Cable (Round) | 4.38" (111.252mm) | 25 kV | 0.91" (23.11mm) | 16 AWG | Unshielded | Red | White, Yellow Stripe | Polycarbonate | 5,172 Cart + RFQ |
2-832692-2 TE Connectivity AMP Connectors | 1 $114.1876 | Datasheet | LGH-1L Plug to Cable (Round) | 12.38" (314.452mm) | 25 kV | 0.91" (23.11mm) | 16 AWG | Unshielded | Red | White | Polycarbonate | 8,639 Cart + RFQ |
867961-3 TE Connectivity AMP Connectors | 1 $114.5868 | Datasheet | LGH-1/2L Plug to Cable (Round) | 14.38" (365.252mm) | 10 kV | 0.53" (13.46mm) | 16 AWG | Unshielded | Green | White | Polyester, Glass Filled | 7,486 Cart + RFQ |
