D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 25
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

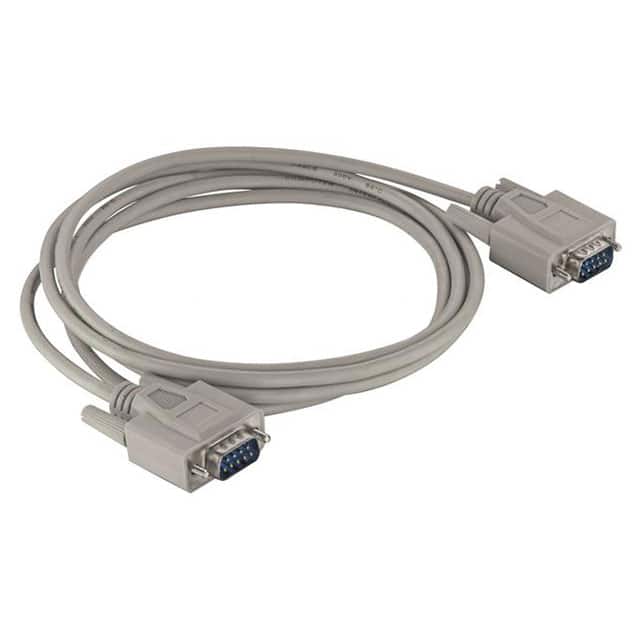

39509030010 HARTING | 1 $31.9500 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Patch | - | - | 2,559 Cart + RFQ |

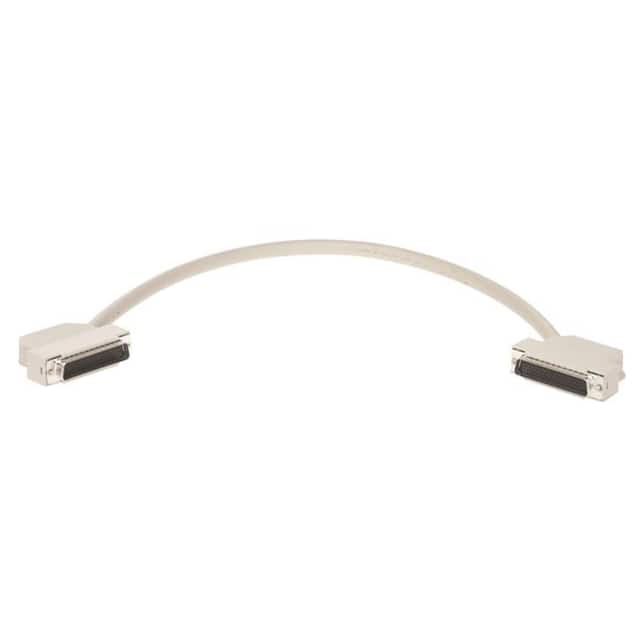

33562131000002 HARTING | 1 $139.4700 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD78 | 78 | 3.28' (1.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 8,175 Cart + RFQ |

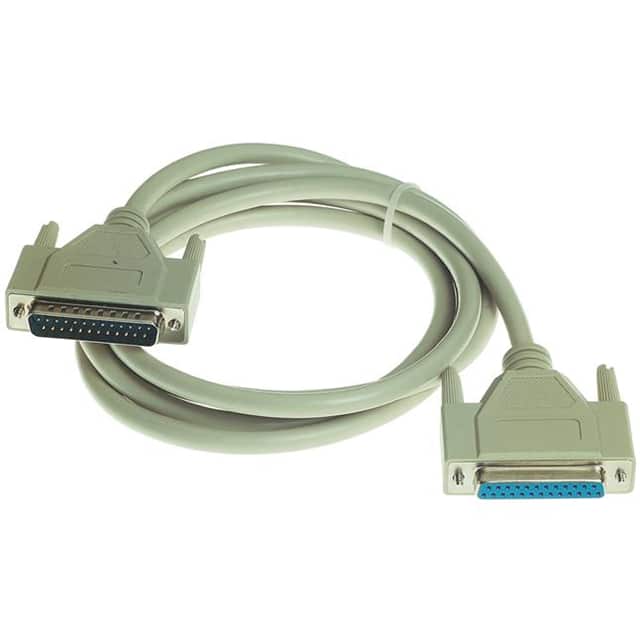

39509030040 HARTING | 1 $35.1800 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 5.91' (1.80m) | Shielded | Beige, Individual (Round) | Patch | - | - | 8,518 Cart + RFQ |

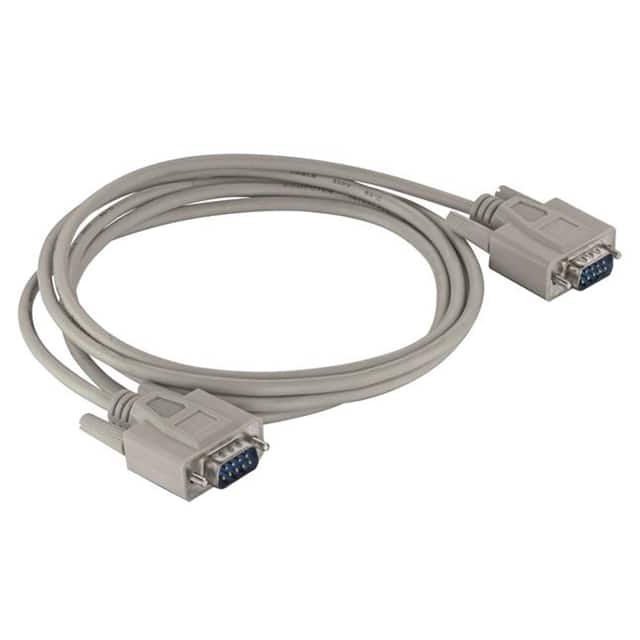

39509030011 HARTING | 1 $40.4700 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 16.40' (5.00m) | Shielded | Beige, Individual (Round) | Patch | - | - | 5,158 Cart + RFQ |

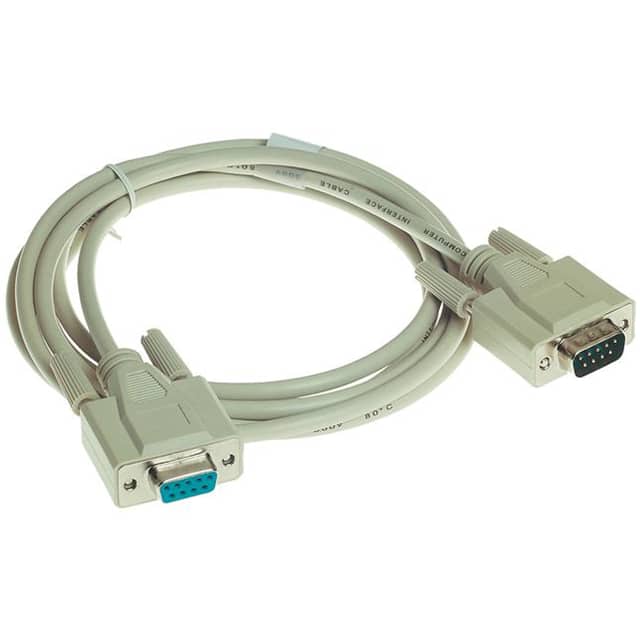

39509030021 HARTING | 1 $40.4700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 16.40' (5.00m) | Shielded | Beige, Individual (Round) | Patch | - | - | 3,774 Cart + RFQ |
39509030041 HARTING | 1 $45.6700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 16.40' (5.00m) | Shielded | Beige, Individual (Round) | Patch | - | - | 4,445 Cart + RFQ |

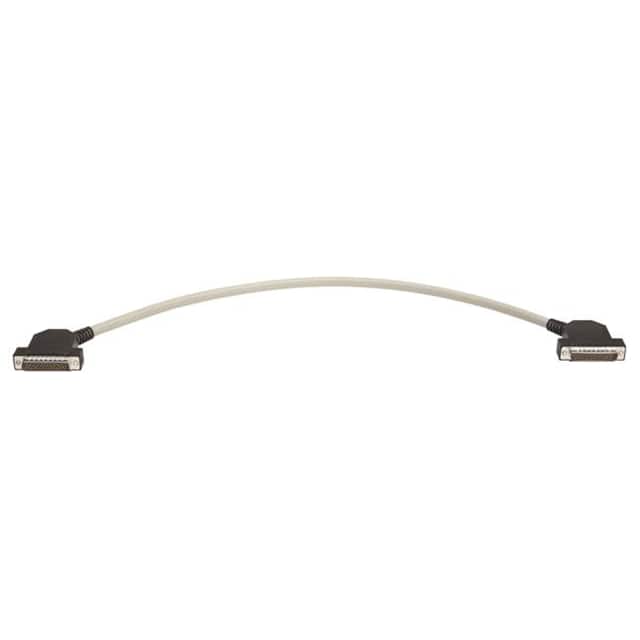

33662135000062 HARTING | 1 $67.8610 | Datasheet | - | - | - | - | - | - | - | - | - | - | 1,480 Cart + RFQ |

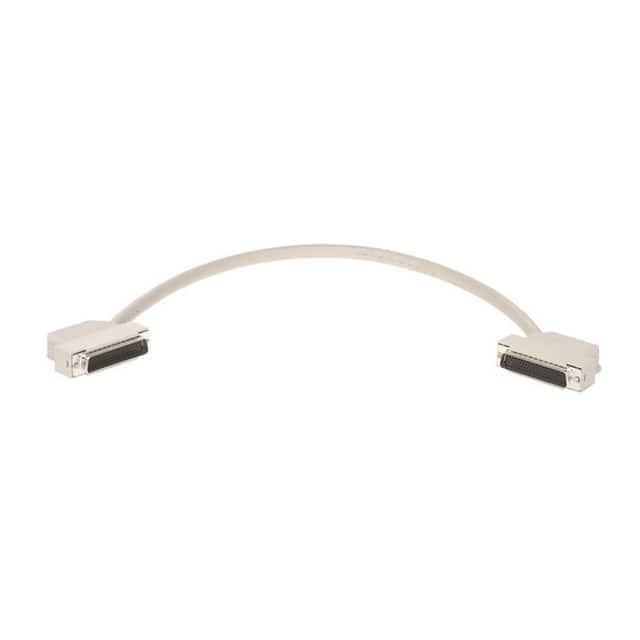

33562130500023 HARTING | 1 $87.3800 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 1.64' (500.00mm) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 4,013 Cart + RFQ |
33562131500022 HARTING | 1 $91.4800 | Datasheet | - | - | - | - | - | - | - | - | - | - | 3,576 Cart + RFQ |
33562131000024 HARTING | 1 $105.4400 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 3.28' (1.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 4,095 Cart + RFQ |

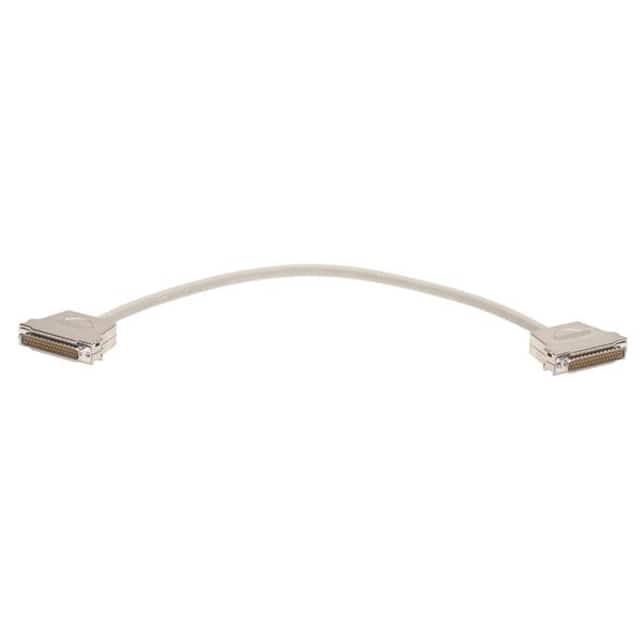

33562120050032 HARTING | 1 $108.7000 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 1.64' (500.00mm) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 7,732 Cart + RFQ |
33562120100033 HARTING | 1 $114.2800 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 3.28' (1.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 7,874 Cart + RFQ |

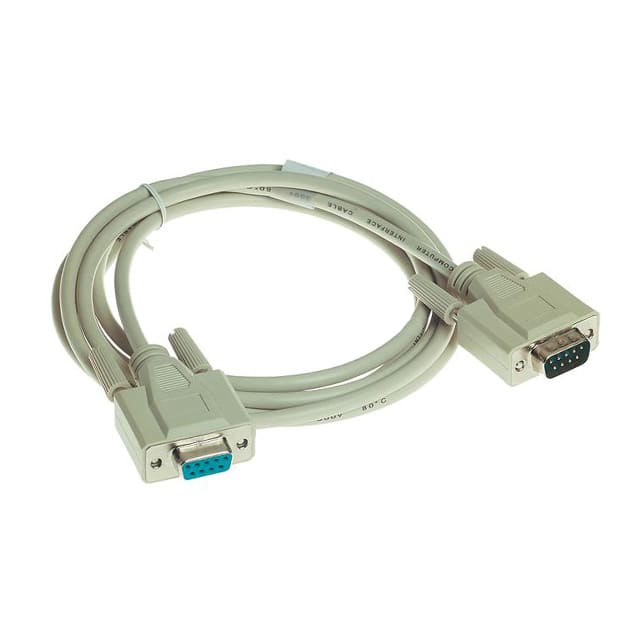

39509030020 HARTING | 1 $31.9500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Patch | - | - | 9,467 Cart + RFQ |
33562132000025 HARTING | 1 $117.9900 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 6.56' (2.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 9,525 Cart + RFQ |
33562210020001 HARTING | 1 $127.7400 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 6.56' (2.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 3,026 Cart + RFQ |
33562245000001 HARTING | 1 $138.3200 | Datasheet | - | - | - | - | - | - | - | - | - | - | 6,158 Cart + RFQ |
33562210010001 HARTING | 1 $156.3200 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 3.28' (1.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 7,993 Cart + RFQ |
33562120500034 HARTING | 1 $162.3400 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD44 | 44 | 16.40' (5.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 3,776 Cart + RFQ |
33562135000026 HARTING | 1 $162.3750 | Datasheet | - | - | - | - | - | - | - | - | - | - | 9,848 Cart + RFQ |
33562132000016 HARTING | 1 $164.4200 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD78 | 78 | 6.56' (2.00m) | Shielded | Beige, Twisted Pair (Round) | Patch | - | - | 3,592 Cart + RFQ |
