D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 47
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

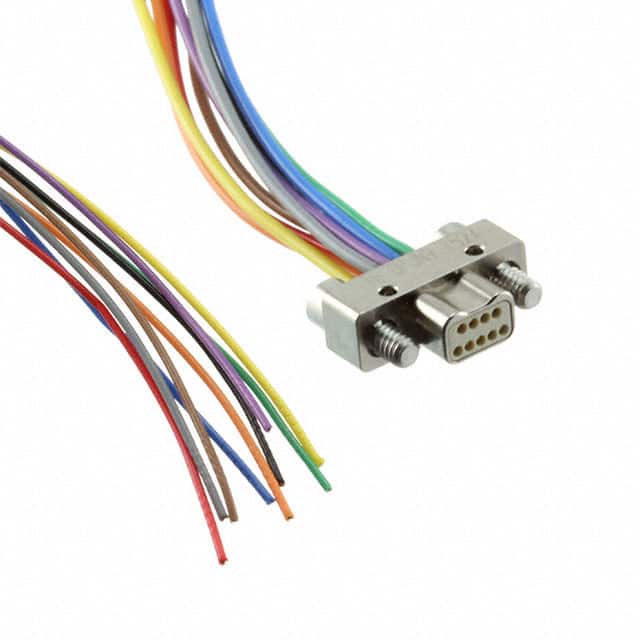

1925214-9 Aerospace Defense and Marine / TE Connectivity | 1 $152.7400 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Nano-D | 9 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Nickel | - | 7,774 Cart + RFQ |

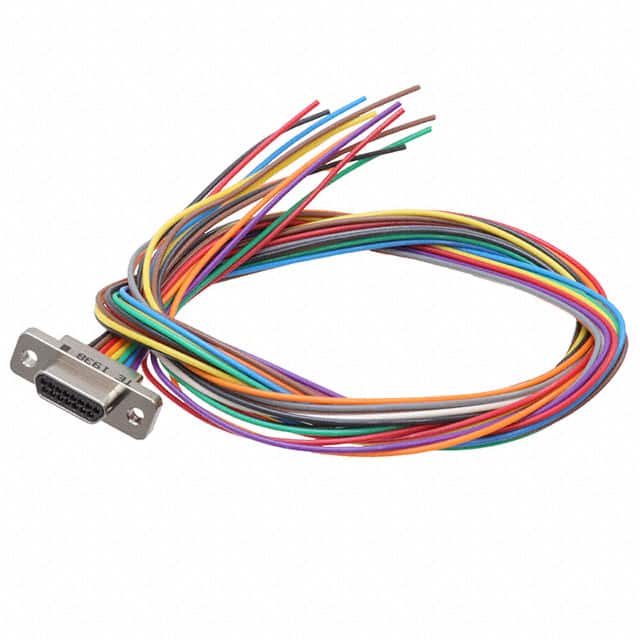

1532180-3 Aerospace Defense and Marine / TE Connectivity | 1 $74.5300 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 15 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | - | 5,511 Cart + RFQ |

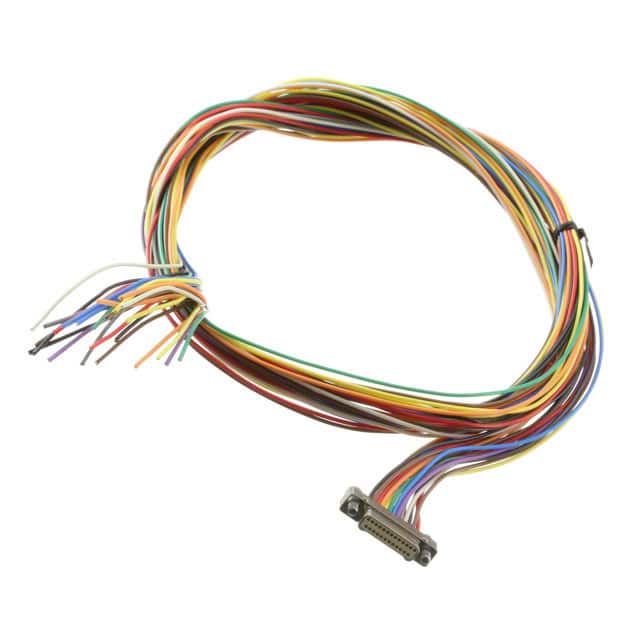

1925217-9 Aerospace Defense and Marine / TE Connectivity | 1 $278.1800 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Nano-D | 25 | 0.500' (152.40mm, 6.00") | Unshielded | Multiple, Individual | - | Nickel | - | 8,053 Cart + RFQ |

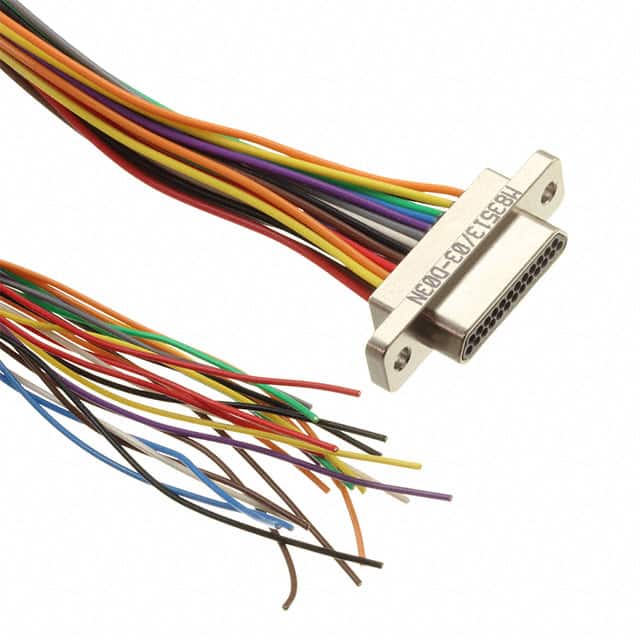

1532182-3 Aerospace Defense and Marine / TE Connectivity | 1 $106.8300 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 25 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | - | 8,385 Cart + RFQ |
1532174-3 Aerospace Defense and Marine / TE Connectivity | 1 $134.8200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB25 | 25 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | - | - | 5,763 Cart + RFQ |

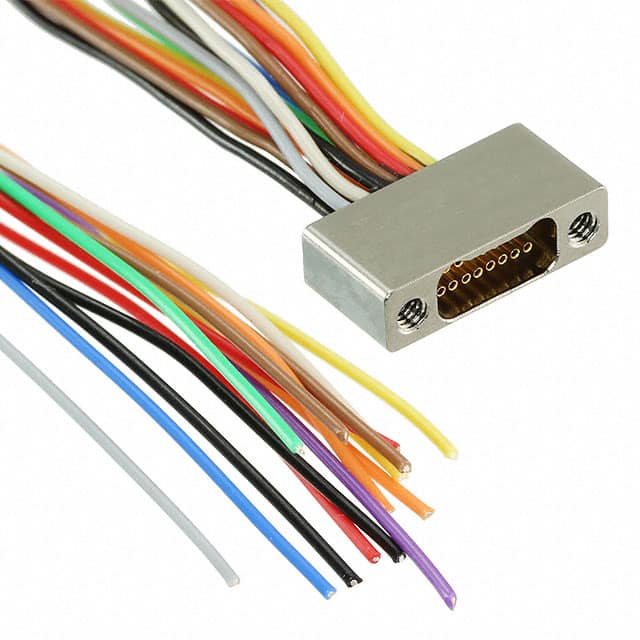

1925222-9 Aerospace Defense and Marine / TE Connectivity | 1 $168.1100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB15 | 15 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Nickel | - | 2,118 Cart + RFQ |

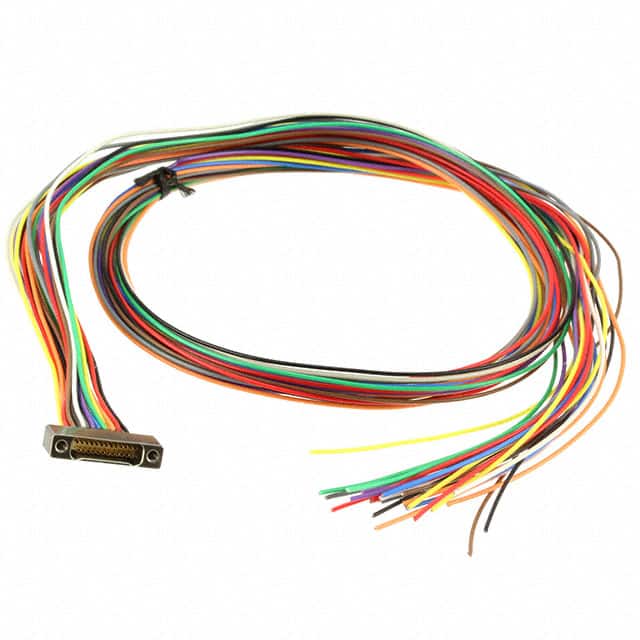

1925224-9 Aerospace Defense and Marine / TE Connectivity | 1 $246.6900 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB25 | 25 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Nickel | - | 8,602 Cart + RFQ |
M83513/08-A03 Aerospace Defense and Marine / TE Connectivity | 1 $47.3912 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 5,901 Cart + RFQ |
1532180-8 Aerospace Defense and Marine / TE Connectivity | 1 $48.5638 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB15 | 15 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 3,638 Cart + RFQ |
2-1532179-8 Aerospace Defense and Marine / TE Connectivity | 1 $49.4125 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 9 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 4,075 Cart + RFQ |
1532172-3 Aerospace Defense and Marine / TE Connectivity | 1 $57.4750 | Datasheet | - | - | - | - | - | - | - | - | - | - | 3,009 Cart + RFQ |
1532171-8 Aerospace Defense and Marine / TE Connectivity | 1 $58.7340 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 6,645 Cart + RFQ |
1532179-8 Aerospace Defense and Marine / TE Connectivity | 1 $59.4532 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 9 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 8,397 Cart + RFQ |
1532172-8 Aerospace Defense and Marine / TE Connectivity | 1 $61.7836 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB15 | 15 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 1,566 Cart + RFQ |
2-1532180-8 Aerospace Defense and Marine / TE Connectivity | 1 $62.0425 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 15 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 3,395 Cart + RFQ |
2-1532171-8 Aerospace Defense and Marine / TE Connectivity | 1 $63.4666 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 8,856 Cart + RFQ |
M83513/09-A03 Aerospace Defense and Marine / TE Connectivity | 1 $63.9937 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 1.50' (457.20mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 9,720 Cart + RFQ |
2-1532172-8 Aerospace Defense and Marine / TE Connectivity | 1 $71.6085 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB15 | 15 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 5,993 Cart + RFQ |
2-1532174-8 Aerospace Defense and Marine / TE Connectivity | 1 $81.3759 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB25 | 25 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 8,338 Cart + RFQ |
1532182-8 Aerospace Defense and Marine / TE Connectivity | 1 $89.0575 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB25 | 25 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | - | - | 1,823 Cart + RFQ |
