D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 28
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PCL-10137-2E Advantech | 1 $26.7600 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB37 | 37 | 6.56' (2.00m) | Shielded | - | - | - | - | 1,345 Cart + RFQ |
PCL-10137-1E Advantech | 1 $21.6200 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB37 | 37 | 3.28' (1.00m) | Shielded | - | - | - | - | 8,727 Cart + RFQ |
PCL-10162-1E Advantech | 1 $40.9300 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB62 | 62 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | - | - | - | 2,766 Cart + RFQ |
PCL-10168-1E Advantech | 1 $51.0900 | Datasheet | Plug, Male Pins | Plug, Male Pins | HPDB68 | 68 | 3.28' (1.00m) | Shielded | Black, Individual (Round) | - | - | - | 6,952 Cart + RFQ |
PCL-10168-2E Advantech | 1 $68.0700 | Datasheet | Plug, Male Pins | Plug, Male Pins | HPDB68 | 68 | 6.56' (2.00m) | Shielded | Black, Individual (Round) | - | - | - | 8,990 Cart + RFQ |
PCL-10268-1E Advantech | 1 $76.4700 | Datasheet | Plug, Male Pins | Plug, Male Pins (2) | HPCN100, HPDB68 | 68 (2), 100 | 3.28' (1.00m) | Shielded | Black, Individual (Round) | - | Gold, Nickel | - | 6,614 Cart + RFQ |
PCL-10168H-2E Advantech | 1 $127.5600 | Datasheet | - | - | HPDB68 | 68 | 6.56' (2.00m) | Shielded | - | - | - | - | 1,175 Cart + RFQ |
BB-232NM9FF3 Advantech | 1 $10.0000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 3.00' (914.40mm) | Unshielded | Beige, Individual (Round) | - | - | - | 2,602 Cart + RFQ |
BB-232CAM3 Advantech | 1 $11.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 9, 25 | 3.00' (914.40mm) | Unshielded | Beige, Individual (Round) | - | - | - | 9,217 Cart + RFQ |
BB-9PAMF3 Advantech | 1 $11.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 3.00' (914.40mm) | Shielded | Beige, Individual (Round) | - | - | - | 9,317 Cart + RFQ |
BB-232NM9FF6 Advantech | 1 $12.0000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 6.00' (1.83m) | Unshielded | Beige, Individual (Round) | - | - | - | 2,187 Cart + RFQ |
BB-232NM9MF6 Advantech | 1 $12.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 6.00' (1.83m) | Unshielded | Beige, Individual (Round) | - | - | - | 5,543 Cart + RFQ |
BB-9PAMF1 Advantech | 1 $14.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 1.00' (304.80mm) | Shielded | Beige, Individual (Round) | - | - | - | 2,380 Cart + RFQ |
BB-9PAMM6 Advantech | 1 $15.0000 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 6.00' (1.83m) | - | Gray, Individual (Round) | - | - | - | 8,268 Cart + RFQ |
BB-232NM9MF10 Advantech | 1 $15.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 10.00' (3.05m) | Unshielded | Beige, Individual (Round) | - | - | - | 4,796 Cart + RFQ |
BB-9PAMF15 Advantech | 1 $19.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 15.00' (4.57m) | Shielded | Beige, Individual (Round) | - | - | - | 3,092 Cart + RFQ |
BB-9PAMF6 Advantech | 1 $21.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 6.00' (1.83m) | - | Beige, Individual (Round) | Extension, Serial | - | - | 8,628 Cart + RFQ |
BB-9PAMF25 Advantech | 1 $23.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 25.00' (7.62m) | Shielded | Beige, Individual (Round) | - | - | - | 6,394 Cart + RFQ |
BB-232NM9MF25 Advantech | 1 $25.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 25.00' (7.62m) | Unshielded | Beige, Individual (Round) | - | - | - | 9,770 Cart + RFQ |

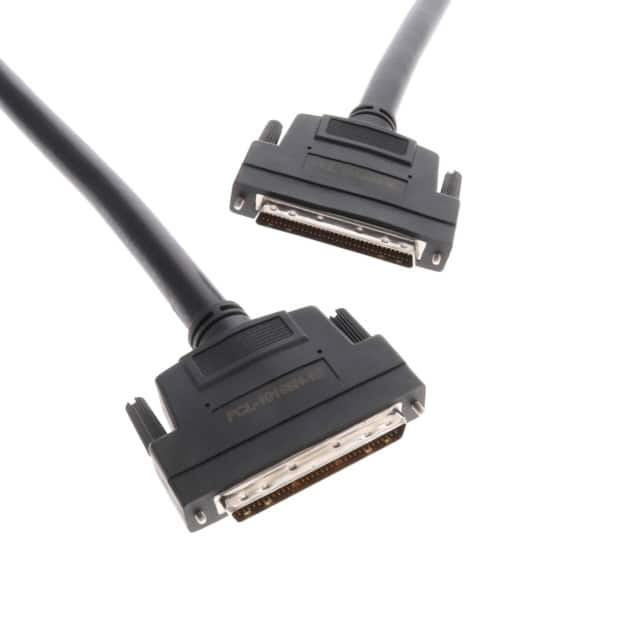

PCL-10168H-1E Advantech | 1 $102.0100 | Datasheet | - | - | HPDB68 | 68 | 3.28' (1.00m) | Shielded | - | - | - | - | 6,789 Cart + RFQ |
