D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 416
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M83513/04-A03N Cinch Connectivity Solutions | 1 $42.3000 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 8,876 Cart + RFQ |

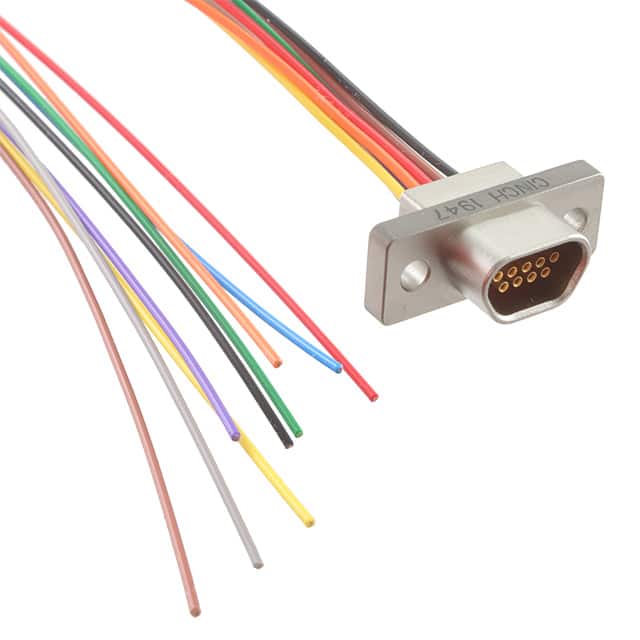

DCCM9S6E5-18.0BN Cinch Connectivity Solutions | 1 $50.4100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 1,585 Cart + RFQ |

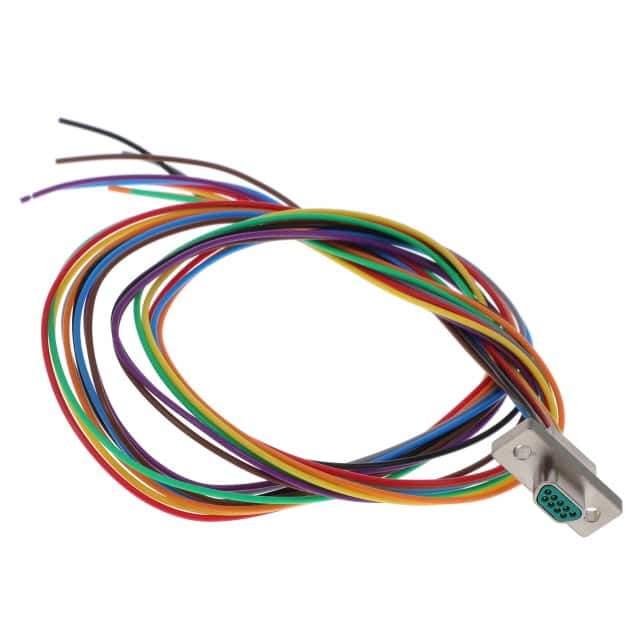

M83513/03-A03N Cinch Connectivity Solutions | 1 $52.3000 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 9 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 9,051 Cart + RFQ |
M83513/04-B03C Cinch Connectivity Solutions | 1 $55.6500 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 6,574 Cart + RFQ |
M83513/04-B04N Cinch Connectivity Solutions | 1 $64.6300 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 2,852 Cart + RFQ |
M83513/04-D03C Cinch Connectivity Solutions | 1 $80.3700 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 25 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 3,836 Cart + RFQ |

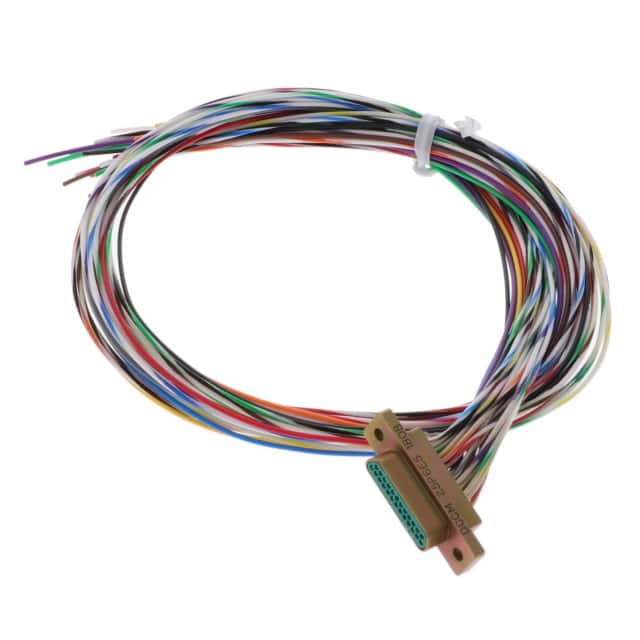

DCCM25P6E5-18.0B Cinch Connectivity Solutions | 1 $88.1900 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 25 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 8,825 Cart + RFQ |
M83513/04-D04N Cinch Connectivity Solutions | 1 $96.7200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 25 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 6,925 Cart + RFQ |
M83513/04-F03C Cinch Connectivity Solutions | 1 $109.8400 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 37 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 4,977 Cart + RFQ |
DCHM21P6N5-36.0MN-HT1 Cinch Connectivity Solutions | 1 $115.1800 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 21 | 3.00' (914.40mm) | Unshielded | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 2,436 Cart + RFQ |
DCCM51P6E5-18.0BN Cinch Connectivity Solutions | 1 $121.3700 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 51 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 9,944 Cart + RFQ |
M83513/04-F04C Cinch Connectivity Solutions | 1 $137.0900 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 37 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 2,777 Cart + RFQ |
M83513/04-A04N Cinch Connectivity Solutions | 1 $45.5200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 9,406 Cart + RFQ |

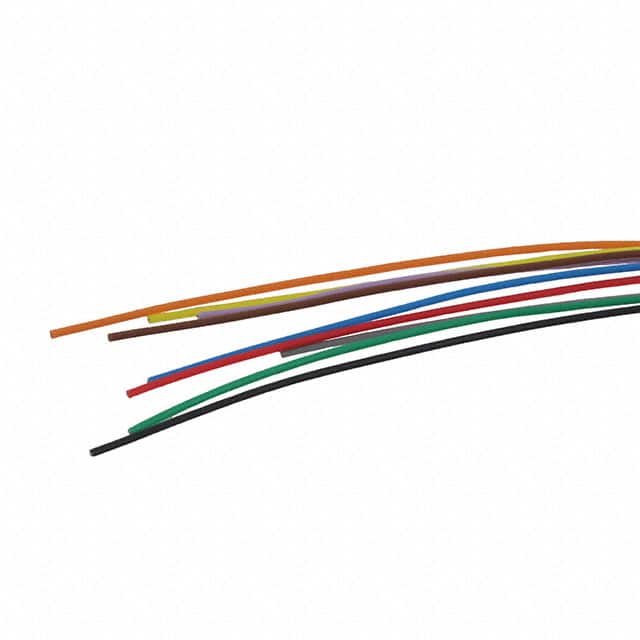

DCCM9P6E5-18.0B Cinch Connectivity Solutions | 1 $45.8300 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 9 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 8,467 Cart + RFQ |
DCCM9S6E5-36.0B Cinch Connectivity Solutions | 1 $52.1100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 7,649 Cart + RFQ |
DCCM15S6E5-18.0B Cinch Connectivity Solutions | 1 $64.3500 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 8,282 Cart + RFQ |
M83513/04-C03C Cinch Connectivity Solutions | 1 $70.3800 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 21 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 7,518 Cart + RFQ |

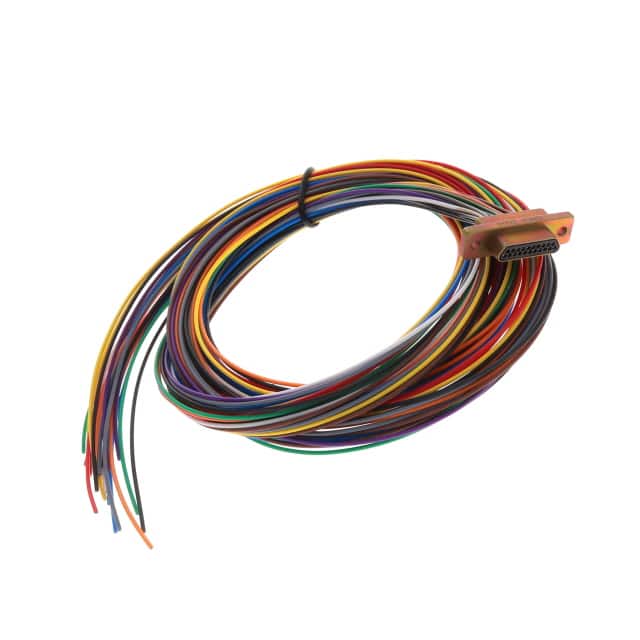

M83513/03-C04C Cinch Connectivity Solutions | 1 $82.7600 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 21 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 4,656 Cart + RFQ |

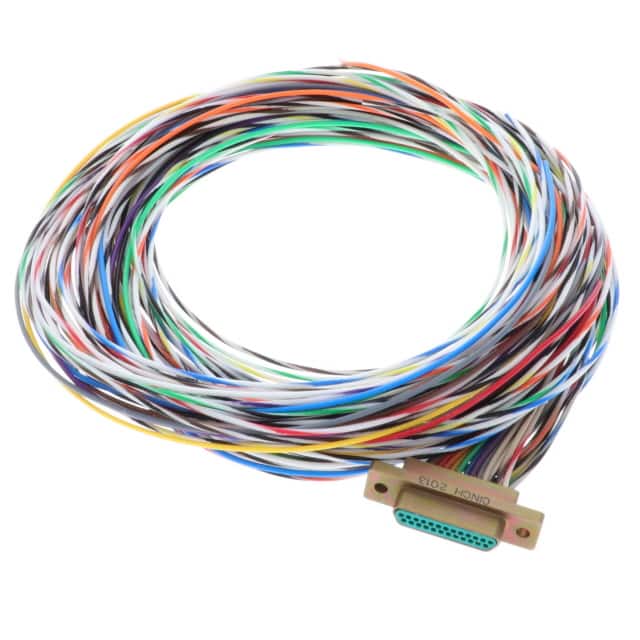

DCCM25P6E5-36.0B Cinch Connectivity Solutions | 1 $83.1000 | Datasheet | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | 25 | 3.00' (914.40mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 6,335 Cart + RFQ |
DCCM25S6E5-18.0B Cinch Connectivity Solutions | 1 $88.9200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 25 | 1.50' (457.20mm) | - | Multiple, Individual | - | Gold | 50.0µin (1.27µm) | 9,523 Cart + RFQ |
