D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 280
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
M7SXK-0906J 3M | 1 $8.9200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 8,069 Cart + RFQ |

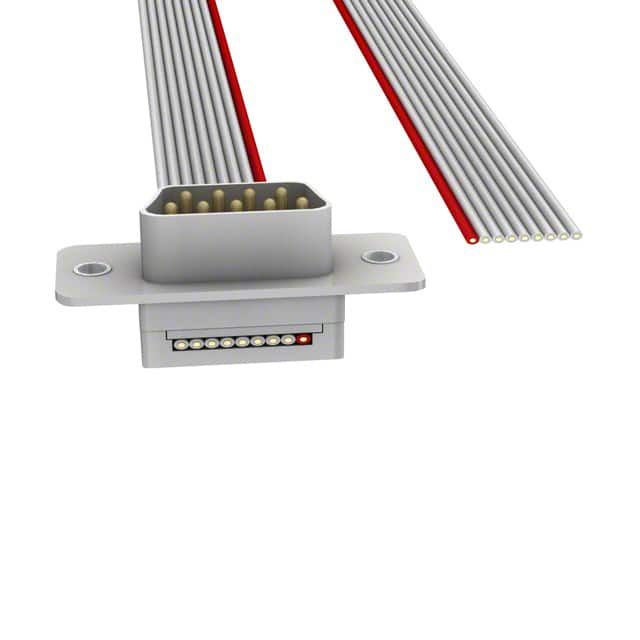

M7NXK-0906J 3M | 1 $11.0000 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 5,206 Cart + RFQ |

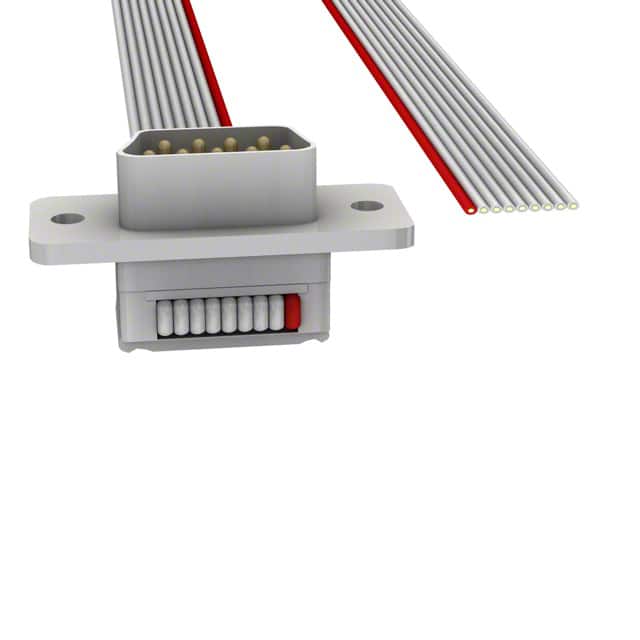

M7PXK-0906J 3M | 1 $9.5400 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 4,253 Cart + RFQ |

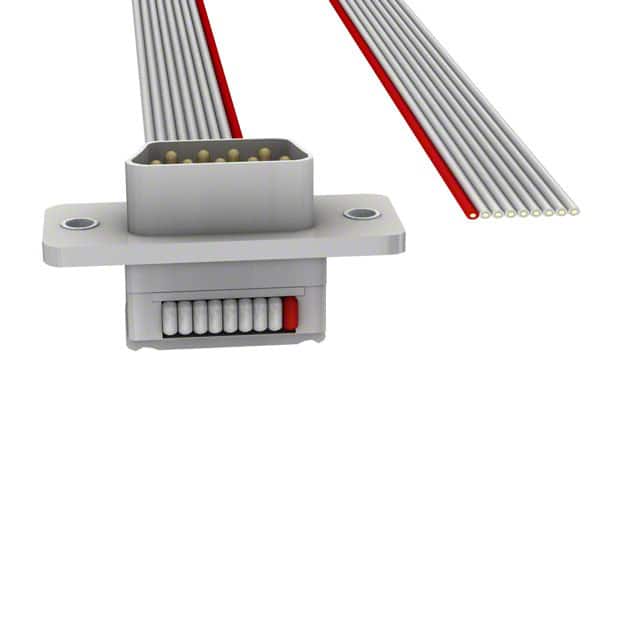

M7VXK-0906J 3M | 1 $9.7700 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 1,886 Cart + RFQ |
M7SXK-0910J 3M | 1 $10.0700 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 10.00' (3.05m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 3,486 Cart + RFQ |

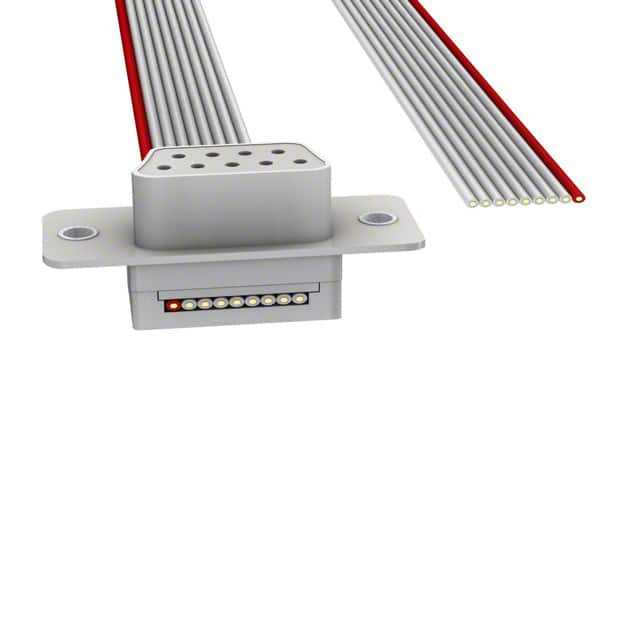

M7OXK-0906J 3M | 1 $11.8700 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 3,660 Cart + RFQ |

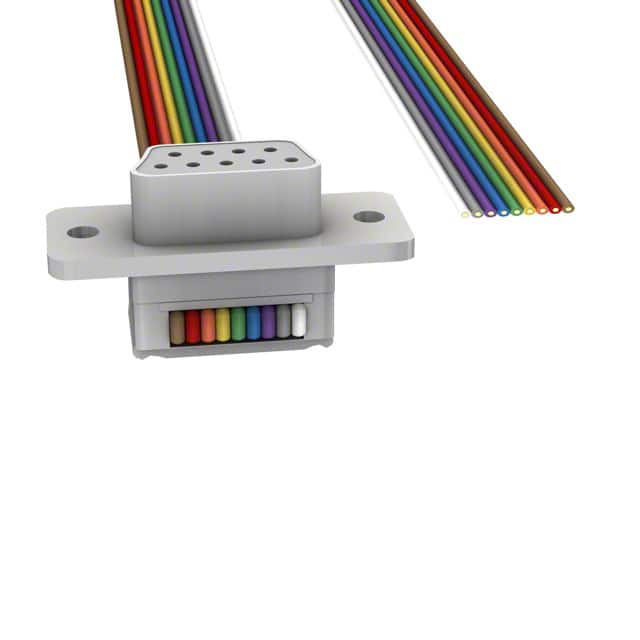

M7SXK-0906R 3M | 1 $10.3400 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 30.0µin (0.76µm) | 8,995 Cart + RFQ |

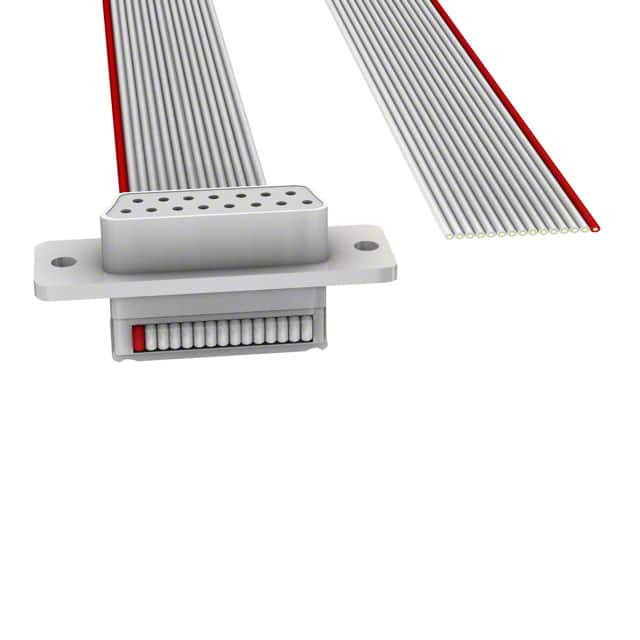

M7SXK-1506J 3M | 1 $10.3500 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB15 | 15 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 5,994 Cart + RFQ |
M7WXK-0906J 3M | 1 $10.5100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 6,215 Cart + RFQ |
M7NXK-0910J 3M | 1 $12.4000 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 10.00' (3.05m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 6,731 Cart + RFQ |
M7PXK-0910J 3M | 1 $11.0700 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 10.00' (3.05m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 8,047 Cart + RFQ |
M7VXK-0910J 3M | 1 $11.2900 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 10.00' (3.05m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 6,105 Cart + RFQ |

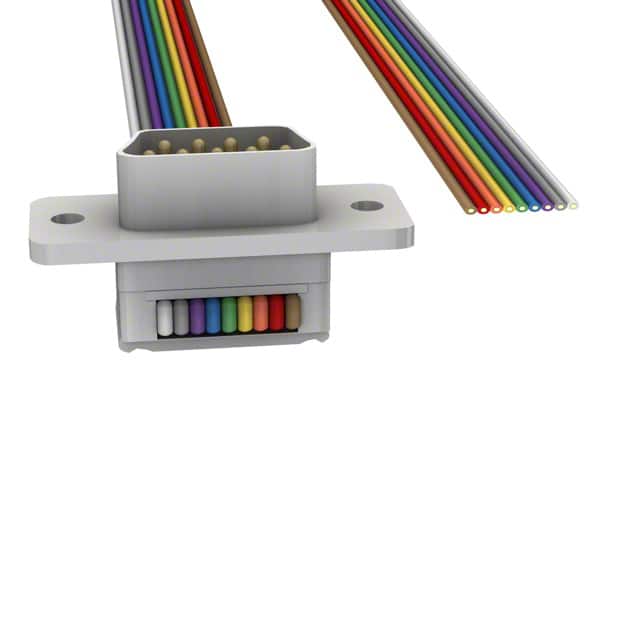

M7PXK-0906R 3M | 1 $11.3300 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 30.0µin (0.76µm) | 3,280 Cart + RFQ |

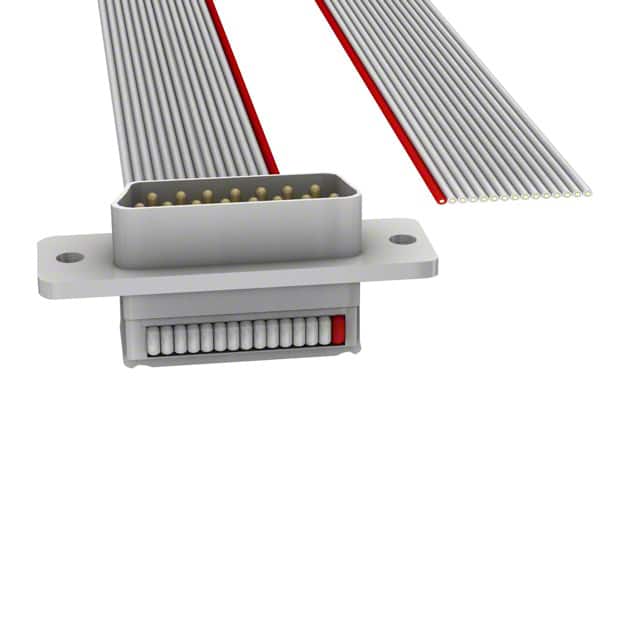

M7PXK-1506J 3M | 1 $11.4200 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB15 | 15 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 8,671 Cart + RFQ |

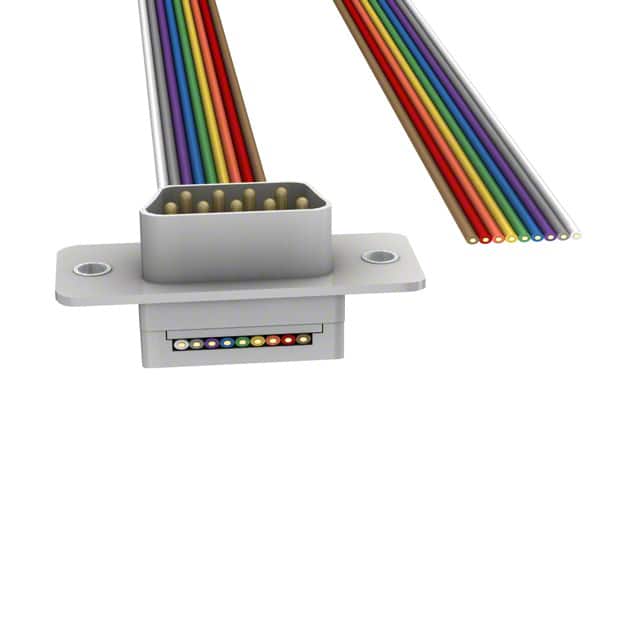

M7NXK-0906R 3M | 1 $12.2400 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 30.0µin (0.76µm) | 1,937 Cart + RFQ |

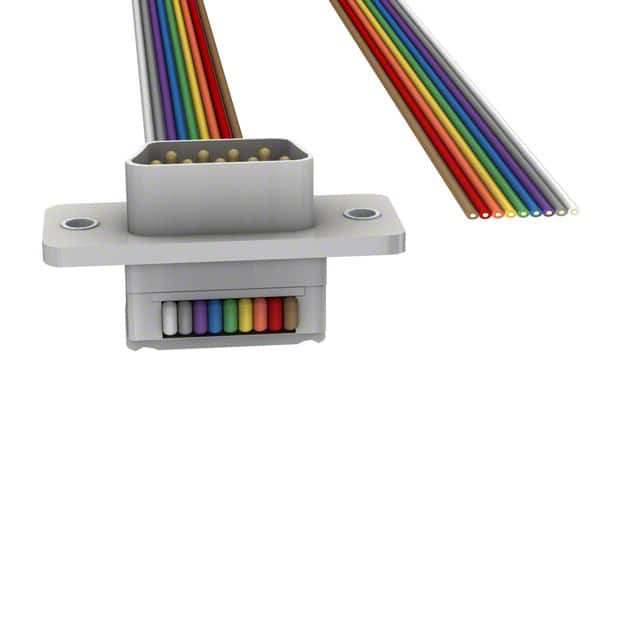

M7VXK-0906R 3M | 1 $11.5600 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 30.0µin (0.76µm) | 9,511 Cart + RFQ |
M7OXK-0910J 3M | 1 $13.2400 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 10.00' (3.05m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 8,545 Cart + RFQ |
M7WXK-0910J 3M | 1 $12.0400 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 10.00' (3.05m) | Unshielded | Gray, Ribbon | - | Gold | 30.0µin (0.76µm) | 2,143 Cart + RFQ |

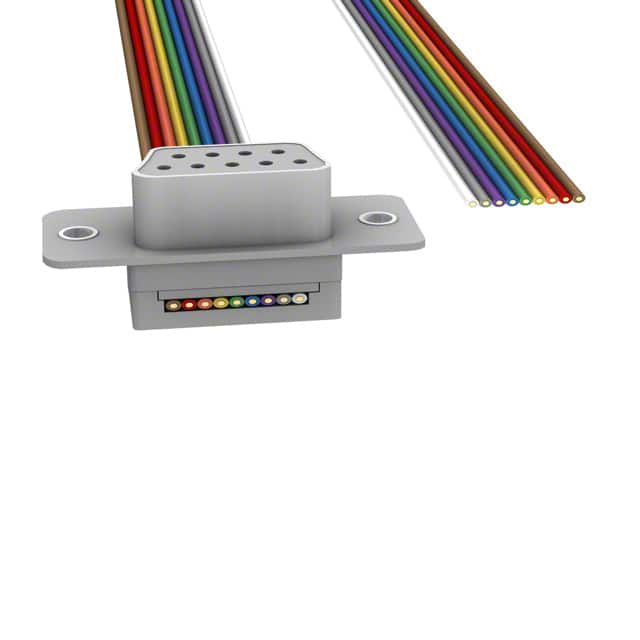

M7OXK-0906R 3M | 1 $13.0800 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 30.0µin (0.76µm) | 1,397 Cart + RFQ |

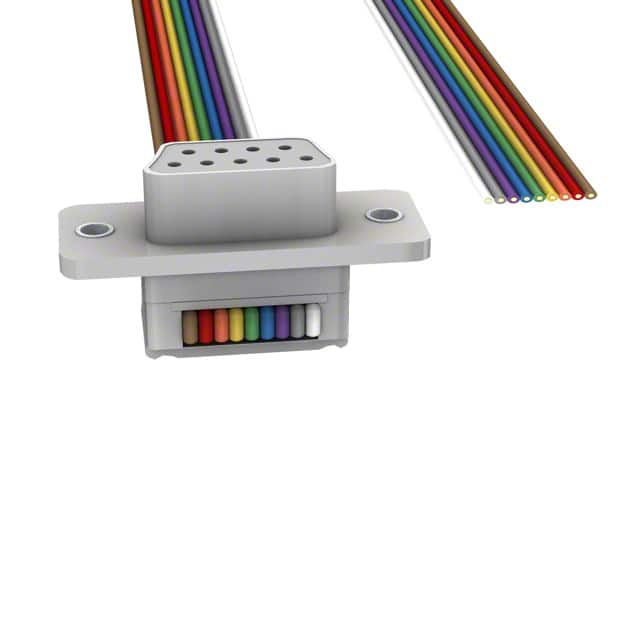

M7WXK-0906R 3M | 1 $12.3100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 30.0µin (0.76µm) | 4,403 Cart + RFQ |
