D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 257
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

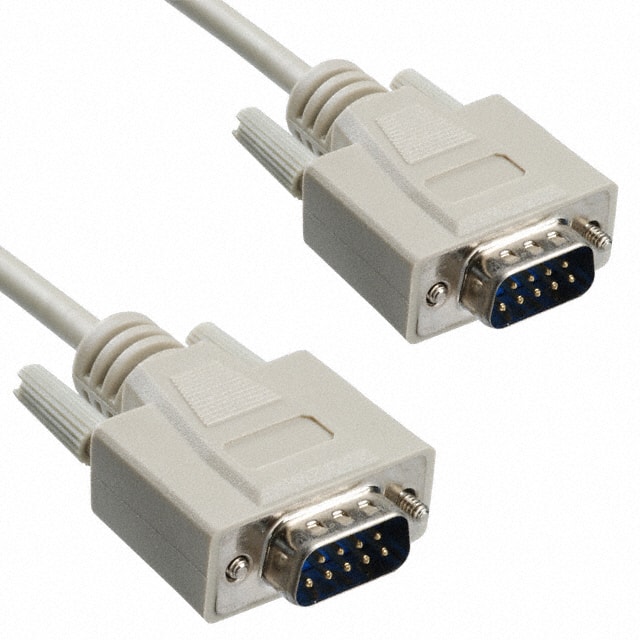

AK129-2 ASSMANN WSW Components | 1 $7.4200 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | - | - | - | 3,987 Cart + RFQ |

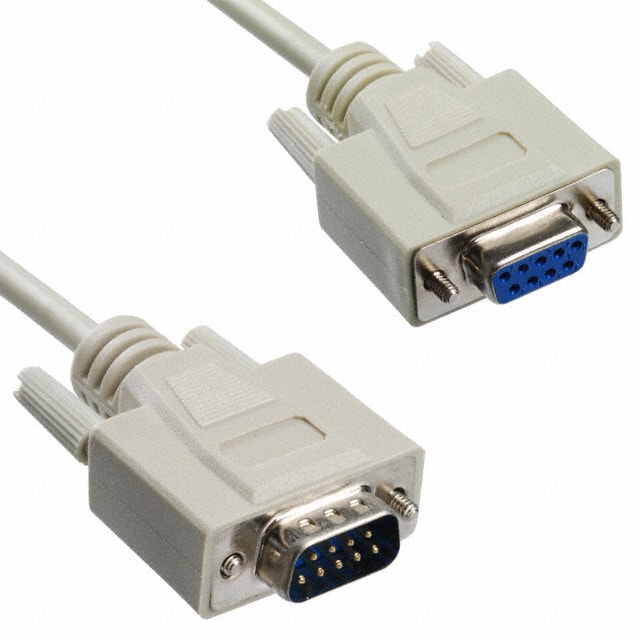

AK131-2 ASSMANN WSW Components | 1 $7.4900 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 4,672 Cart + RFQ |

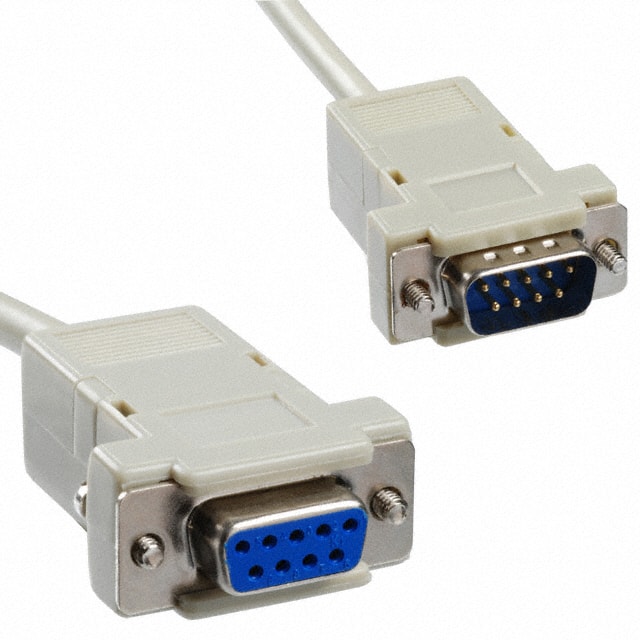

AK142-3 ASSMANN WSW Components | 1 $8.1100 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 9.84' (3.00m) | Shielded | Beige, Individual (Round) | Null Modem, Cross Over | - | - | 8,727 Cart + RFQ |

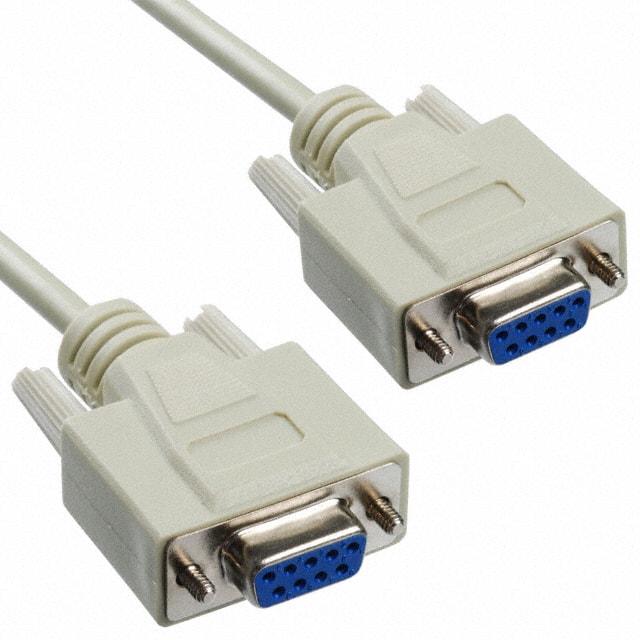

AK182-3 ASSMANN WSW Components | 1 $8.1700 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 9.84' (3.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 3,678 Cart + RFQ |

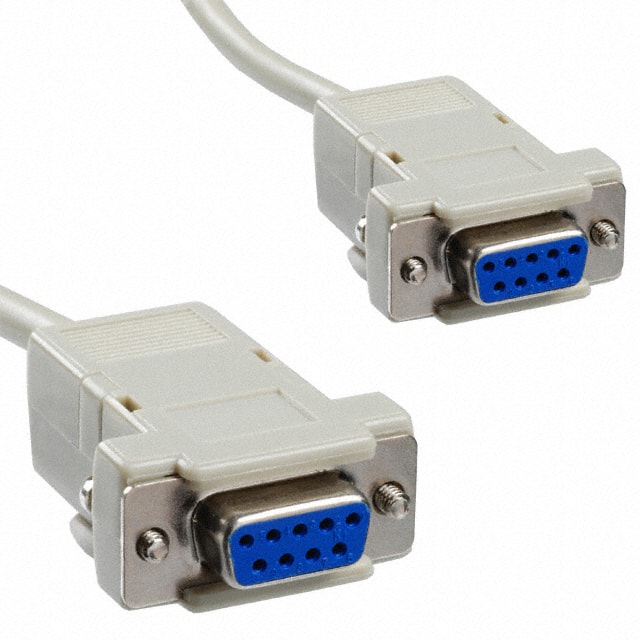

AK143-3 ASSMANN WSW Components | 1 $8.1800 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 9.84' (3.00m) | Shielded | Beige, Individual (Round) | Null Modem | - | - | 9,211 Cart + RFQ |
AK174-3 ASSMANN WSW Components | 1 $8.1900 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 9.84' (3.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 7,021 Cart + RFQ |
AK178-3 ASSMANN WSW Components | 1 $8.4400 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 9.84' (3.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 6,473 Cart + RFQ |
AK152-2 ASSMANN WSW Components | 1 $7.7400 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 1,302 Cart + RFQ |

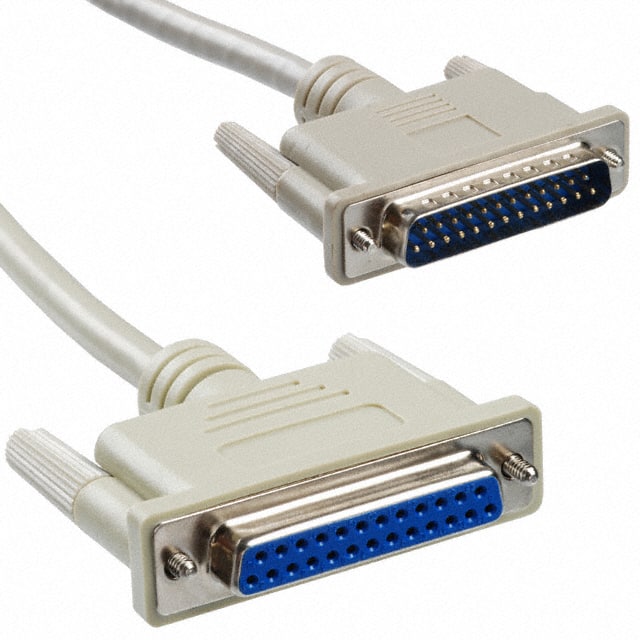

AK135-2 ASSMANN WSW Components | 1 $13.2300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 4,751 Cart + RFQ |

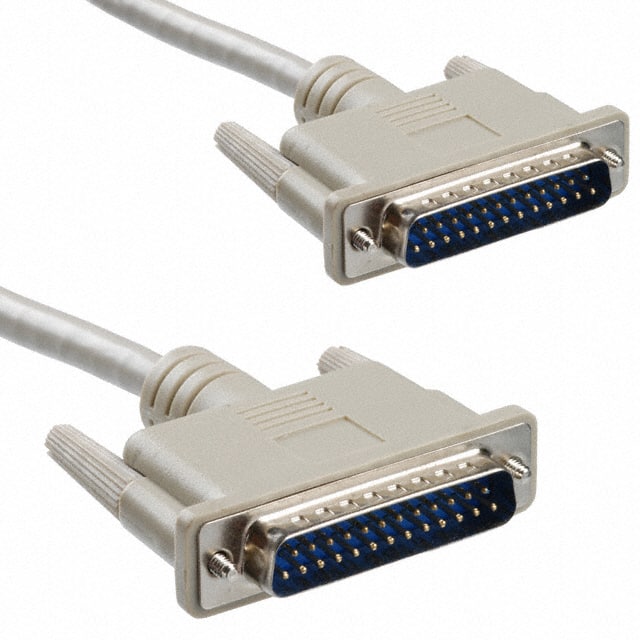

AK137-2 ASSMANN WSW Components | 1 $14.7000 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB25 | 25 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 2,300 Cart + RFQ |

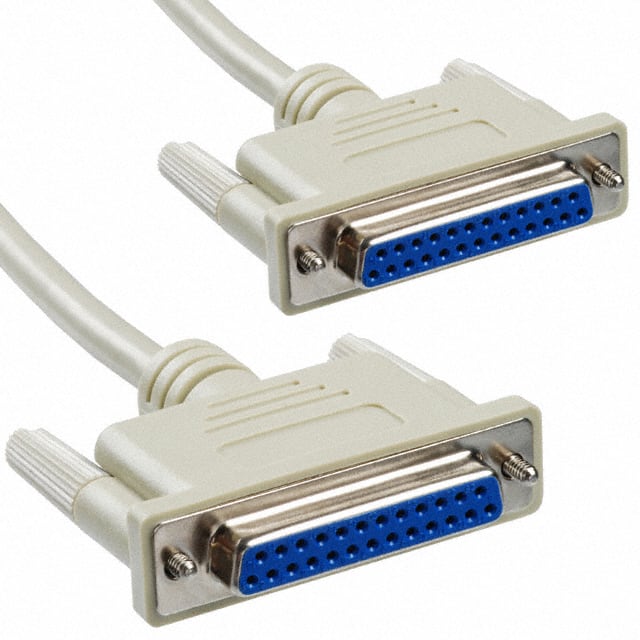

AK133-2 ASSMANN WSW Components | 1 $14.7000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB25 | 25 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 8,970 Cart + RFQ |

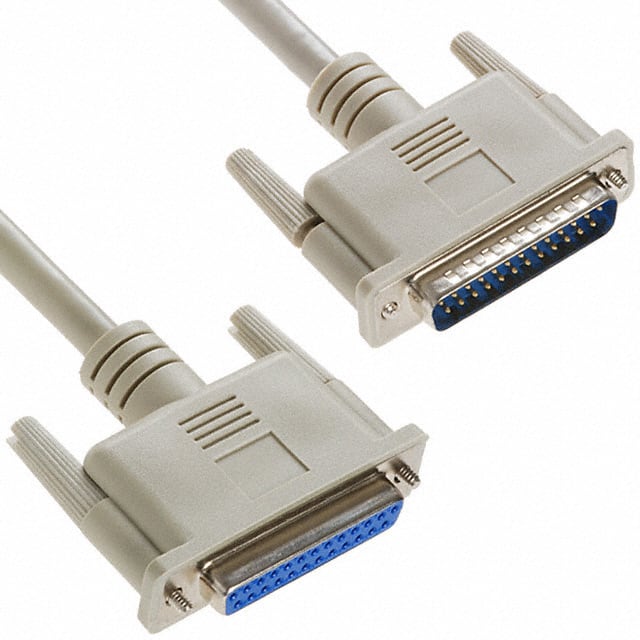

AK733-1.8 ASSMANN WSW Components | 1 $23.3300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 5.91' (1.80m) | Shielded | Beige, Individual (Round) | IEEE 1284 Bidirectional | - | - | 2,035 Cart + RFQ |

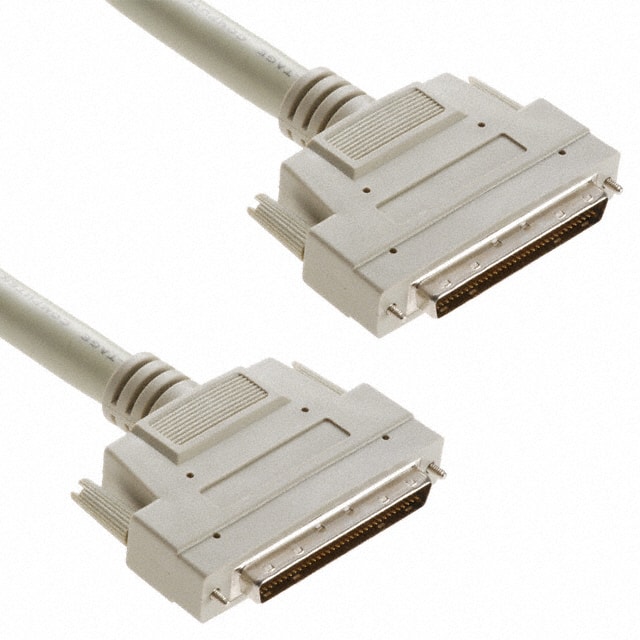

AK-Y1301 ASSMANN WSW Components | 1 $26.9200 | Datasheet | Plug, Male Pins | Plug, Male Pins | HPDB68 | 68 | 3.00' (914.40mm) | Shielded | Beige, Individual (Round) | SCSI III | - | - | 7,837 Cart + RFQ |

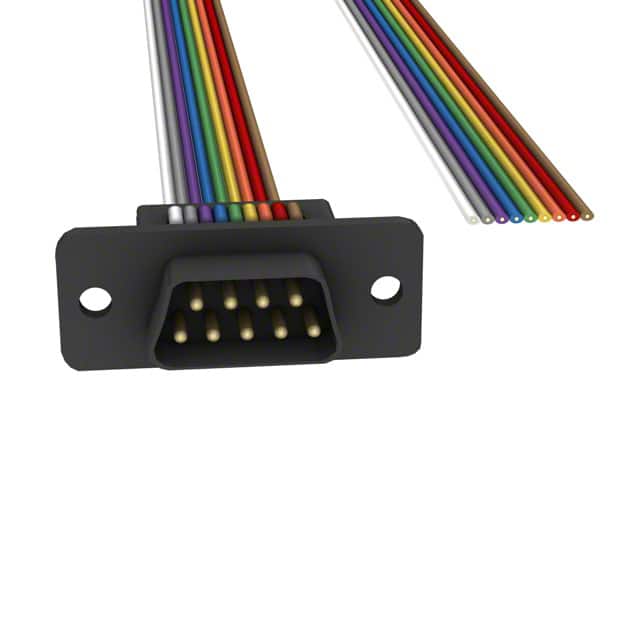

H7MXH-0906M ASSMANN WSW Components | 1 $2.0900 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Multiple, Ribbon | - | Gold | 10.0µin (0.25µm) | 4,222 Cart + RFQ |

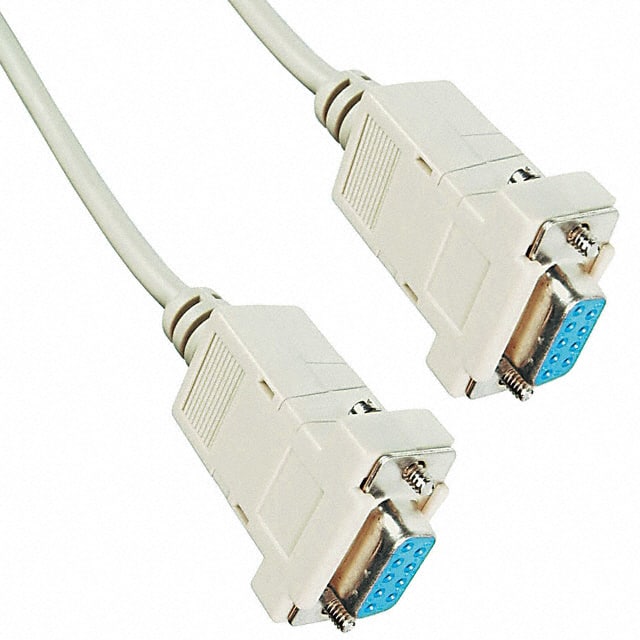

AK231-2 ASSMANN WSW Components | 1 $1.9785 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 6.56' (2.00m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 7,703 Cart + RFQ |

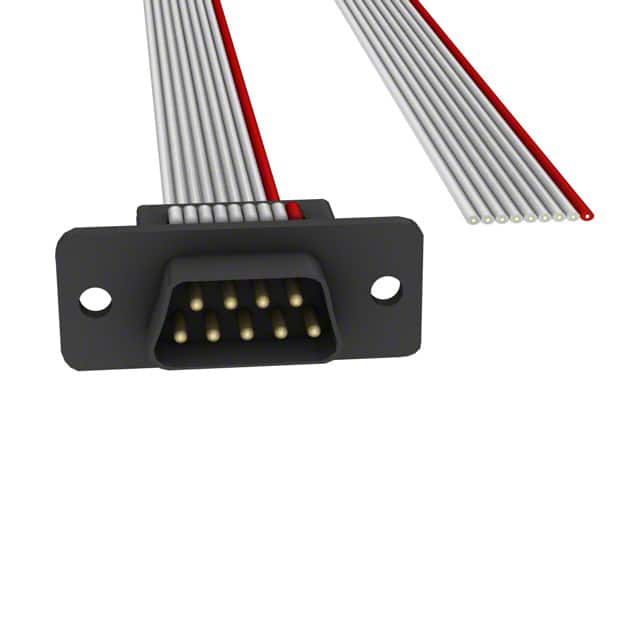

H7MXH-0906G ASSMANN WSW Components | 1 $3.3300 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 10.0µin (0.25µm) | 6,848 Cart + RFQ |

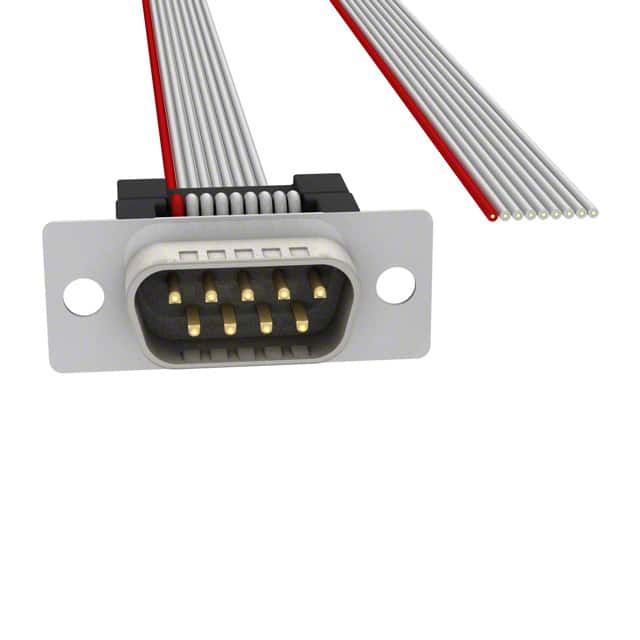

H7PXH-0906G ASSMANN WSW Components | 1 $3.8700 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 10.0µin (0.25µm) | 1,134 Cart + RFQ |

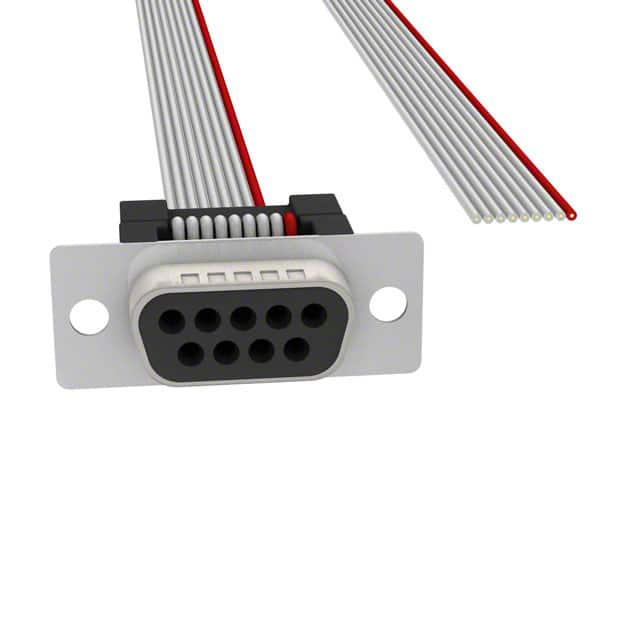

H7SXH-0906G ASSMANN WSW Components | 1 $3.8700 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 10.0µin (0.25µm) | 2,124 Cart + RFQ |

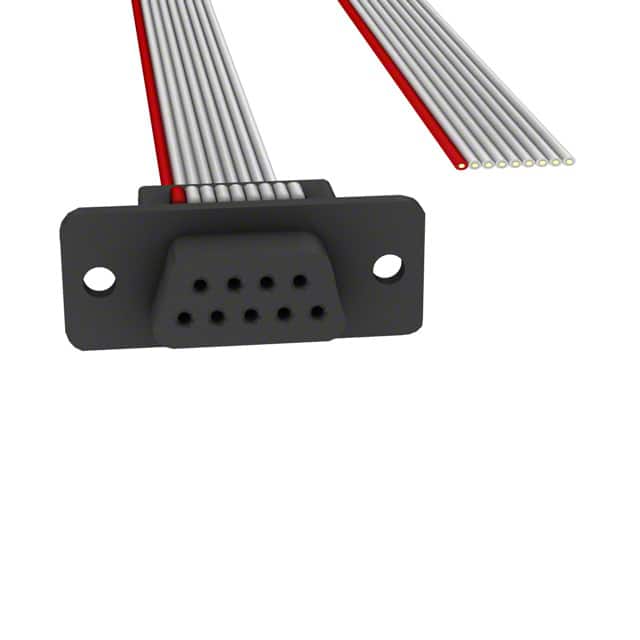

H7FXH-0906G ASSMANN WSW Components | 1 $3.8600 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 10.0µin (0.25µm) | 6,221 Cart + RFQ |

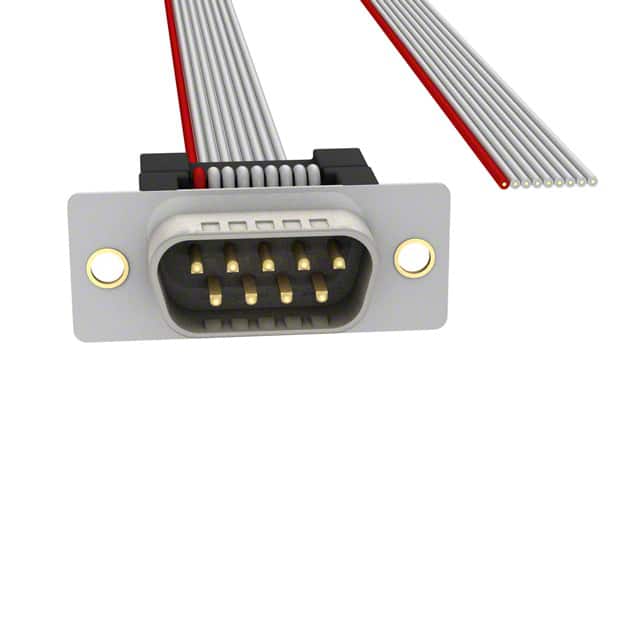

H7VXH-0906G ASSMANN WSW Components | 1 $4.1200 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.00' (1.83m) | Unshielded | Gray, Ribbon | - | Gold | 10.0µin (0.25µm) | 5,733 Cart + RFQ |
