D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 56
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
P520-006 Tripp Lite | 1 $6.1300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 6.00' (1.83m) | Shielded | Beige, Individual (Round) | Extension, Serial | - | - | 6,517 Cart + RFQ |
P450-006 Tripp Lite | 1 $9.8500 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | Null Modem | Gold | - | 4,091 Cart + RFQ |
P502-006 Tripp Lite | 1 $11.0800 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 6,552 Cart + RFQ |
P502-003-SM Tripp Lite | 1 $11.1500 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 3.00' (914.40mm) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 1,486 Cart + RFQ |

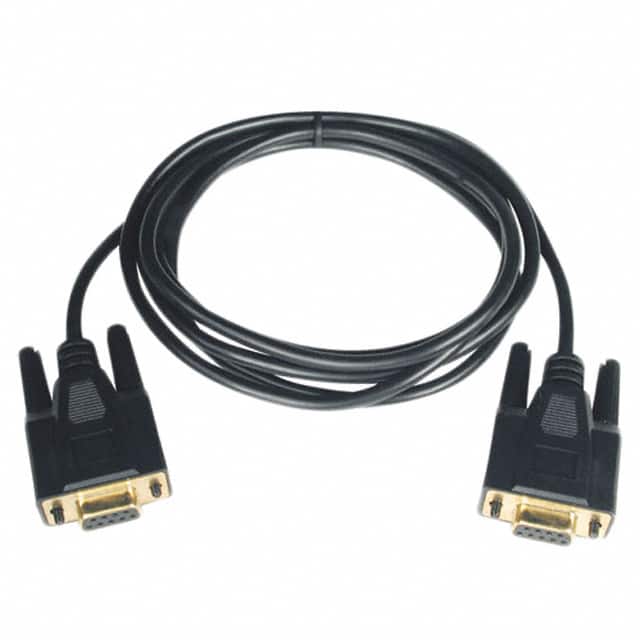

P450-010 Tripp Lite | 1 $11.2900 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 10.00' (3.05m) | Shielded | Black, Individual (Round) | Null Modem | Gold | - | 4,774 Cart + RFQ |
P502-015 Tripp Lite | 1 $21.0400 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 15.00' (4.57m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 8,595 Cart + RFQ |

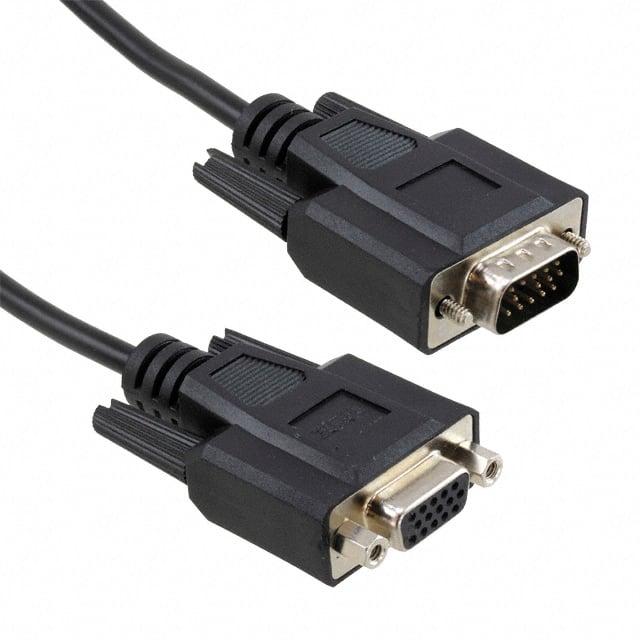

P510-025 Tripp Lite | 1 $16.3300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 14 | 25.00' (7.62m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | - | 9,461 Cart + RFQ |
P502-035 Tripp Lite | 1 $35.5200 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 35.00' (10.67m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 5,228 Cart + RFQ |

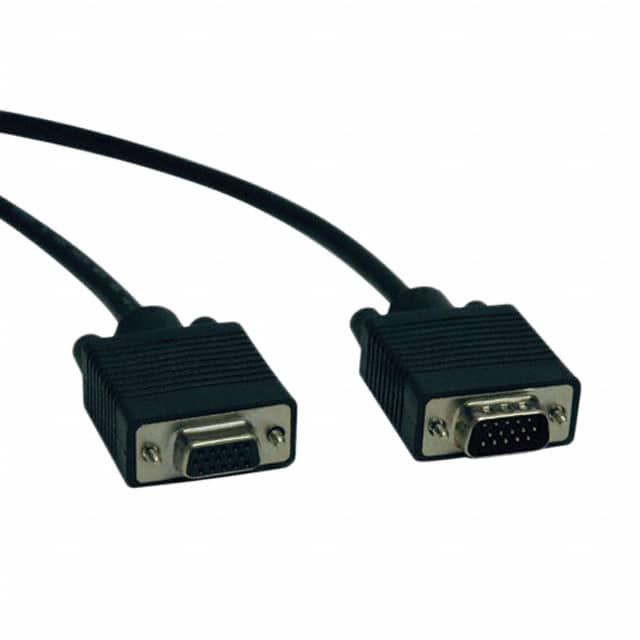

P781-006 Tripp Lite | 1 $37.9300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | Daisychain Cable for NetController KVM Switches | - | - | 9,212 Cart + RFQ |

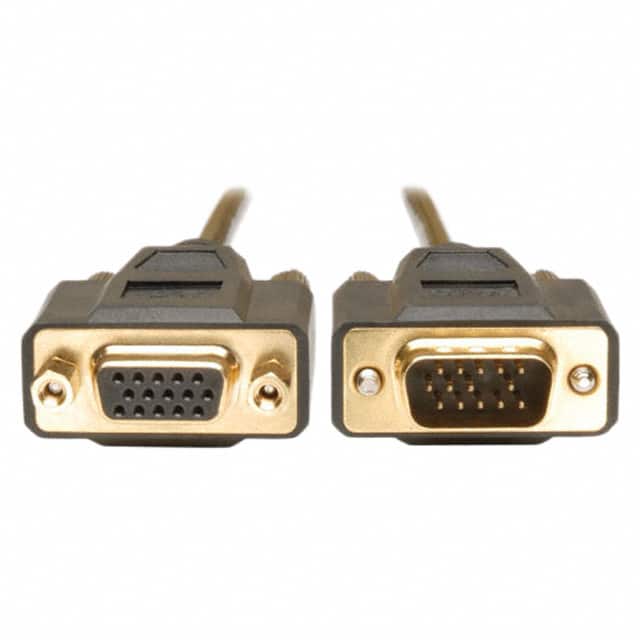

P510-006 Tripp Lite | 1 $8.3600 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 14 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | - | 7,714 Cart + RFQ |

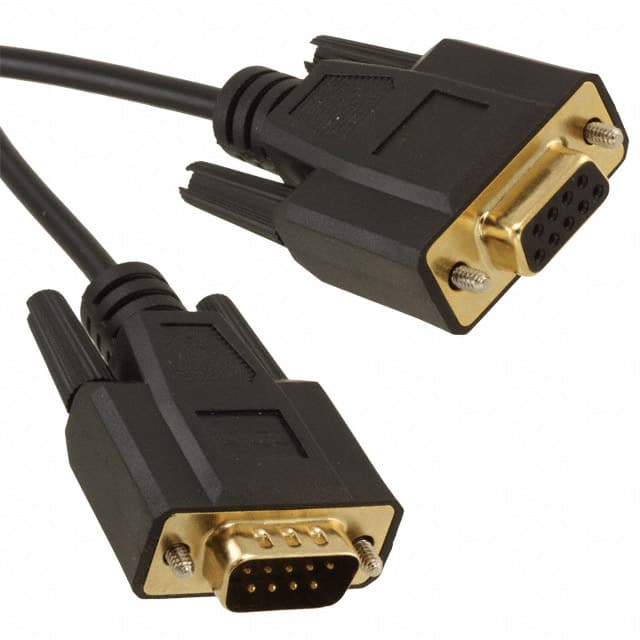

P454-006 Tripp Lite | 1 $8.3900 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | Null Modem | Gold | - | 9,829 Cart + RFQ |

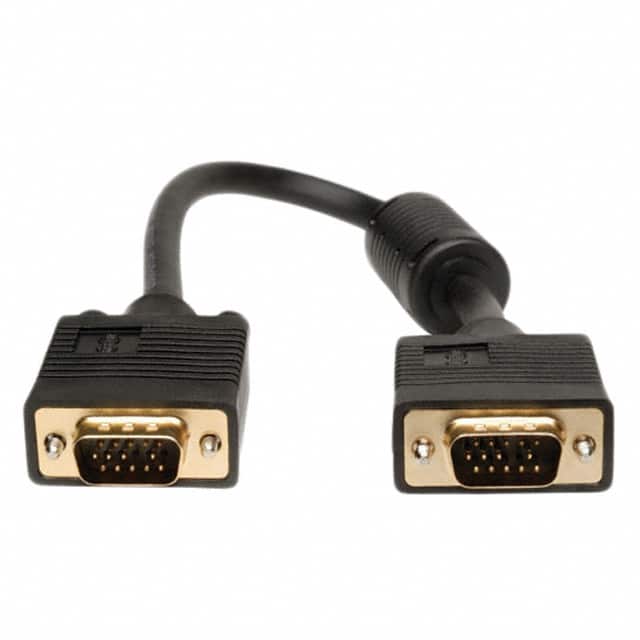

P502-001 Tripp Lite | 1 $9.0600 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 1.00' (304.80mm) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 7,006 Cart + RFQ |
P502-003 Tripp Lite | 1 $9.8500 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 3.00' (914.40mm) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 9,687 Cart + RFQ |
P502-006-SM Tripp Lite | 1 $12.8200 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 7,236 Cart + RFQ |

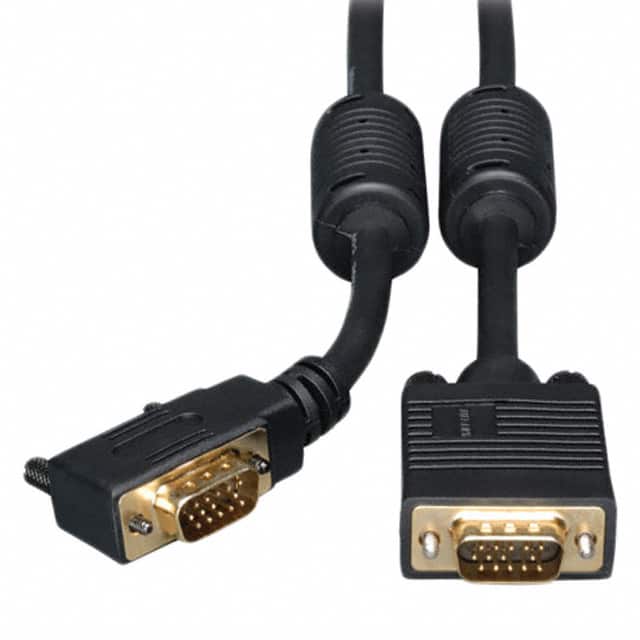

P502-003-RA Tripp Lite | 1 $14.9300 | Datasheet | Plug, Male Pins, Right Angle | Plug, Male Pins | HD15 | 14 | 3.00' (914.40mm) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 6,081 Cart + RFQ |

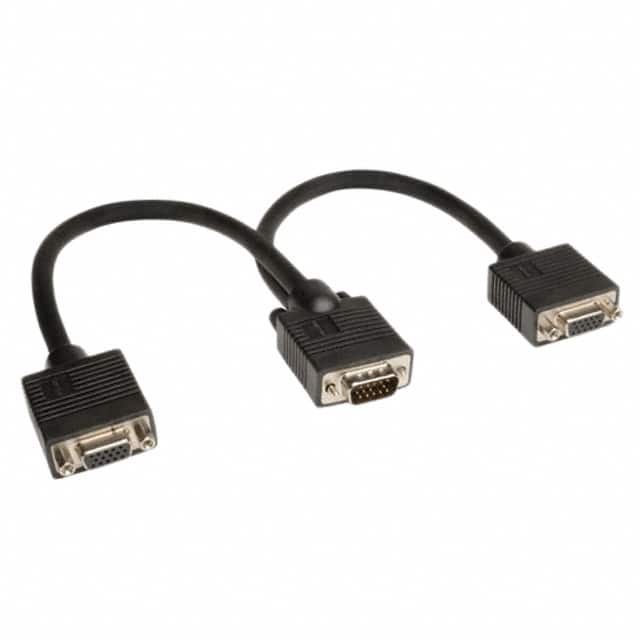

P516-001 Tripp Lite | 1 $15.1300 | Datasheet | Receptacle, Female Sockets (2) | Plug, Male Pins | HD15 | 14 | 1.00' (304.80mm) | Shielded | Black, Individual (Round) | - | Gold | - | 8,535 Cart + RFQ |

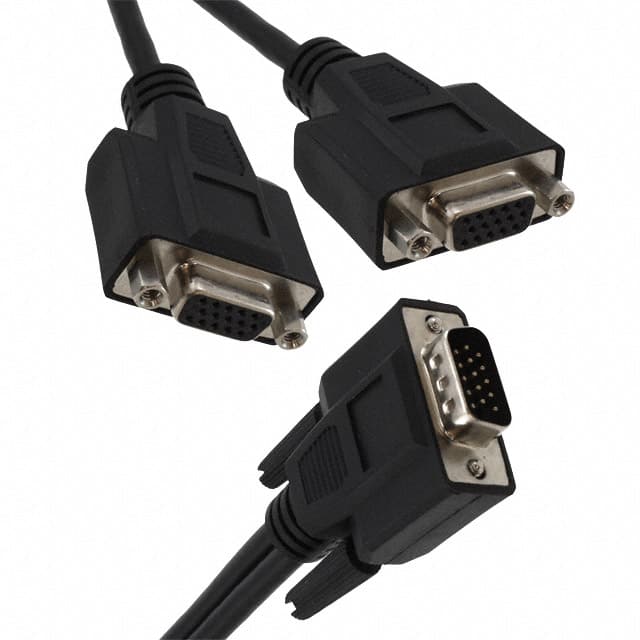

P516-001-HR Tripp Lite | 1 $17.4300 | Datasheet | Receptacle, Female Sockets (2) | Plug, Male Pins | HD15 | 14, 15 | 1.00' (304.80mm) | Shielded | Black, Individual (Round) | VGA Monitor | - | - | 1,103 Cart + RFQ |
P510-010 Tripp Lite | 1 $9.2700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 14 | 10.00' (3.05m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | - | 8,311 Cart + RFQ |
P512-010 Tripp Lite | 1 $9.6400 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 14 | 10.00' (3.05m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | - | 9,474 Cart + RFQ |
P502-006-RA Tripp Lite | 1 $13.2168 | Datasheet | Plug, Male Pins, Right Angle | Plug, Male Pins | HD15 | 14 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | VGA Monitor | Gold | Flash | 5,301 Cart + RFQ |
