D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 10
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

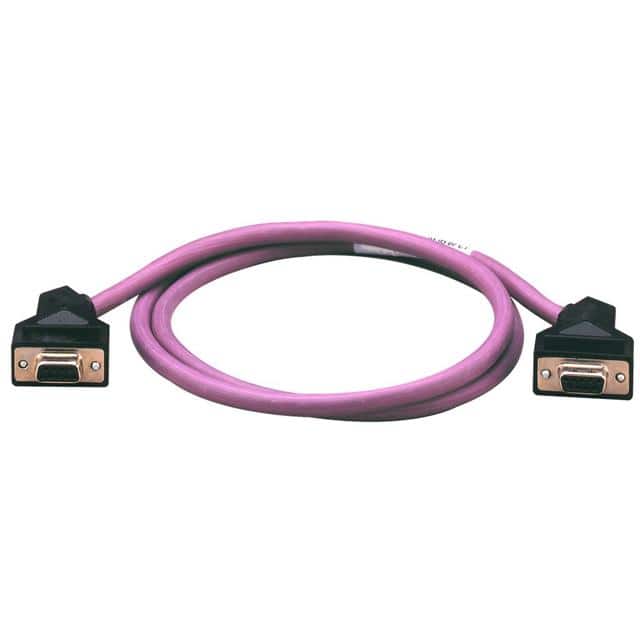

TSXCANCADD03 Schneider Electric | 1 $84.1000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 0.981' (299.00mm, 11.77") | Unshielded | Violet | - | - | - | 4,951 Cart + RFQ |

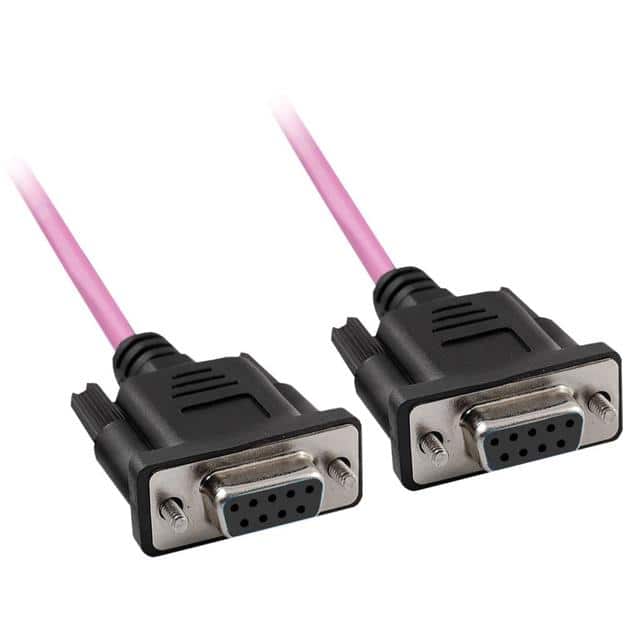

TSXCANCADD1 Schneider Electric | 1 $89.4900 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 3.28' (1.00m) | Unshielded | Violet | - | - | - | 8,789 Cart + RFQ |
TSXCANCADD3 Schneider Electric | 1 $100.2700 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 9.84' (3.00m) | Unshielded | Violet | - | - | - | 3,373 Cart + RFQ |
XBTZ980 Schneider Electric | 1 $100.9900 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB08, DB25 | 8 | 8.20' (2.50m) | Unshielded | Black | - | - | - | 8,045 Cart + RFQ |
XBTZ915 Schneider Electric | 1 $141.1000 | Datasheet | Plug, Male Pins | Receptacle, Female Sockets | DB09, DB25 | 25 | 8.20' (2.50m) | Unshielded | Black | - | - | - | 4,635 Cart + RFQ |
XBTZ962 Schneider Electric | 1 $151.4900 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | - | Unshielded | Black | - | - | - | 2,252 Cart + RFQ |

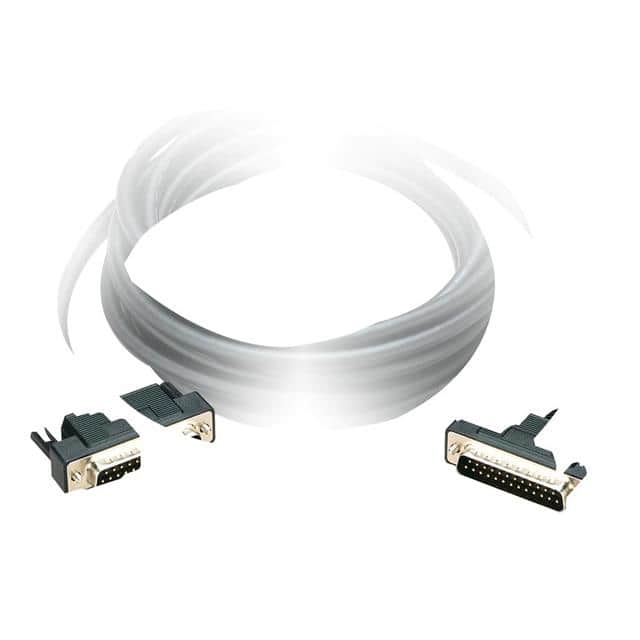

XBTZ918 Schneider Electric | 1 $151.4900 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB25 | 25 | 8.20' (2.50m) | Unshielded | - | - | - | - | 9,298 Cart + RFQ |

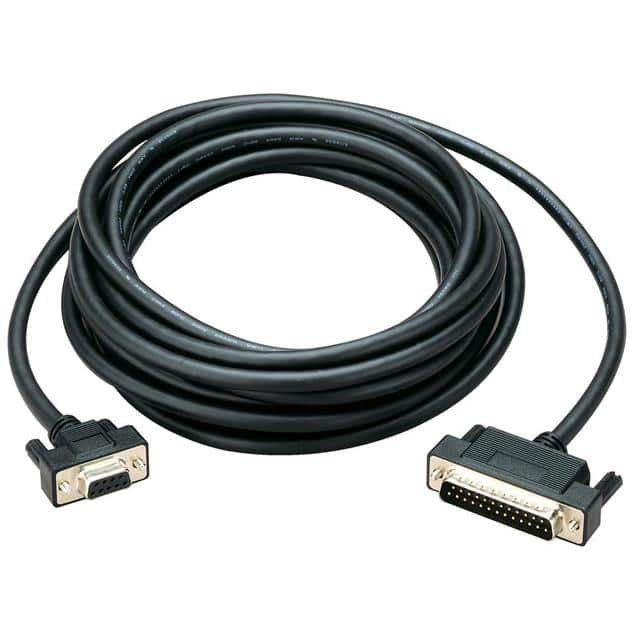

XBTZ9710 Schneider Electric | 1 $153.7200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 25 | 8.20' (2.50m) | Unshielded | Black | - | - | - | 2,652 Cart + RFQ |

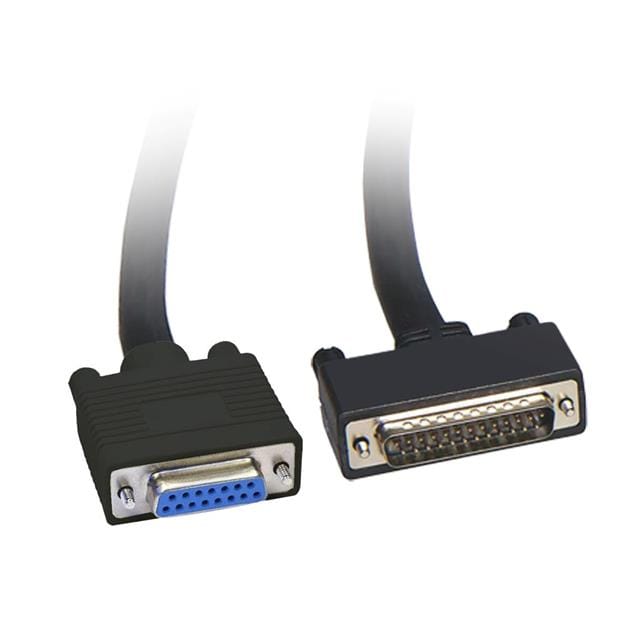

XBTZ908 Schneider Electric | 1 $165.4200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15, DB25 | 25 | 5.91' (1.80m) | Unshielded | Black | - | - | - | 7,107 Cart + RFQ |
TSXCANCADD5 Schneider Electric | 1 $168.2100 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 16.40' (5.00m) | Unshielded | Violet | - | - | - | 3,133 Cart + RFQ |
