D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 156
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

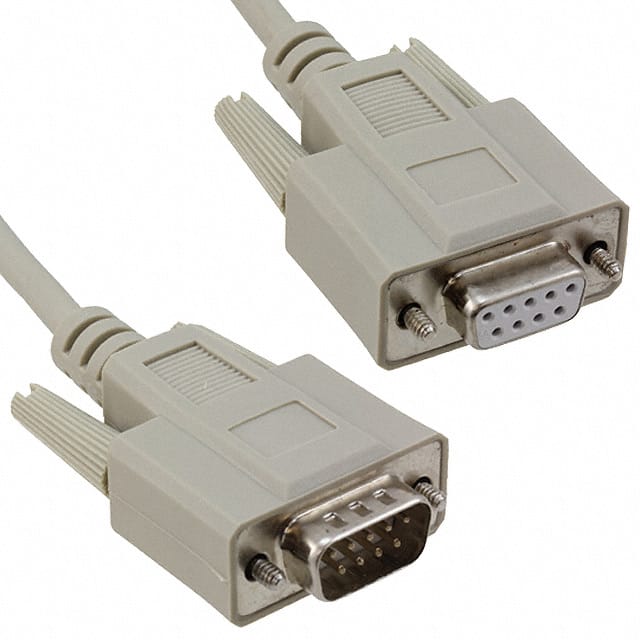

1656233 Phoenix Contact | 1 $17.1200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | - | Gold | - | 1,242 Cart + RFQ |

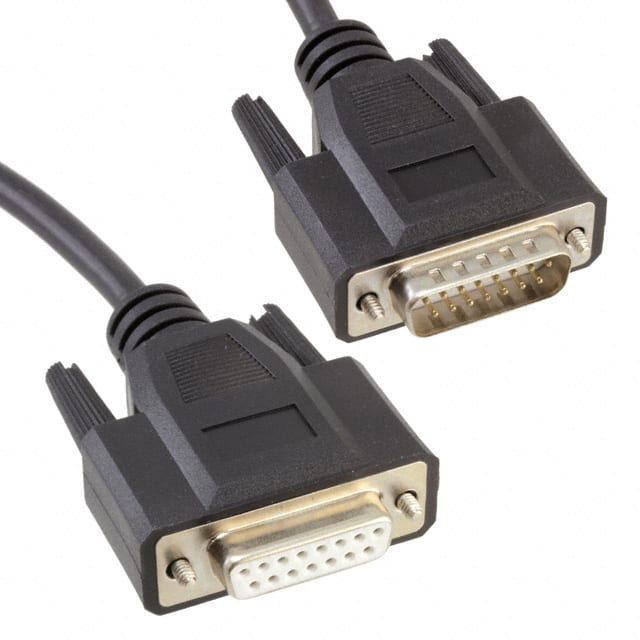

1656262 Phoenix Contact | 1 $18.2100 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | - | Gold | - | 7,037 Cart + RFQ |

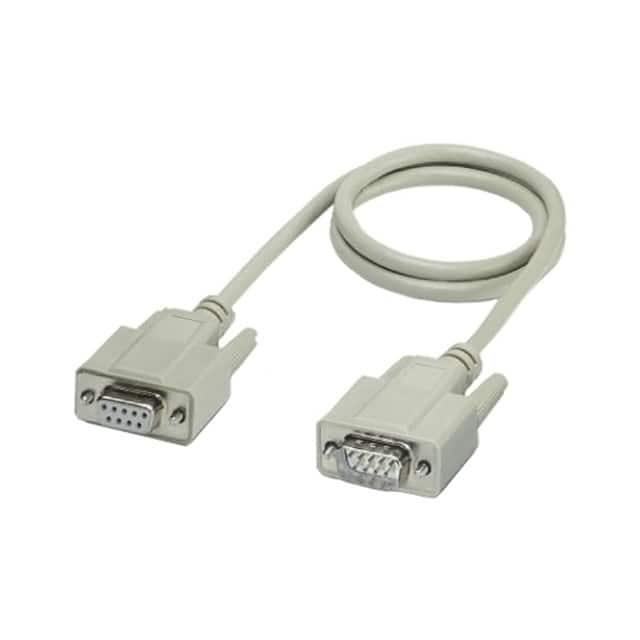

1656259 Phoenix Contact | 1 $23.4900 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09 | 9 | 16.40' (5.00m) | Shielded | Gray, Individual (Round) | Extension, Serial | Gold | - | 5,767 Cart + RFQ |

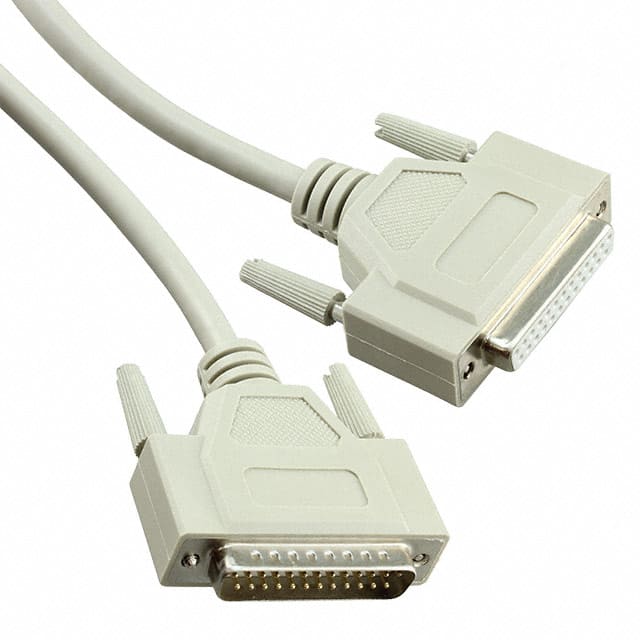

1656291 Phoenix Contact | 1 $20.4500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | Extension, Serial | Gold | - | 2,049 Cart + RFQ |

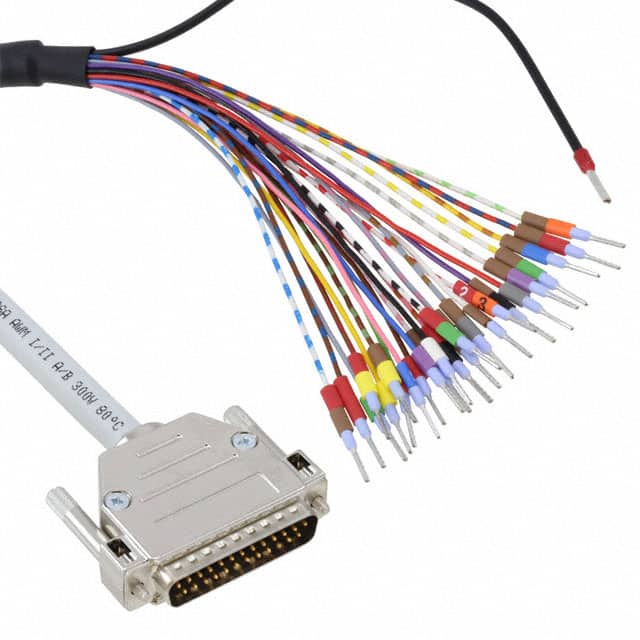

2926519 Phoenix Contact | 1 $114.1900 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB25 | 25 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | - | - | - | 7,499 Cart + RFQ |

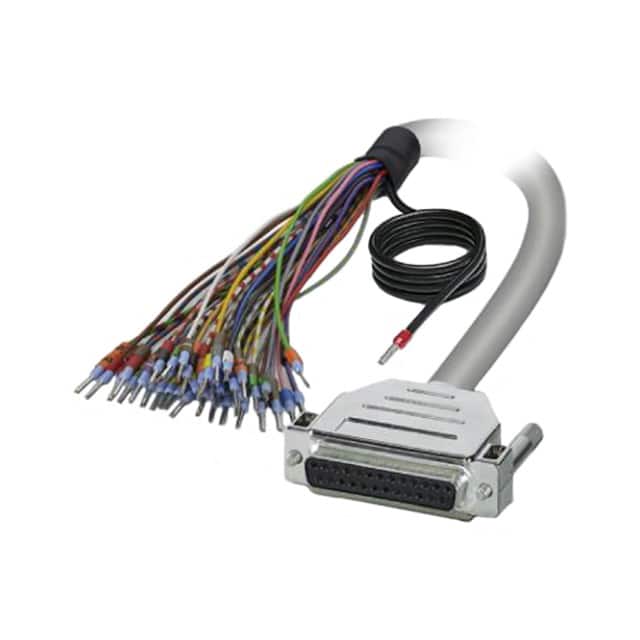

2926182 Phoenix Contact | 1 $129.6200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB25 | 25 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 1,280 Cart + RFQ |

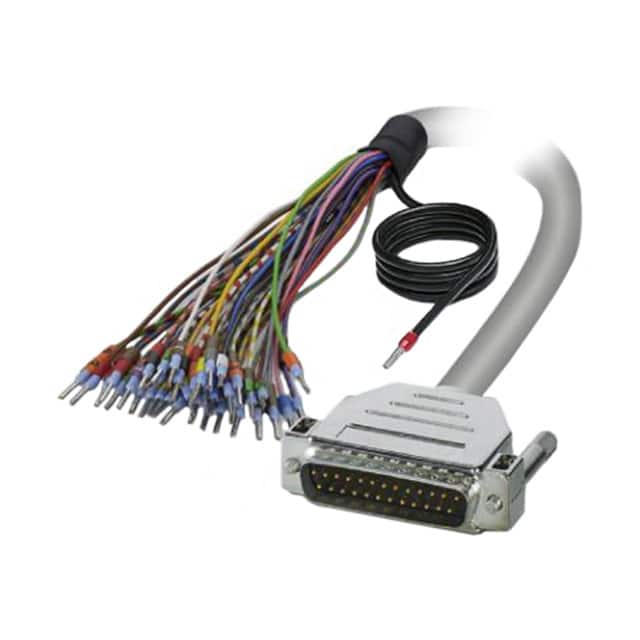

2926535 Phoenix Contact | 1 $129.6200 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB25 | 25 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 6,097 Cart + RFQ |

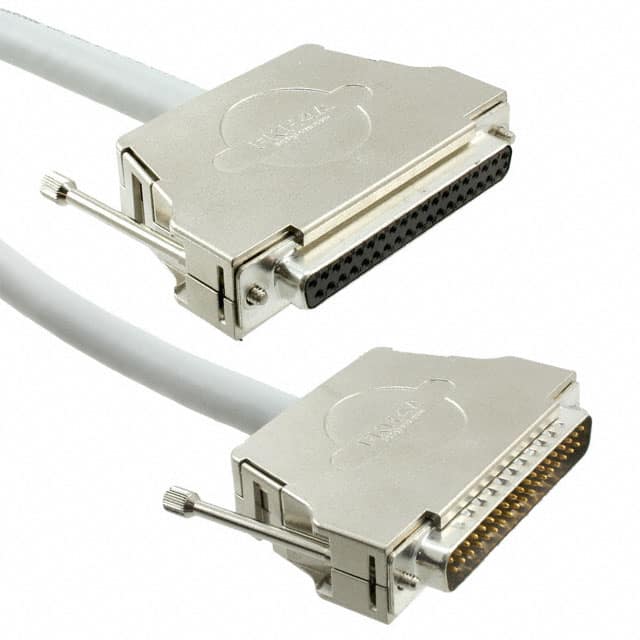

2302191 Phoenix Contact | 1 $129.6200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 1.64' (500.00mm) | Shielded | Gray, Individual (Round) | - | - | - | 7,646 Cart + RFQ |
2302227 Phoenix Contact | 1 $163.5700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 8,091 Cart + RFQ |

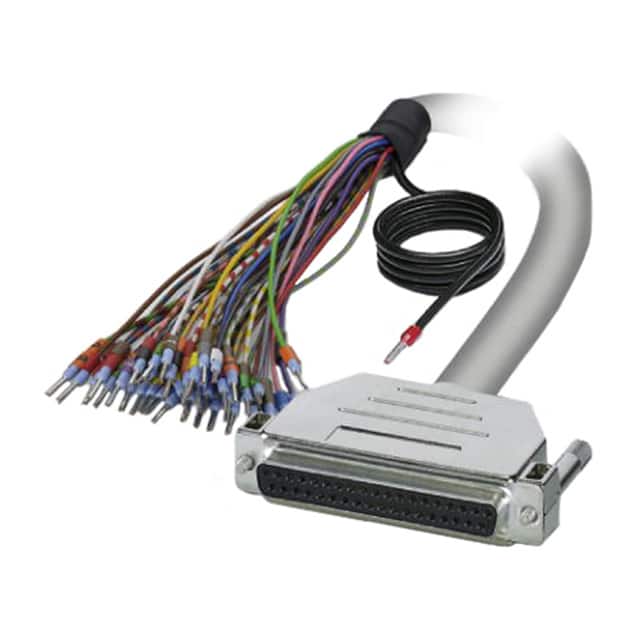

2926234 Phoenix Contact | 1 $163.5700 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB37 | 37 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | - | - | - | 1,645 Cart + RFQ |
2926250 Phoenix Contact | 1 $186.7100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB37 | 37 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 8,405 Cart + RFQ |

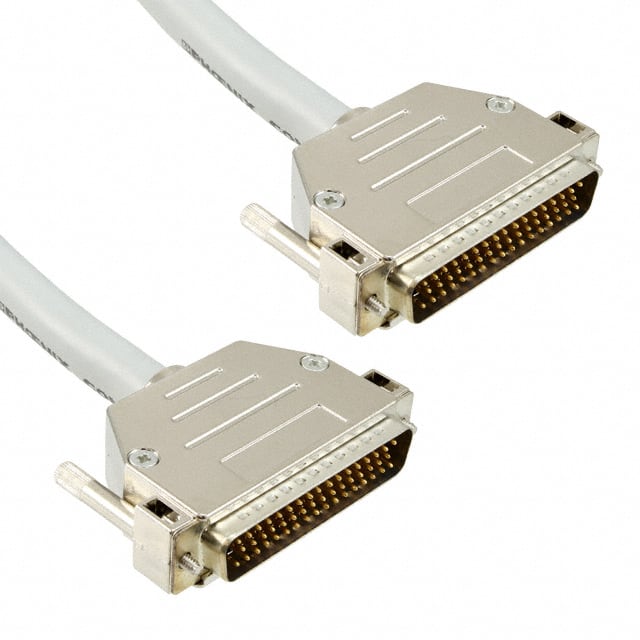

2305703 Phoenix Contact | 1 $189.8000 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB50 | 50 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 4,078 Cart + RFQ |

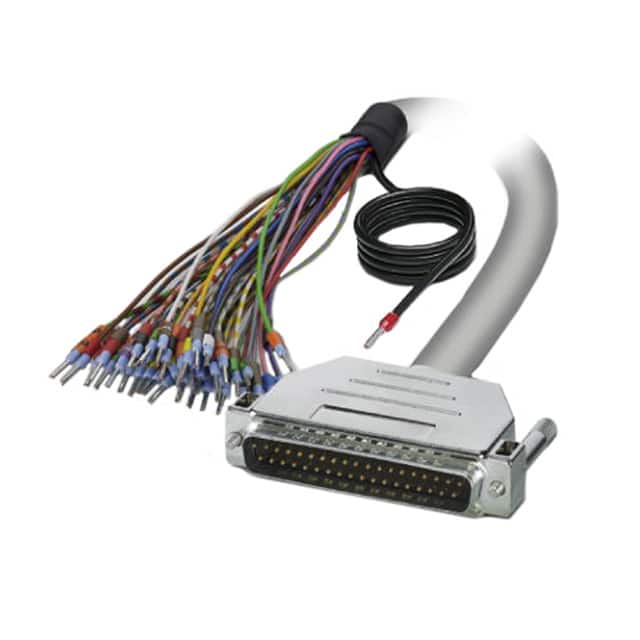

2926616 Phoenix Contact | 1 $208.3200 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB37 | 37 | 9.84' (3.00m) | Shielded | Gray, Individual (Round) | - | - | - | 4,385 Cart + RFQ |

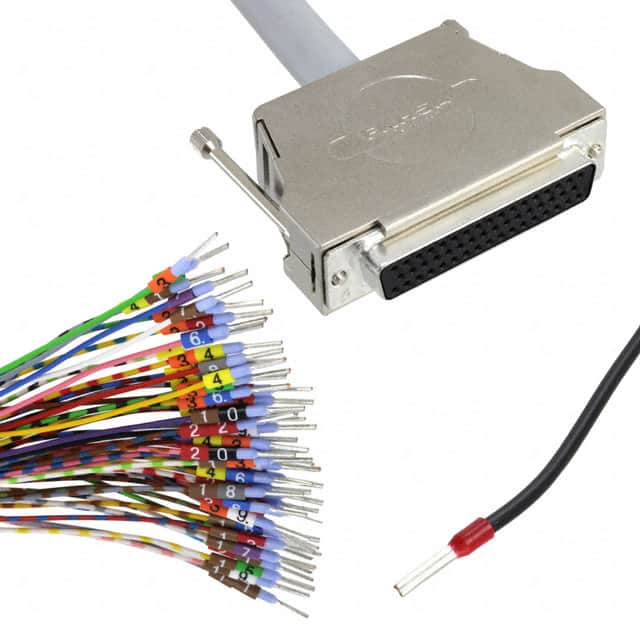

2926328 Phoenix Contact | 1 $222.2000 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB50 | 50 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 8,390 Cart + RFQ |
2302201 Phoenix Contact | 1 $140.4200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | - | - | - | 6,084 Cart + RFQ |
2302214 Phoenix Contact | 1 $152.7700 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 4.92' (1.50m) | Shielded | Gray, Individual (Round) | - | - | - | 1,619 Cart + RFQ |
2302298 Phoenix Contact | 1 $189.8000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB50 | 50 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 3,015 Cart + RFQ |

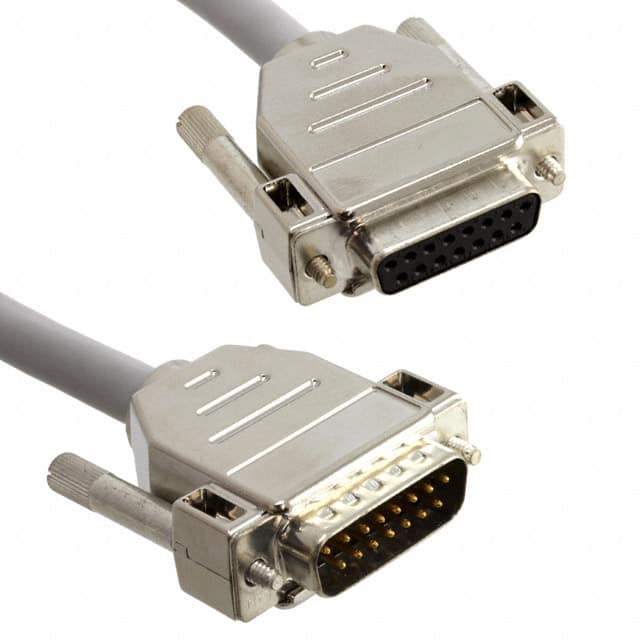

2302052 Phoenix Contact | 1 $72.5200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 1.64' (500.00mm) | Shielded | Gray, Individual (Round) | - | Gold | - | 8,119 Cart + RFQ |

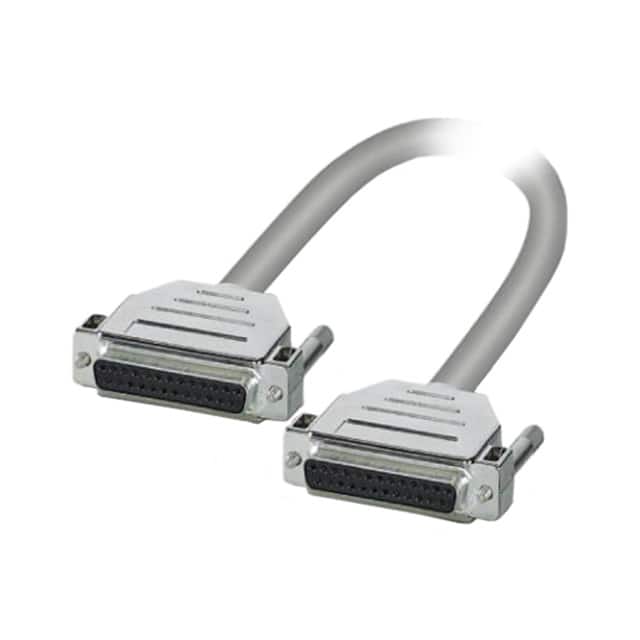

2305473 Phoenix Contact | 1 $100.3000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB25 | 25 | 3.28' (1.00m) | Shielded | Gray, Individual (Round) | Communication | - | - | 7,150 Cart + RFQ |

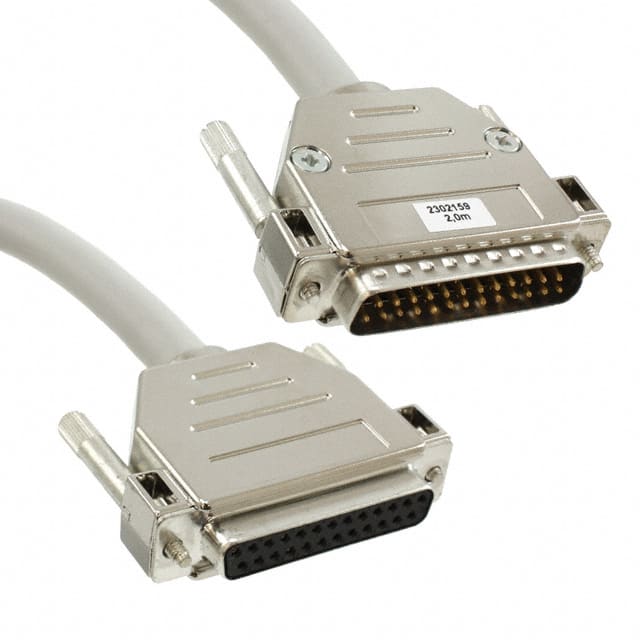

2302159 Phoenix Contact | 1 $117.2800 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 6.56' (2.00m) | Shielded | Gray, Individual (Round) | - | - | - | 5,249 Cart + RFQ |
