D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 22
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

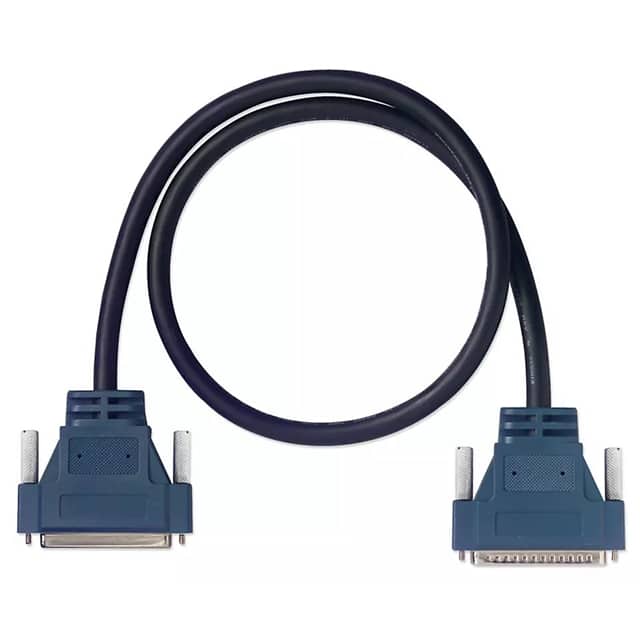

778621-01 NI | 1 $98.4500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 3.28' (1.00m) | Unshielded | Black, Individual (Round) | - | - | - | 2,191 Cart + RFQ |

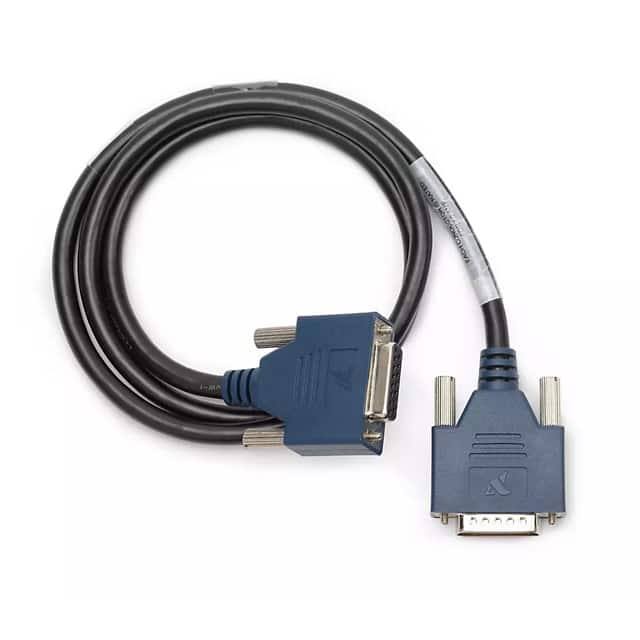

141856-01 NI | 1 $83.9300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB15 | 15 | 3.28' (1.00m) | Unshielded | Black, Individual (Round) | - | - | - | 4,168 Cart + RFQ |

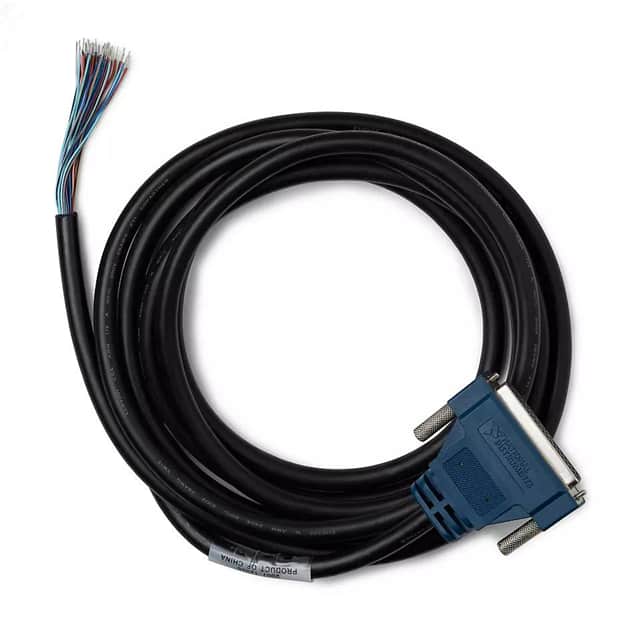

778620-04 NI | 1 $98.4500 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB37 | 37 | 12.00' (3.66m) | Unshielded | Black, Individual (Round) | - | - | - | 9,239 Cart + RFQ |
778621-02 NI | 1 $129.1200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | 6.56' (2.00m) | Unshielded | Black, Individual (Round) | - | - | - | 9,371 Cart + RFQ |

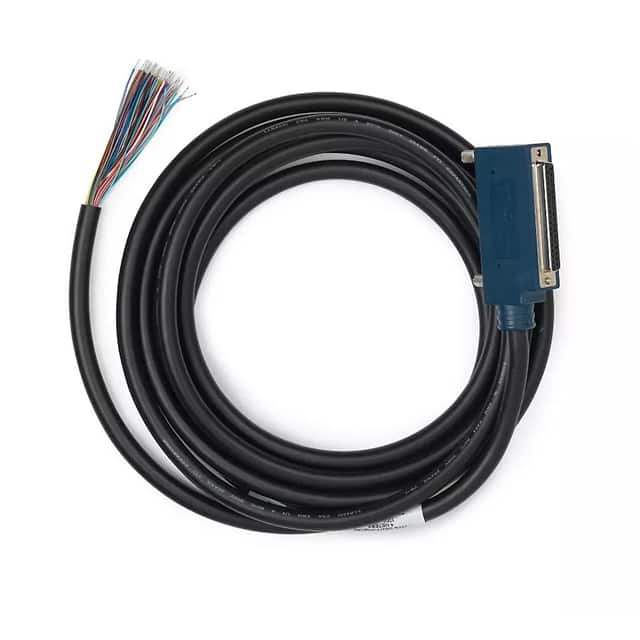

782316-04 NI | 1 $156.6500 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | DB37 | 37 | 13.12' (4.00m) | Unshielded | Black, Individual (Round) | - | - | - | 8,423 Cart + RFQ |
157867-01 NI | 1 $59.7200 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 3.28' (1.00m) | Shielded | Black, Individual (Round) | - | - | - | 9,042 Cart + RFQ |
157867-02 NI | 1 $88.7700 | Datasheet | Plug, Male Pins | Individual Wire Leads | DB09 | 9 | 6.56' (2.00m) | Shielded | Black, Individual (Round) | - | - | - | 8,093 Cart + RFQ |
182238-01 NI | 1 $80.7000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 4,706 Cart + RFQ |
193128-01 NI | 1 $85.5400 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 8,184 Cart + RFQ |
182238-02 NI | 1 $95.2200 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 5,671 Cart + RFQ |
154742-01 NI | 1 $112.9800 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 3.28' (1.00m) | Unshielded | Black | - | - | - | 8,409 Cart + RFQ |
182238-04 NI | 1 $112.9800 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 7,860 Cart + RFQ |
154302-01 NI | 1 $117.8200 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB37 | 37 | - | Unshielded | Black | - | - | - | 8,885 Cart + RFQ |
192568-01 NI | 1 $92.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 3.28' (1.00m) | Unshielded | Black, Individual (Round) | - | - | - | 4,027 Cart + RFQ |
192568-02 NI | 1 $119.4300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB25 | 25 | 6.56' (2.00m) | Unshielded | Black, Individual (Round) | - | - | - | 7,835 Cart + RFQ |
193128-02 NI | 1 $135.5700 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 9,389 Cart + RFQ |
782578-01 NI | 1 $135.5700 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 6,836 Cart + RFQ |

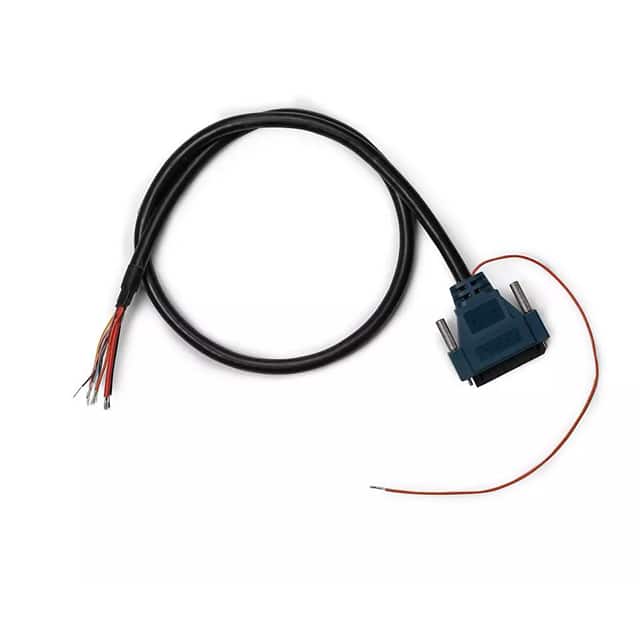

190656-01 NI | 1 $153.3300 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB10 | 10 | 3.28' (1.00m) | Shielded | Black, Individual (Round) | - | - | - | 6,809 Cart + RFQ |
192017-02 NI | 1 $146.8700 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | - | Unshielded | Black | - | - | - | 3,452 Cart + RFQ |
190656-02 NI | 1 $165.2000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB10 | 10 | 6.56' (2.00m) | Shielded | Black, Individual (Round) | - | - | - | 4,384 Cart + RFQ |
