D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 70
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

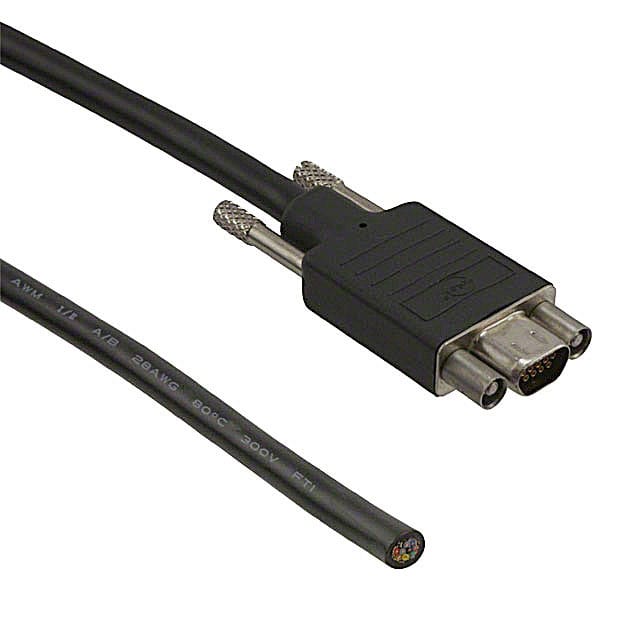

0834219044 Molex | 1 $31.9900 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 6.04' (1.84m) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 3,183 Cart + RFQ |

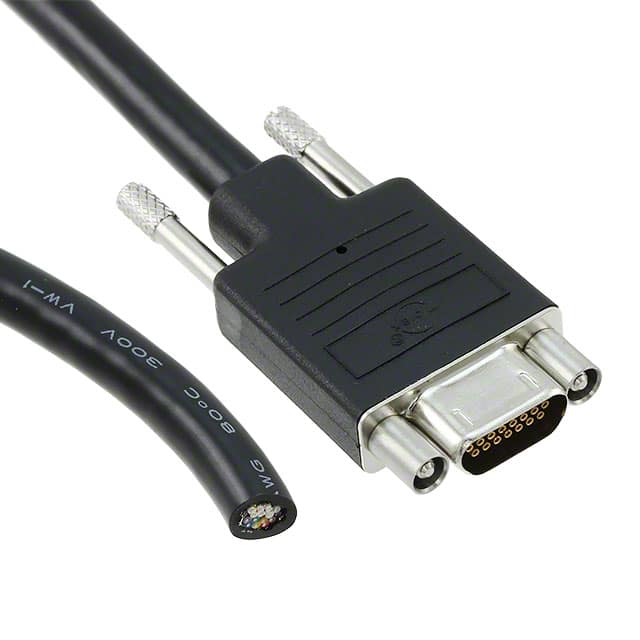

0834229007 Molex | 1 $43.5800 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 1.50' (457.20mm) | Shielded | Black, Individual (Round) | - | Gold | 50.0µin (1.27µm) | 7,609 Cart + RFQ |
0834229018 Molex | 1 $47.8400 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 2,022 Cart + RFQ |

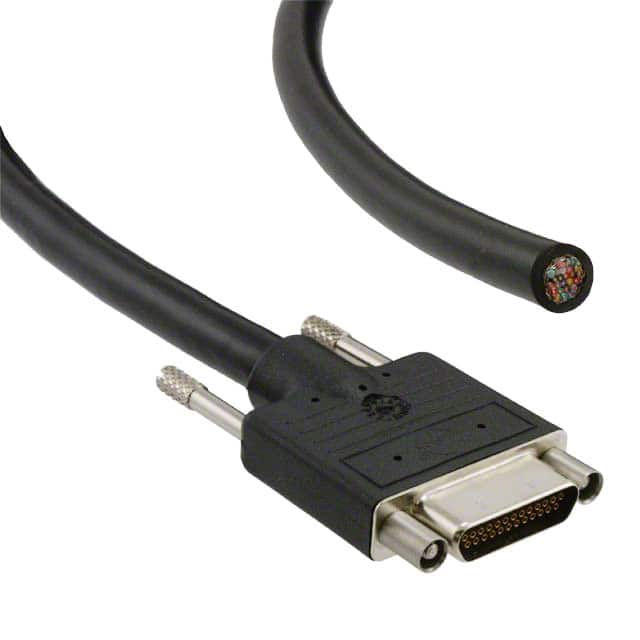

0834249019 Molex | 1 $48.4300 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 25 | 1.50' (457.20mm) | Shielded | Black, Individual (Round) | - | Gold | - | 8,081 Cart + RFQ |

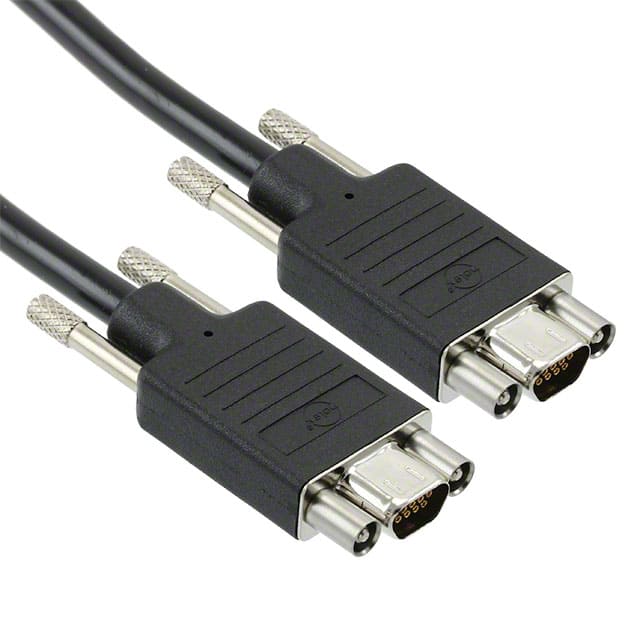

0834219051 Molex | 1 $56.9300 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | D-Type, Micro-D | 9 | 6.00' (1.83m) | - | - | - | Gold | 5.00µin (0.127µm) | 9,349 Cart + RFQ |

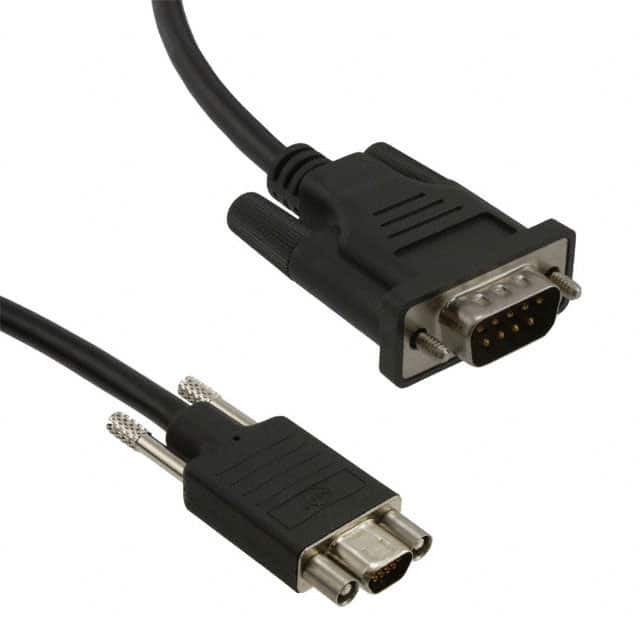

0834219036 Molex | 1 $63.7000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, Micro-D | 9 | 1.54' (470.00mm) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 8,792 Cart + RFQ |
0834249021 Molex | 1 $70.6300 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 25 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | - | Gold | - | 5,913 Cart + RFQ |
0834219038 Molex | 1 $68.6000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, Micro-D | 9 | 6.04' (1.84m) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 5,768 Cart + RFQ |
0834219042 Molex | 1 $27.6100 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 1.50' (457.20mm) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 3,815 Cart + RFQ |

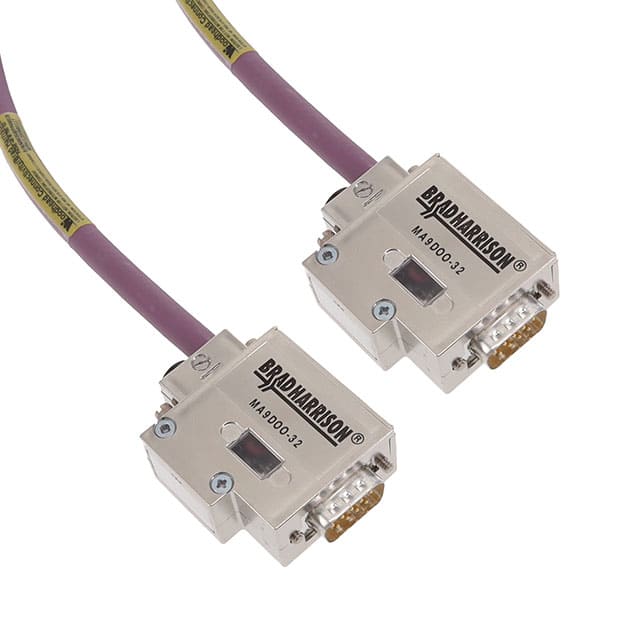

1200980117 Molex | 1 $477.5200 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 6.56' (2.00m) | Shielded | Purple | - | - | - | 4,654 Cart + RFQ |
0834219043 Molex | 1 $27.9200 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 9 | 3.00' (914.40mm) | Shielded | - | - | Gold | 5.00µin (0.127µm) | 4,016 Cart + RFQ |
0834219037 Molex | 1 $45.2500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, Micro-D | 9 | 3.03' (925.00mm) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 3,417 Cart + RFQ |
0834219050 Molex | 1 $49.8700 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | D-Type, Micro-D | 9 | 3.00' (914.40mm) | - | - | - | Gold | 5.00µin (0.127µm) | 5,171 Cart + RFQ |
0834219041 Molex | 1 $68.6000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 6.04' (1.84m) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 8,086 Cart + RFQ |
0834249058 Molex | 1 $104.7300 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | D-Type, Micro-D | 25 | 3.00' (914.40mm) | - | - | - | Gold | 5.00µin (0.127µm) | 3,594 Cart + RFQ |
0936060025 Molex | 1 $11.6500 | Datasheet | - | - | - | - | - | - | - | - | - | - | 3,130 Cart + RFQ |
0834219052 Molex | 1 $17.8636 | Datasheet | - | - | - | 9 | - | - | - | - | - | - | 3,611 Cart + RFQ |
0936060028 Molex | 1 $18.2950 | Datasheet | - | - | - | - | - | - | - | - | - | - | 7,151 Cart + RFQ |
0834229017 Molex | 1 $18.6384 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 4.04' (1.23m) | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 9,452 Cart + RFQ |
0834229016 Molex | 1 $19.0259 | Datasheet | Receptacle, Female Sockets | Individual Wire Leads | D-Type, Micro-D | 15 | 0.375' (114.30mm, 4.50") | Shielded | Black, Individual (Round) | - | Gold | 5.00µin (0.127µm) | 8,022 Cart + RFQ |
