D-Sub Cables
D-subminiature connectors are so named in reference to the shape of the outer shroud surrounding the contacts at their mating end, which resembles the letter 'D', and because at the time of their introduction the interconnect density they offered was among the highest available. Products in this family are finished-goods cable assemblies with connectors applied, though products with a single connector applied are included. Due to use precedents established over many decades of service, there are significant variations in the actual connectivity provided by various cables; use care to select a product suitable for the intended purpose.
Product List
Total Components: 28
Product | Pricing | Datasheet | 1st Connector | 2nd Connector | Type | Number of Positions | Length | Shielding | Color | Usage | Contact Finish | Contact Finish Thickness | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

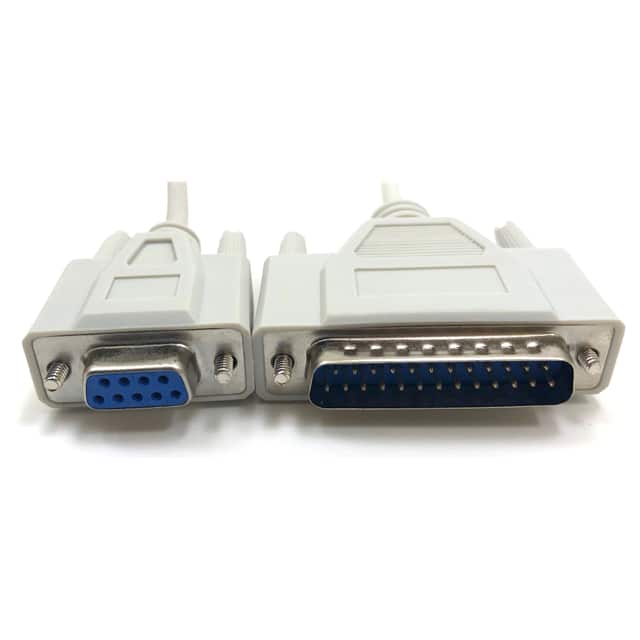

M02-1156N Micro Connectors, Inc. | 1 $7.2500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 9, 25 | 6.00' (1.83m) | Shielded | Gray, Individual (Round) | Null Modem | Gold | - | 5,720 Cart + RFQ |

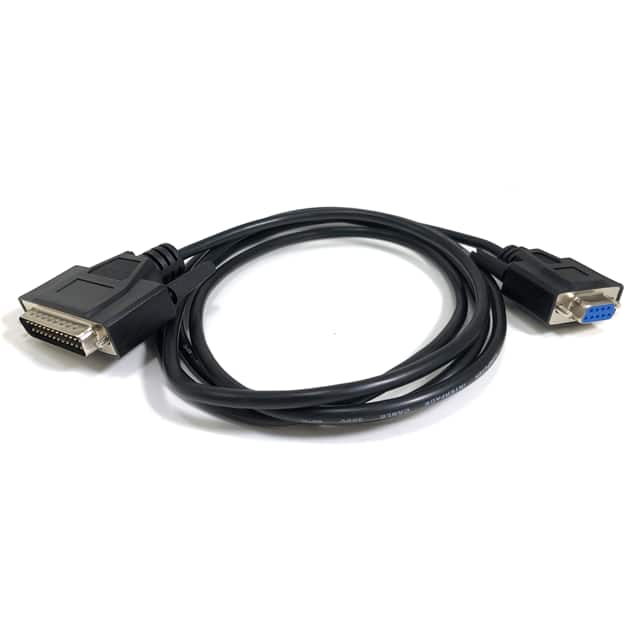

M02-116 Micro Connectors, Inc. | 1 $7.9500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 9, 25 | 6.00' (1.83m) | Shielded | Black, Individual (Round) | - | Gold | - | 2,263 Cart + RFQ |
M05-110 Micro Connectors, Inc. | 1 $8.9500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | 6.00' (1.83m) | Shielded | Beige, Individual (Round) | - | - | - | 2,154 Cart + RFQ |

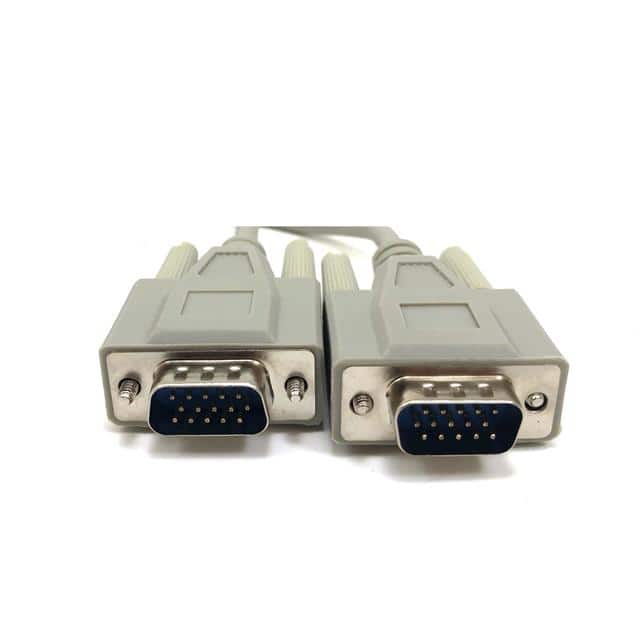

M05-112 Micro Connectors, Inc. | 1 $9.2500 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | 6.00' (1.83m) | Shielded | Beige, Individual (Round) | - | - | - | 2,984 Cart + RFQ |

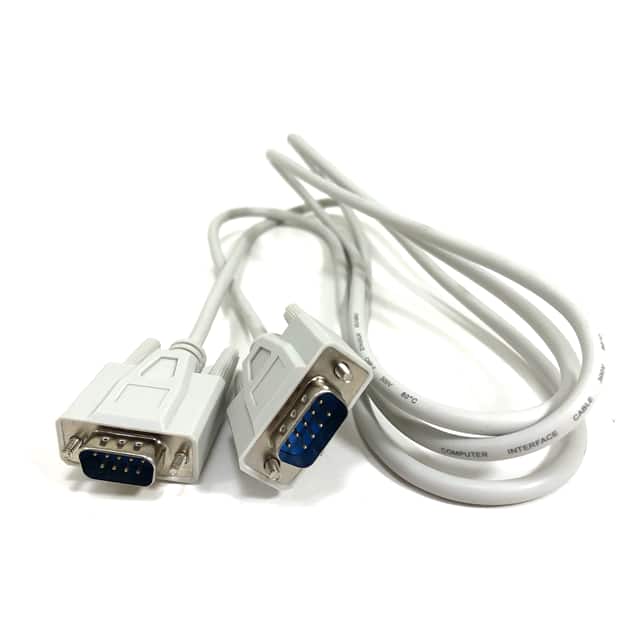

M05-105 Micro Connectors, Inc. | 1 $10.9500 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB09 | 9 | 6.00' (1.83m) | Shielded | Gray, Individual (Round) | - | Gold | - | 7,459 Cart + RFQ |

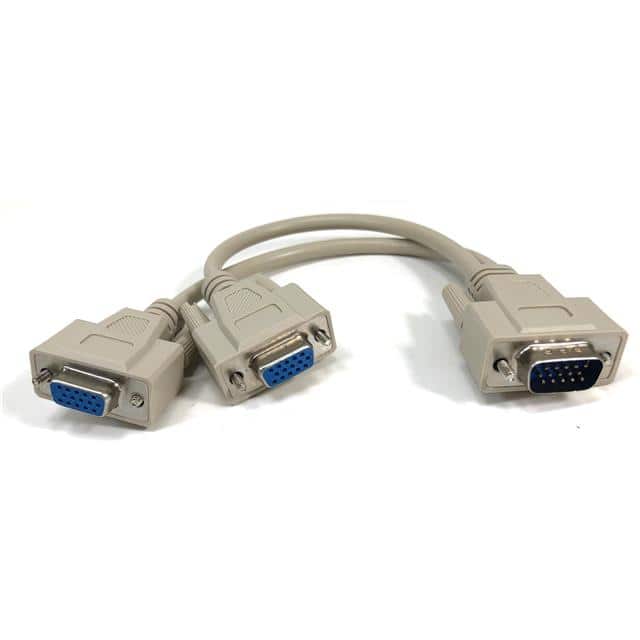

M05-1116 Micro Connectors, Inc. | 1 $10.9900 | Datasheet | Receptacle, Female Sockets (2) | Plug, Male Pins | HD15 | 15 | 0.500' (152.40mm, 6.00") | Shielded | Beige, Individual (Round) | - | - | - | 9,341 Cart + RFQ |

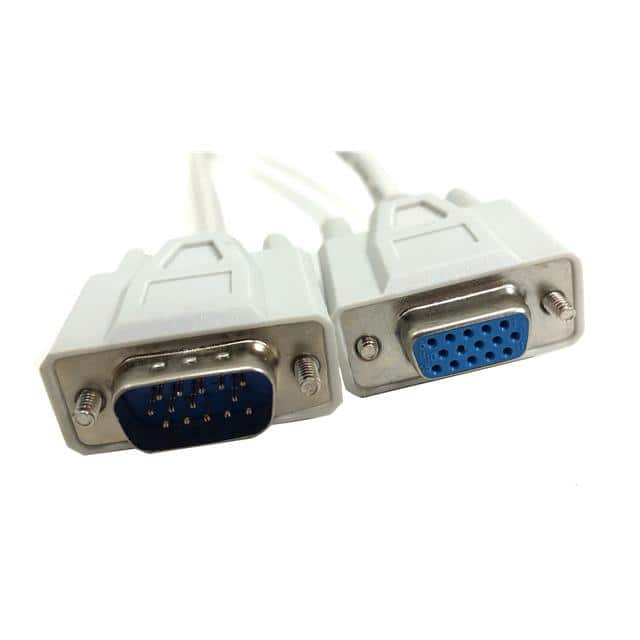

M05-110A Micro Connectors, Inc. | 1 $10.9900 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | 10.00' (3.05m) | Shielded | Beige, Individual (Round) | - | - | - | 5,331 Cart + RFQ |

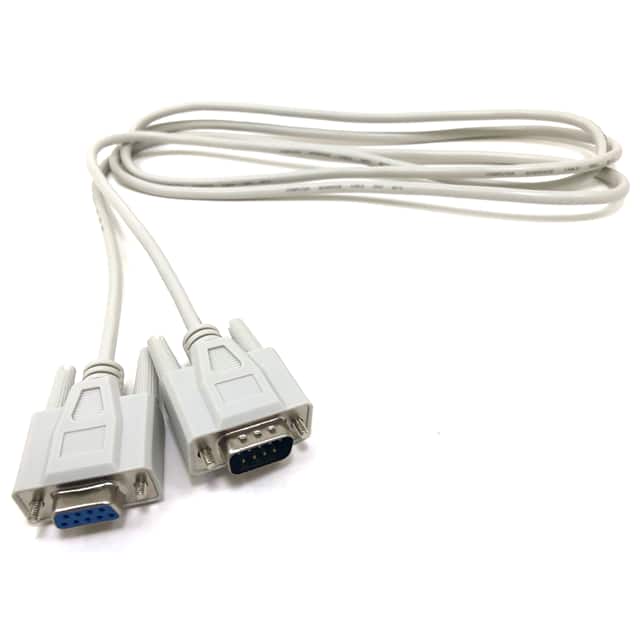

M05-101 Micro Connectors, Inc. | 1 $10.9500 | Datasheet | Plug, Male Pins | Receptacle, Female Sockets | DB09 | 9 | 6.00' (1.83m) | Shielded | Gray, Individual (Round) | Extension, Serial | Gold | - | 6,630 Cart + RFQ |

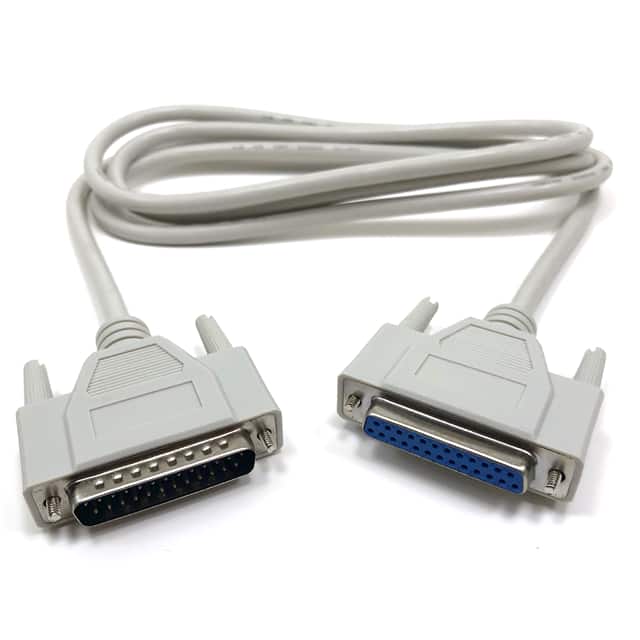

M01-017 Micro Connectors, Inc. | 1 $12.9500 | Datasheet | Plug, Male Pins | Receptacle, Female Sockets | DB25 | 25 | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | IEEE 1284 Bidirectional | Gold | - | 7,157 Cart + RFQ |
M05-101-15 Micro Connectors, Inc. | 1 $16.9900 | Datasheet | Plug, Male Pins | Receptacle, Female Sockets | DB09 | 9 | 15.00' (4.57m) | - | Beige | - | - | - | 5,896 Cart + RFQ |

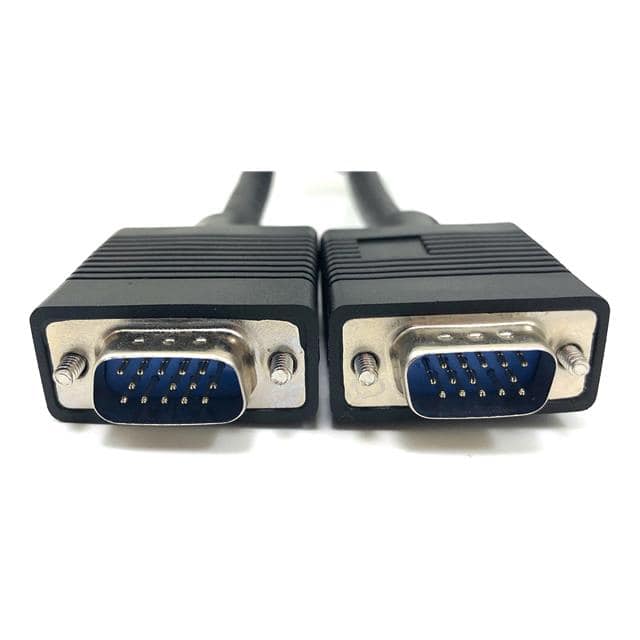

M05-112GDS Micro Connectors, Inc. | 1 $19.2500 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | 25.00' (7.62m) | Shielded | Black, Individual (Round) | - | - | - | 7,011 Cart + RFQ |

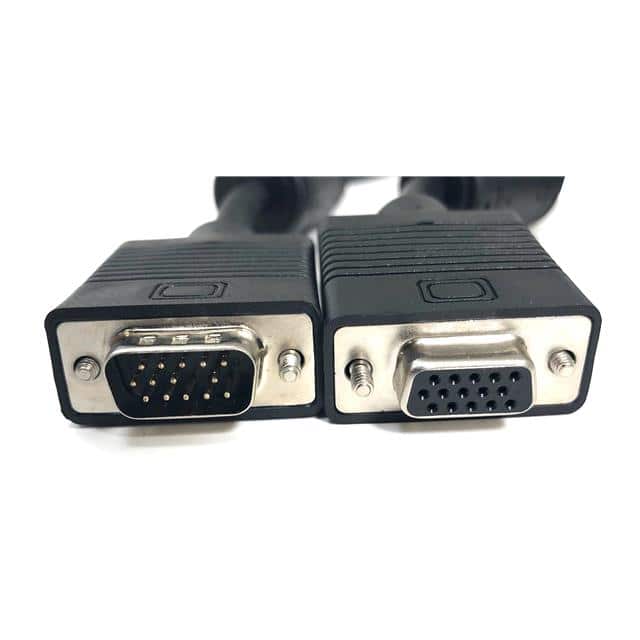

M05-110GDS Micro Connectors, Inc. | 1 $19.9500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | 25.00' (7.62m) | Shielded | Black, Individual (Round) | - | - | - | 7,365 Cart + RFQ |

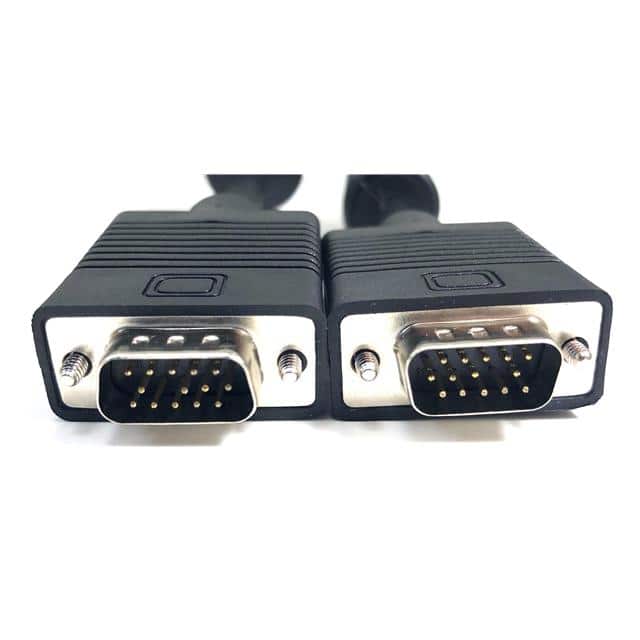

M05-112MDS Micro Connectors, Inc. | 1 $36.0000 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | 50.00' (15.24m) | Shielded | Black, Individual (Round) | - | - | - | 8,541 Cart + RFQ |

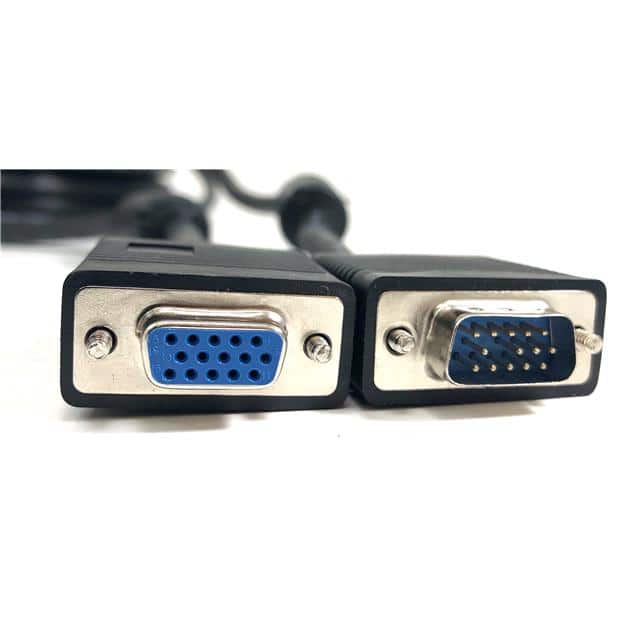

M05-110KDS Micro Connectors, Inc. | 1 $37.0000 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | HD15 | 15 | 50.00' (15.24m) | Shielded | Black, Individual (Round) | - | - | - | 2,174 Cart + RFQ |

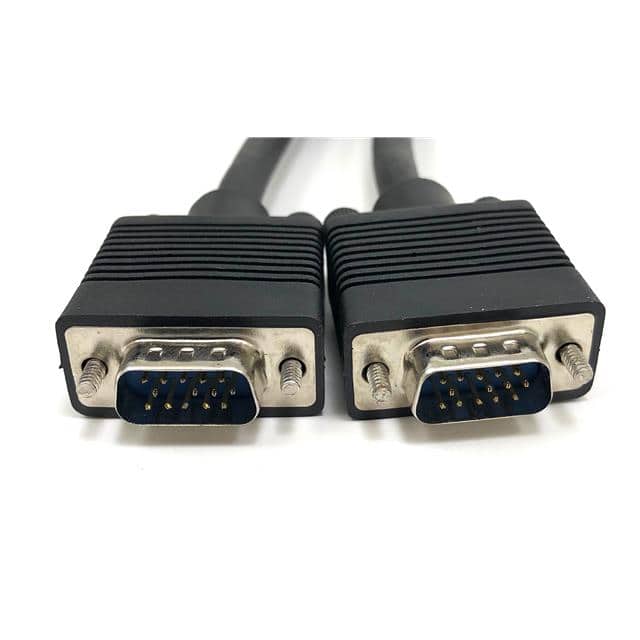

M05-112DS-100 Micro Connectors, Inc. | 1 $55.9900 | Datasheet | Plug, Male Pins | Plug, Male Pins | HD15 | 15 | 100.00' (30.48m) | Shielded | Black, Individual (Round) | - | - | - | 5,936 Cart + RFQ |

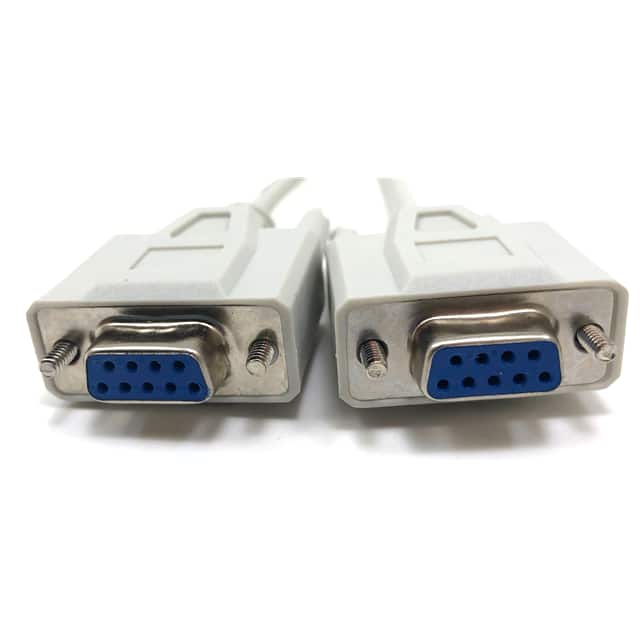

M02-233 Micro Connectors, Inc. | 1 $7.5000 | Datasheet | Receptacle, Female Sockets | Receptacle, Female Sockets | DB09 | 9 | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | Null Modem | Gold | - | 1,926 Cart + RFQ |

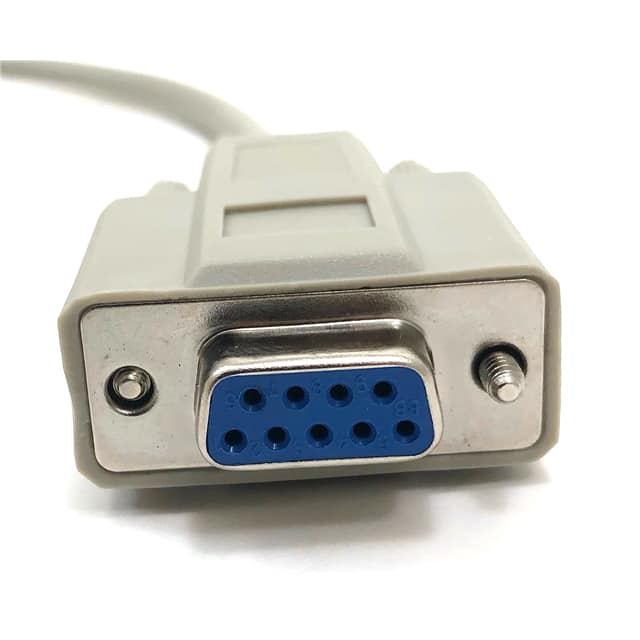

M02-114 Micro Connectors, Inc. | 1 $8.9900 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 9, 25 | 1.00' (304.80mm) | Shielded | Gray, Individual (Round) | - | Gold | - | 1,140 Cart + RFQ |

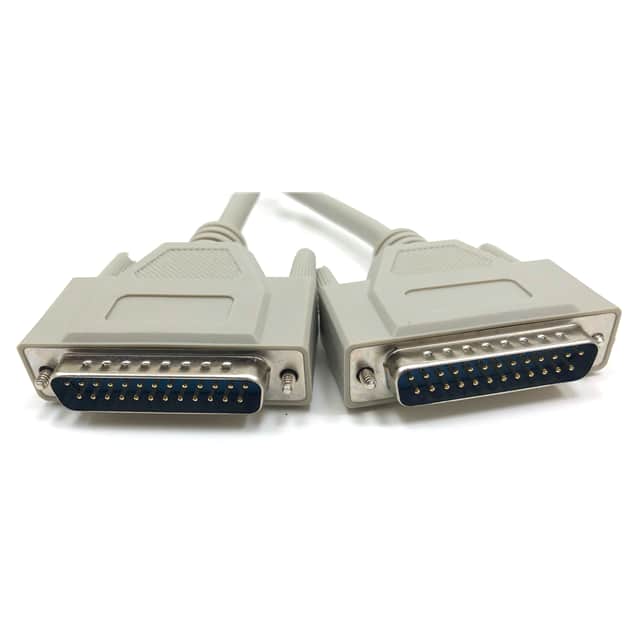

A02-104 Micro Connectors, Inc. | 1 $12.9500 | Datasheet | Plug, Male Pins | Plug, Male Pins | DB25 | 25 | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | - | Gold | - | 7,922 Cart + RFQ |
M02-116A Micro Connectors, Inc. | 1 $12.9500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 9, 25 | 10.00' (3.05m) | Shielded | Gray, Individual (Round) | - | Gold | - | 8,189 Cart + RFQ |

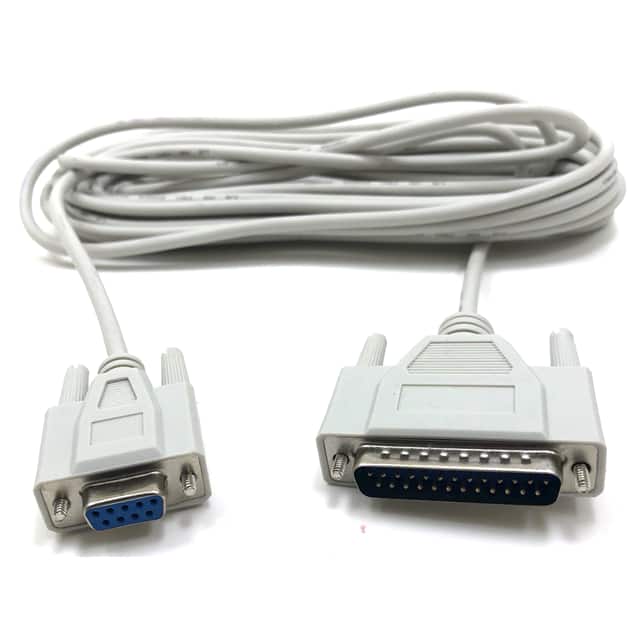

M02-116A25 Micro Connectors, Inc. | 1 $14.9500 | Datasheet | Receptacle, Female Sockets | Plug, Male Pins | DB09, DB25 | 9, 25 | 25.00' (7.62m) | Shielded | Gray, Individual (Round) | PC Modem (AT Adapter Cable) | Gold | - | 7,180 Cart + RFQ |
