Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 13
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UFL-2LPHF6-062N1D-AC-50 Hirose | 1 $5.1500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 0.95mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | 2,743 Cart + RFQ |
U.FL-2LPHF6-066N2-A-200 Hirose | 1 $5.7300 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | 1,118 Cart + RFQ |
WFL2-2LPHF6-04N1TV-A-150 Hirose | 1 $5.9100 | Datasheet | W.FL2 to W.FL2 | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL2 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | White | - | -40°C ~ 90°C | - | 6,459 Cart + RFQ |
CFL-2LPP-044N2TSH-A-100D Hirose | 1 $10.9400 | Datasheet | C.FL to C.FL | C.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | C.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.64mm OD Coaxial Cable | - | - | 50 Ohms | 30 GHz | Black | Shielded | -40°C ~ 90°C | - | 1,098 Cart + RFQ |
U.FL-LP-066J1-A-(100) Hirose | 1 $5.5500 | Datasheet | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 4,706 Cart + RFQ |
UFL-2LPHF6-062N1D-A-100 Hirose | 1 $5.6300 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.95mm OD Coaxial Cable | 50 Ohms | - | - | 6 GHz | Gray | - | -40°C ~ 90°C | - | 1,080 Cart + RFQ |
U.FL-2LP-068N1T-AC-(100) Hirose | 1 $6.1500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | 1,155 Cart + RFQ |
U.FL-2LP-066J2-A-(100) Hirose | 1 $6.3600 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | 6,941 Cart + RFQ |
U.FL-LP-088K2T-A-(150) Hirose | 1 $7.7800 | Datasheet | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | 3,373 Cart + RFQ |

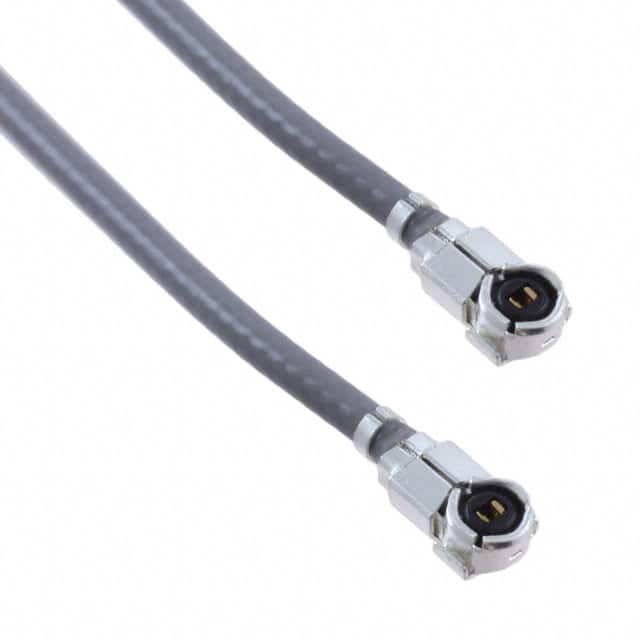

U.FL-2LP-088K1T-A-(500) Hirose | 1 $8.4000 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | - | - | 6,150 Cart + RFQ |

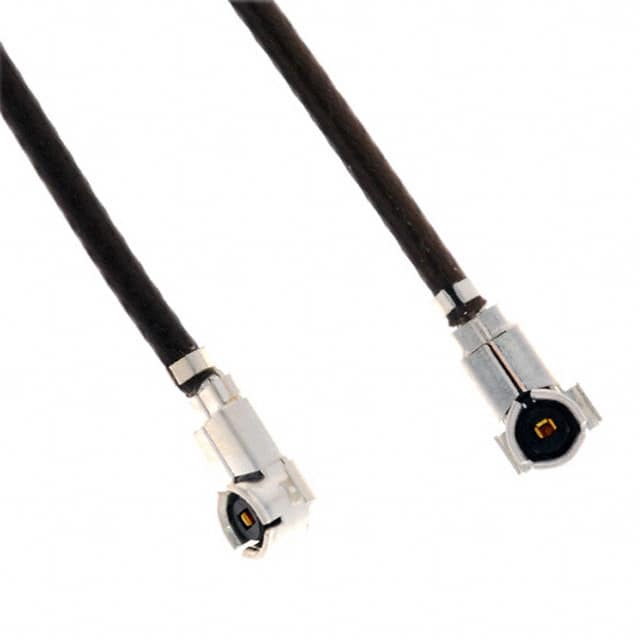

H.FL75-2LP-084H-A-500 Hirose | 1 $11.8900 | Datasheet | H.FL to H.FL | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | H.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | - | - | 75 Ohms | 1.5 GHz | Black | Shielded | -40°C ~ 90°C | - | 2,959 Cart + RFQ |

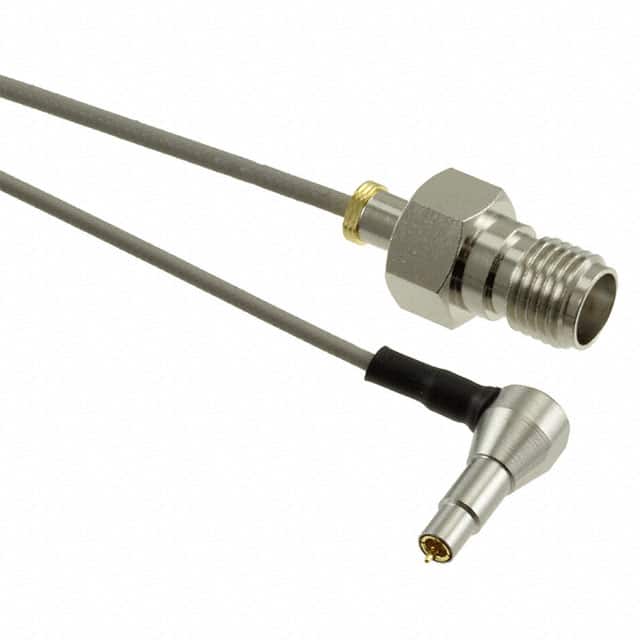

MS156LH1-HRMJ-088V300A Hirose | 1 $63.8700 | Datasheet | SMA to MS-156 | SMA Jack | Female | Free Hanging (In-Line) | - | MS-156 Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | - | - | - | 50 Ohms | 6 GHz | Gray | - | -30°C ~ 70°C | - | 7,467 Cart + RFQ |

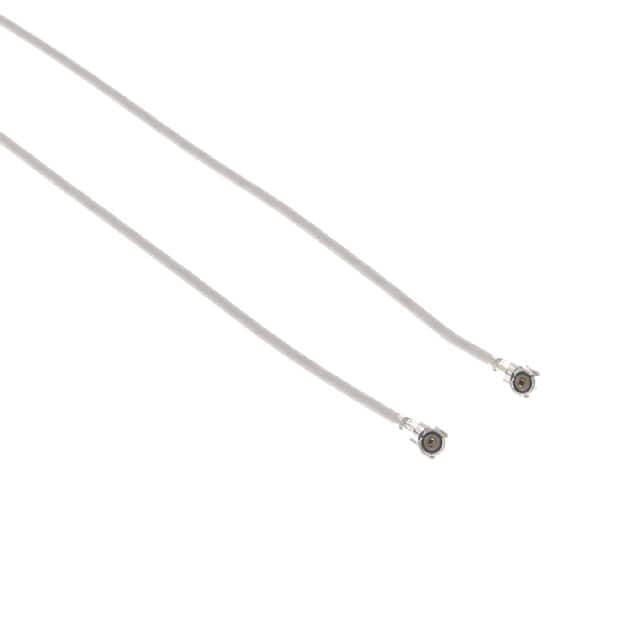

WFL-2LPHF6-04N1TV-A-200 Hirose | 1 $5.6100 | Datasheet | W.FL to W.FL | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | W.FL Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | White | - | -40°C ~ 90°C | - | 6,761 Cart + RFQ |
