Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 8
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DH-20G50015 CviLux | 1 $2.4400 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | - | - | - | 50 Ohms | - | Brown | - | - | - | 7,719 Cart + RFQ |
DH-20G50013 CviLux | 1 $2.4400 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | - | Gray | - | - | - | 6,376 Cart + RFQ |
DH-20G50010 CviLux | 1 $2.2600 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | - | Gray | - | - | - | 6,676 Cart + RFQ |
DH-20G50012 CviLux | 1 $2.3600 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | - | - | - | 50 Ohms | - | Gray | - | - | - | 7,213 Cart + RFQ |
DH-20G50011 CviLux | 1 $2.3600 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | - | - | - | 50 Ohms | - | Gray | - | - | - | 3,722 Cart + RFQ |
DH-20G50014 CviLux | 1 $2.5300 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | - | - | - | 50 Ohms | - | Gray | - | - | - | 3,696 Cart + RFQ |

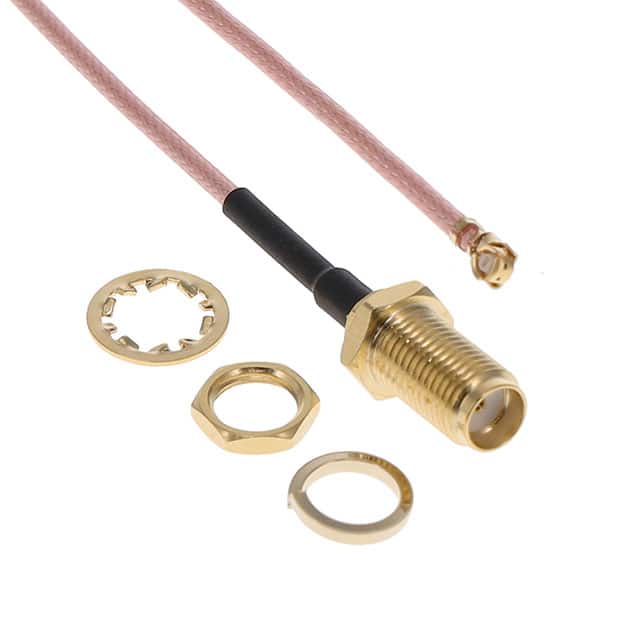

DH-20G50016 CviLux | 1 $2.5300 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | - | Brown | - | - | - | 2,562 Cart + RFQ |

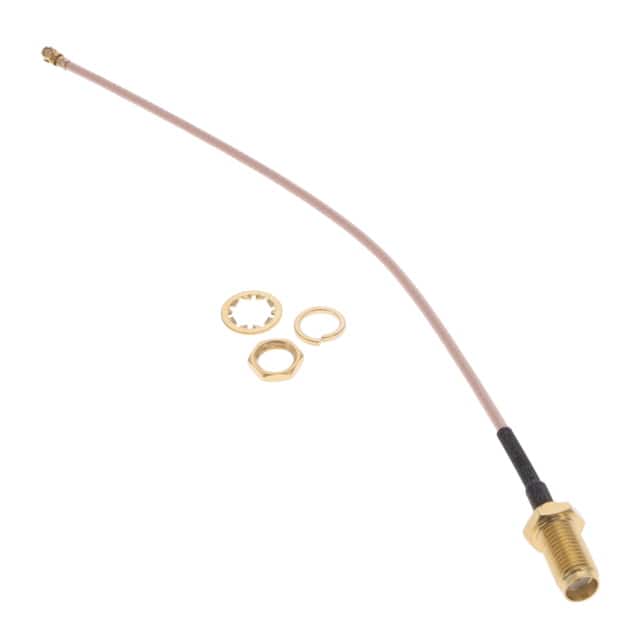

DH-20G50017 CviLux | 1 $2.6100 | Datasheet | IPEX MHF1 to SMA | IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | - | - | - | 50 Ohms | - | Brown | - | - | - | 9,723 Cart + RFQ |
