Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 80
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LSA28-S1S1-S06 ConductRF | 1 $33.9700 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 6.000" (152.40mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 9,242 Cart + RFQ |
LSA28-S1S1-S08 ConductRF | 1 $34.4200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 8.000" (203.20mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 8,957 Cart + RFQ |
LSA28-S1S1-S12 ConductRF | 1 $35.3200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 12.00" (304.80mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 7,061 Cart + RFQ |
LSA28-S1S1-S16 ConductRF | 1 $36.2200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 16.00" (406.40mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 5,994 Cart + RFQ |
LSA28-S1S1-S18 ConductRF | 1 $36.6700 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 18.00" (457.20mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 6,666 Cart + RFQ |
LSA28-S1S1-S24 ConductRF | 1 $38.0200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 24.00" (609.60mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 5,347 Cart + RFQ |
LSA28-S1S1-S36 ConductRF | 1 $40.7200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 36.00" (914.40mm) | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 5,739 Cart + RFQ |
LSA28-S1S1-S48 ConductRF | 1 $43.4200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 48.0" (1.2m) 4.0' | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 4,045 Cart + RFQ |
LSA28-S1S1-S60 ConductRF | 1 $46.1200 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 60.0" (1.5m) 5.0' | 2.18mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 2,268 Cart + RFQ |

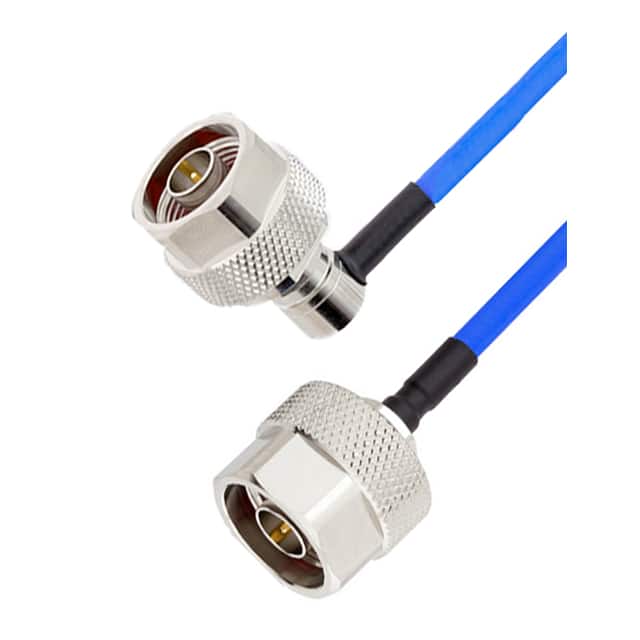

LSA29-N1N2-S24 ConductRF | 1 $60.2100 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 24.00" (609.60mm) | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 4,410 Cart + RFQ |

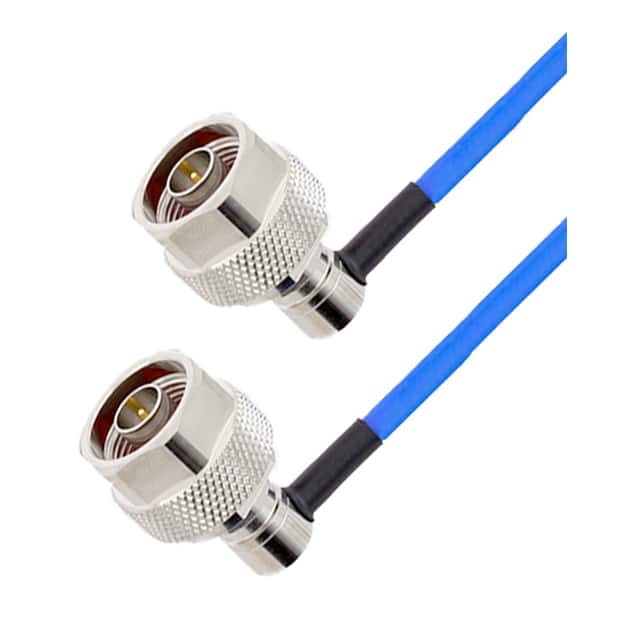

LSA29-N2N2-S18 ConductRF | 1 $63.3800 | Datasheet | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 18.00" (457.20mm) | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 5,433 Cart + RFQ |

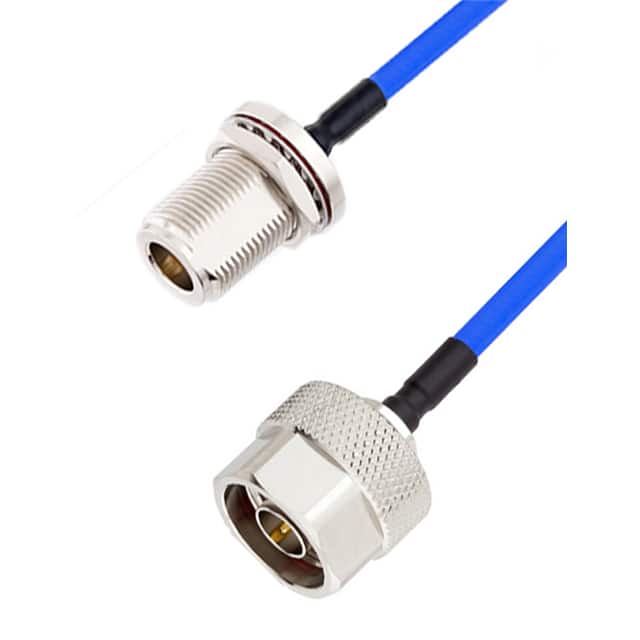

LSA29-N1N3-S36 ConductRF | 1 $64.6700 | Datasheet | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 1,853 Cart + RFQ |
LSA29-N2N2-S24 ConductRF | 1 $65.6100 | Datasheet | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 24.00" (609.60mm) | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 6,313 Cart + RFQ |

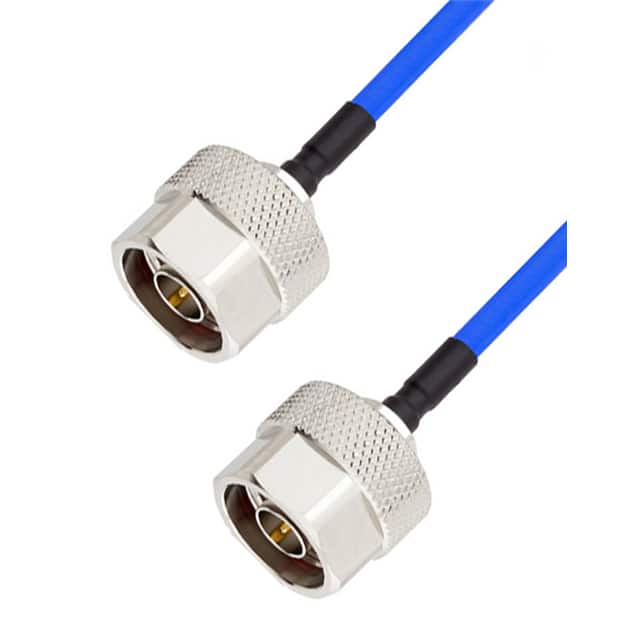

LSA29-N1N1-S60 ConductRF | 1 $68.1800 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 60.0" (1.5m) 5.0' | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 4,764 Cart + RFQ |
LSA29-N1N3-S48 ConductRF | 1 $69.1200 | Datasheet | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 9,289 Cart + RFQ |
LSA29-N1N2-S48 ConductRF | 1 $69.1200 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0" (1.2m) 4.0' | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 1,055 Cart + RFQ |
LSA29-N2N2-S36 ConductRF | 1 $70.0700 | Datasheet | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 36.00" (914.40mm) | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 8,461 Cart + RFQ |
LSA29-N1N2-S60 ConductRF | 1 $73.5800 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 60.0" (1.5m) 5.0' | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 1,679 Cart + RFQ |
LSA29-N1N3-S60 ConductRF | 1 $73.5800 | Datasheet | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 8,667 Cart + RFQ |
LSA29-N2N2-S48 ConductRF | 1 $74.5200 | Datasheet | N-Type to N-Type | N-Type Plug, Right Angle | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0" (1.2m) 4.0' | 3.58mm OD Coaxial Cable | - | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | 9,570 Cart + RFQ |
