Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 41
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2118651-6 TE Connectivity AMP Connectors | 1 $0.9900 | Datasheet | U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.543" (90.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | - | - | 2,627 Cart + RFQ |
2015699-1 TE Connectivity AMP Connectors | 1 $1.5300 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 4,031 Cart + RFQ |
2015357-3 TE Connectivity AMP Connectors | 1 $2.6500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | 2,272 Cart + RFQ |
2015357-4 TE Connectivity AMP Connectors | 1 $2.6500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | 7,269 Cart + RFQ |

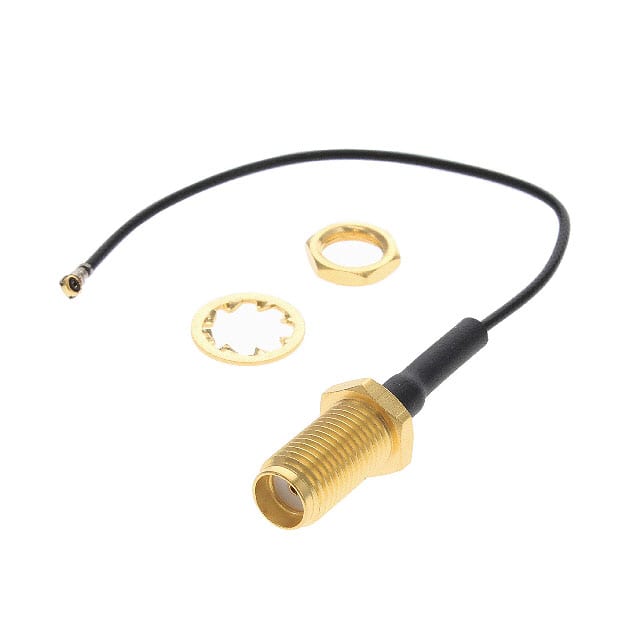

2016682-4 TE Connectivity AMP Connectors | 1 $5.5700 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -45°C ~ 85°C | - | 9,866 Cart + RFQ |

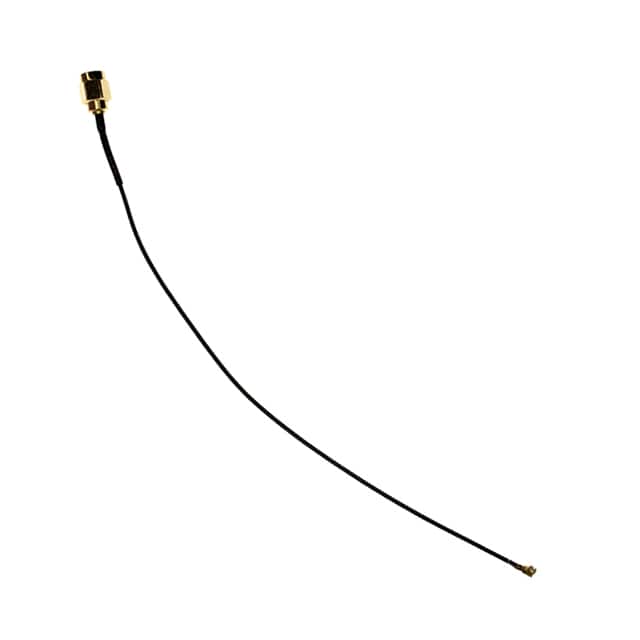

2032439-1 TE Connectivity AMP Connectors | 1 $9.4100 | Datasheet | U.FL (UMCC) to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | 1,622 Cart + RFQ |

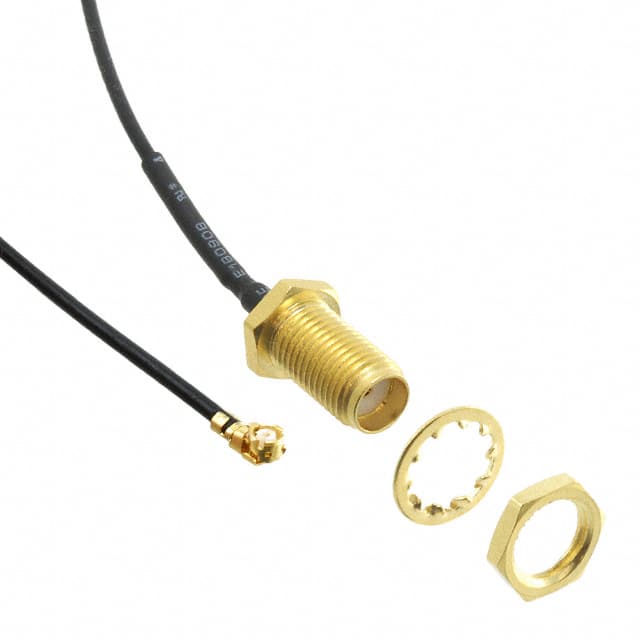

2032440-1 TE Connectivity AMP Connectors | 1 $11.1000 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 5,214 Cart + RFQ |

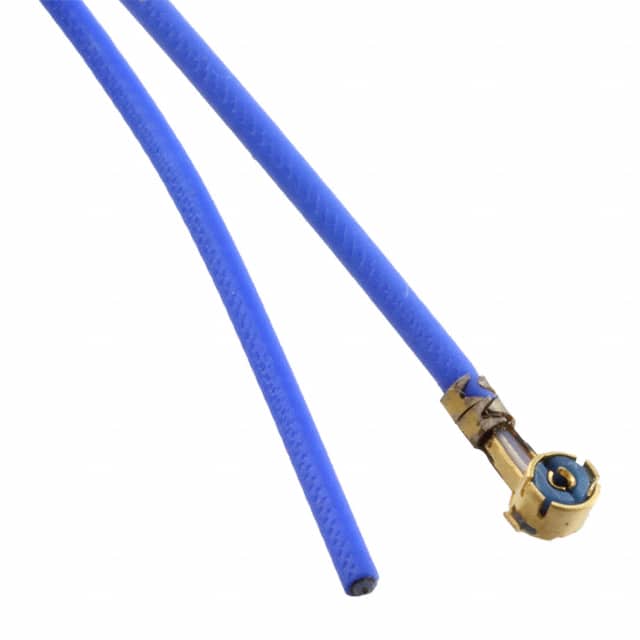

1064538-1 TE Connectivity AMP Connectors | 1 $9.7300 | Datasheet | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | 6,868 Cart + RFQ |

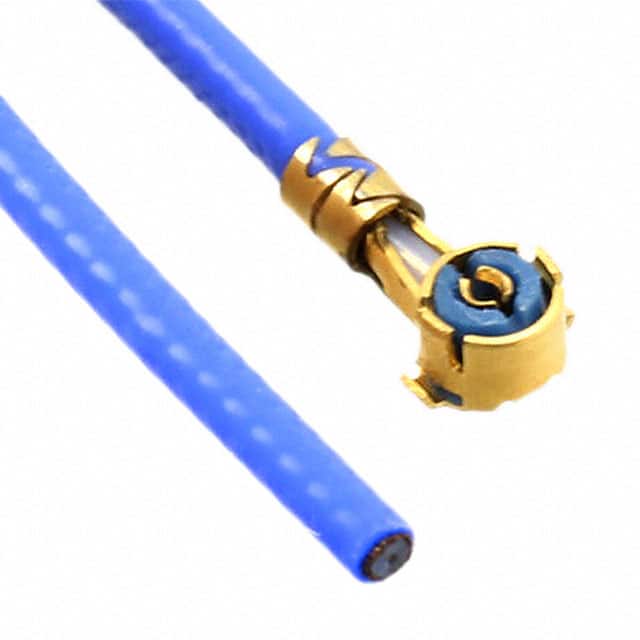

1064535-1 TE Connectivity AMP Connectors | 1 $12.2800 | Datasheet | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | 4,917 Cart + RFQ |

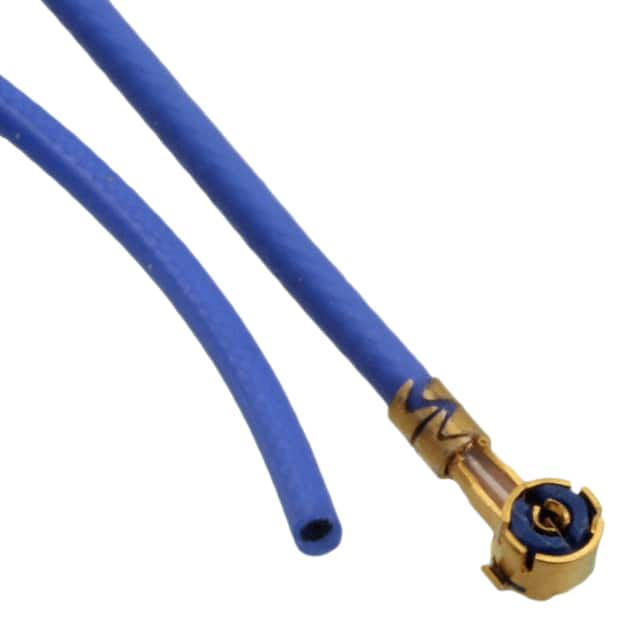

1064540-1 TE Connectivity AMP Connectors | 1 $8.8700 | Datasheet | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | 5,281 Cart + RFQ |
1064309-1 TE Connectivity AMP Connectors | 1 $16.1600 | Datasheet | OSMT to OSMT | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | - | - | 50 Ohms | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 105°C | - | 8,261 Cart + RFQ |

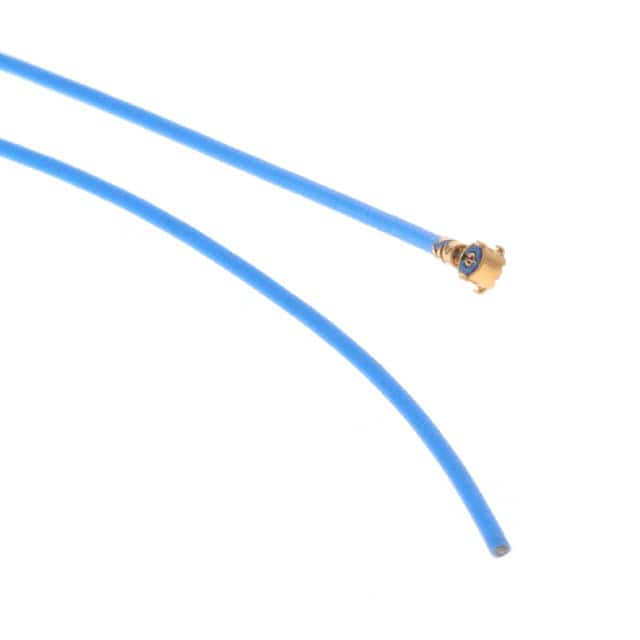

1064542-1 TE Connectivity AMP Connectors | 1 $15.7100 | Datasheet | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 20.08" (510.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | 9,589 Cart + RFQ |

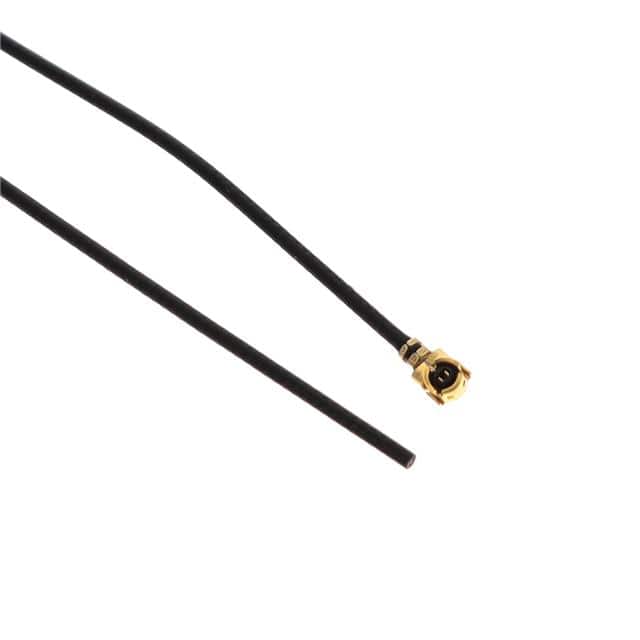

2411062-2 TE Connectivity AMP Connectors | 1 $1.0100 | Datasheet | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 9,011 Cart + RFQ |
2148999-2 TE Connectivity AMP Connectors | 1 $1.0200 | Datasheet | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | Female | - | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 3,307 Cart + RFQ |
2411050-2 TE Connectivity AMP Connectors | 1 $1.0300 | Datasheet | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 6,501 Cart + RFQ |

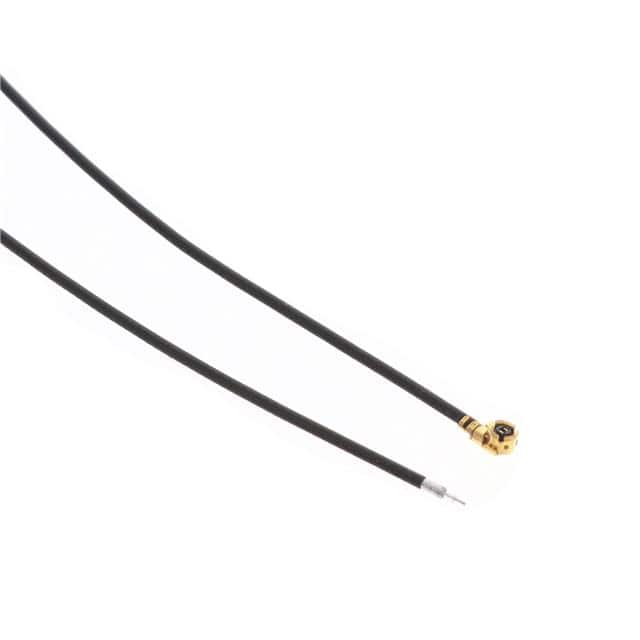

2148999-4 TE Connectivity AMP Connectors | 1 $1.1200 | Datasheet | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | Female | - | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 3,584 Cart + RFQ |

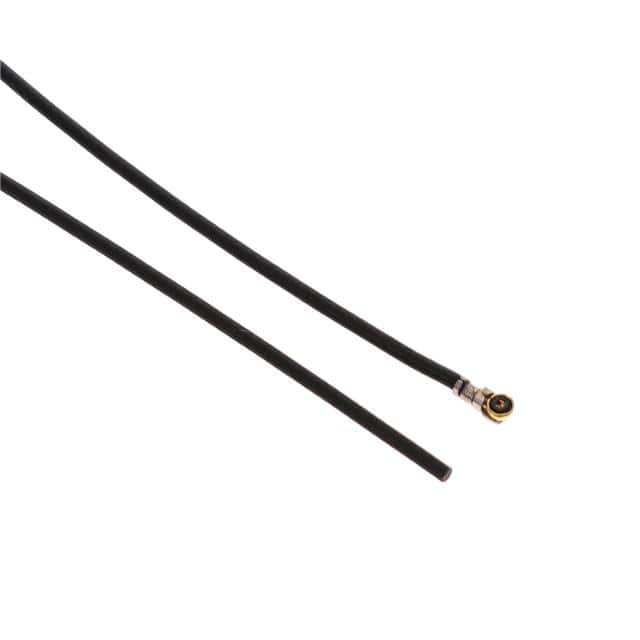

2411069-2 TE Connectivity AMP Connectors | 1 $1.1300 | Datasheet | IPEX MHF4L to Cable | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 6,419 Cart + RFQ |
2411050-4 TE Connectivity AMP Connectors | 1 $1.1400 | Datasheet | U.FL (UMCC), IPEX MHF1 to Cable | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 2,343 Cart + RFQ |
2411069-4 TE Connectivity AMP Connectors | 1 $1.2300 | Datasheet | IPEX MHF4L to Cable | IPEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | 9,460 Cart + RFQ |

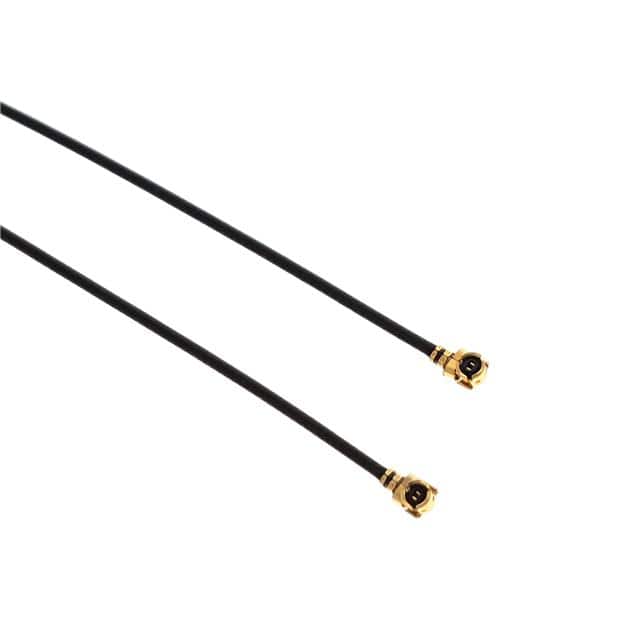

1-2118651-1 TE Connectivity AMP Connectors | 1 $1.5500 | Datasheet | U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 20.04" (509.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | - | - | 3,269 Cart + RFQ |
