Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 22
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CAB.011 Taoglas | 1 $3.0700 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.740" (95.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | 105°C | - | 1,058 Cart + RFQ |
CAB.618C Taoglas | 1 $5.0600 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 7,191 Cart + RFQ |
CAB.616 Taoglas | 1 $5.2700 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 1.3 GHz | Black | Shielded | 105°C | - | 4,779 Cart + RFQ |
CAB.628 Taoglas | 1 $5.4900 | Datasheet | U.FL (UMCC), IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.740" (95.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 1,326 Cart + RFQ |
CAB.721 Taoglas | 1 $6.2000 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 9,291 Cart + RFQ |
CAB.719 Taoglas | 1 $6.2000 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 5,476 Cart + RFQ |
CAB.622 Taoglas | 1 $6.2400 | Datasheet | U.FL (UMCC), IPEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 7,511 Cart + RFQ |
CAB.720 Taoglas | 1 $6.4300 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 2,125 Cart + RFQ |
CAB.718 Taoglas | 1 $6.4300 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | 5,095 Cart + RFQ |
CAB.0101 Taoglas | 1 $7.3200 | Datasheet | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | 80°C | - | 9,101 Cart + RFQ |
CAB.01402 Taoglas | 1 $7.3300 | Datasheet | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded | 80°C | - | 2,220 Cart + RFQ |
CAB.S01 Taoglas | 1 $9.0800 | Datasheet | SMA to IPEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | 9,798 Cart + RFQ |
CAB.S02 Taoglas | 1 $9.4600 | Datasheet | SMA to IPEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | IPEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | 5,330 Cart + RFQ |
CAB.058 Taoglas | 1 $18.9300 | Datasheet | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 1.969" (50.00mm) | 0.047" Semi-Rigid Cable | - | - | 50 Ohms | 40 GHz | Silver | - | -50°C ~ 100°C | - | 5,257 Cart + RFQ |
CAB.A02 Taoglas | 1 $6.0500 | Datasheet | SMA to W.FL, IPEX MHF3 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | W.FL, IPEX MHF3 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.740" (95.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | 2,541 Cart + RFQ |

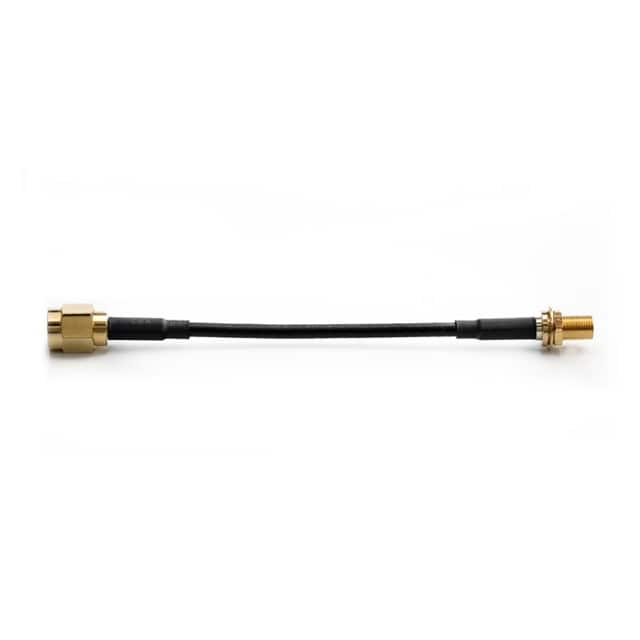

CAB.0114 Taoglas | 1 $7.1900 | Datasheet | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 2.953" (75.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | 80°C | - | 6,931 Cart + RFQ |

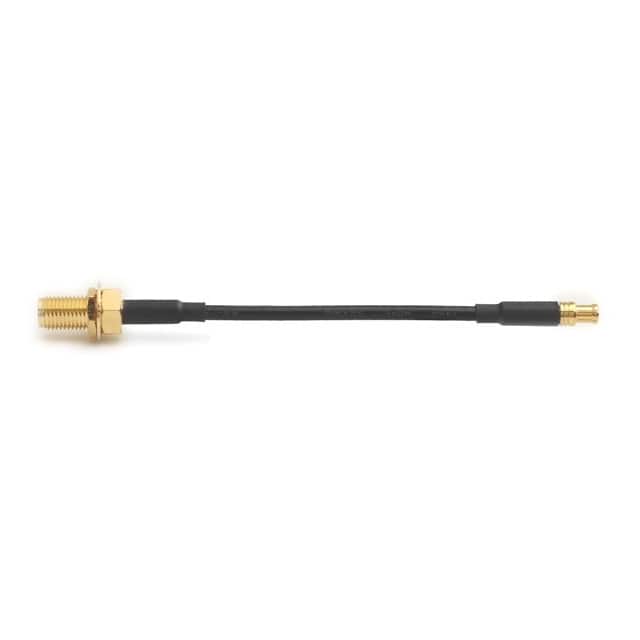

CAB.0130 Taoglas | 1 $8.0600 | Datasheet | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 2.953" (75.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | 80°C | - | 2,158 Cart + RFQ |
MCA4.L0915L Taoglas | 1 $186.1500 | Datasheet | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-405 | 50 Ohms | - | - | 26.5 GHz | Black | - | -55°C ~ 125°C | - | 1,747 Cart + RFQ |

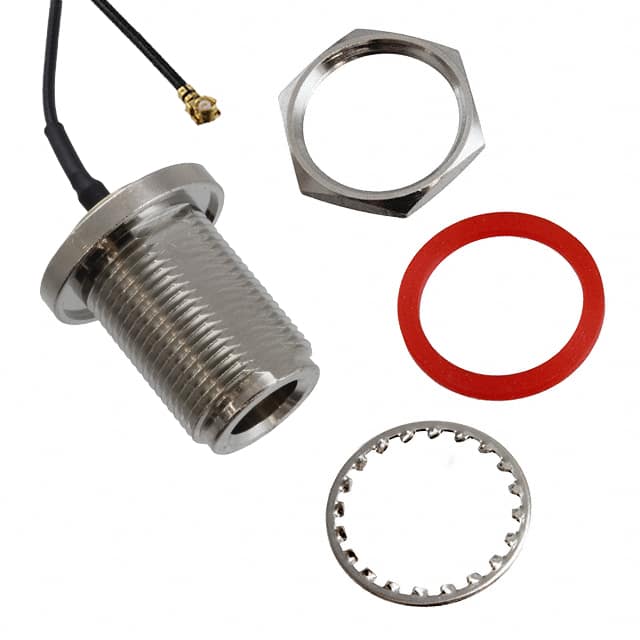

CAB.954 Taoglas | 1 $13.2400 | Datasheet | U.FL (UMCC), IPEX MHF1 to N-Type | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | 105°C | - | 5,670 Cart + RFQ |

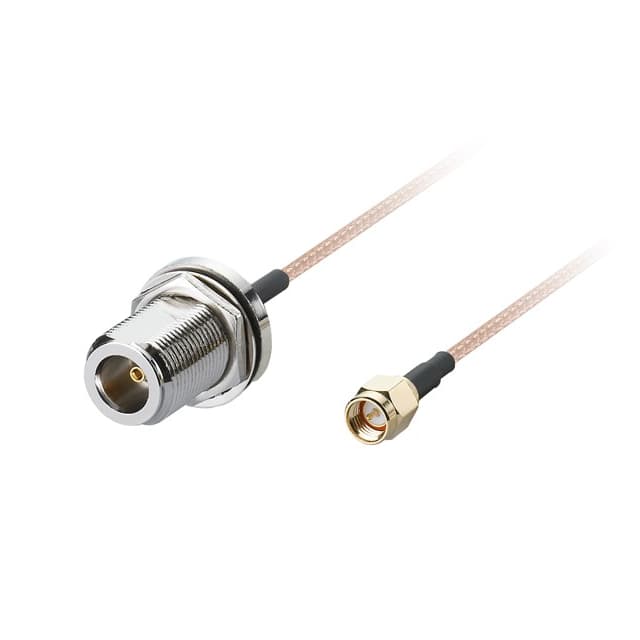

CAB.951 Taoglas | 1 $19.4700 | Datasheet | SMA to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | Shielded | 105°C | - | 3,473 Cart + RFQ |
