Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 11
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH113-MH1RP-01SB1-0150 Samtec, Inc. | 1 $11.1500 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 3,808 Cart + RFQ |
MH113-MH1RP-MH1RP-0100 Samtec, Inc. | 1 $5.3800 | Datasheet | U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 3,004 Cart + RFQ |
MH113-MH1RP-01BJ2-0100 Samtec, Inc. | 1 $12.5500 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 8,899 Cart + RFQ |
MH113-MH1RP-01BJ1-0100 Samtec, Inc. | 1 $13.6200 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 6,493 Cart + RFQ |
MH113-MH1RP-01BJ1-0152 Samtec, Inc. | 1 $13.9400 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 3 GHz | Gray | Shielded | -40°C ~ 90°C | - | 7,720 Cart + RFQ |
MH113-MH1RP-01BJ1-0300 Samtec, Inc. | 1 $14.6600 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 8,082 Cart + RFQ |

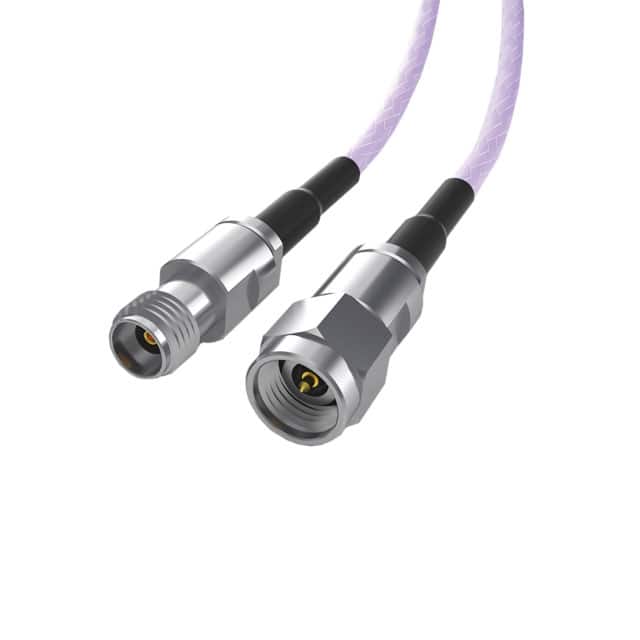

RF085-92SP-92SP-0152 Samtec, Inc. | 1 $169.4700 | Datasheet | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 0.085" Flexible Cable | 50 Ohms | - | - | 40 GHz | Blue | Shielded | - | - | 6,259 Cart + RFQ |

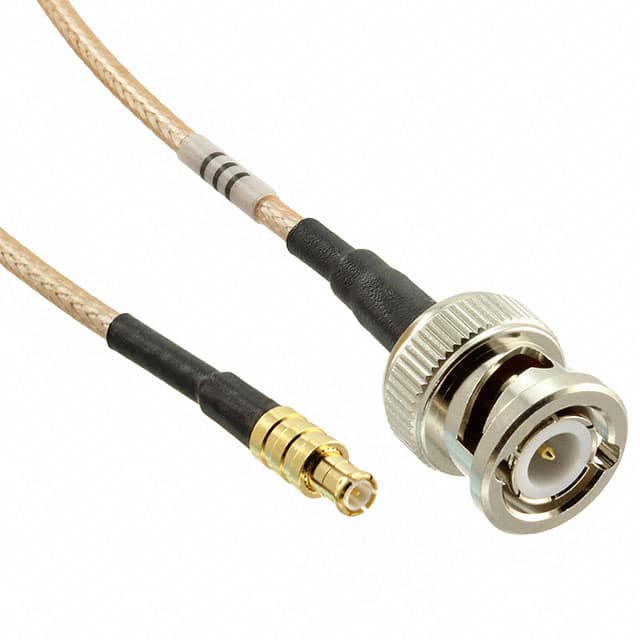

RF316-04SP3-02SP1-0500 Samtec, Inc. | 1 $18.9900 | Datasheet | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | Shielded | -50°C ~ 165°C | - | 5,980 Cart + RFQ |

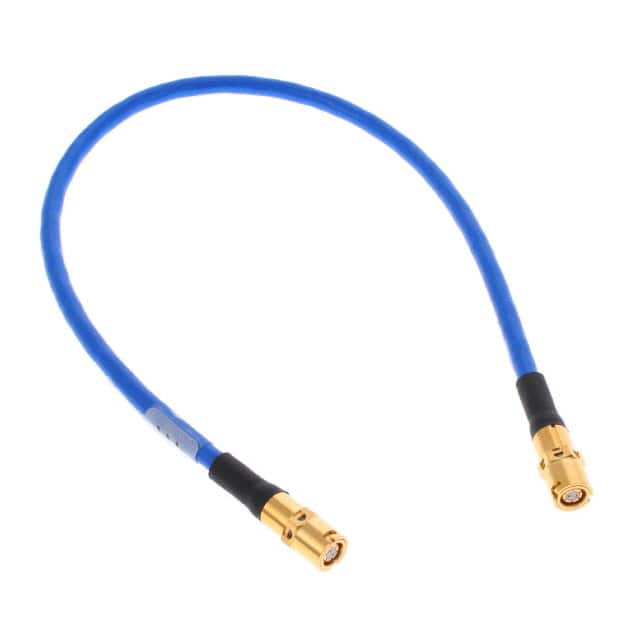

C28S-11.00-SPS8-SPS8 Samtec, Inc. | 1 $64.8700 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug | Female | Free Hanging (In-Line) | - | 11.000" (279.40mm) | Twinaxial | 100 Ohms | - | 100 Ohms | 4 GHz | Blue | Shielded | -20°C ~ 105°C | - | 5,936 Cart + RFQ |

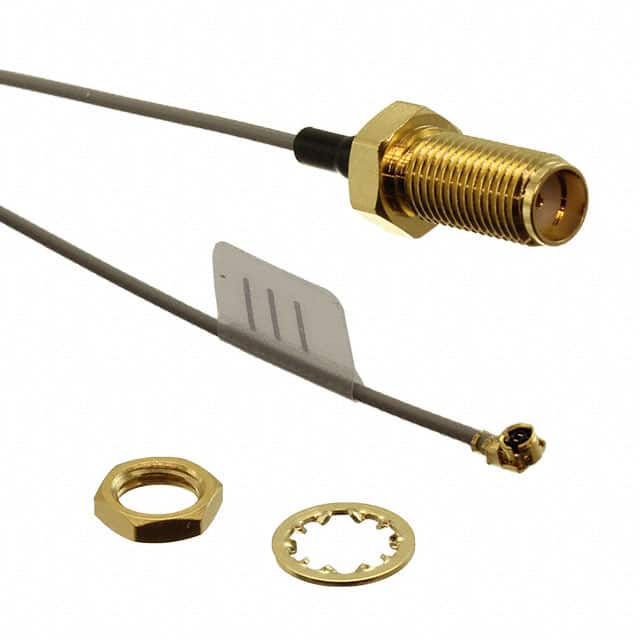

MH113-MH1RP-01BJ1-0150 Samtec, Inc. | 1 $12.8900 | Datasheet | U.FL (UMCC), IPEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), IPEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | 5,068 Cart + RFQ |

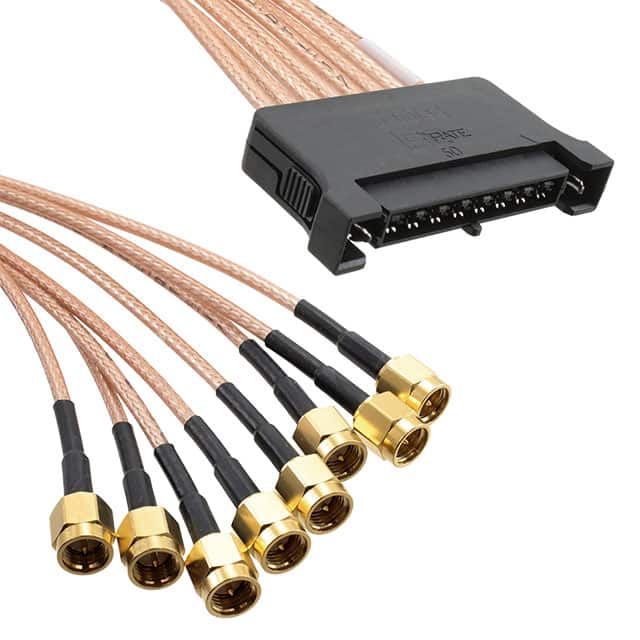

IJ5H-08-0610-S-2-01SP1 Samtec, Inc. | 1 $127.5400 | Datasheet | IJ5H to SMA | IJ5H Plug | Male | Panel Mount | Latch Lock | SMA Plug (8) | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 9.5 GHz | Copper | Shielded | -40°C ~ 90°C | - | 1,480 Cart + RFQ |
