Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 62
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7012-1331 Amphenol SV Microwave | 1 $122.2300 | Datasheet | SMA to SMP | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 8,141 Cart + RFQ |
7012-0799 Amphenol SV Microwave | 1 $136.3300 | Datasheet | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | 4,057 Cart + RFQ |
7012-0802 Amphenol SV Microwave | 1 $139.1800 | Datasheet | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | 3,860 Cart + RFQ |
7012-1300 Amphenol SV Microwave | 1 $151.7300 | Datasheet | SMA to SMP | SMA Plug | Male | Free Hanging (In-Line) | - | SMP Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 6,133 Cart + RFQ |
7012-0804 Amphenol SV Microwave | 1 $153.2100 | Datasheet | SMP to SMP | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | 8,018 Cart + RFQ |
7093-0175 Amphenol SV Microwave | 1 $164.9900 | Datasheet | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 9,886 Cart + RFQ |
7032-6729-120 Amphenol SV Microwave | 1 $165.1600 | Datasheet | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | 8,442 Cart + RFQ |
7032-7158 Amphenol SV Microwave | 1 $166.7600 | Datasheet | SMPM to SMPM | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | 4,428 Cart + RFQ |
7015-0718 Amphenol SV Microwave | 1 $227.2500 | Datasheet | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | 7,237 Cart + RFQ |
7015-0803 Amphenol SV Microwave | 1 $227.2500 | Datasheet | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | 1,150 Cart + RFQ |
7015-0717 Amphenol SV Microwave | 1 $227.2500 | Datasheet | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | 1,040 Cart + RFQ |
7016-0069 Amphenol SV Microwave | 1 $227.2500 | Datasheet | SMPM to 2.4mm | SMPM Jack | Female | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | 9,752 Cart + RFQ |
7038-0249 Amphenol SV Microwave | 1 $243.8200 | Datasheet | SMPS to SMPS | SMPS Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMPS Jack, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 40 GHz | Blue | Shielded | -65°C ~ 165°C | - | 3,936 Cart + RFQ |

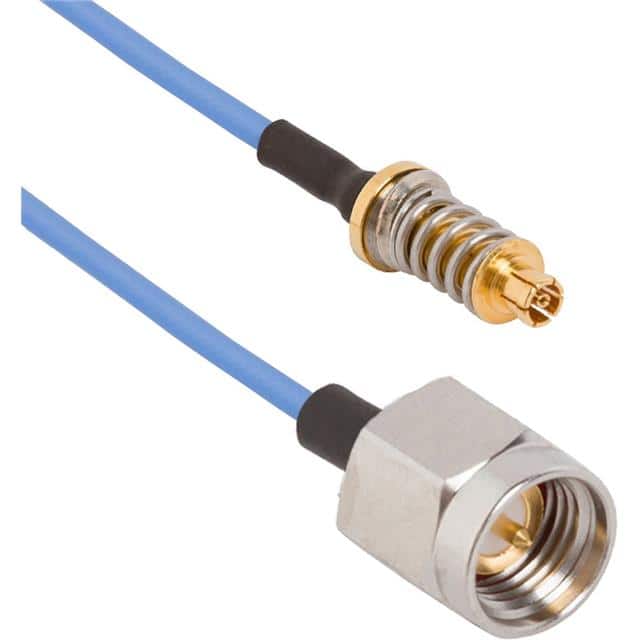

7032-6728-060 Amphenol SV Microwave | 1 $154.0600 | Datasheet | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Flexible Cable | - | - | 50 Ohms | 26.5 GHz | Blue | Shielded | -65°C ~ 165°C | - | 4,583 Cart + RFQ |

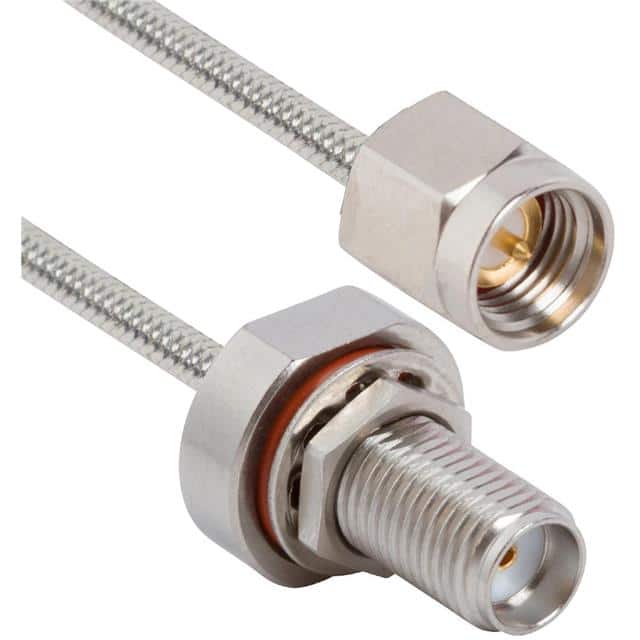

7029-3580 Amphenol SV Microwave | 1 $110.0300 | Datasheet | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.085" Flexible Cable | - | - | 50 Ohms | 18 GHz | Silver | Shielded | -65°C ~ 165°C | - | 2,607 Cart + RFQ |

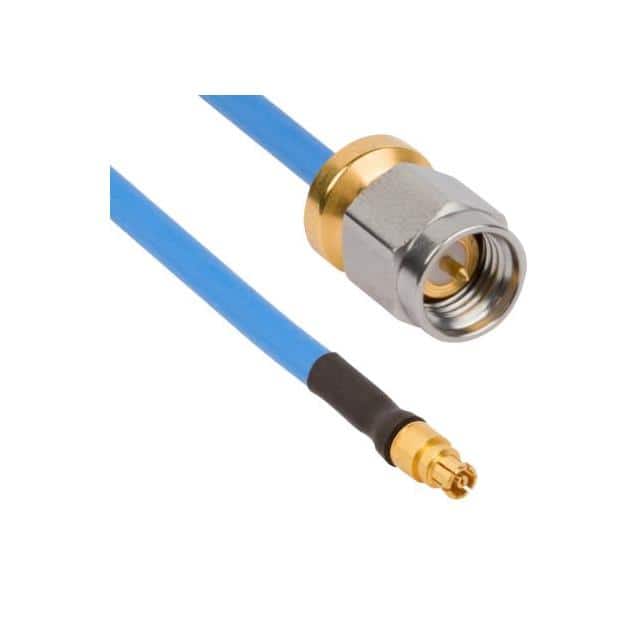

7029-3639 Amphenol SV Microwave | 1 $122.4200 | Datasheet | SMA to SMPM | SMPM Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 1,810 Cart + RFQ |

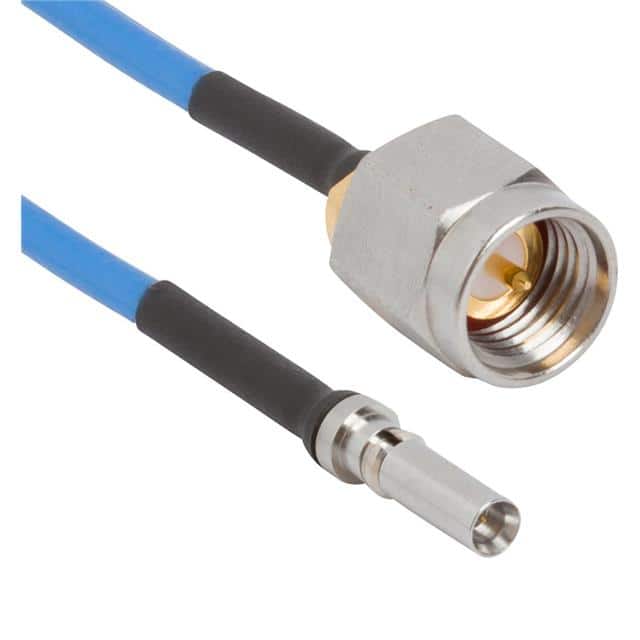

7038-0337 Amphenol SV Microwave | 1 $227.2500 | Datasheet | SMA to SMPS | SMA Plug | Male | Free Hanging (In-Line) | - | SMPS Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | 50 Ohms | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 8,956 Cart + RFQ |
7029-3573 Amphenol SV Microwave | 1 $277.8500 | Datasheet | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | IP68 - Dust Tight, Waterproof | 8,537 Cart + RFQ |

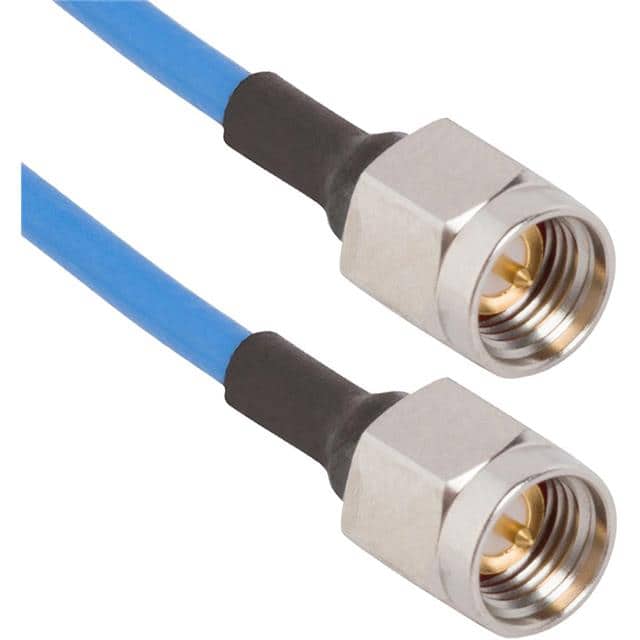

7029-2553 Amphenol SV Microwave | 1 $61.8100 | Datasheet | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 6,556 Cart + RFQ |

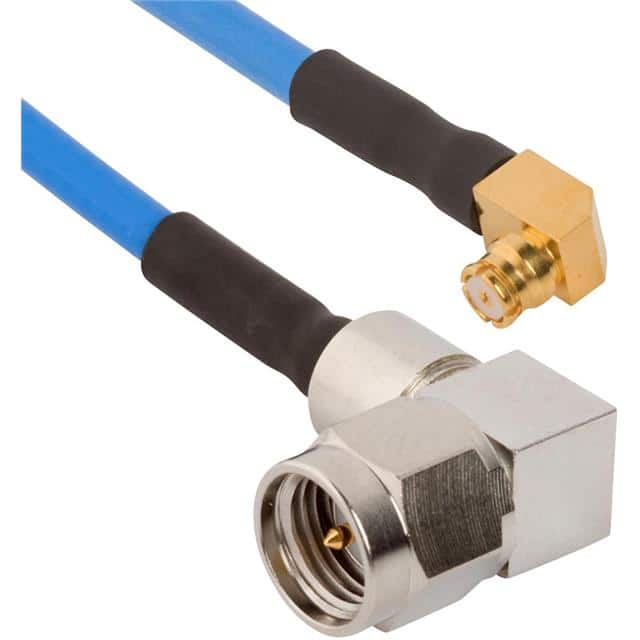

7012-1328 Amphenol SV Microwave | 1 $66.6200 | Datasheet | SMA to SMP | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMP Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | TFlex-405 | - | - | 50 Ohms | 18 GHz | Blue | Shielded | -65°C ~ 165°C | - | 2,704 Cart + RFQ |
