Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 23
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

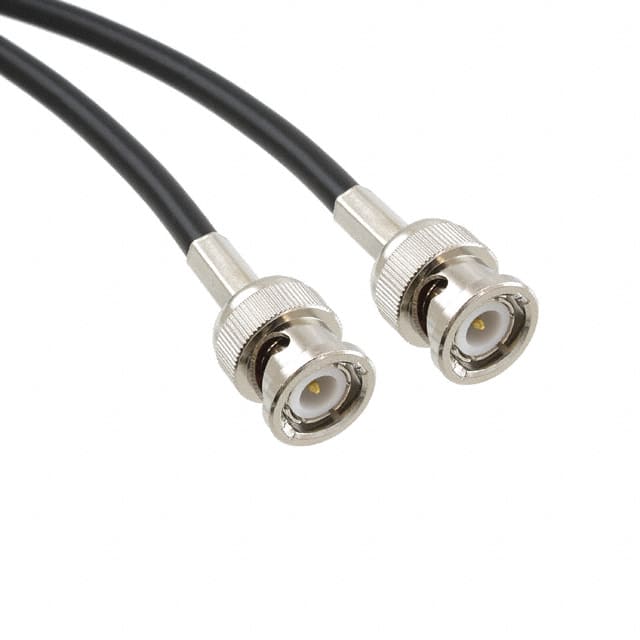

5697-12 Pomona Electronics | 1 $12.3900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C/U | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | 6,760 Cart + RFQ |
2249-E-36 Pomona Electronics | 1 $26.1900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | 2,651 Cart + RFQ |
5697-6 Pomona Electronics | 1 $12.0900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58C/U | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | 5,784 Cart + RFQ |

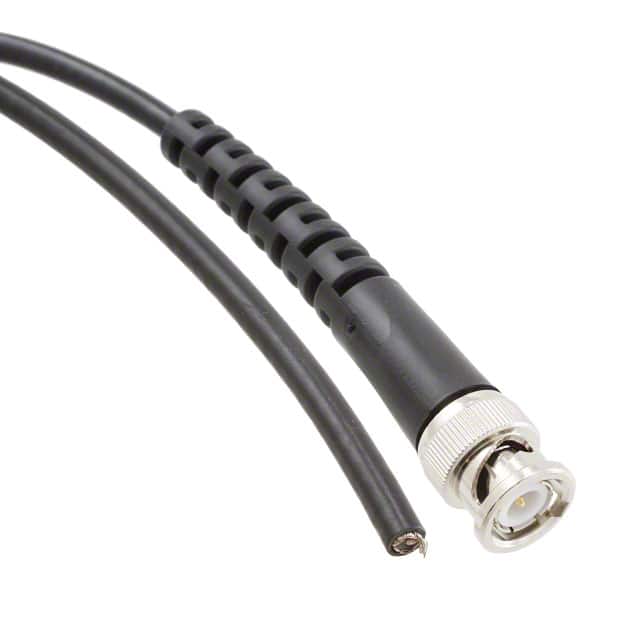

5266-C-60 Pomona Electronics | 1 $21.4900 | Datasheet | BNC to Cable | BNC Plug | Male | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 50°C | - | 3,780 Cart + RFQ |

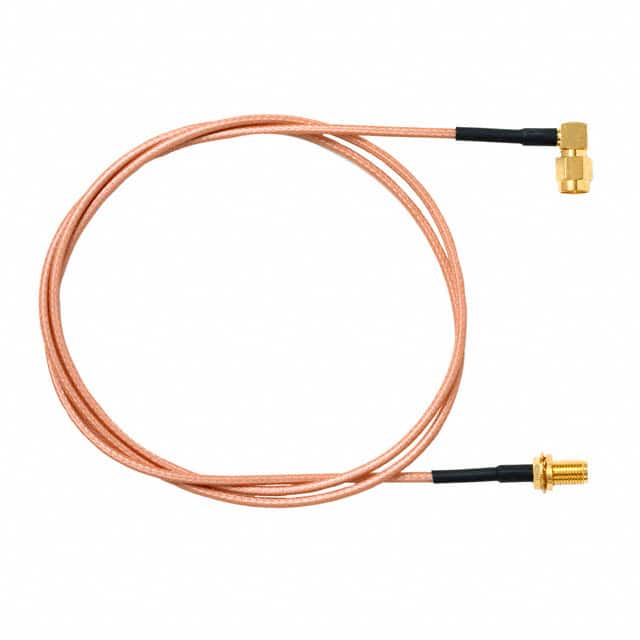

73071-BB-12 Pomona Electronics | 1 $24.6900 | Datasheet | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | 2,300 Cart + RFQ |

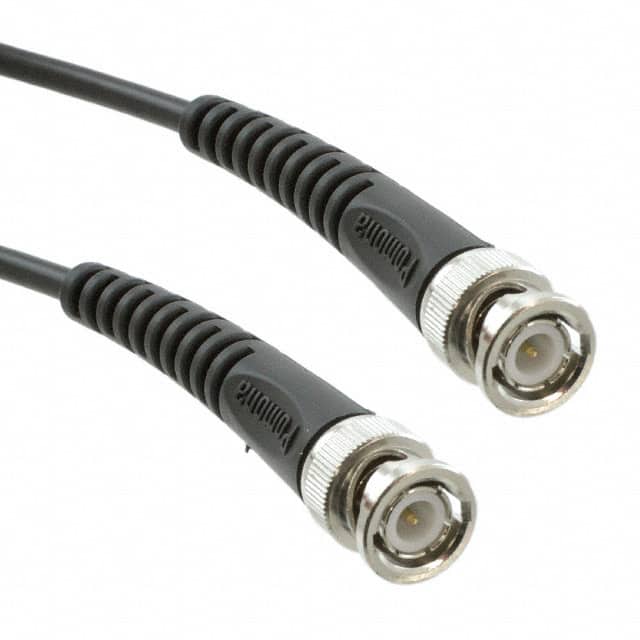

2249-C-48 Pomona Electronics | 1 $27.4900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 7,319 Cart + RFQ |

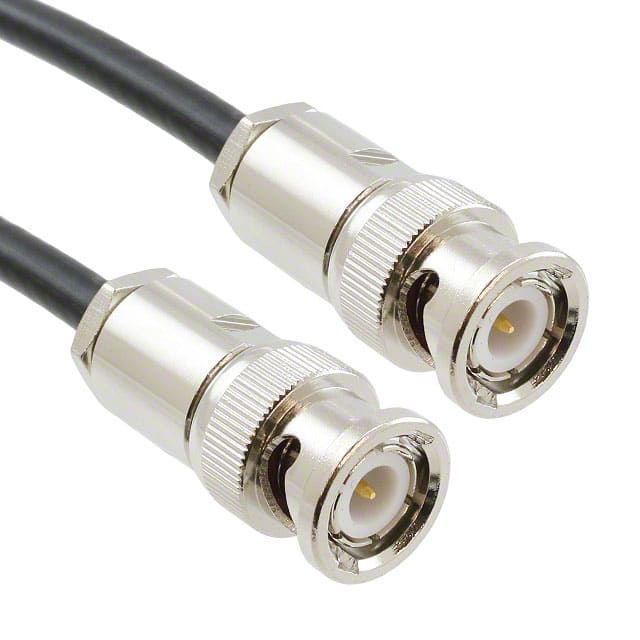

BNC-C-18 Pomona Electronics | 1 $27.4900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | 9,781 Cart + RFQ |
2249-E-72 Pomona Electronics | 1 $27.4900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | 7,949 Cart + RFQ |

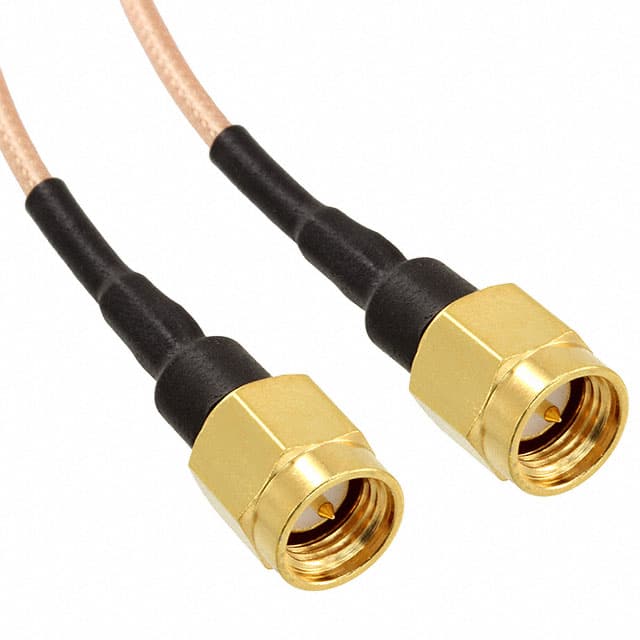

4846-UU-60 Pomona Electronics | 1 $29.8900 | Datasheet | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-178B | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -65°C ~ 165°C | - | 9,555 Cart + RFQ |
5697-120 Pomona Electronics | 1 $24.2900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-58C/U | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | 5,789 Cart + RFQ |
2249-C-36 Pomona Electronics | 1 $24.6900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 3,816 Cart + RFQ |

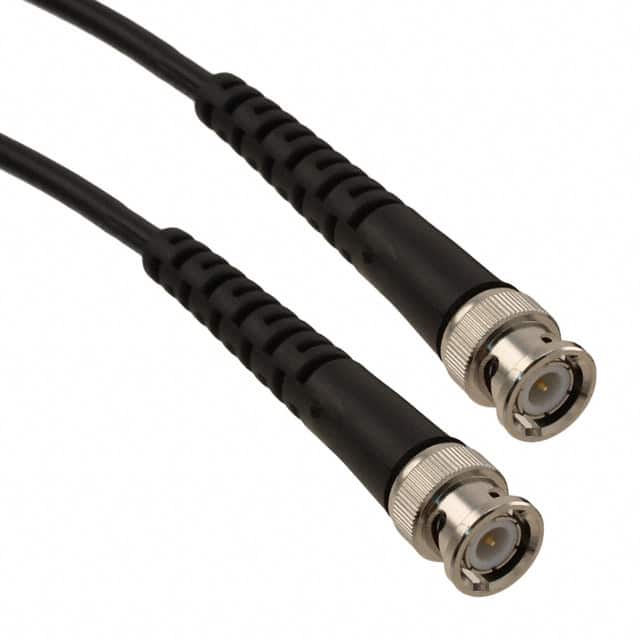

2249-Y-12 Pomona Electronics | 1 $34.2900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-223 DS | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | 9,716 Cart + RFQ |
2249-C-60 Pomona Electronics | 1 $27.4900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 1,675 Cart + RFQ |
2249-C-72 Pomona Electronics | 1 $27.4900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 3,321 Cart + RFQ |
2249-C-180 Pomona Electronics | 1 $40.0900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 5,935 Cart + RFQ |
2249-C-240 Pomona Electronics | 1 $45.7900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 240.0" (6.1m) 20.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 4,605 Cart + RFQ |
2249-C-600 Pomona Electronics | 1 $77.7900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 600.0" (15.2m) 50.0' | RG-58C | 50 Ohms | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | 4,594 Cart + RFQ |

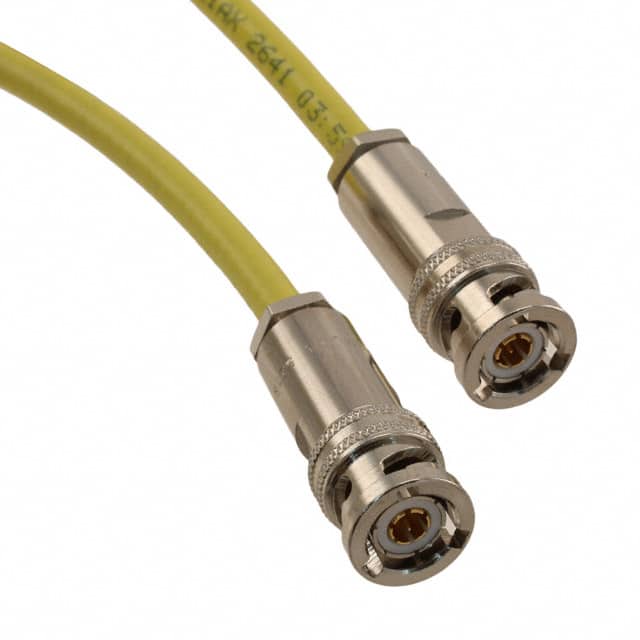

5223-60 Pomona Electronics | 1 $142.9900 | Datasheet | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | - | - | Triax Plug | Male | - | - | 60.0" (1.5m) 5.0' | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | 6,011 Cart + RFQ |

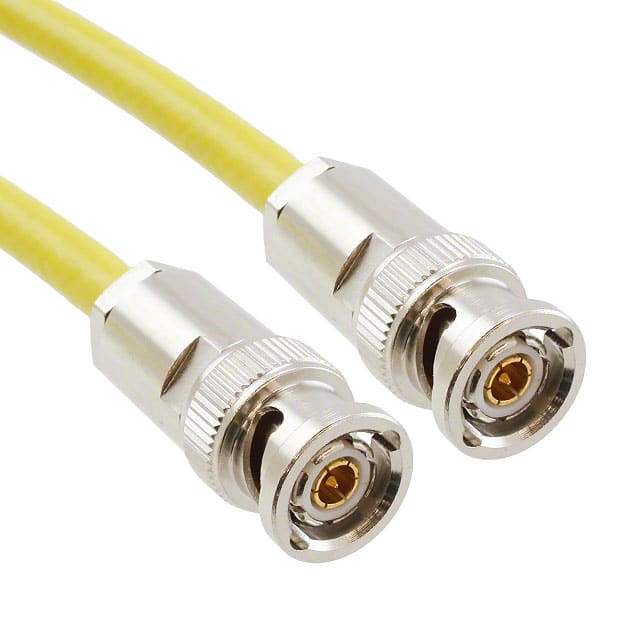

5054-60 Pomona Electronics | 1 $148.9900 | Datasheet | BNC 2 Lug Triax to BNC 2 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58A | - | - | 50 Ohms | - | Yellow | Shielded | - | - | 1,234 Cart + RFQ |
2249-E-48 Pomona Electronics | 1 $27.4900 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59B | 75 Ohms | - | 75 Ohms | - | Black | Shielded | - | - | 3,093 Cart + RFQ |
