Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 27
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PE3C6371-50CM Pasternack | 1 $47.1900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 2,539 Cart + RFQ |
PE3C6371-36 Pasternack | 1 $51.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 7,306 Cart + RFQ |
PE3C6371-48 Pasternack | 1 $55.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 5,189 Cart + RFQ |
PE3C6372-36 Pasternack | 1 $56.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 4,821 Cart + RFQ |
PE3C6345-24 Pasternack | 1 $58.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | 4,891 Cart + RFQ |
PE3C6210-12 Pasternack | 1 $58.9900 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug, Right Angle | Male | - | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | 1,595 Cart + RFQ |

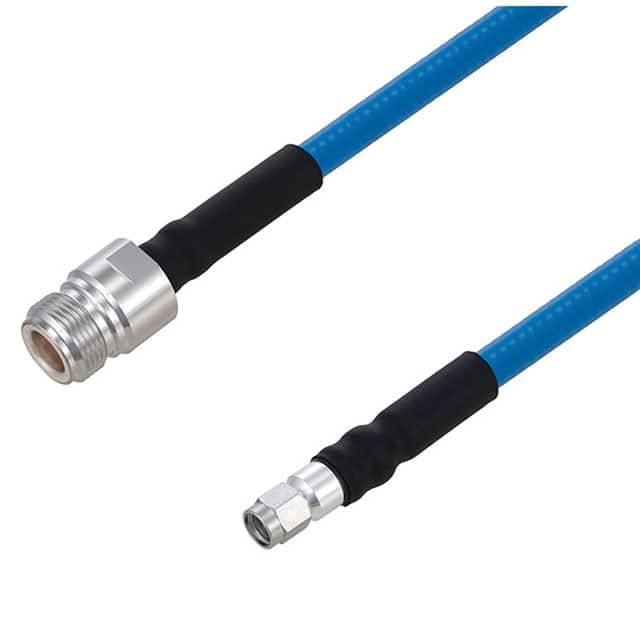

PE3C6215-12 Pasternack | 1 $58.9900 | Datasheet | SMA to N-Type | N-Type Jack | Female | - | - | SMA Plug | Male | - | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | 9,849 Cart + RFQ |

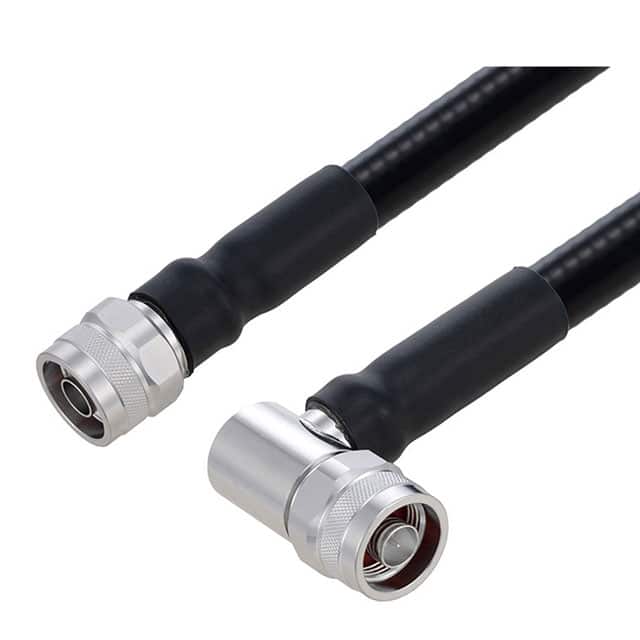

PE3C6372-48 Pasternack | 1 $59.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 8,116 Cart + RFQ |

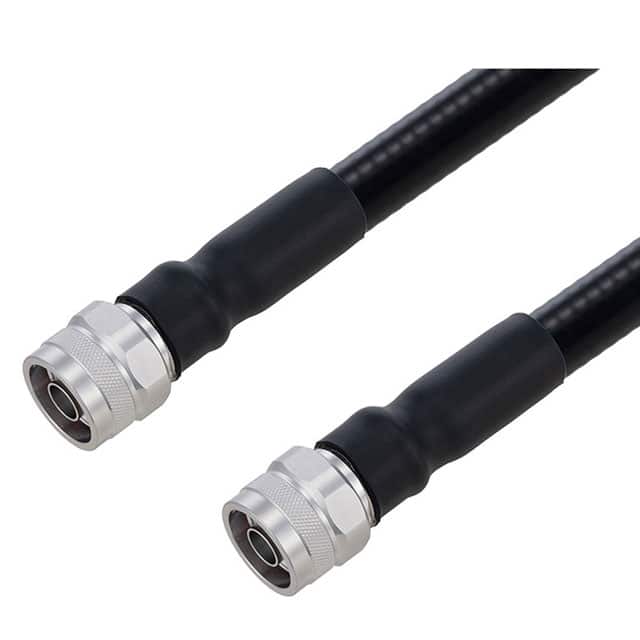

PE3C6371-60 Pasternack | 1 $59.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 6,494 Cart + RFQ |

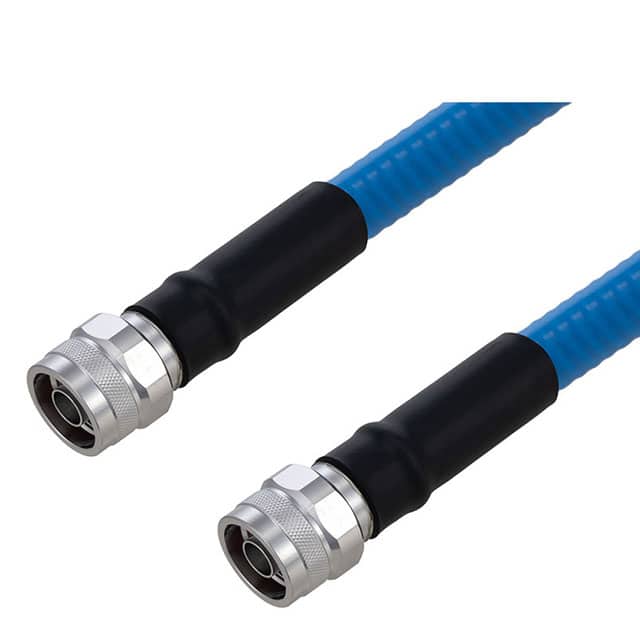

PE3C6370-12 Pasternack | 1 $59.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | 7,122 Cart + RFQ |

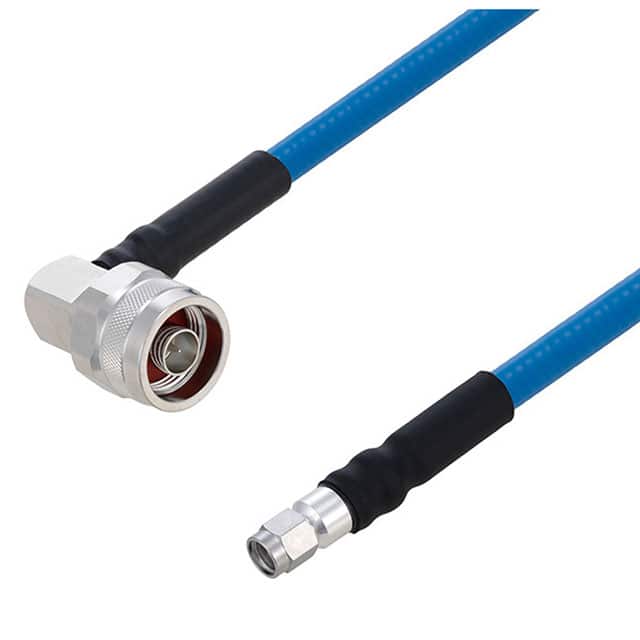

PE3C6209-12 Pasternack | 1 $60.9900 | Datasheet | SMA to N-Type | SMA Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | 9,193 Cart + RFQ |

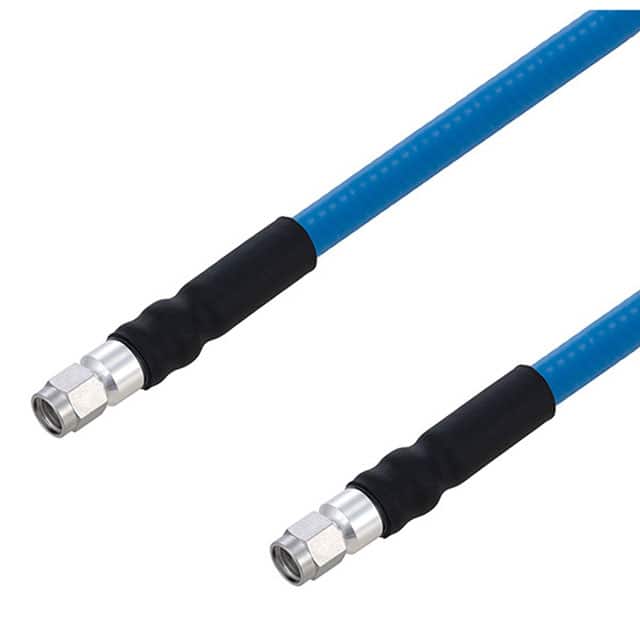

PE3C6207-24 Pasternack | 1 $60.9900 | Datasheet | SMA to SMA | SMA Plug | Male | - | - | SMA Plug | Male | - | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | 5,895 Cart + RFQ |

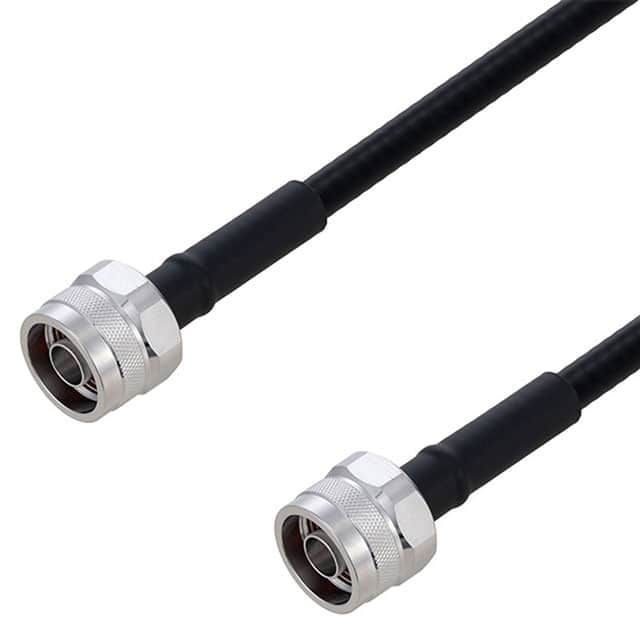

PE3C6345-100CM Pasternack | 1 $61.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | 2,358 Cart + RFQ |

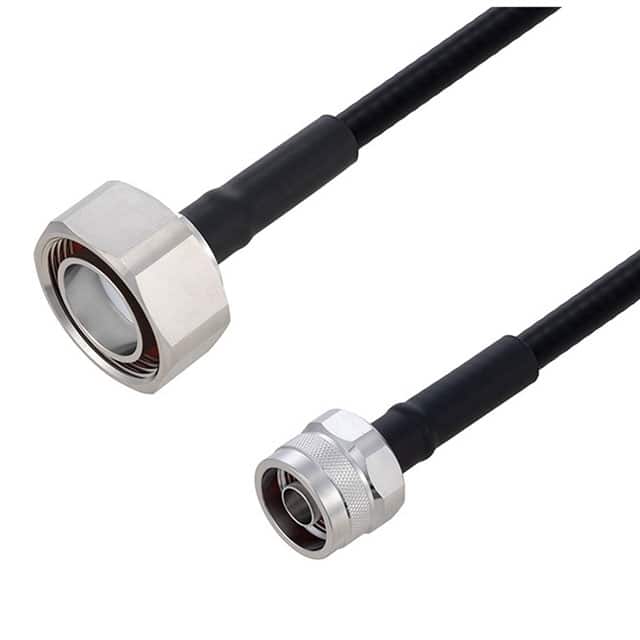

PE3C6342-24 Pasternack | 1 $61.9900 | Datasheet | 7/16 DIN to N-Type | 7/16 Plug | Male | - | - | N-Type Plug | Male | - | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | 9,833 Cart + RFQ |

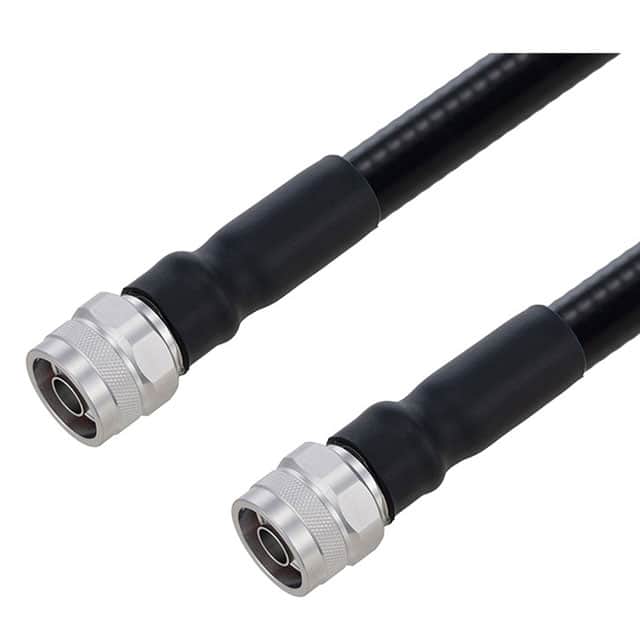

PE3C6371-200CM Pasternack | 1 $63.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 8,780 Cart + RFQ |

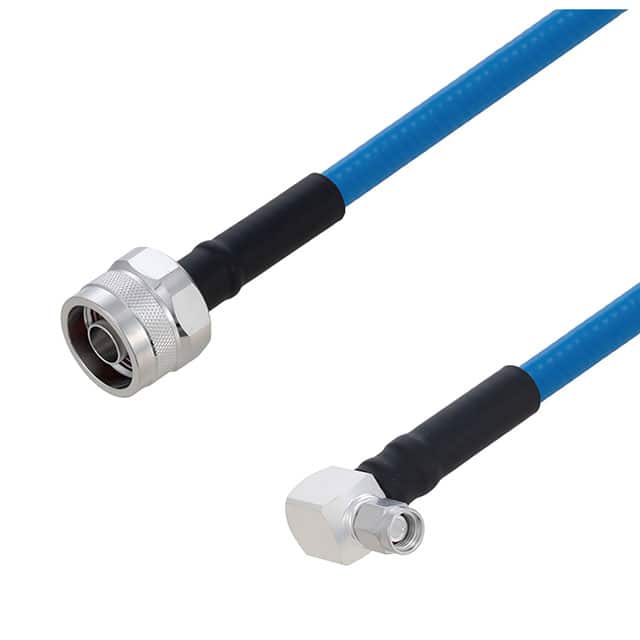

PE3C6212-12 Pasternack | 1 $63.9900 | Datasheet | SMA to N-Type | SMA Plug, Right Angle | Male | - | - | N-Type Plug | Male | - | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | -55°C ~ 200°C | - | 6,963 Cart + RFQ |

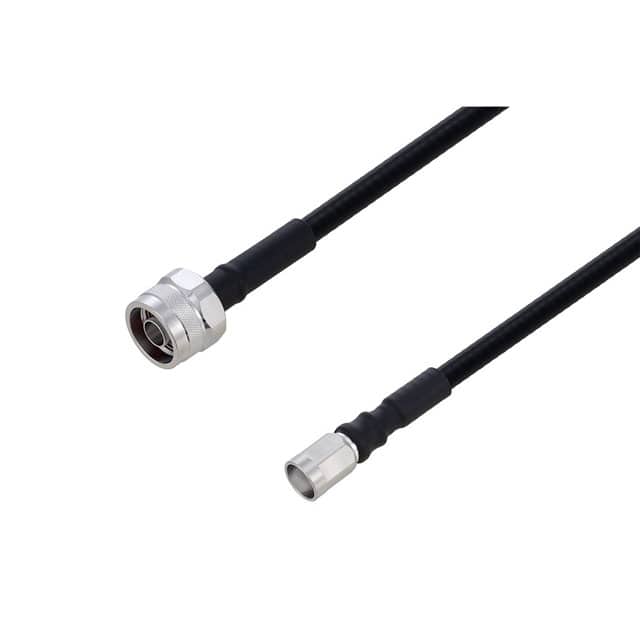

PE3C6347-12 Pasternack | 1 $65.9900 | Datasheet | N-Type to NEX | N-Type Plug | Male | - | - | NEX10 Plug | Male | - | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | 6,242 Cart + RFQ |

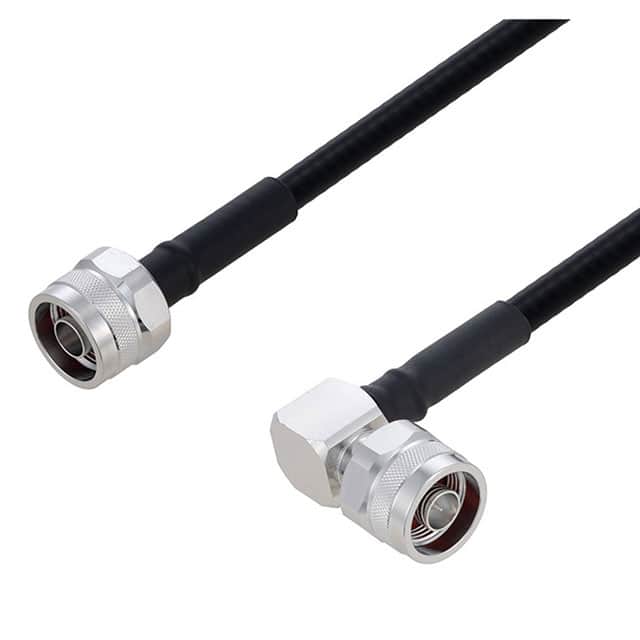

PE3C6346-100CM Pasternack | 1 $65.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | 2,706 Cart + RFQ |

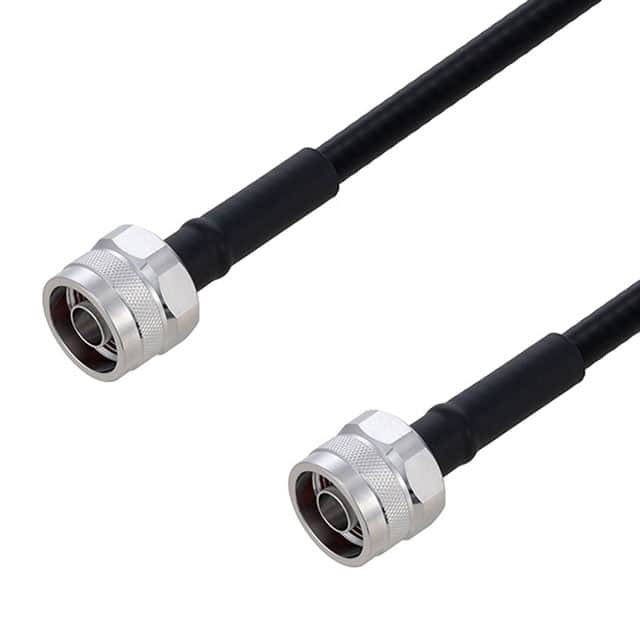

PE3C6345-150CM Pasternack | 1 $65.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | -55°C ~ 200°C | - | 2,806 Cart + RFQ |

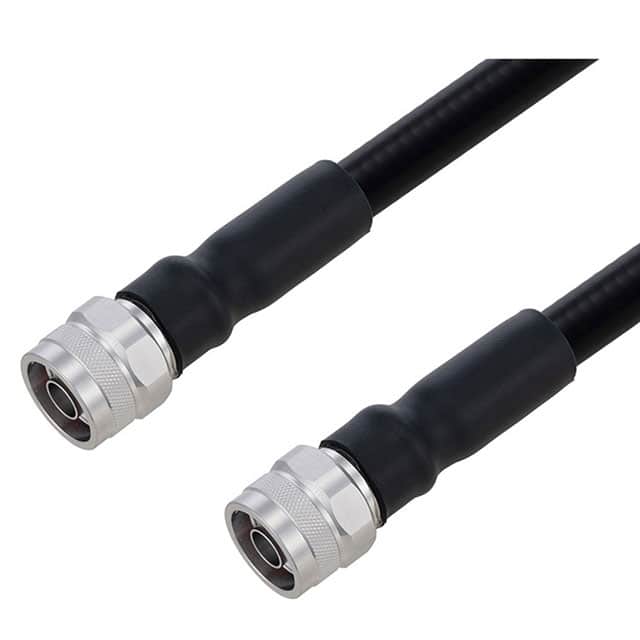

PE3C6374-200CM Pasternack | 1 $65.9900 | Datasheet | N-Type to N-Type | N-Type Plug | Male | - | - | N-Type Plug | Male | - | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 200°C | - | 4,911 Cart + RFQ |
