Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 4
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

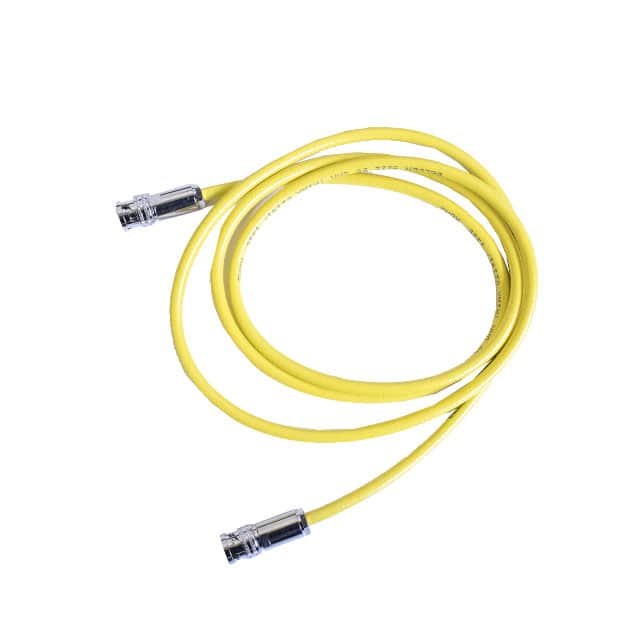

BU-P5223-60 Mueller Electric Co. | 1 $132.0800 | Datasheet | BNC 3 Lug Triax to BNC 3 Lug Triax | Triax Plug | Male | Free Hanging (In-Line) | - | Triax Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | Belden 9222 | - | - | 50 Ohms | - | Yellow | Shielded | - | - | 1,147 Cart + RFQ |
BU-4150029012 Mueller Electric Co. | 1 $10.9800 | Datasheet | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | 6,828 Cart + RFQ |

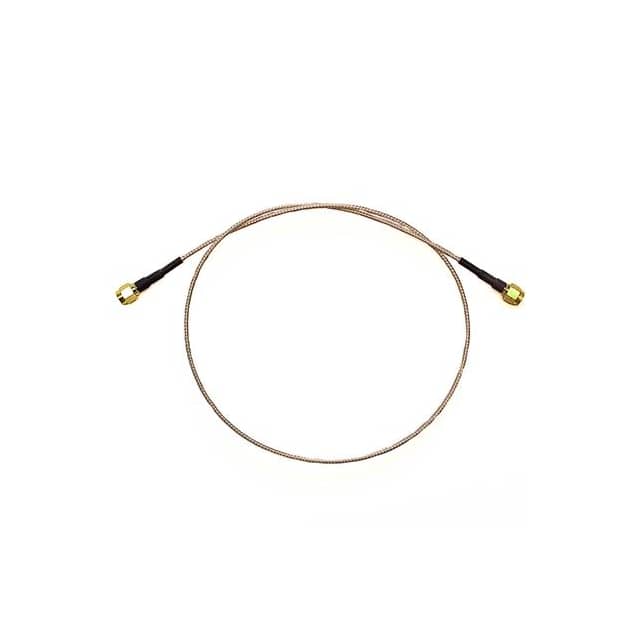

BU-4150029036 Mueller Electric Co. | 1 $11.2100 | Datasheet | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | 5,501 Cart + RFQ |

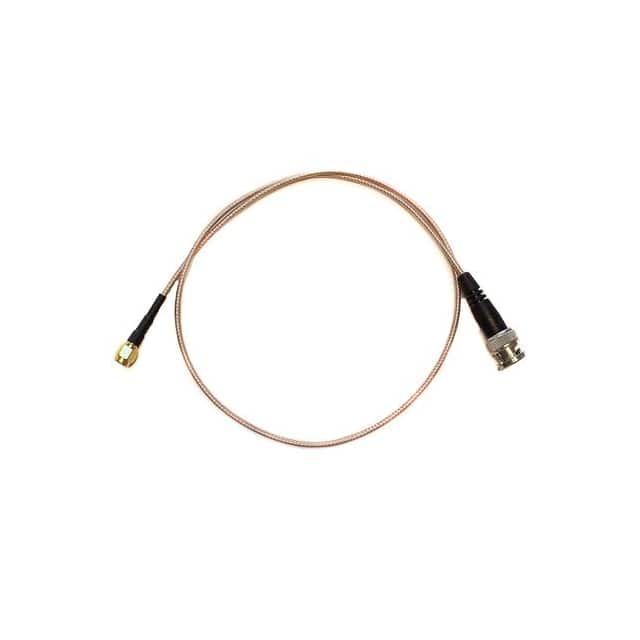

BU-4150028036 Mueller Electric Co. | 1 $12.9000 | Datasheet | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | 6,299 Cart + RFQ |
