Coaxial Cables (RF)
Coaxial cable products consist of two or more conductors of circular cross section, the center points of which are coincident in the finished product. They are differentiated from shielded cables having one internal conductor by the degree of care used in manufacturing; products considered coaxial cables are manufactured with greater attention paid to maintaining consistent conductor geometries, insulation thickness, and insulation dielectric properties along the length of the cable, in order to minimize discontinuities in cable characteristics along its length that would adversely affect its utility for carrying high frequency signals.
Product List
Total Components: 64
Product | Pricing | Datasheet | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Ingress Protection | Stock & Quantity |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

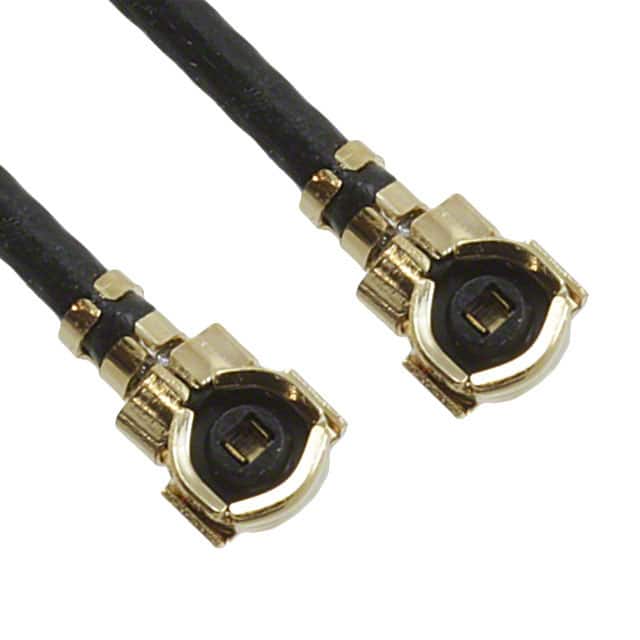

0731160044 Molex | 1 $2.9500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - | - | 1,528 Cart + RFQ |

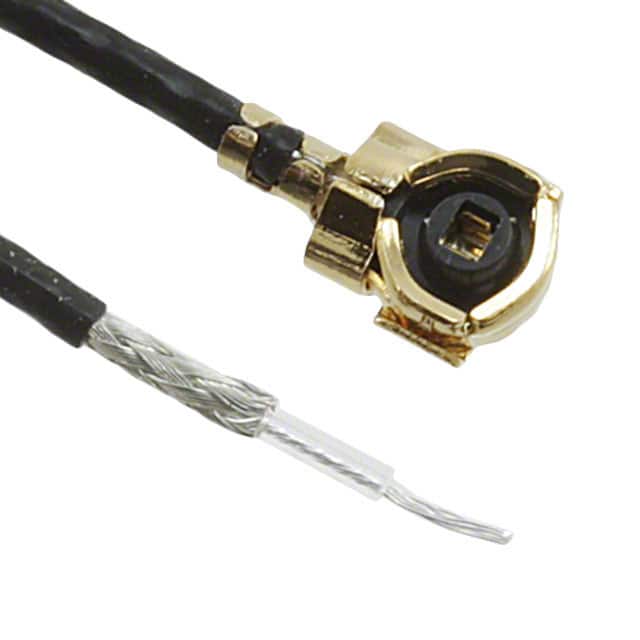

0731160075 Molex | 1 $3.4800 | Datasheet | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - | - | 8,590 Cart + RFQ |
0731160046 Molex | 1 $4.0100 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - | - | 5,965 Cart + RFQ |

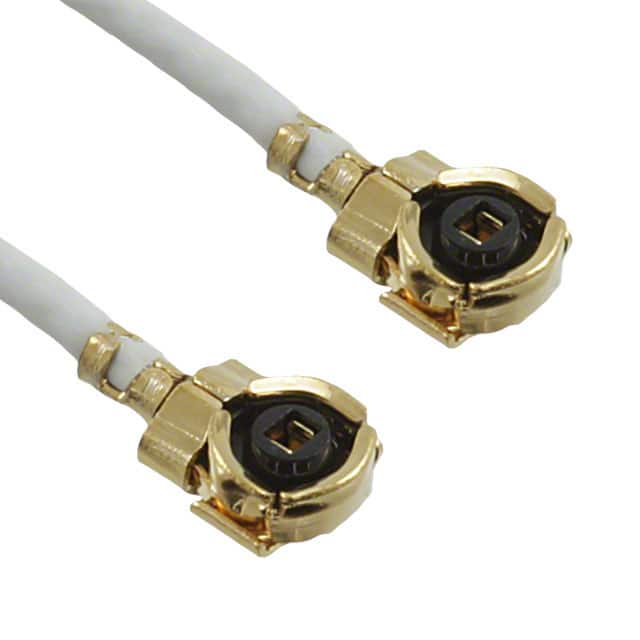

0731160065 Molex | 1 $4.1200 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 4,576 Cart + RFQ |

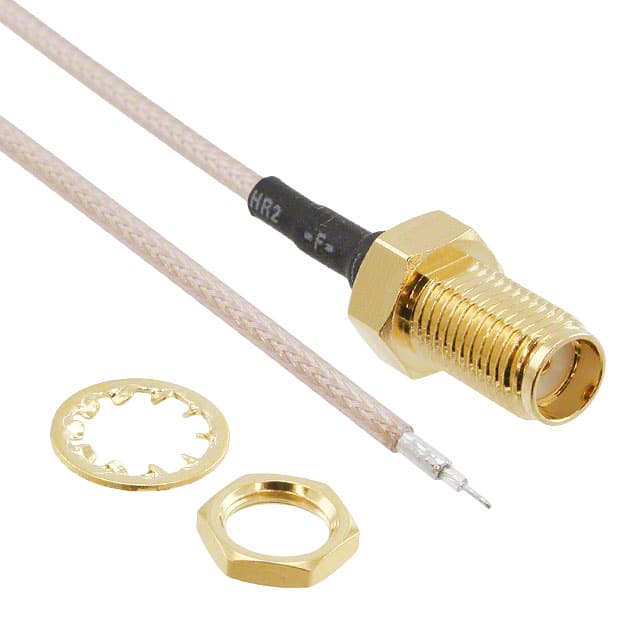

0897611670 Molex | 1 $7.5300 | Datasheet | SMA to Cable | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 5.000" (127.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | 6,324 Cart + RFQ |

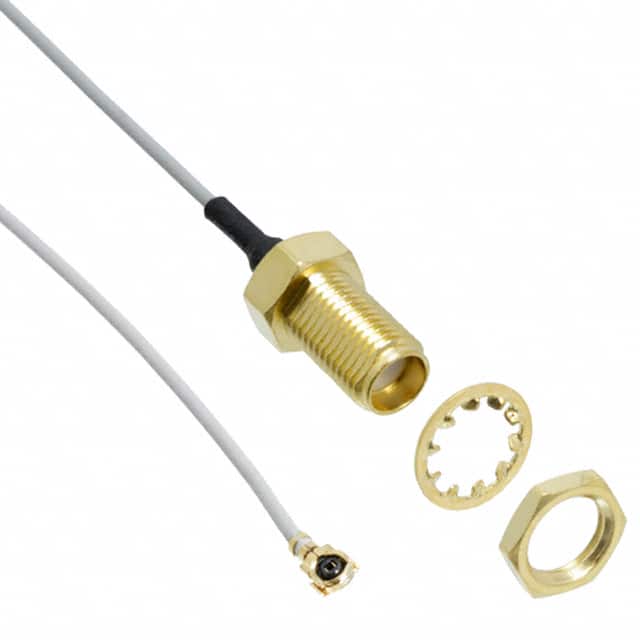

0897613412 Molex | 1 $9.2900 | Datasheet | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 4,772 Cart + RFQ |
0731160016 Molex | 1 $3.6400 | Datasheet | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 7,177 Cart + RFQ |
0731160024 Molex | 1 $3.6400 | Datasheet | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000" (76.20mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 5,606 Cart + RFQ |
0731160066 Molex | 1 $3.6500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 5,497 Cart + RFQ |
0731160056 Molex | 1 $3.8200 | Datasheet | U.FL (UMCC) to Cable | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 9.000" (228.60mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | - | - | - | 9,671 Cart + RFQ |

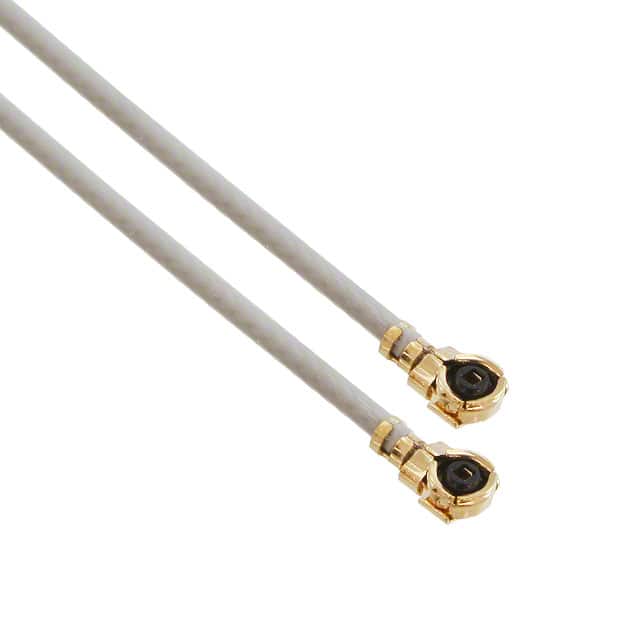

0734120237 Molex | 1 $4.6200 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.449" (240.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 2,870 Cart + RFQ |
0897616780 Molex | 1 $15.5000 | Datasheet | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | 2,006 Cart + RFQ |
0897616133 Molex | 1 $16.2700 | Datasheet | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | 7,058 Cart + RFQ |
0897616782 Molex | 1 $20.1000 | Datasheet | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | 8,601 Cart + RFQ |
0897616135 Molex | 1 $20.5100 | Datasheet | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | 6,431 Cart + RFQ |
0897616760 Molex | 1 $15.7300 | Datasheet | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | 8,204 Cart + RFQ |

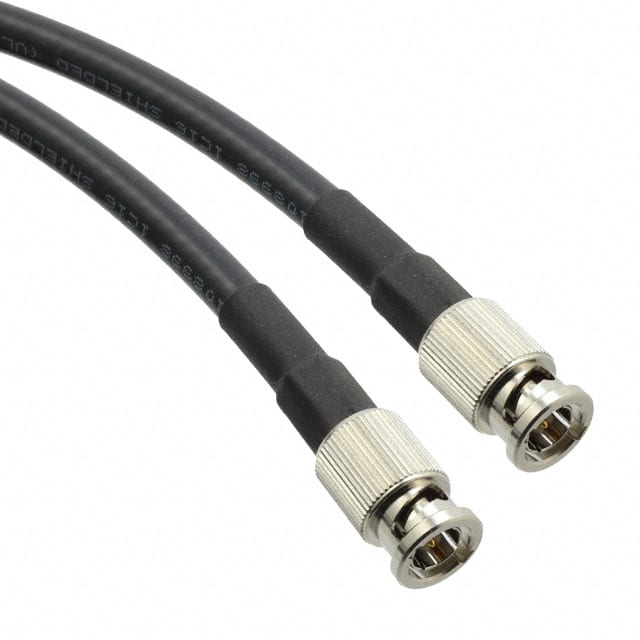

0897629290 Molex | 1 $136.5000 | Datasheet | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | Belden 4794R | - | - | 75 Ohms | 12 GHz | Black | Shielded | -30°C ~ 75°C | - | 3,508 Cart + RFQ |

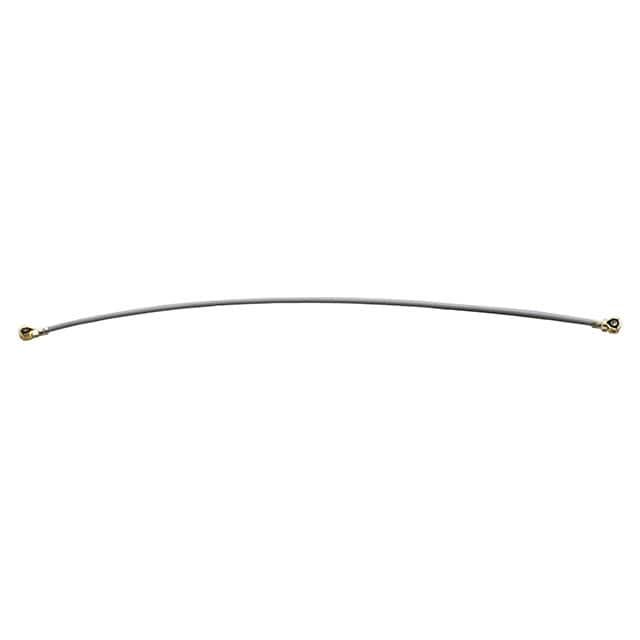

0734120231 Molex | 1 $3.4800 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.331" (110.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 8,220 Cart + RFQ |
0731160035 Molex | 1 $3.7600 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 6,671 Cart + RFQ |
0734120508 Molex | 1 $5.0500 | Datasheet | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | 1,244 Cart + RFQ |
